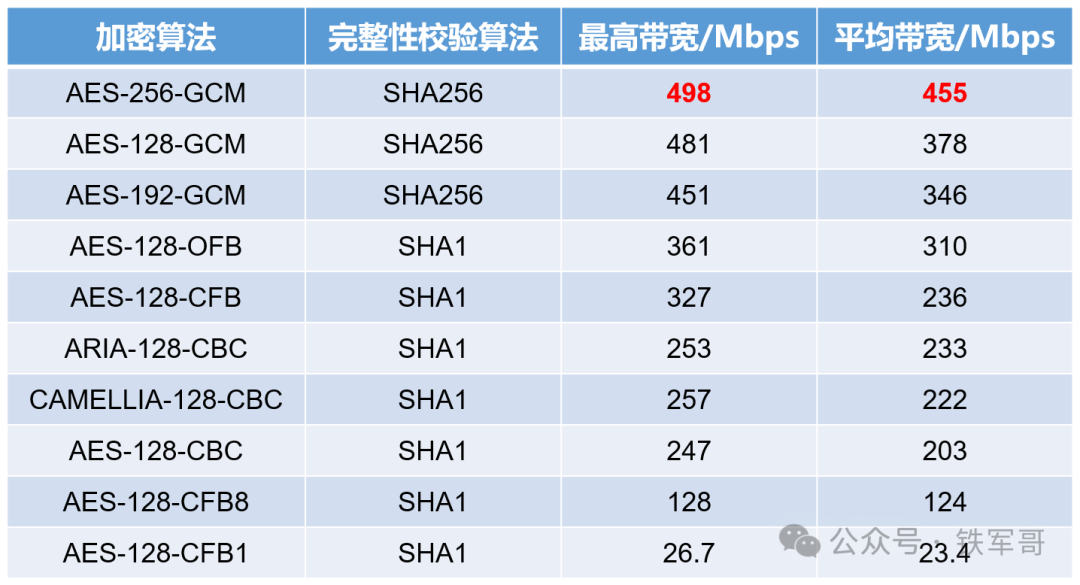

From the previous test (Performance Comparison of Different Encryption Algorithms in OpenVPN), we found that there are differences in forwarding performance when OpenVPN uses different encryption algorithms, as shown below:
Comparing the encryption algorithms, we can see that the specific encryption algorithms are divided into three parts: the first part is the algorithm name, which determines the basic encryption logic, mainly divided into AES, ARIA, and CAMELLIA, with performance ranking seemingly as ARIA > CAMELLIA > AES; the second part is the key length, which is a key parameter balancing security and performance, mainly having 128, 192, and 256 bits, with specific performance rankings needing further testing to clarify; the third part is the encryption mode, which affects the data processing flow and security enhancement features, divided into CBC, CFB, CFB1, CFB8, GCM, and OFB, with performance ranking seemingly as GCM > OFB > CFB > CBC > CFB8 > CFB1.
To further clarify the impact of encryption algorithms, key lengths, and encryption modes on performance, we will supplement the tests today with the national secret algorithm SM4 and the remaining AES encryption algorithms.

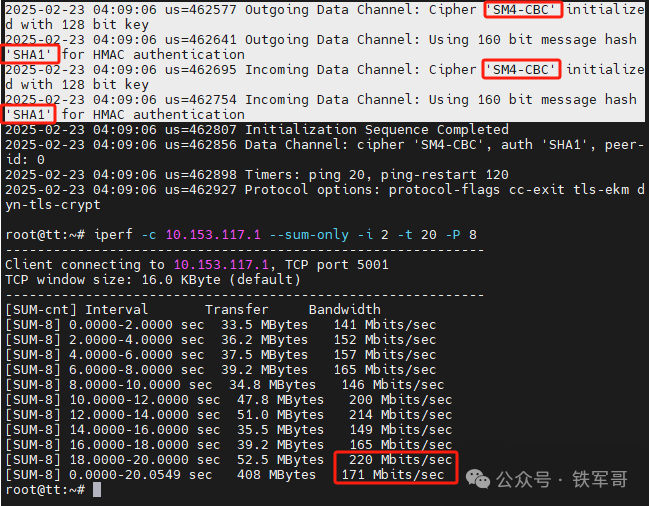

First, let’s test the national secret algorithm SM4-CBC, with a maximum bandwidth of 220 Mbps and an average bandwidth of 171 Mbps.

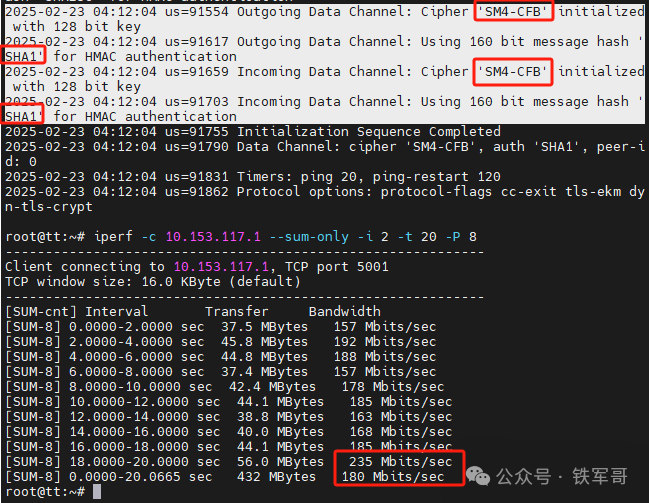

When using the SM4-CFB encryption algorithm, the maximum bandwidth is 235 Mbps and the average bandwidth is 180 Mbps.

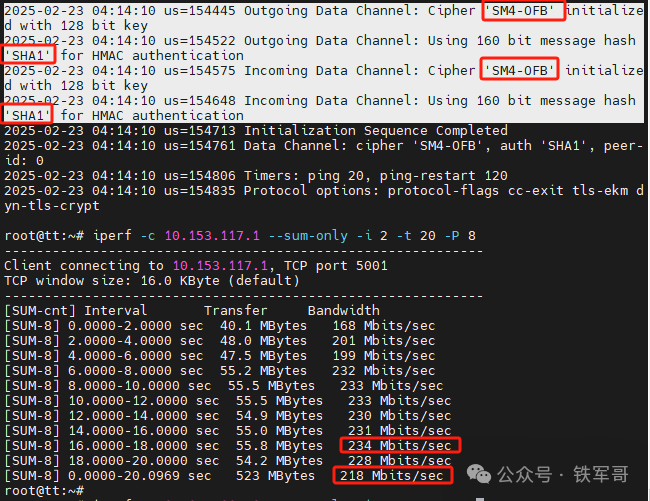

When using the SM4-OFB encryption algorithm, the maximum bandwidth is 234 Mbps and the average bandwidth is 218 Mbps.
When using the AES-192-CBC encryption algorithm, the maximum bandwidth is 271 Mbps and the average bandwidth is 233 Mbps.
When using the AES-192-CFB encryption algorithm, the maximum bandwidth is 328 Mbps and the average bandwidth is 249 Mbps.

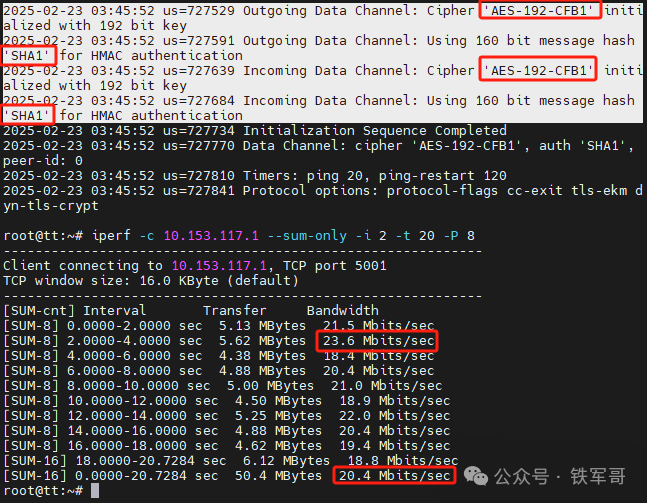

When using the AES-192-CFB1 encryption algorithm, the maximum bandwidth is 23.6 Mbps and the average bandwidth is 20.4 Mbps.
When using the AES-192-CFB8 encryption algorithm, the maximum bandwidth is 117 Mbps and the average bandwidth is 108 Mbps.
When using the AES-192-OFB encryption algorithm, the maximum bandwidth is 325 Mbps and the average bandwidth is 290 Mbps.
When using the AES-256-CBC encryption algorithm, the maximum bandwidth is 328 Mbps and the average bandwidth is 244 Mbps.
When using the AES-256-CFB encryption algorithm, the maximum bandwidth is 317 Mbps and the average bandwidth is 276 Mbps.

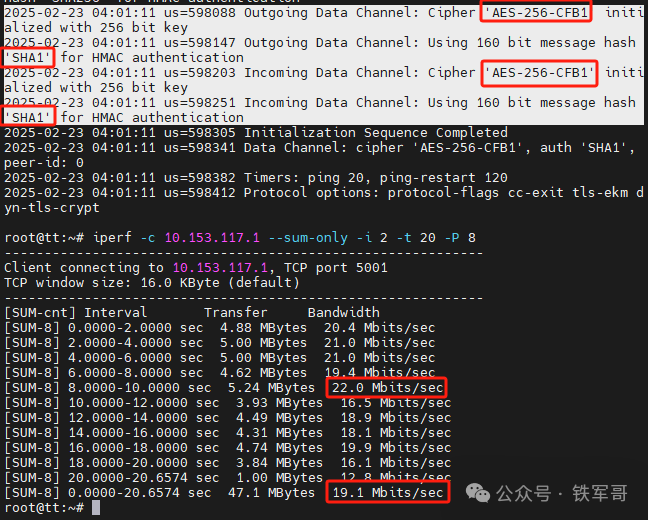

When using the AES-256-CFB1 encryption algorithm, the maximum bandwidth is 22 Mbps and the average bandwidth is 19.1 Mbps.
When using the AES-256-CFB8 encryption algorithm, the maximum bandwidth is 109 Mbps and the average bandwidth is 102 Mbps.

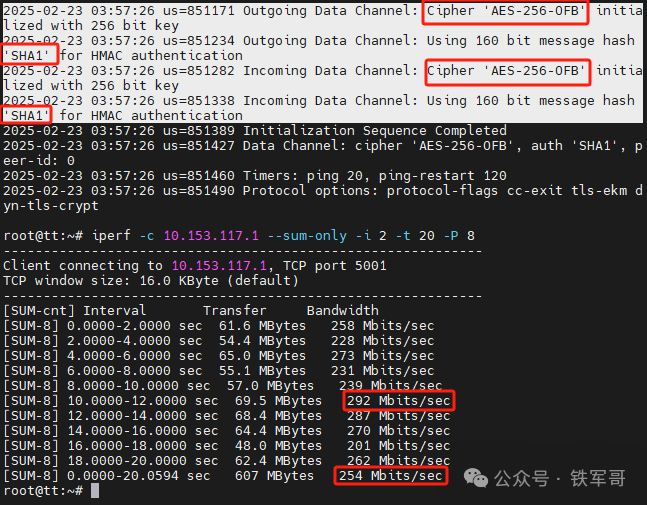

When using the AES-256-OFB encryption algorithm, the maximum bandwidth is 292 Mbps and the average bandwidth is 254 Mbps.

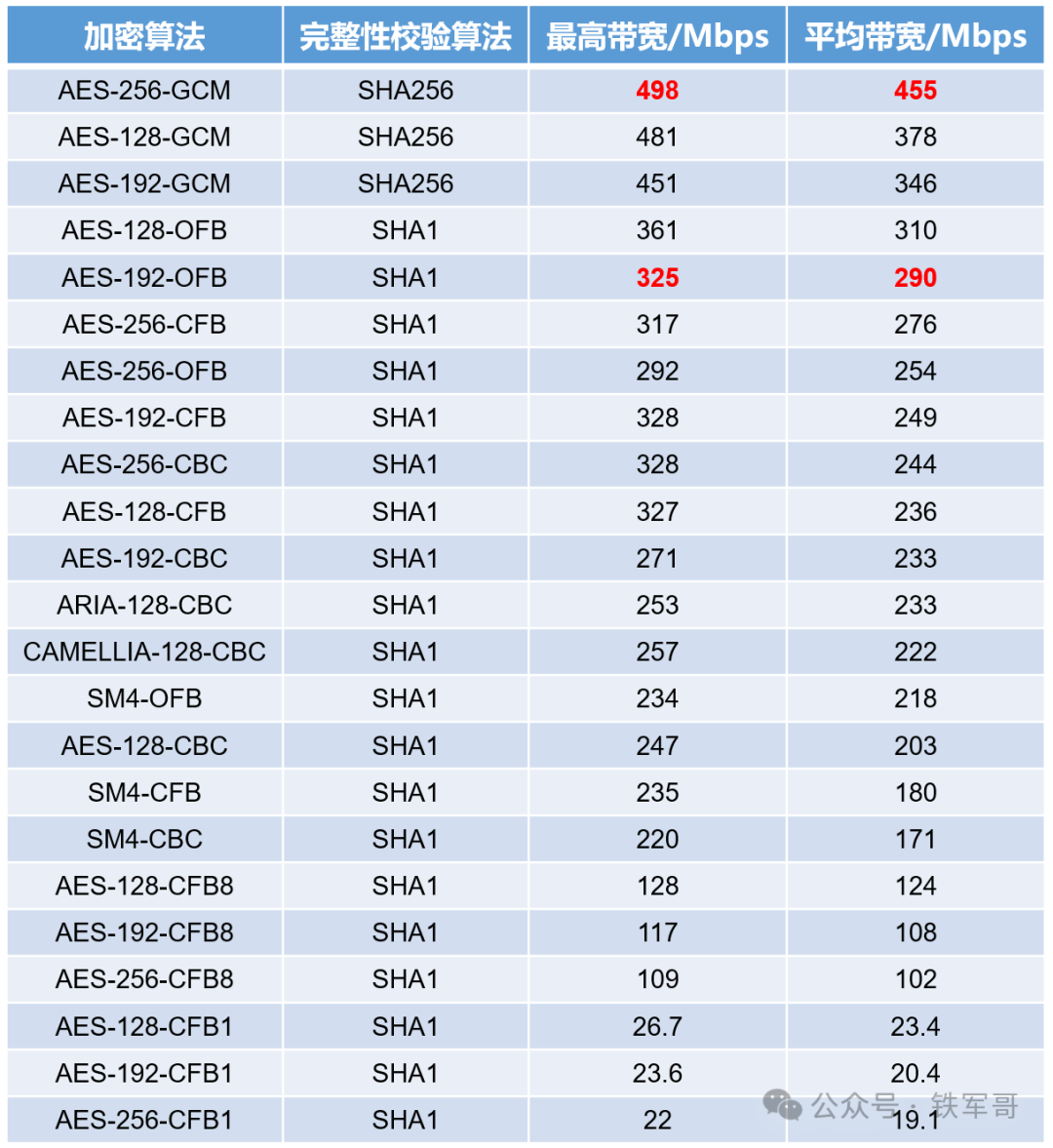

Summarizing the test results:
It can be seen that the ranking of encryption modes remains as follows: GCM > OFB > CFB > CBC > CFB8 > CFB1; the key length of SM4 is 128 bits, with performance lower than other algorithms with 128 bits, and the algorithm ranking seems to be ARIA > CAMELLIA > AES > SM4; in terms of key length, overall performance shows 128 bits > 192 bits > 256 bits.
