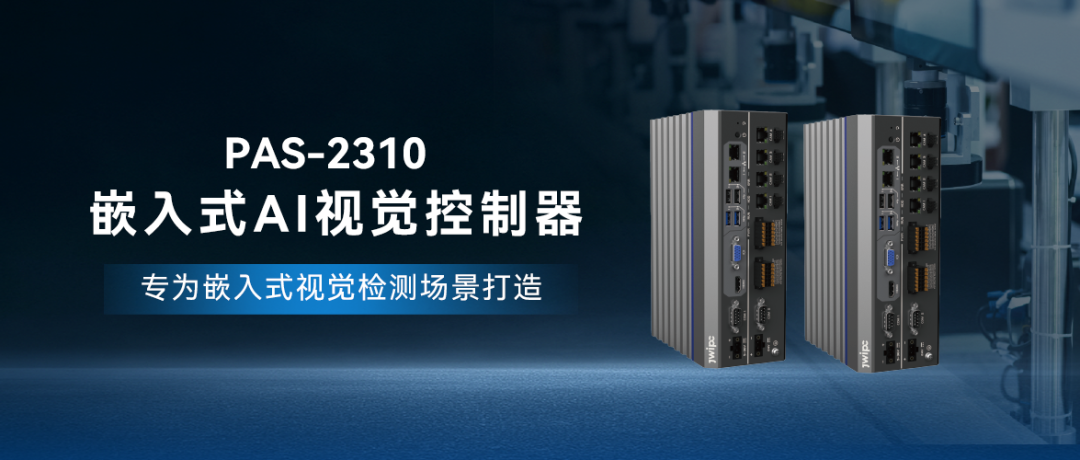

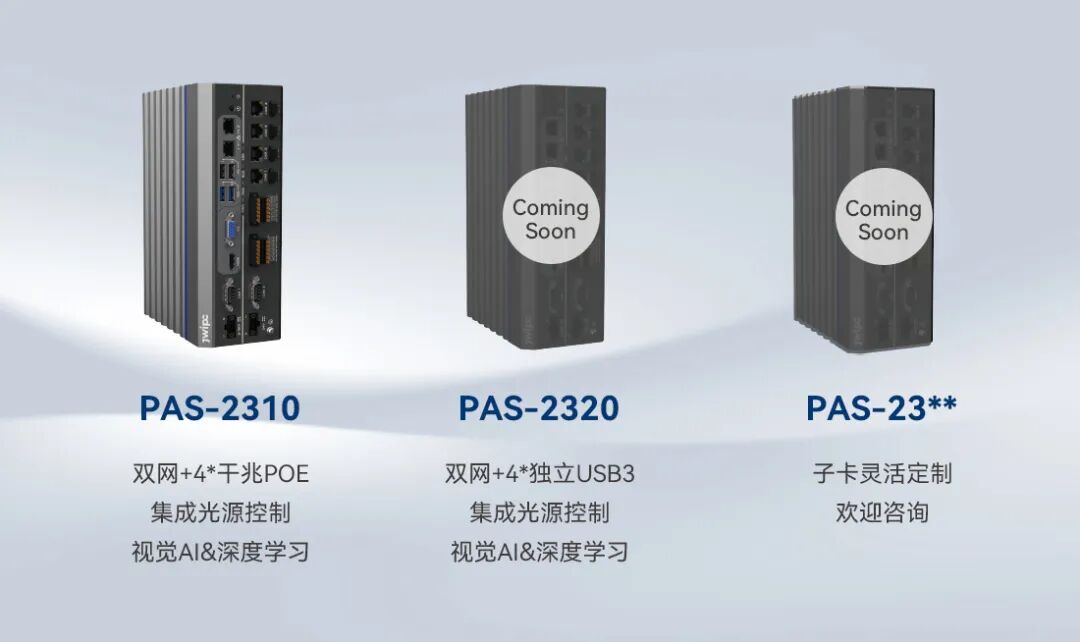

In the context of accelerating industrial automation and intelligence, Zhiwei Industrial has launched the PAS-2310 ARM Embedded AI Vision Controller, specifically designed for embedded vision inspection scenarios. This product is based on the high-performance, low-power RK3588 platform, integrating powerful AI computing capabilities, rich interfaces, and industrial-grade reliability, fully supporting various industrial vision systems to achieve efficient, precise, and intelligent upgrades.
01
Powerful AI Computing, Empowering Industrial Scenarios

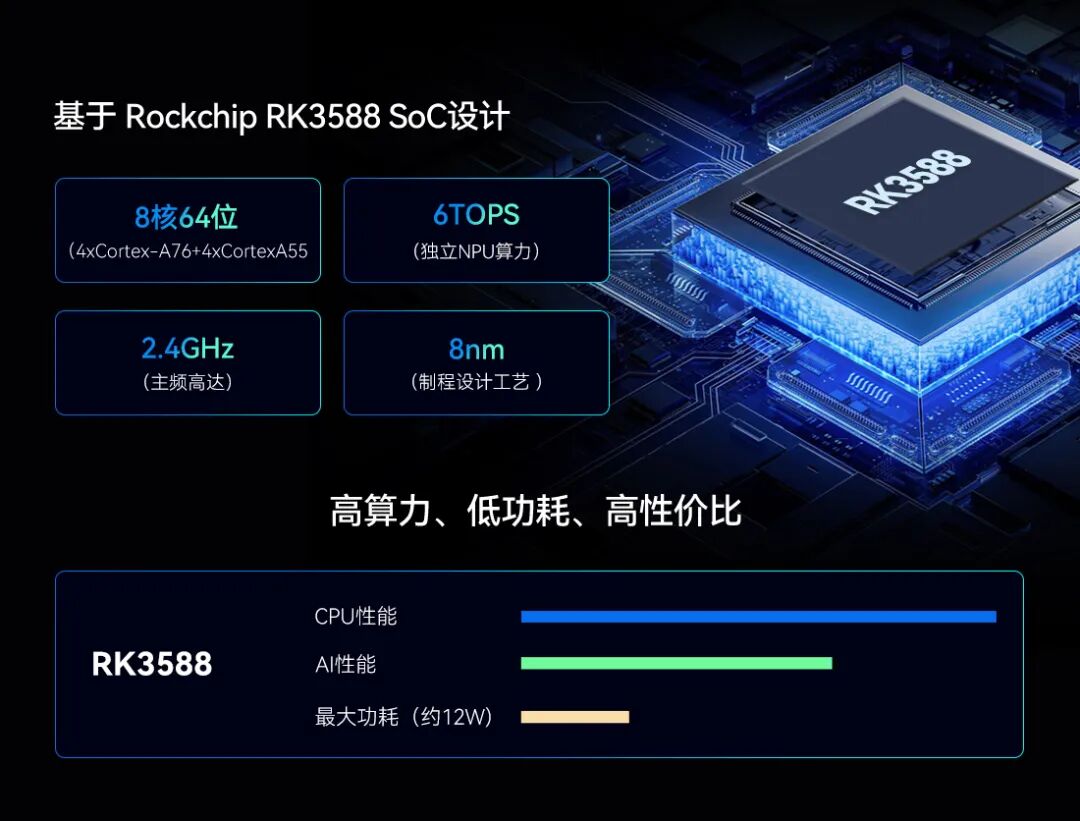

The PAS-2310 is designed based on the Rockchip RK3588 SoC, equipped with an octa-core high-performance processor and 6 TOPS NPU, supporting the deployment of traditional vision algorithms and AI deep learning models without the need for an external graphics card, enabling it to independently complete complex visual recognition and computation tasks. With core advantages such as high computing power, low power consumption, and high cost-effectiveness, the PAS-2310 is capable of handling various embedded vision inspection applications, injecting strong momentum into industrial intelligence.
02
Modular Design, Strong Compatibility
The PAS series vision controllers adopt a modular design, featuring excellent compatibility and expandability, fully meeting the diverse application needs in complex industrial scenarios. Based on the Zhiwei Industrial PAS bus architecture, functional sub-cards can be flexibly replaced, supporting the connection of various visual acquisition devices such as PoE cameras, USB cameras, and 10G Ethernet cameras.
03
Highly Integrated Interfaces, Easy to Use for Vision Applications

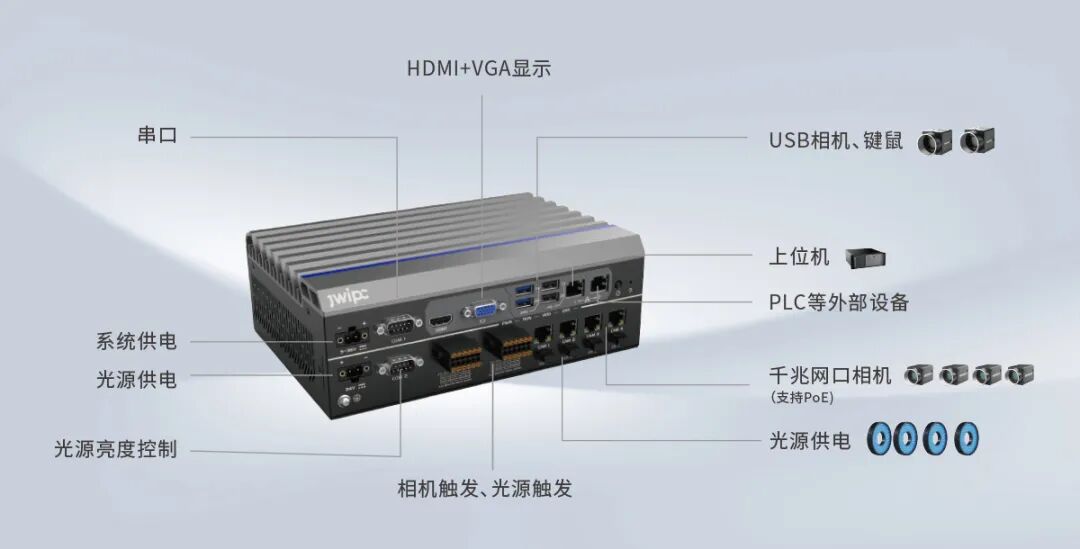

The PAS-2310 is equipped with 4 independent channels of I210AT Gigabit Ethernet ports, supporting stable access of multiple industrial cameras without interference; it also integrates 4 channels of light source control outputs with trigger inputs, effectively enhancing image acquisition accuracy; additionally, it features a rich set of commonly used industry interfaces including USB 3.0/2.0, serial ports, HDMI+VGA display, and 16-bit opto-isolated digital I/O, integrating a multi-in-one vision control solution for industrial computers, light source controllers, and I/O control cards, assisting users in quickly building and deploying embedded AI vision systems.
04
Industrial-Grade Reliable Design, All-Weather Operation
The PAS-2310 supports a wide voltage input of DC 9~36V, featuring over-voltage, under-voltage, and reverse polarity protection, paired with a fanless silent heat dissipation structure, ensuring long-term stable operation even in harsh environments with high temperatures, high humidity, and strong electromagnetic interference. It comes standard with up to 16GB memory + 128GB eMMC storage, supporting the expansion of a built-in 2.5-inch hard drive, ensuring efficient data read/write and caching responses.

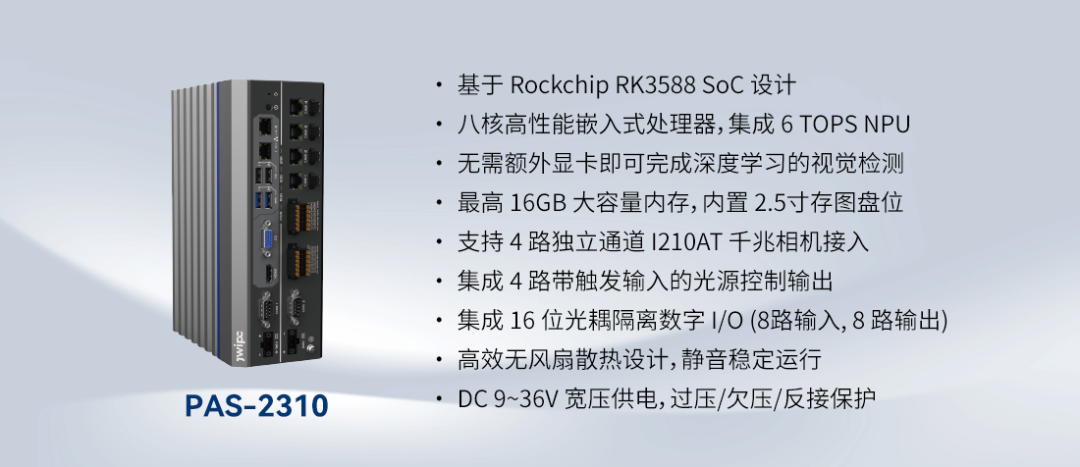

Six Major Technical Highlights, Shaping Professional Product Strength
#
Robust Computing Performance
Octa-core 64-bit high-performance processor + 6 TOPS NPU, supporting local deployment of algorithms and inference acceleration; equipped with 8GB/16GB large-capacity memory, ensuring stable and smooth system operation.
#
Flexible Storage Configuration
Offers 64GB/128GB eMMC storage options, and is equipped with an M.2 slot or a 2.5-inch expandable hard drive bay to meet diverse data needs.
#
Superior Camera Compatibility
4 independent channel I210AT Ethernet ports, supporting stable access of Gigabit industrial cameras; optional Zhiwei Industrial self-developed PoE power supply module, equipped with intelligent control chips, can automatically detect protocols and classify connected devices, providing up to 15W power supply for each port.
#
Innovative Light Source Control
Built-in 4-channel light source controller, equipped with ARM Cortex-M4 main control, low-latency response for precise exposure control, supporting 0~100 level brightness adjustment and strobe mode, meeting high-precision imaging requirements.
#
Comprehensive Control Interfaces
Integrates 16-bit opto-isolated digital I/O (8 in 8 out), compatible with NPN/PNP modes and dry/wet node inputs, allowing flexible control of various peripherals.
#
Developer Friendly, Rich Ecosystem
As an Alpha-level partner of Rockchip, Zhiwei Industrial provides a complete development environment and RKNN toolchain support, helping customers quickly deploy AI algorithms.
Full-Scene Adaptation, Empowering Multi-Industry Applications

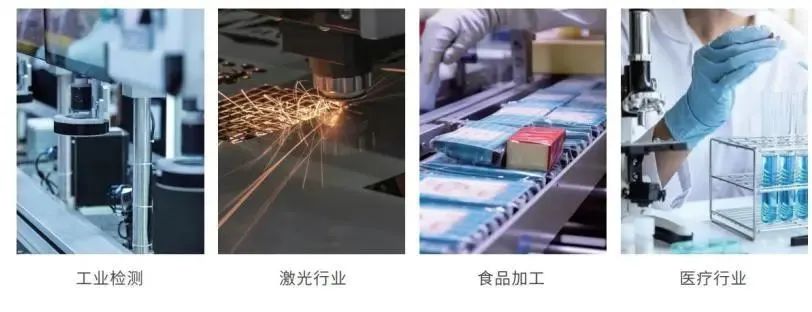

The PAS-2310, with its high performance, strong compatibility, and flexibility, is widely used in various industry scenarios:
Industrial Inspection:High-speed, high-precision defect detection, replacing manual visual inspection, improving efficiency by 300%;
Food Processing:Automated sorting and packaging, ensuring hygiene standards and production capacity;
Medical Industry: Precision instrument visual positioning, assisting surgical robots in precise operations;
Laser Processing:Real-time path correction and quality monitoring, ensuring zero error in processing.
With leading AI computing power and a modular architecture, the PAS-2310 reshapes the standards for industrial vision controllers, fully empowering industry users to move towards a new future of efficiency, precision, and intelligence. Zhiwei Industrial will continue to deepen its efforts in the edge AI vision field, working with partners to create a new era of industrial intelligence.
