Overview of Xilinx SoC Block Diagrams

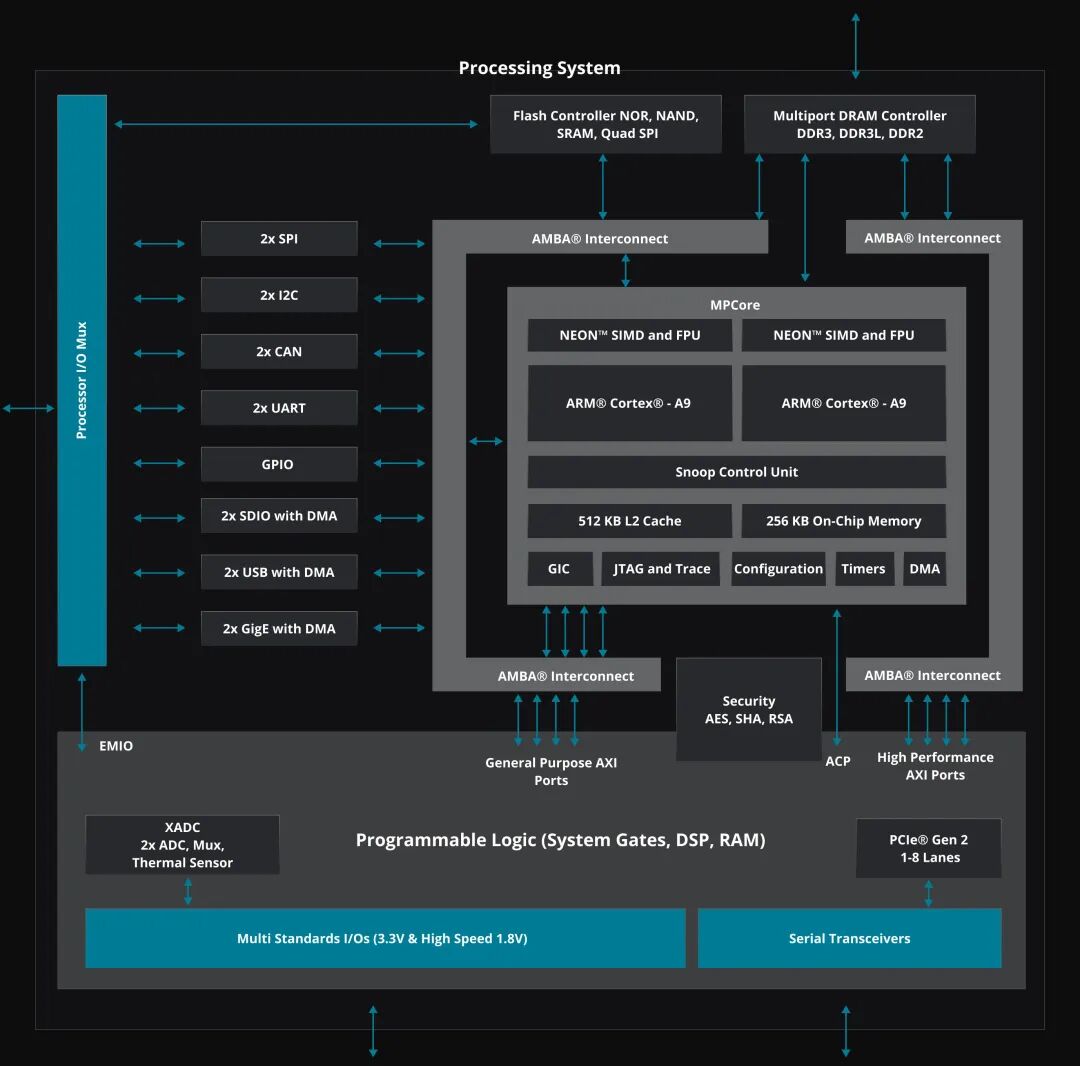

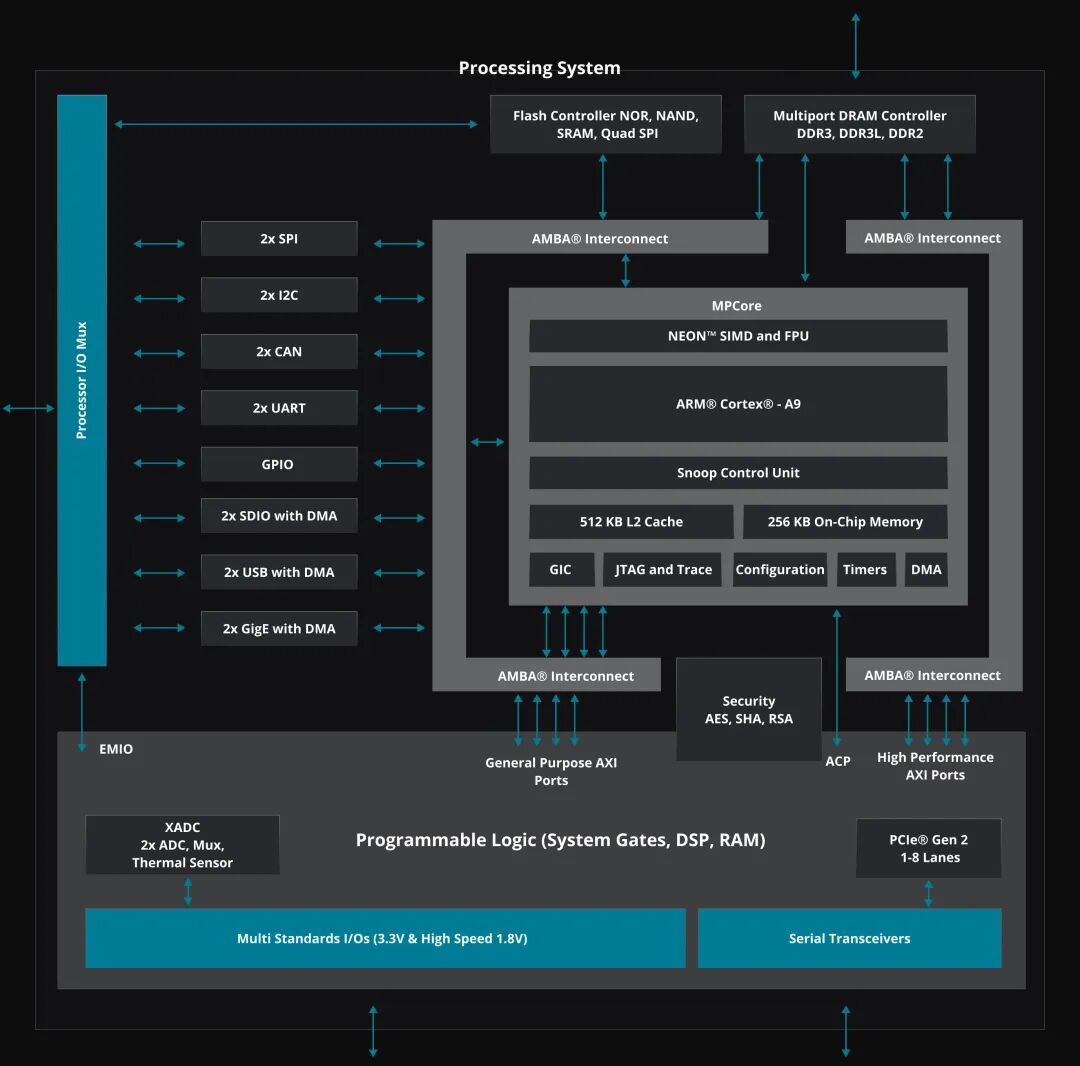

ZYNQ 7000s

Overview of Xilinx SoC Block DiagramsZYNQ 7000Overview of Xilinx SoC Block Diagrams

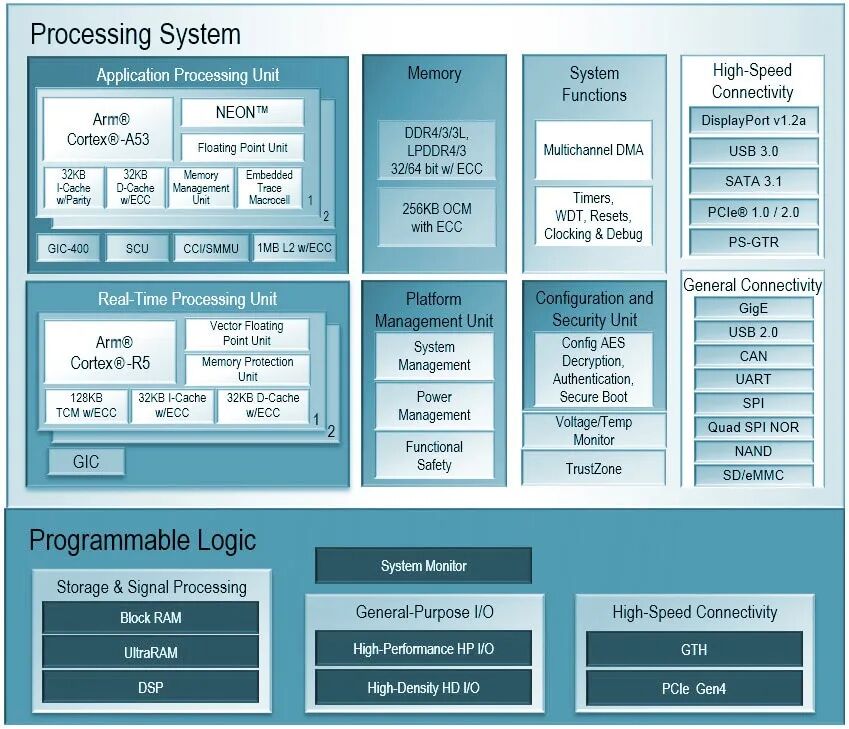

ZYNQ CG

Overview of Xilinx SoC Block Diagrams

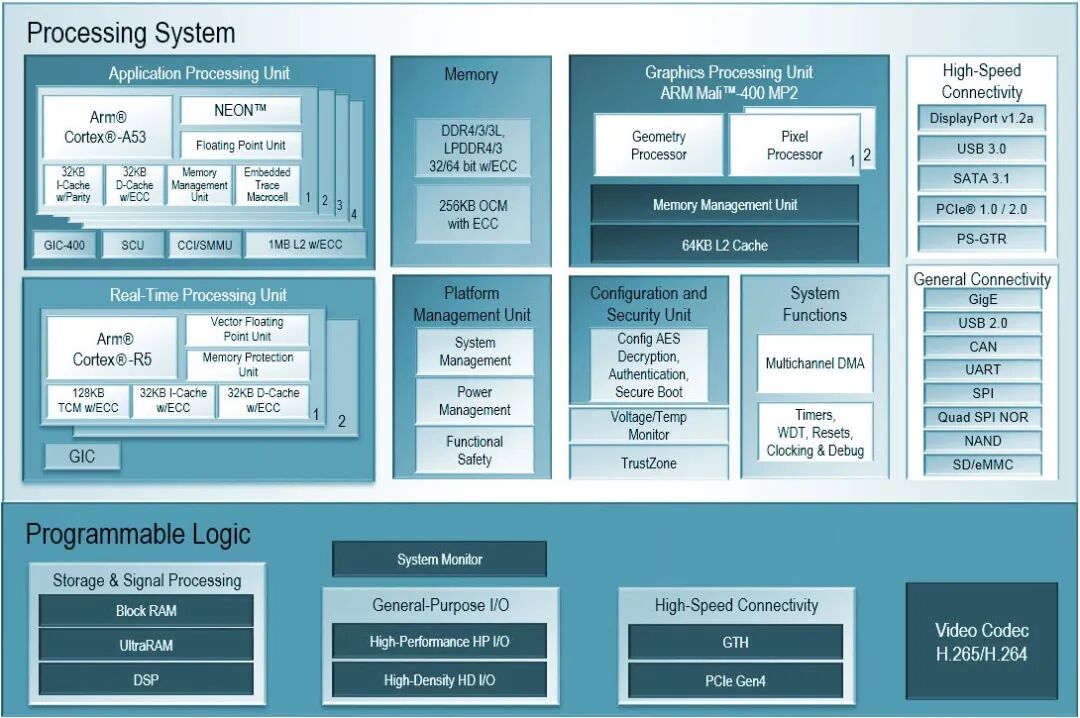

ZYNQ EG

Overview of Xilinx SoC Block Diagrams

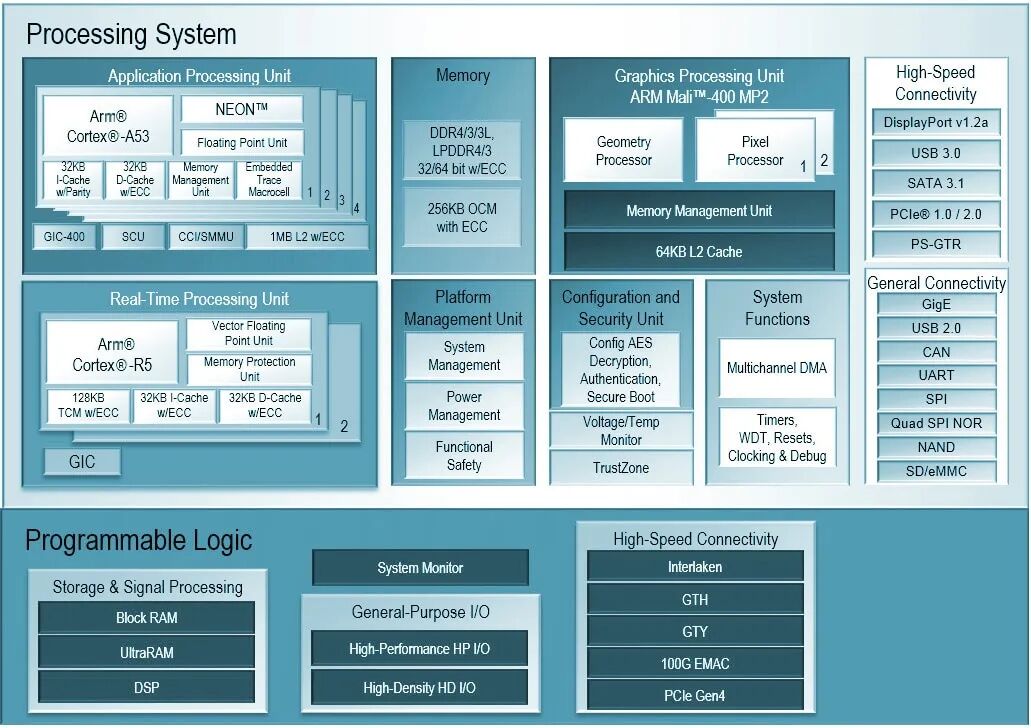

ZYNQ EV

Overview of Xilinx SoC Block Diagrams

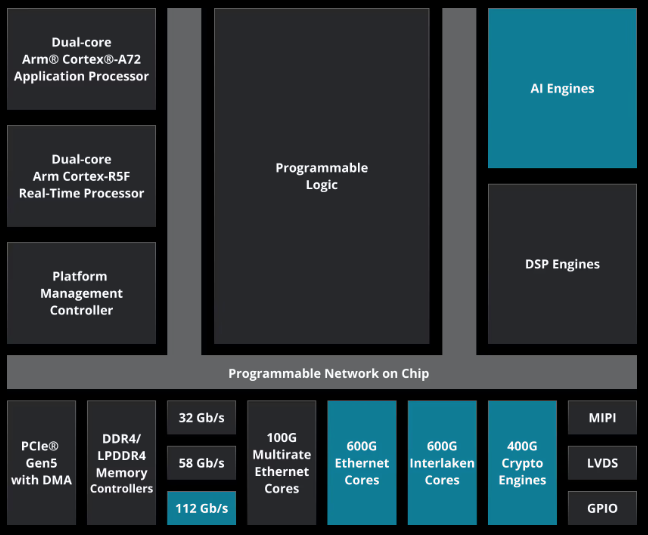

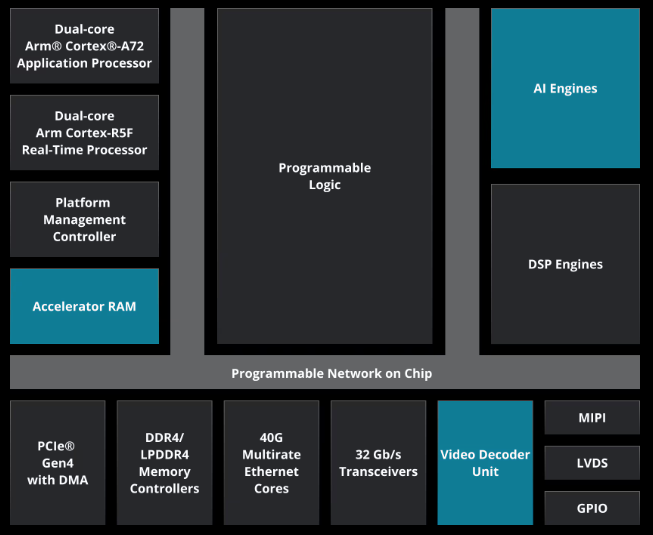

Versal AI Core

Overview of Xilinx SoC Block Diagrams

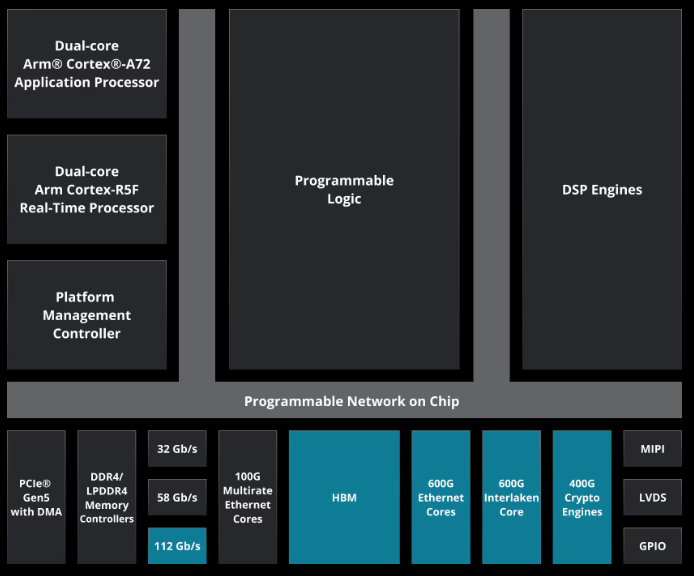

Versal HBM

Overview of Xilinx SoC Block Diagrams

Versal Premium

Overview of Xilinx SoC Block Diagrams

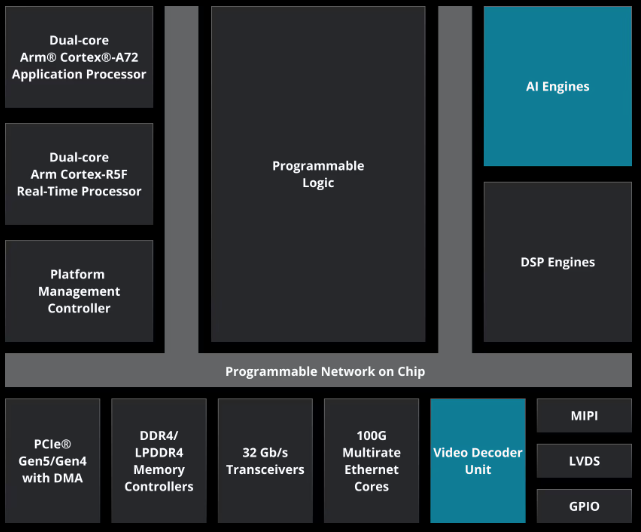

Versal AI Edge

Overview of Xilinx SoC Block Diagrams

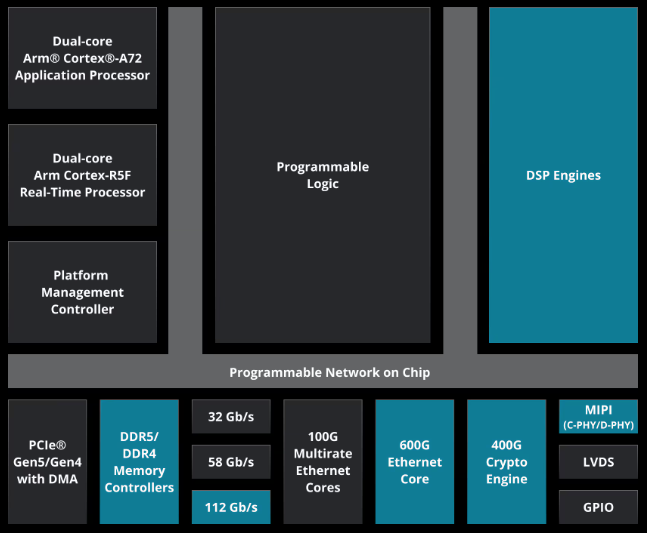

Versal Prime

Overview of Xilinx SoC Block Diagrams

Second Generation Versal Premium

Overview of Xilinx SoC Block Diagrams

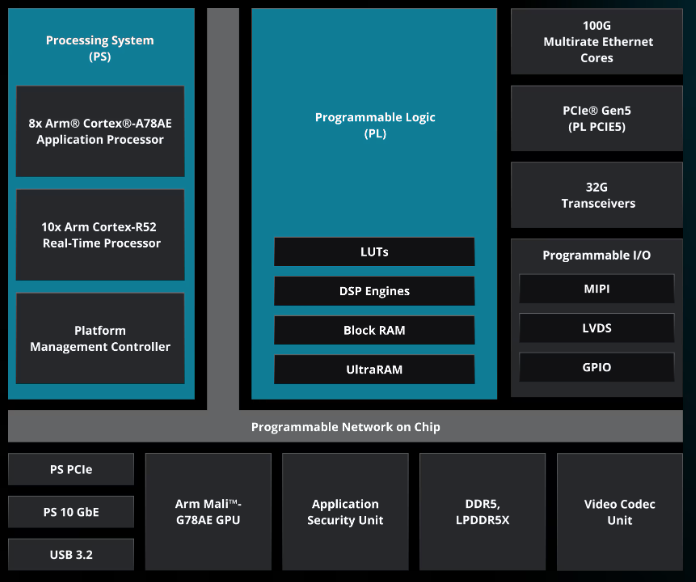

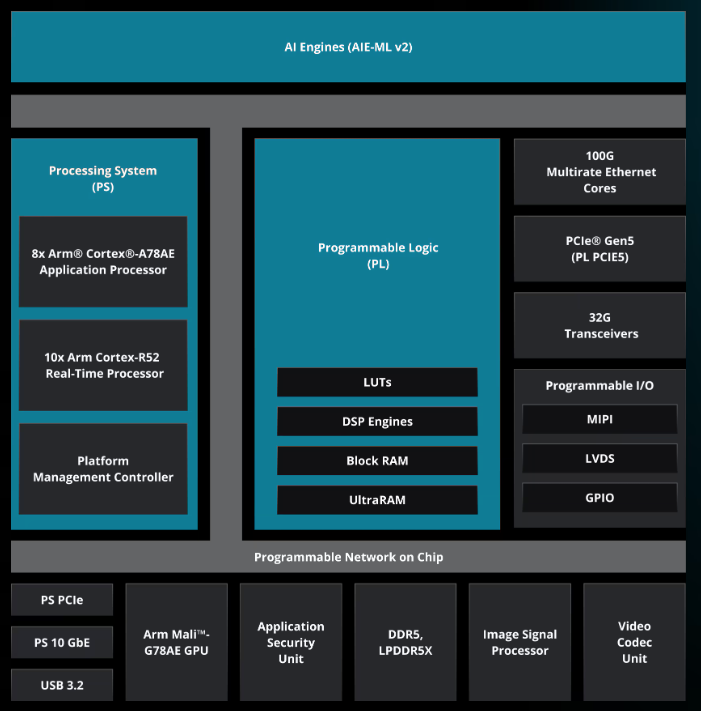

Second Generation Versal AI Edge

Overview of Xilinx SoC Block Diagrams

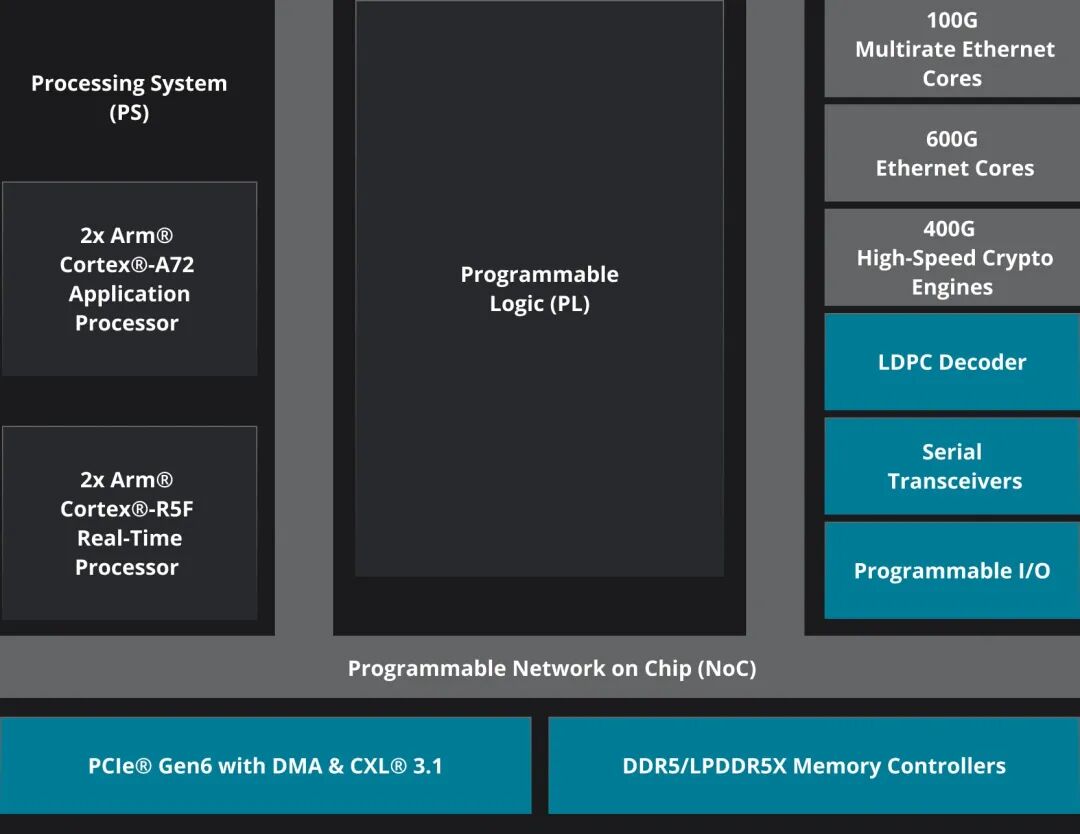

Second Generation Versal Prime

Overview of Xilinx SoC Block Diagrams
