Next-Gen eMMC Adapter RT-BGA169-01 V3.0

Background:Some customers have reported that certain Hisense motherboards using H26M62002JPR, H26M51002KPR eMMC chips prompt a timeout error during reading, preventing read/write operations. The analysis indicates that the issue is due to non-standard eMMC.

Hardware Support:This version is compatible with previous ones; simply transfer the socket head and 25 chips to the new PCB.

Software Support:Versions 20200611 and later

Note: Currently in the testing phase, when using this adapter for reading/writing eMMC, only select EMMC_AUTO_1.8V.

Operating Steps:

n Image Version

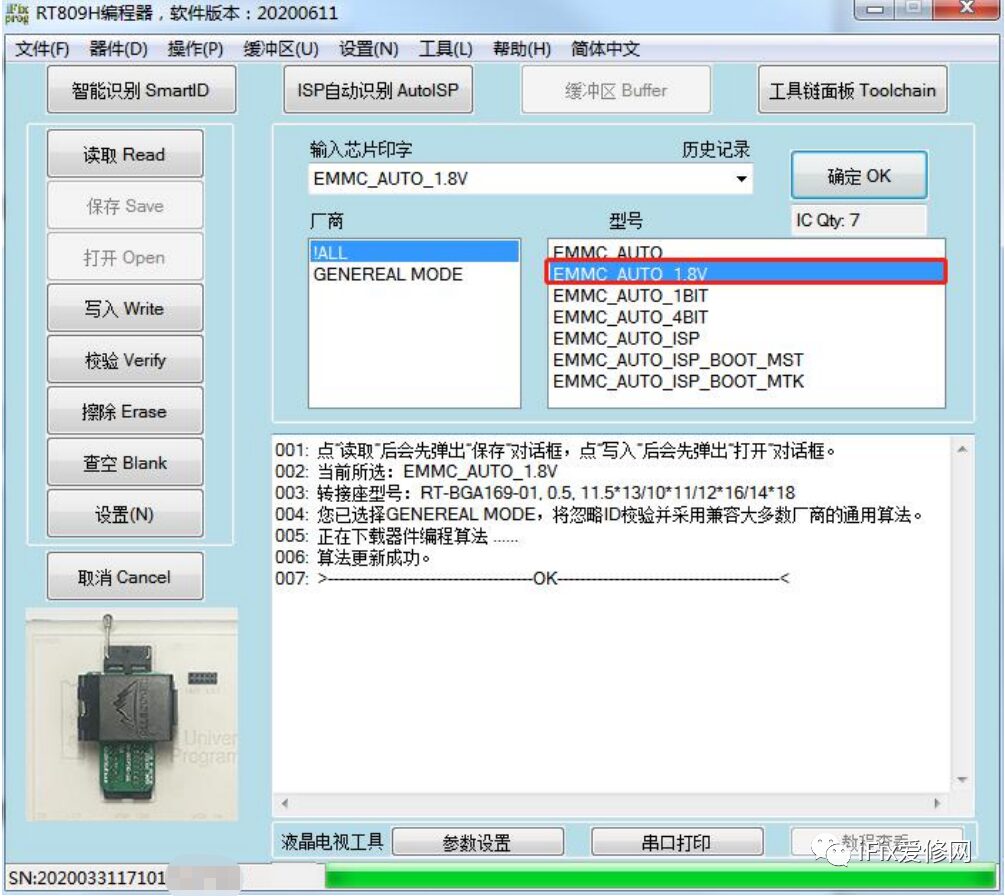

① Select EMMC_AUTO_1.8V:

Next-Gen eMMC Adapter RT-BGA169-01 V3.0

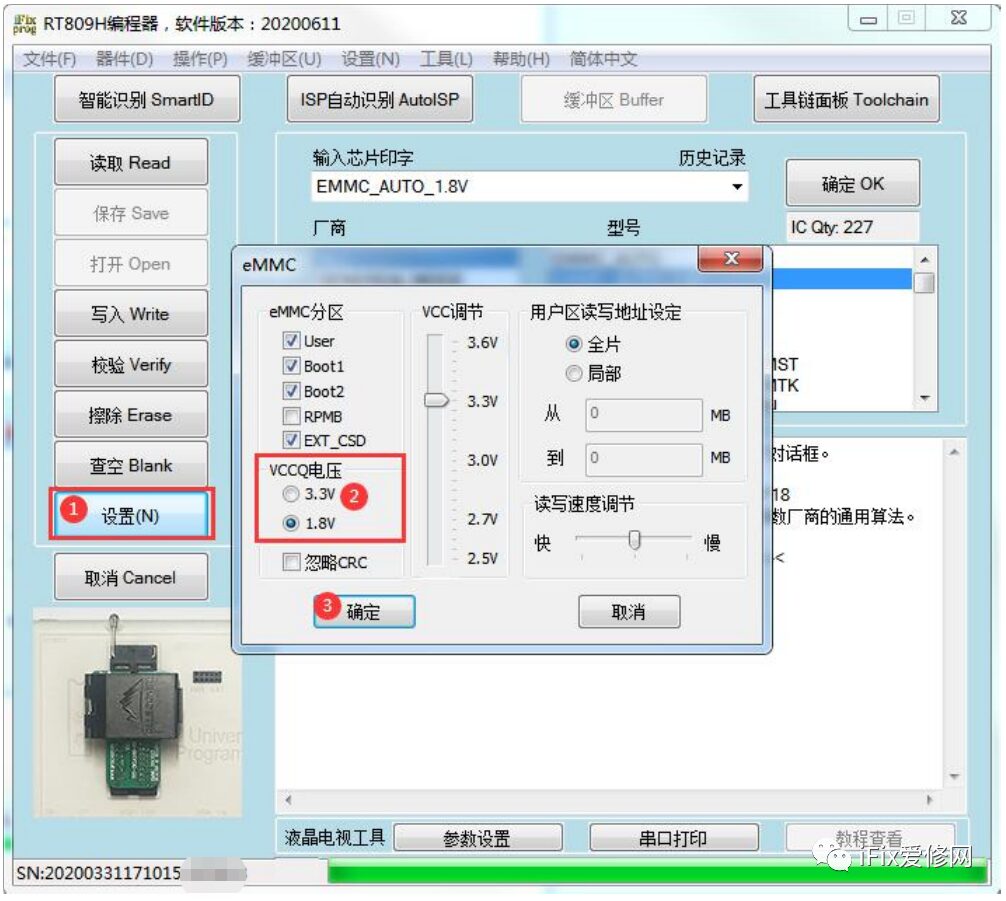

② Supports VCCQ 1.8/3.3V adjustment, select 1.8V in the software and confirm:

Next-Gen eMMC Adapter RT-BGA169-01 V3.0

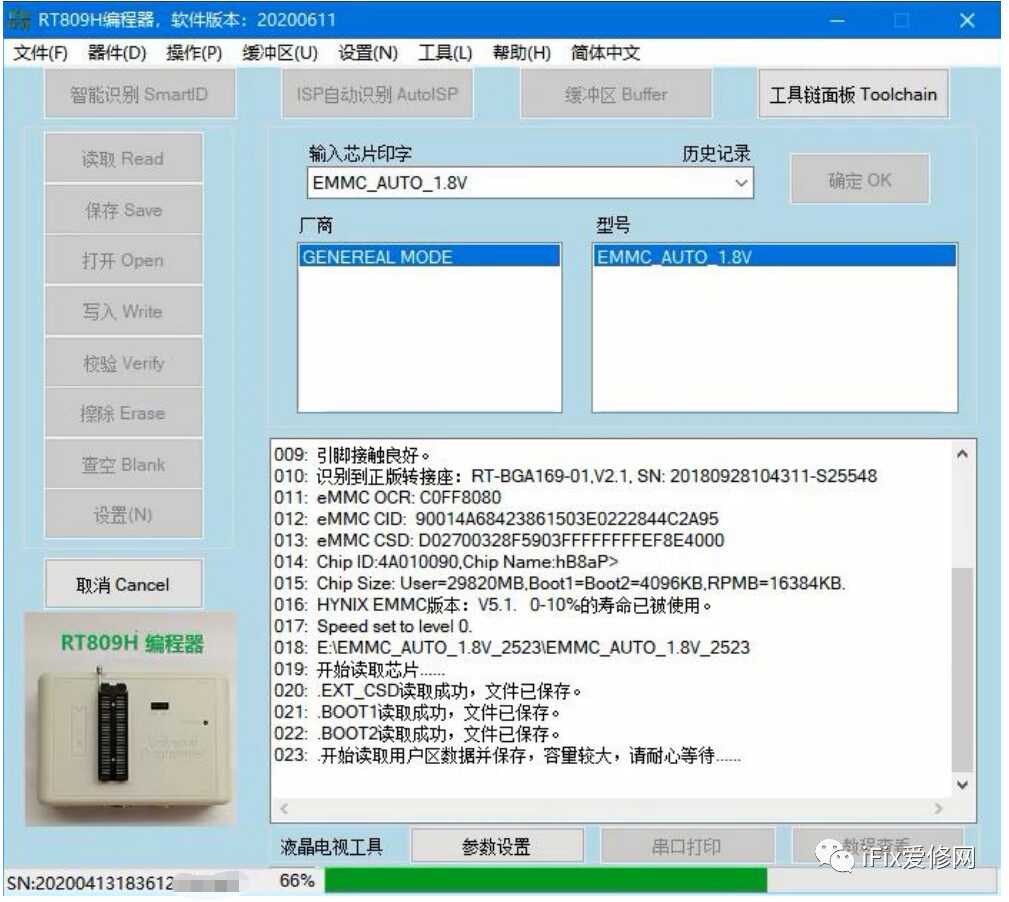

③ Start reading or writing; the operation is the same as previous versions.

Next-Gen eMMC Adapter RT-BGA169-01 V3.0

n Video Version: Due to excessive ads on xx video platform, it is recommended to use Bilibili (B station) for ad-free viewing (please click the lower left corner to read the original text).

About Purchase: Copy the blue text below and open it in the mobile Taobao

fu植内容₴n65O1Dycrqe₴咑幵τa0寳
Click to connect https://m.tb.cn/h.VqkSxaH?sm=7be239 to the browser..

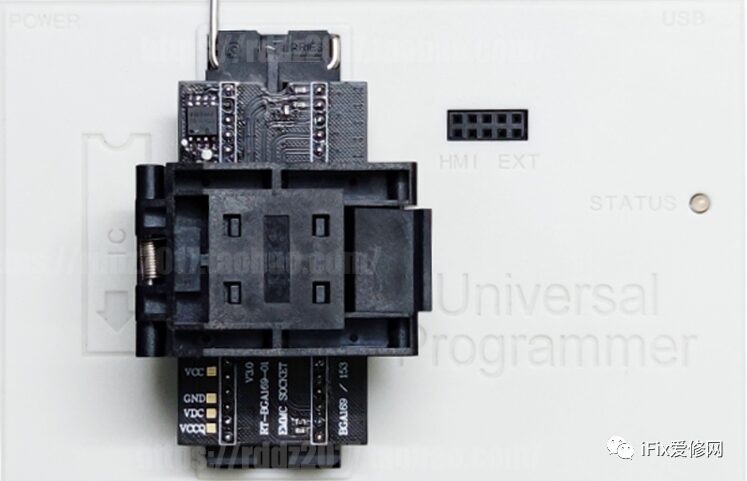

Next-Gen eMMC Adapter RT-BGA169-01 V3.0

If you are not confident in soldering the 25 chips on the eMMC adapter, please do not purchase the 20 yuan PCB; you can choose to buy the 420 yuan eMMC adapter, which comes with a V3.0 PCB, and we will also send you the V2.3 PCB; for those whose soldering failed and cannot be used normally, we regret to inform you that we cannot process this.

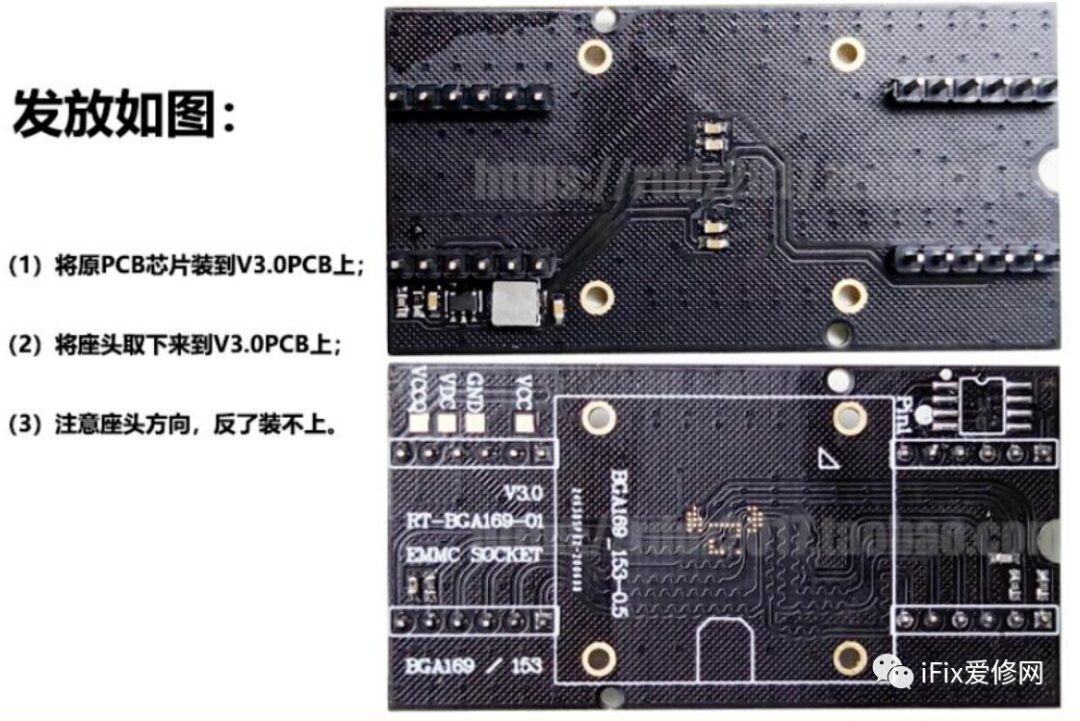

Placement Location:

Next-Gen eMMC Adapter RT-BGA169-01 V3.0
