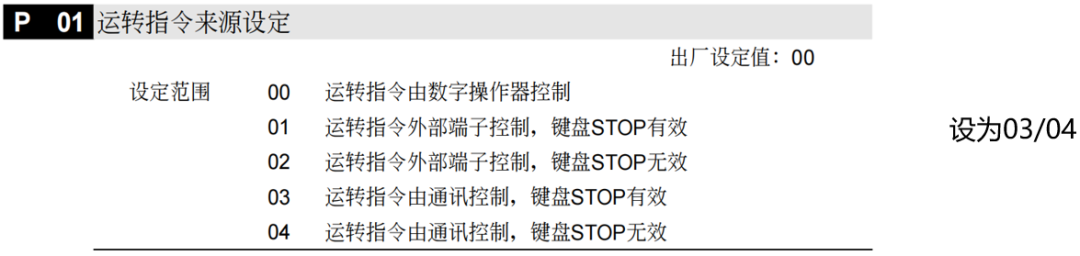

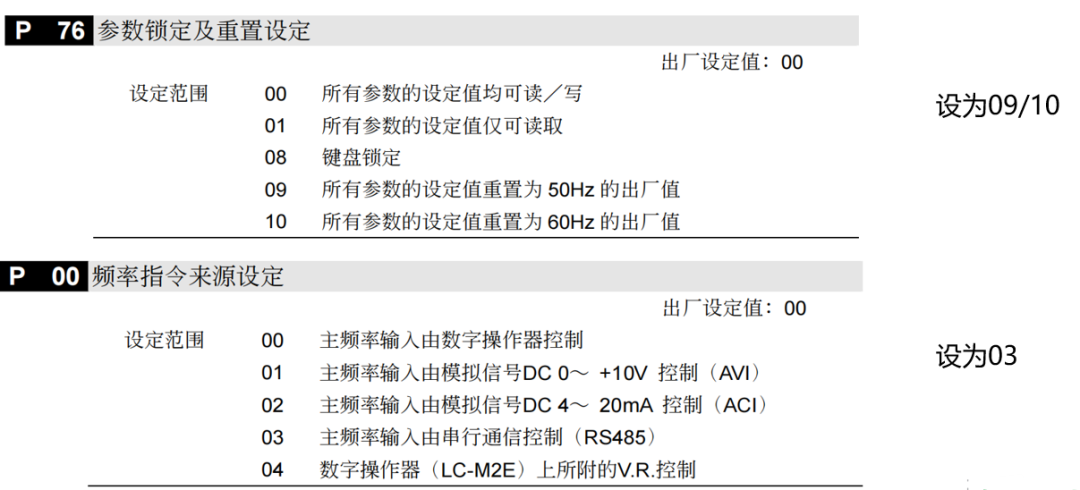

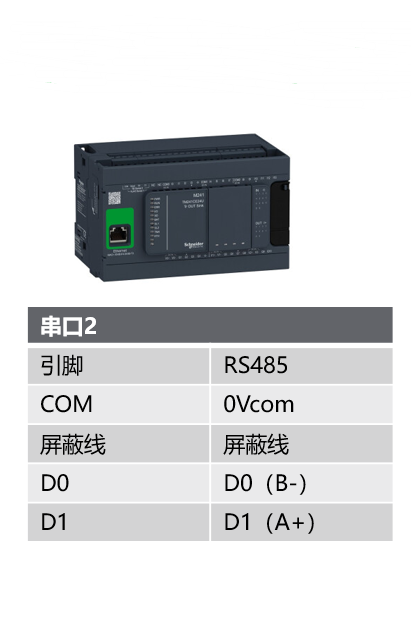

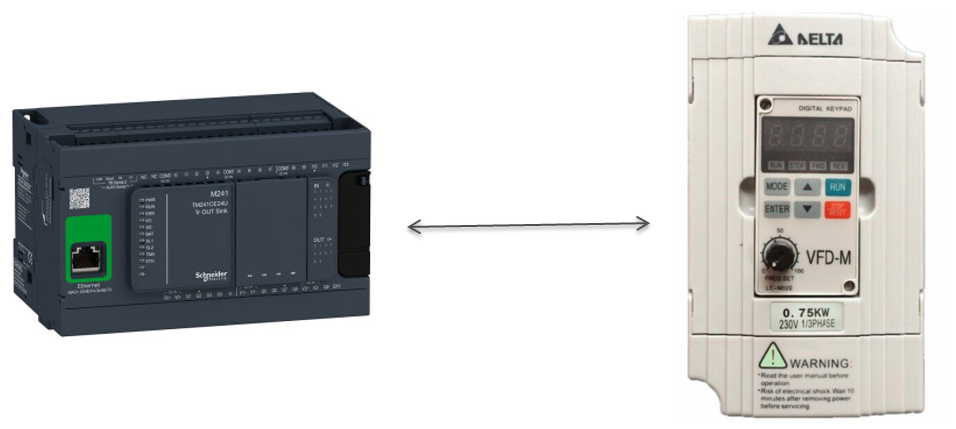

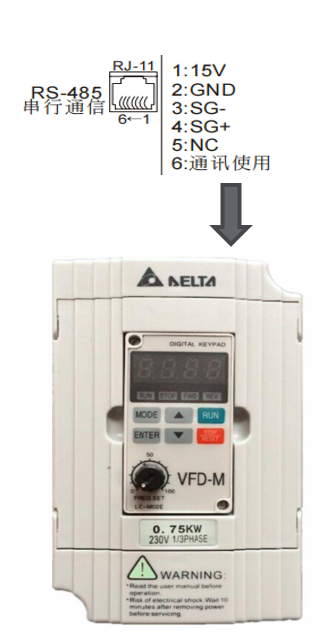

Wiring:
A+ and SG+ short-circuited, B- and SG- short-circuited

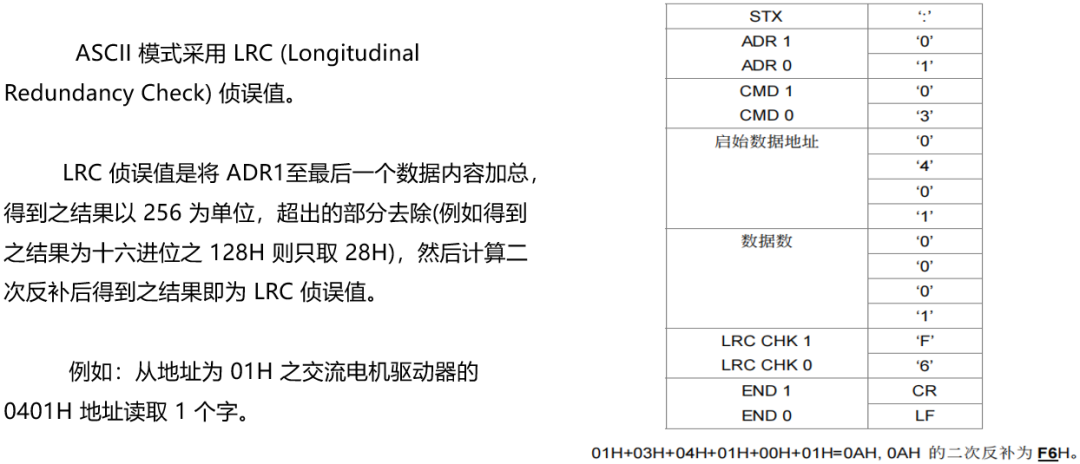

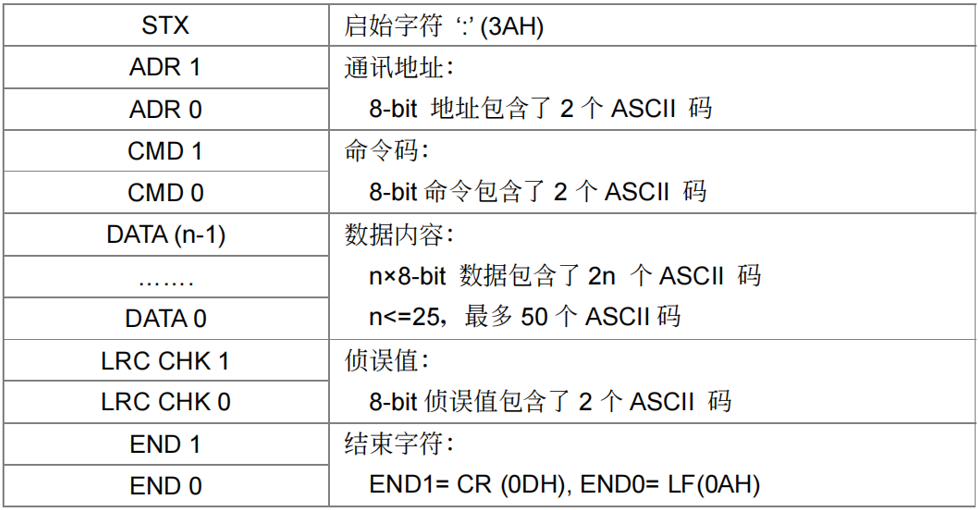

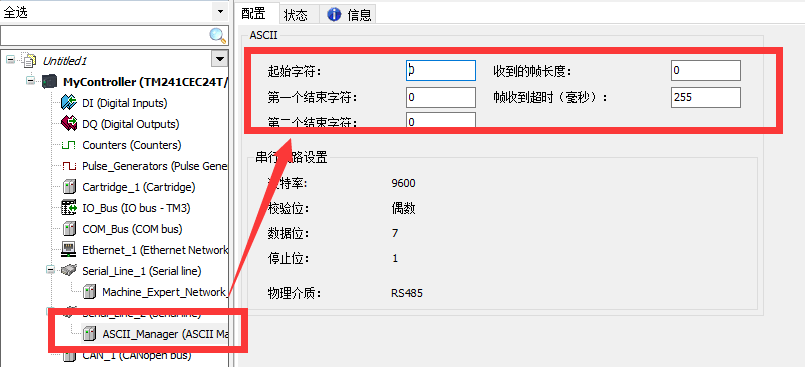

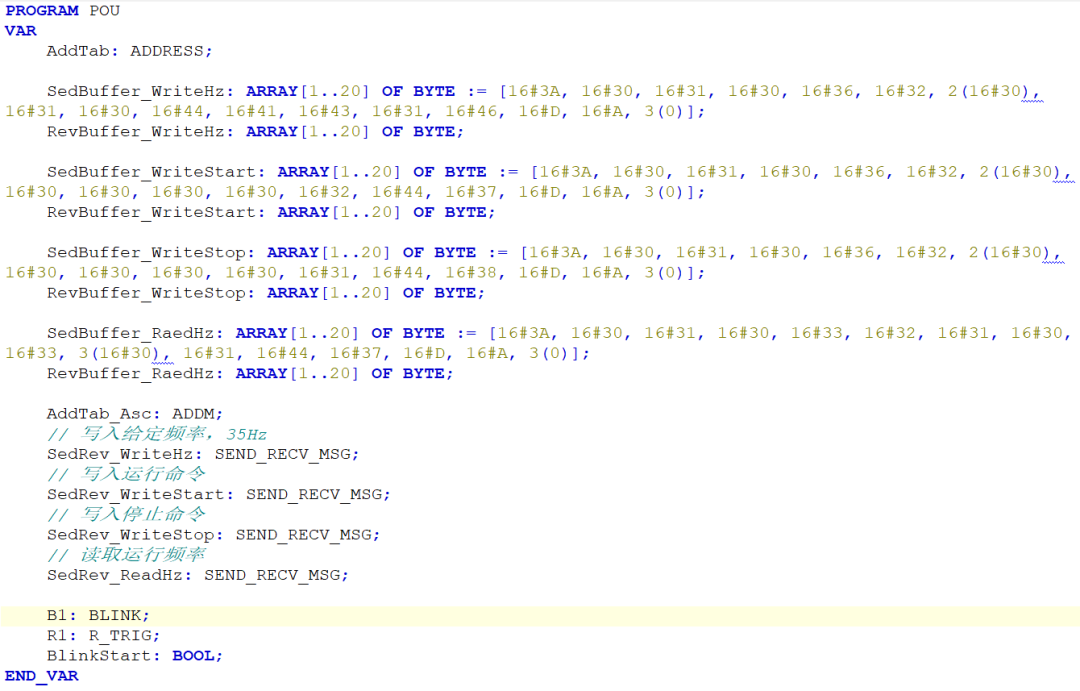

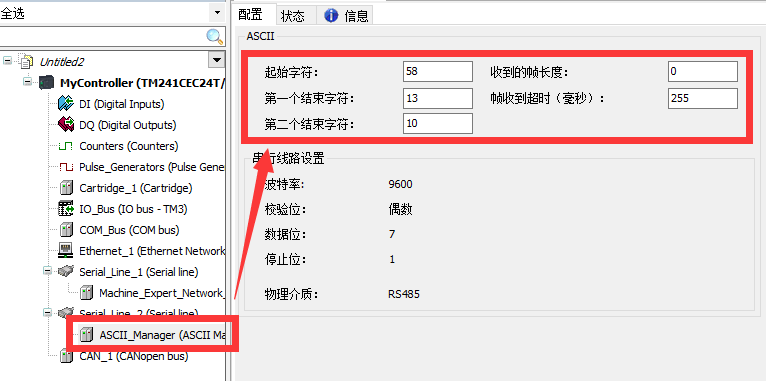

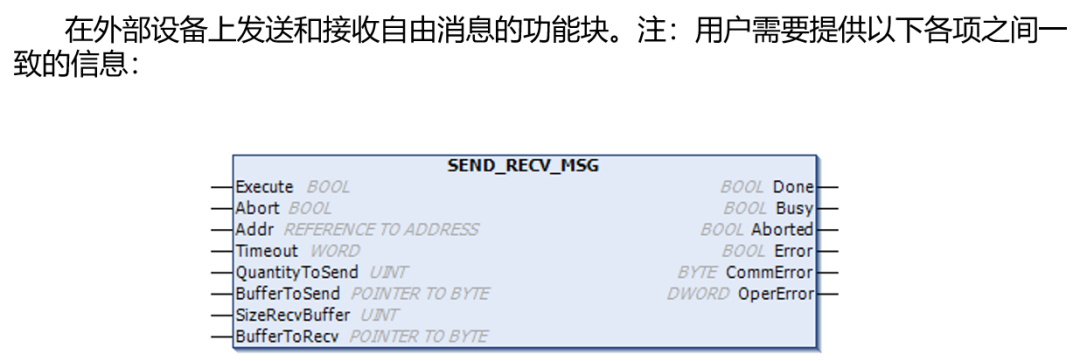

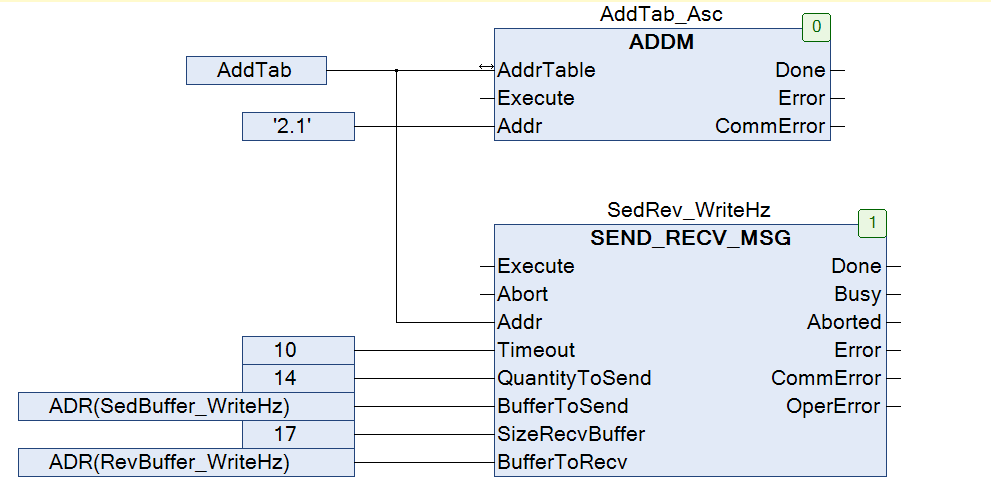

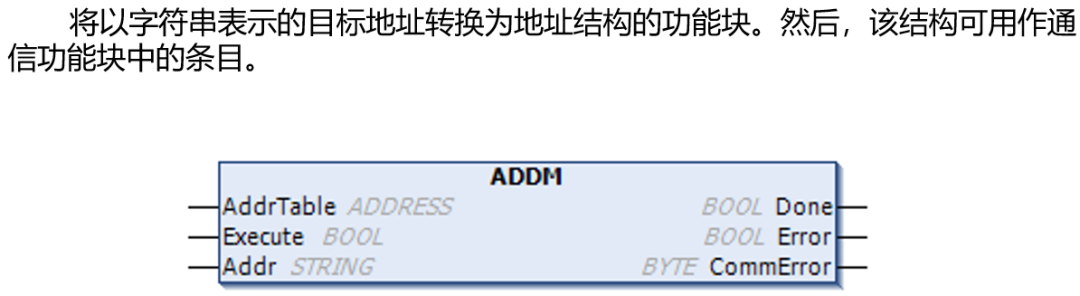

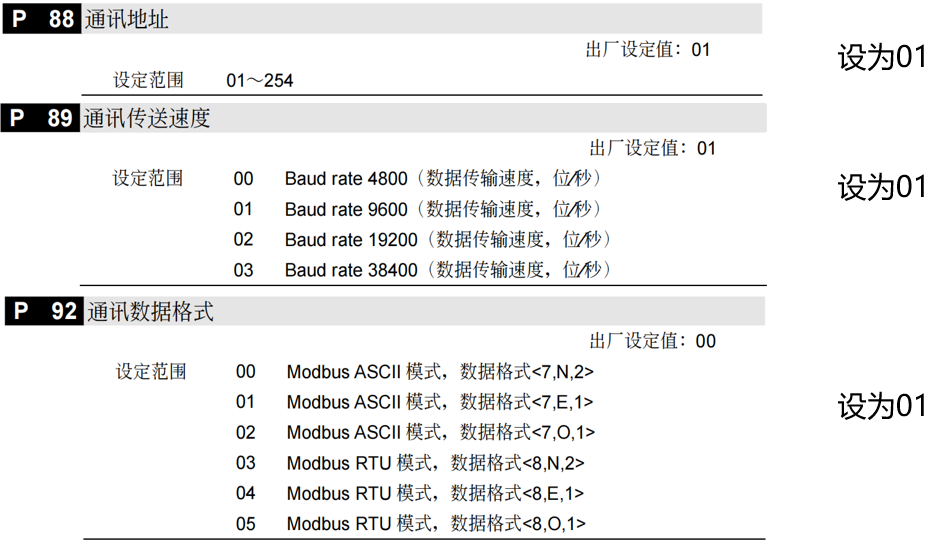

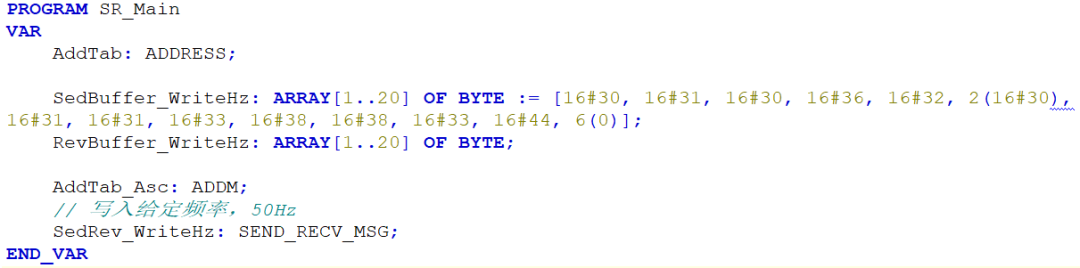

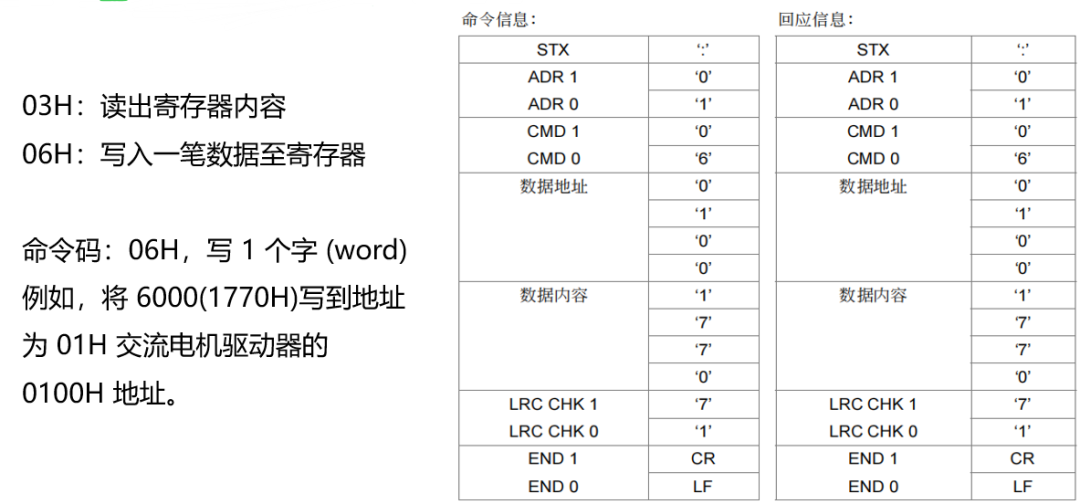

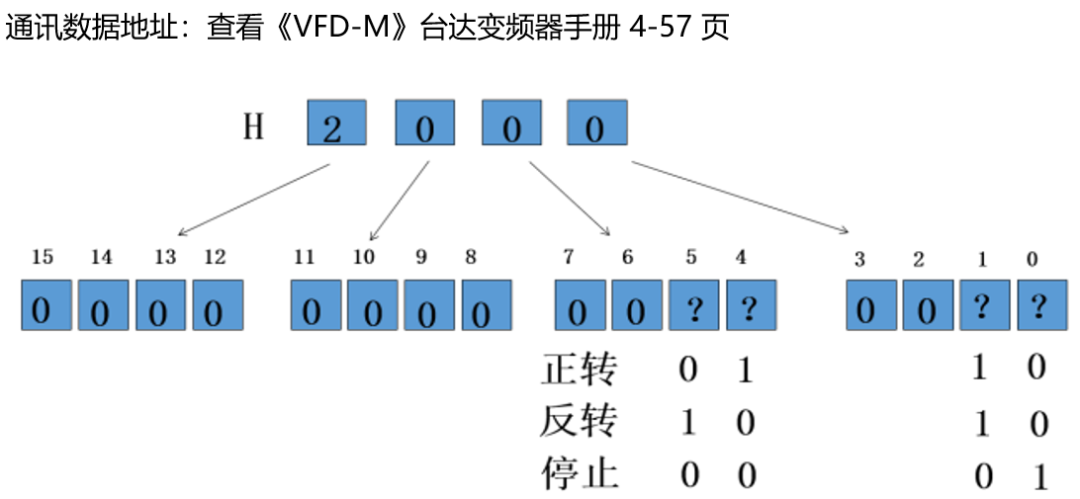

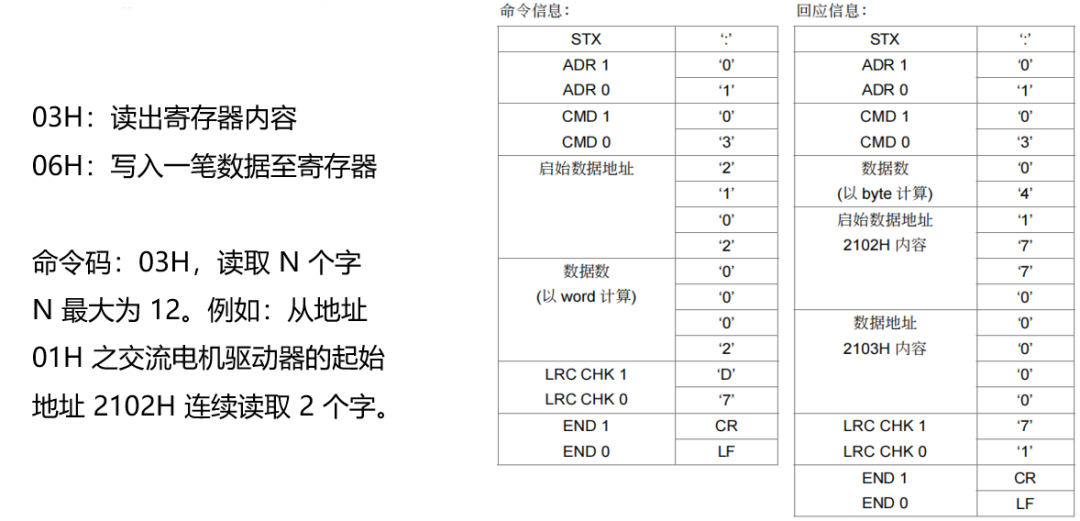

Exercise 1: Add device “ASCII_Manager” double-click “serial_line_2” for serial line settings, then double-click “ASCII_Manager” for Modbus configuration

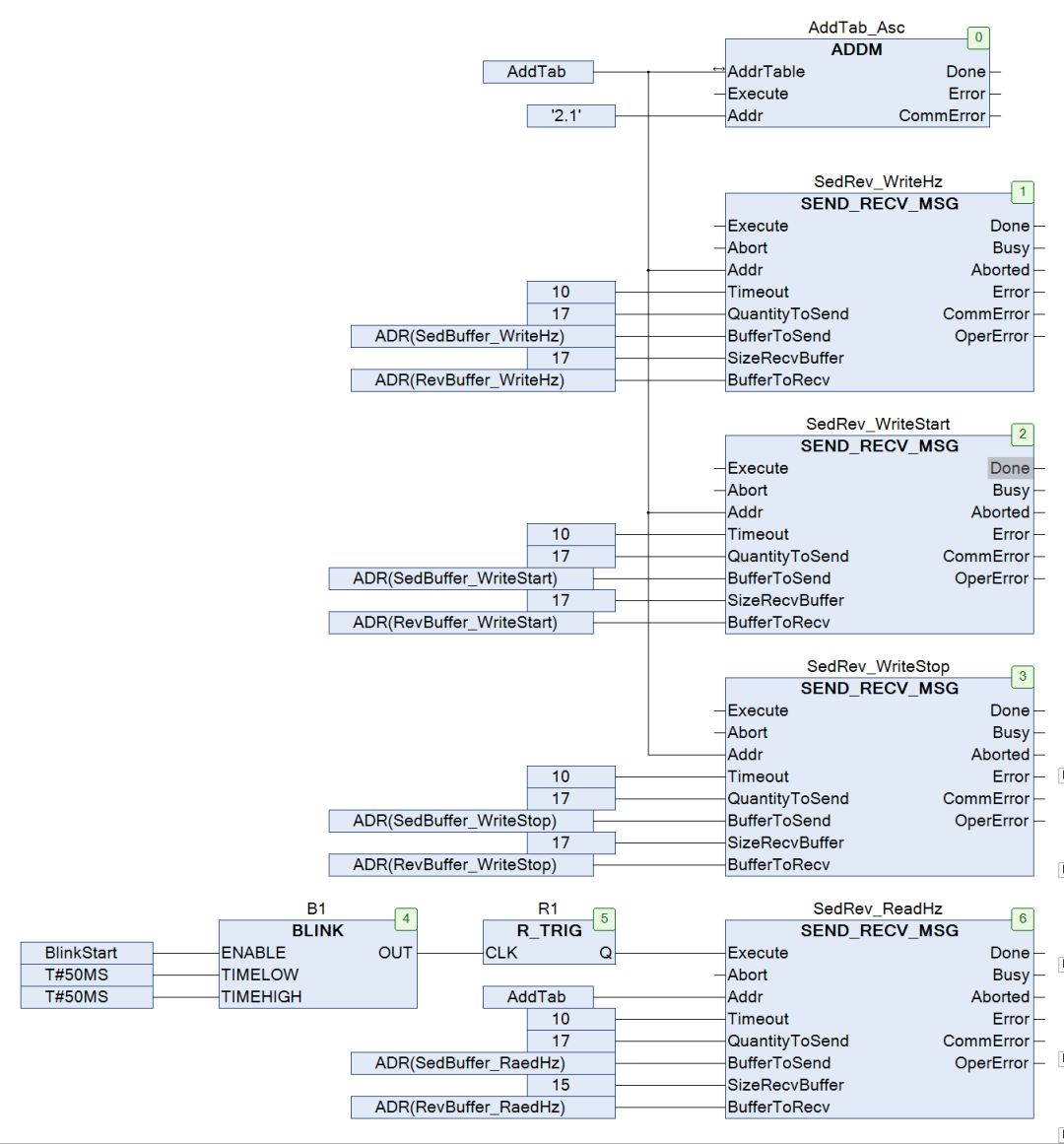

Exercise 2: Add device “ASCII_Manager” double-click “serial_line_2” for serial line settings, then double-click “ASCII_Manager” for Modbus configuration
Exercise 1: Add device “ASCII_Manager” double-click “serial_line_2” for serial line settings, then double-click “ASCII_Manager” for Modbus configuration
Exercise 2: Add device “ASCII_Manager” double-click “serial_line_2” for serial line settings, then double-click “ASCII_Manager” for Modbus configuration
