Master Craftsman Builds a CPU by Hand

To gain a deeper understanding of the CPU, the master craftsman spent a full six months to “solder point by point” and made a CPU by himself, as shown in the masterpiece below. Related articles:How does the CPU recognize the code we write?

According to the master craftsman, he mainly used the following three raw materials:

Diodes, transistors, and resistors.

👉Can a CPU be made with a bunch of switches?

The following discusses the process of the master craftsman’s self-made CPU.

Registers

Generally speaking, the structure of a CPU can be roughly divided into the arithmetic logic unit, register unit, and control unit, etc.

The first part he tackled was the register part of the CPU.

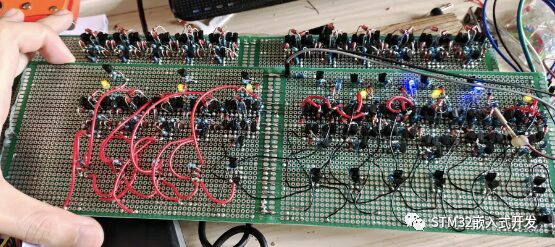

The master craftsman designed a 6-bit shift register, as shown in the figure below. Is it different from what you imagined?

Its function is not only to store but also to shift data left or right under the control of a clock signal.

Program Counter

The second structure the master craftsman dealt with was the Program Counter (PC).

Simply put, its function is to record the position of the program’s operation. This was also the most time-consuming and complex part of the entire project, taking a full three months.

The functions involved in the Program Counter are numerous. For example, the most basic is that after reading each byte of instruction, the count must automatically increment by 1; after the CPU restarts, the count will reset to zero.

Moreover, under different conditions, it must also be able to achieve direct jumps, function calls, returns from functions, and other functionalities.

Hard work pays off; after three months of frustrating time, he managed to complete the most complex module. Power-on testing also went smoothly.

ROM and RAM

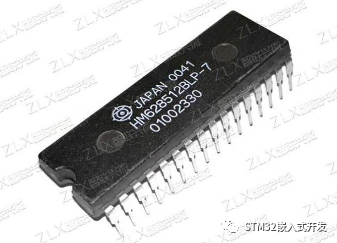

The hard drive (ROM) and memory (RAM) are two relatively large parts outside the CPU. The master craftsman used the easily operable HM628512 chip to make ROM and RAM. Below are the HM chip (top), RAM (middle), and ROM (bottom):

After assembling the ROM and RAM, the basic modules of the CPU are basically complete.

Instruction Decoder

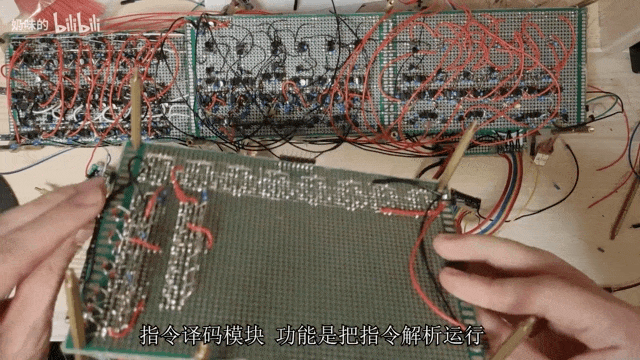

Next is to build the instruction decoder.

It is mainly used to parse and execute the CPU instructions sent here:

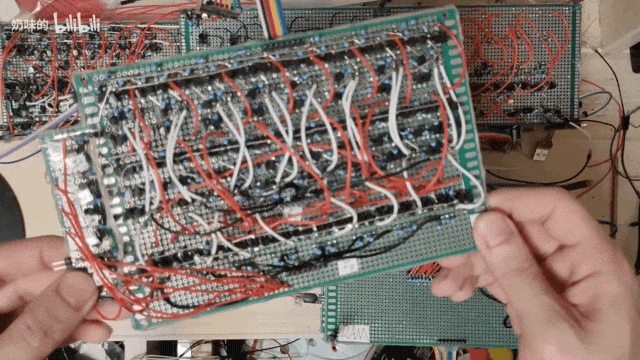

Then add the arithmetic logic unit (ALU) for addition, subtraction, multiplication, and division:

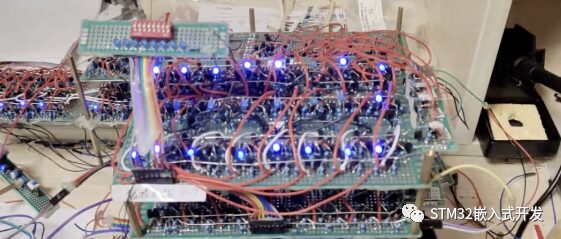

Finally, a general cache must be soldered on; this CPU, made entirely of transistors, diodes, and resistors, is complete! Just looking at the dense components speaks volumes about the magnitude of the project.

Binary Coding

Because this CPU’s instruction set and architecture are self-developed, there is no compatible programming language.

So how can it run?

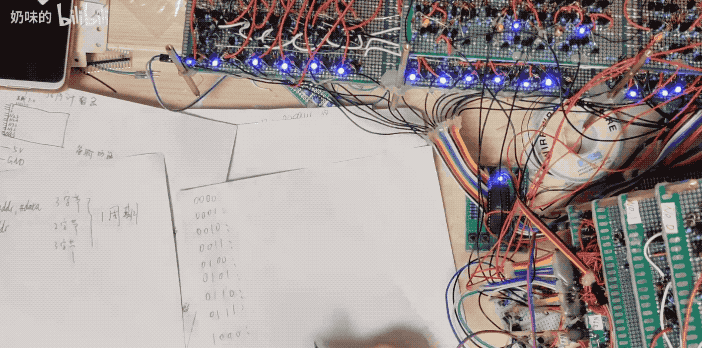

Purely handwritten original code—binary programming!

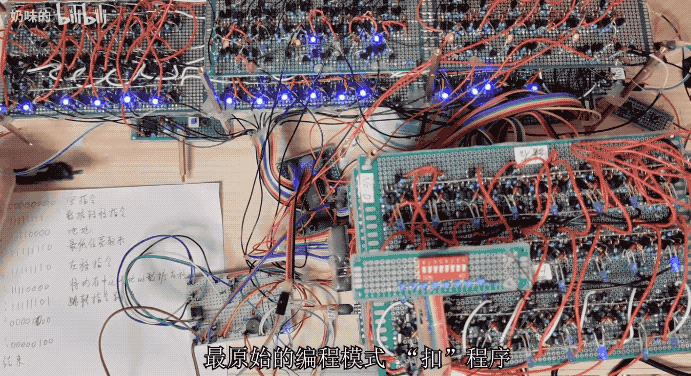

After that, it unexpectedly entered the ancient programming mode—”扣” program:

With all preparations complete, the moment to witness the miracle has come.

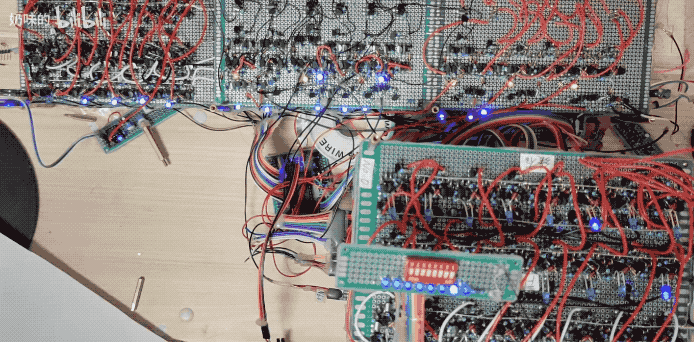

Power-On Testing

Initially, the program did not run smoothly. Even though the master craftsman restarted several times, the marquee effect occasionally still had issues. So, the master craftsman reprogrammed, made all the modifications, and restarted the “扣” program. This time, there were no anomalies.

This article is reproduced from “STM32 Embedded Development”.

（End）
