In the field of electronic manufacturing, PCB (Printed Circuit Board) depaneling is a critical process. The quality and efficiency of depaneling directly affect the performance, production cycle, and cost control of electronic products. The knife-type depaneling machine launched by Dongguan Weisi Electronic Technology Co., Ltd. is bringing unprecedented convenience and efficiency to PCB depaneling with its outstanding performance.
1. Exploring the Working Principle of the Knife-Type Depaneling Machine

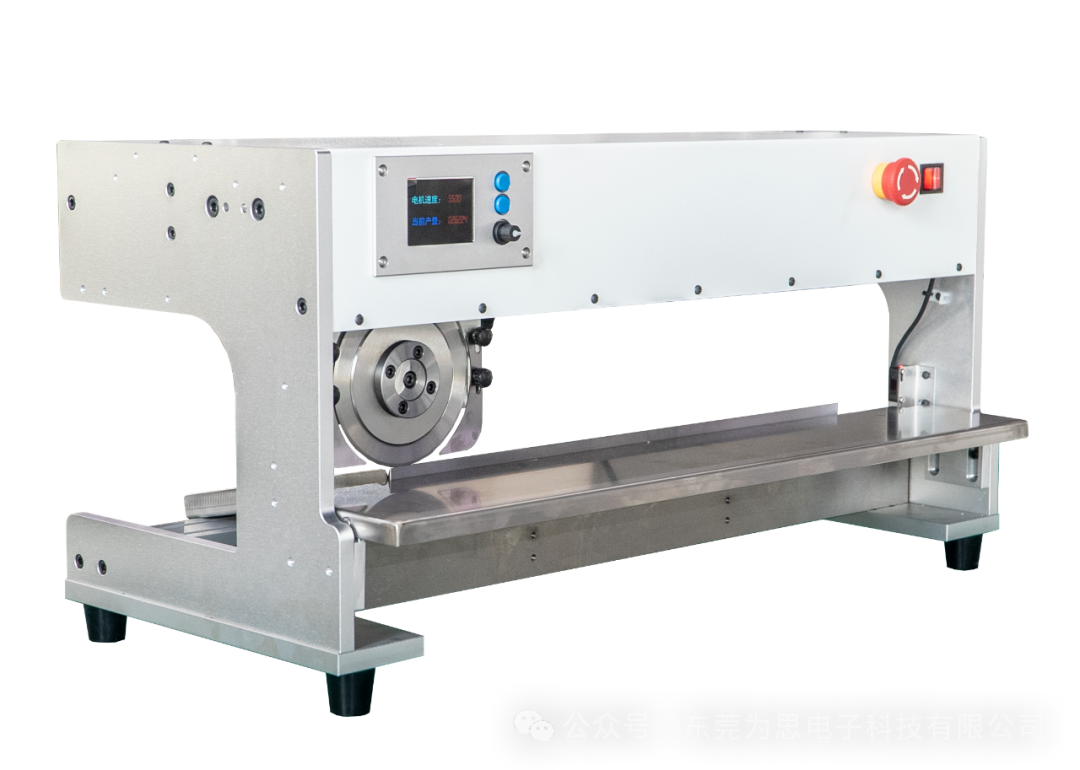

The knife-type depaneling machine adopts a unique design principle where the board remains stationary while the knife moves. It places the PCB steadily on the lower flat knife, and when the operation starts, the upper round knife swiftly moves horizontally to perform precise cutting on the PCB. This cutting method significantly reduces the stress during depaneling, effectively minimizing the occurrence of solder joint cracking and burrs. During the cutting process, the tool uses a combination of high-speed rotation and linear feeding motion to separate the copper foil, substrate, and other materials on the PCB layer by layer, ultimately forming neat and smooth cuts.
2. Significant Advantages of the Weisi Knife-Type Depaneling Machine
1. Easy Operation, Reducing Labor Costs
The operation of the Dongguan Weisi knife-type depaneling machine is extremely simple. Companies do not need to provide long-term professional training for employees, as they can quickly get started with production. The equipment is equipped with an intuitive control panel, allowing operators to easily input cutting parameters such as depaneling speed and stroke through the human-machine interface, greatly saving labor costs and making it particularly suitable for the production needs of small and medium-sized enterprises.
2. Low-Stress Cutting, Protecting Electronic Components
Many precision electronic components on the PCB are highly sensitive to stress changes during the depaneling process. The Weisi knife-type depaneling machine generates relatively low stress during operation due to its linear motion of the tool, effectively preventing solder joints from cracking due to excessive stress and protecting electronic components from damage caused by vibrations or stress during the depaneling process. This maximally protects the electronic components on the PCB, ensuring product quality is not compromised, especially for stress-sensitive PCBs such as high-end electronic products and medical device circuit boards.
3. Wide Applicability
Whether it is conventional FR-4 materials or special materials like aluminum substrates, the Weisi knife-type depaneling machine can handle them with ease. By selecting the right tools and precisely adjusting parameters, it can meet the depaneling needs of PCBs of different thicknesses, achieving high-quality cuts from thin to thick boards and from ordinary to special materials, demonstrating its strong applicability.
4. High Cut Quality, Reducing Subsequent Processes
The PCB cuts produced by this depaneling machine are flat and smooth, with almost no burrs. This excellent cut quality means that after depaneling, products do not require cumbersome subsequent processes such as grinding or deburring, significantly shortening the production cycle, improving production efficiency, and reducing the risk of secondary damage that may arise from subsequent processing, ensuring product consistency and stability.
5. Equipped with Safety Protection, Ensuring Personnel Safety
The Weisi knife-type depaneling machine fully considers the safety of operators, equipped with an infrared light curtain switch safety protection device. If an abnormal situation occurs during the depaneling process, such as a person accidentally approaching the cutting area, the machine will immediately stop working to prevent accidental injury to operators, providing strong assurance for safe production.
6. Durable Tools, Reducing Maintenance Costs
The machine’s tools are made from high-quality imported materials and treated with special processes, providing high hardness and wear resistance, resulting in a long service life. Even during prolonged and high-intensity depaneling work, the tools maintain good cutting performance, reducing the frequency of tool replacement, thereby lowering maintenance costs and improving the economic efficiency of the equipment.
3. Technological Innovation and Development of the Weisi Knife-Type Depaneling Machine
With the continuous development of the electronic manufacturing industry, the requirements for PCB depaneling machines are becoming increasingly high. Dongguan Weisi Electronic Technology Co., Ltd. keeps pace with industry trends, continuously investing in R&D to innovate the knife-type depaneling machine. For example, in terms of control systems, ongoing optimization and upgrades make the operation of the equipment more intelligent and precise; in tool development, new materials and manufacturing processes are constantly explored to further enhance the tool’s service life and cutting performance; in equipment structural design, efforts are made to be more compact and reasonable, ensuring equipment performance while reducing the footprint, saving more production space for enterprises.
In today’s increasingly competitive electronic manufacturing industry, choosing an efficient, stable, and reliable PCB depaneling device is crucial. The Dongguan Weisi knife-type depaneling machine, with its simple and efficient operation, excellent depaneling quality, wide applicability, and high safety, has become the ideal choice for many electronic manufacturing enterprises. It not only solves the PCB depaneling challenges for companies but also helps them improve production efficiency, reduce costs, and enhance product quality, making solid strides in the development path of electronic manufacturing. If you are still troubled by PCB depaneling issues, consider the Dongguan Weisi knife-type depaneling machine; it will undoubtedly bring unexpected value to your enterprise.
