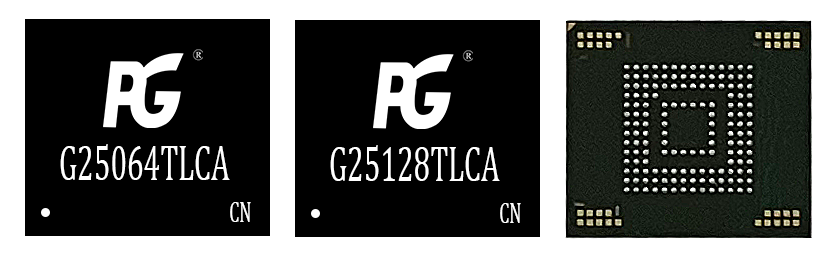

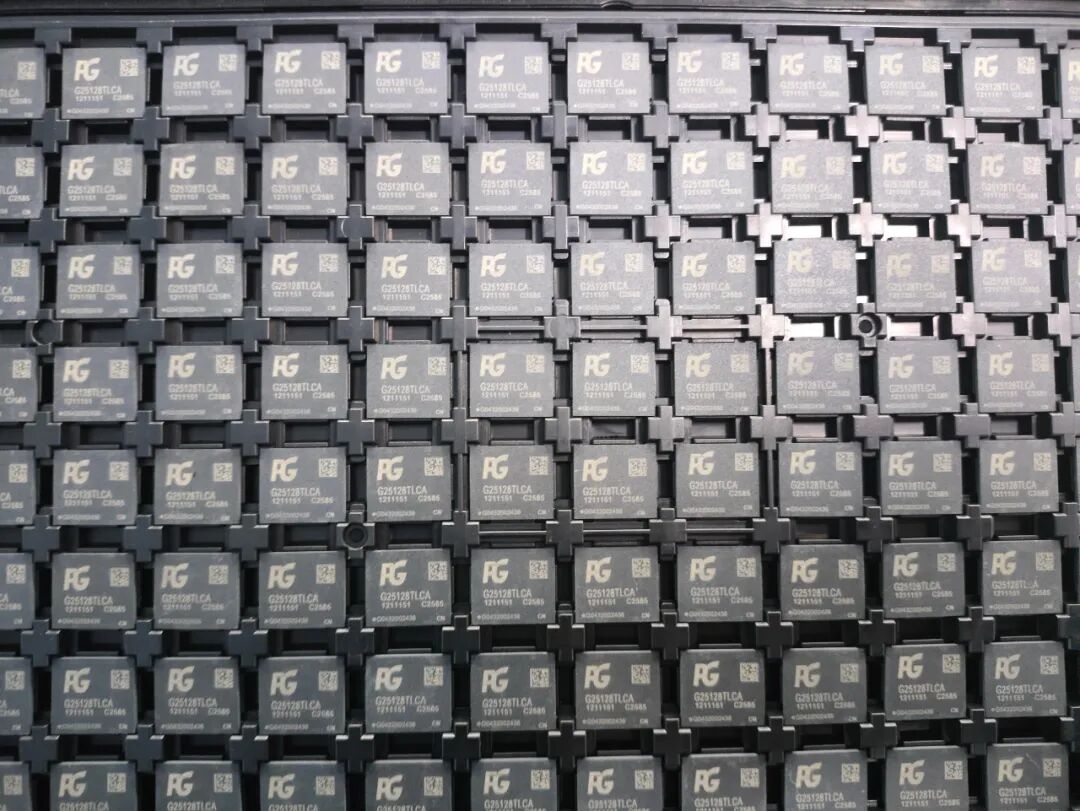

eMMC: KIOXIA 9T25 Wafer + SMI Controller
Huaxin Star Redefines Embedded
Storage Quality Standards
In the current explosive growth of IoT devices, the acceleration of Industry 4.0, and the smart automotive sector, embedded storage chips are facing unprecedented challenges in performance and reliability. With KIOXIA’s world-leading BiCS FLASH™ 3D flash memory technology and the deep integration of SMI (Silicon Motion) high-performance controllers, Huaxin Star has launched a new generation of eMMC 5.1 storage solutions, redefining the quality standards of embedded storage with industrial-grade durability, automotive-grade stability, and consumer-grade energy efficiency.
1. Technical Core: The Hardcore Strength of KIOXIA 9T25 Wafer
1. 3D Stacking Architecture Breaks Physical Limits
The KIOXIA 9T25 wafer adopts the latest BiCS FLASH™ 3D TLC flash memory architecture, integrating higher capacity storage units in a single chip through 112-layer vertical stacking technology. Compared to traditional 2D NAND, its storage density per unit area is increased by 300%, while optimizing the charge trapping layer design enhances data retention to 10 years (industrial temperature range -40℃~85℃), far exceeding the JEDEC standard requirement of 1 year.
2. Durability Revolution: From “Thousands” to “Ten Thousands”
In response to the high-frequency write demands of industrial and automotive scenarios, the 9T25 wafer enhances the P/E cycle life to 10,000 times (in TLC mode) through dynamic SLC caching and global wear leveling algorithms. Measured data shows that in industrial controller applications with a daily write volume of 4GB, its theoretical lifespan can reach 8 years, a 3-fold improvement over the previous generation..
3. Low-Temperature Characteristics Optimization: Stable Output in Extreme Environments
By improving the oxide layer materials and interface processes, the 9T25 wafer can maintain 98% of its original performance in a low-temperature environment of -40℃, solving the read/write error issues caused by charge leakage in traditional NAND under extreme cold conditions. This feature makes it an ideal choice for Arctic research equipment and plateau monitoring systems.
2. SMI Controller: The Smart Management “Strongest Brain”
1. Fourth-Generation LDPC Error Correction Engine: Reducing UBER to Industry Limits
The SMI controller is equipped with a hardware-level LDPC (Low-Density Parity-Check) algorithm that can detect and correct burst errors of 12bit/1KB in real-time, controlling the uncorrectable bit error rate (UBER) to below 1e-17, which is 100 times stricter than the JEDEC standard. In automotive black box applications, this technology ensures the complete preservation of data at the moment of collision.
2. Intelligent Power Failure Protection 2.0: Nanosecond-Level Response Mechanism
In response to the risk of sudden power outages in industrial scenarios, the SMI controller completes the migration of critical data from cache to NAND within 50μs after a power interruption through a dual-capacitor backup circuit and fast data write protocol. Tests show that in 10,000 power outage tests, the data integrity retention rate reached 100%.
3. Dynamic Performance Adjustment: Energy Efficiency Balance from mW to W
By predicting the host load with AI algorithms, the SMI controller can adjust its operating mode in real-time:
• Standby mode: Power consumption is only 130μA (memory) + 150μA (controller), a 40% reduction compared to the previous generation;
• Burst transfer mode: Peak power consumption is controlled within 1.2W while maintaining a sequential read speed of 290MB/s, meeting the real-time map loading requirements of automotive navigation systems.
3. Quality Verification: Comprehensive Testing from Laboratory to Extreme Scenarios
1. Automotive Grade Certification: AEC-Q100 Grade 2 Fully Passed
The Huaxin Star eMMC completed 1,000 hours of high-temperature operating life testing (HTOL), 4,000 temperature cycle tests, and mechanical vibration tests within the temperature range of -40℃~105℃, with a failure rate (FIT Rate) of less than 0.1, achieving the highest reliability level for automotive electronics.
2. Industrial Scenario Testing: Stability of 24-Hour Continuous Operation
In a PLC controller of a smart manufacturing factory, the Huaxin Star eMMC continuously operated for 18 months, and through SMART parameter analysis showed:
• Block erase count completed only 12% of the design life;
• ECC error correction count below threshold;
• Bad block growth rate approaching zero.
3. Consumer Electronics Energy Efficiency: 15% Improvement in Smartphone Battery Life
In a certain brand flagship smartphone, the deep sleep function of the Huaxin Star eMMC reduced the background application standby power consumption by 30%, and combined with fast wake-up technology, the system cold start time was shortened to 1.2 seconds, a 40% improvement over eMMC 5.0 products.
4. Market Positioning: The “Hexagonal Warrior” of Embedded Storage
|
Scenario |
Core Advantages |
|
Industrial Automation |
10,000 P/E cycles, -40℃~105℃ wide temperature, MIL-STD-883H vibration resistance |
|
Automotive Electronics |
AEC-Q100 Grade 2, functional safety ISO 26262 ASIL-B, real-time data protection |
|
Consumer Electronics |
290MB/s read speed, 130μA standby power consumption, 5-year warranty service |
|
Edge Computing |
4K random read 7K IOPS, dynamic SLC cache, CXL expansion compatibility |
5. Industry Evaluation: Huaxin Star Redefines the Value Standards of Embedded Storage
“The launch of Huaxin Star (9T25+SMI) eMMC marks the transition of embedded storage from ‘functional satisfaction’ to ‘quality premium.’”
——Gartner Storage Analyst
“In a certain new energy vehicle project, this solution reduced BOM costs by 18% while compressing system startup time from 3 seconds to 1.5 seconds.”
——Technical Director of a Tier 1 Supplier
The KIOXIA 9T25 wafer + SMI controller eMMC 5.1 solution, with nanometer-level process precision, millisecond-level response speed, and ten-year data lifespan, becomes the ultimate choice for embedded storage in the era of Industry 4.0, smart vehicles, and 5G IoT.
