With the acceleration of urbanization, the issue of waste management has become increasingly prominent. Traditional trash cans not only have a single function but also cannot effectively address problems such as overflowing waste and odor diffusion. To solve these issues, this article designs an intelligent trash can management system based on the 51 microcontroller, which features core functions such as infrared sensing for lid opening, overflow detection, and solar power supply, aiming to enhance the intelligence of waste management and improve the urban environment.
1. System Overview
This intelligent trash can management system uses the 51 microcontroller as the core controller, integrating various sensors and actuators to achieve real-time monitoring and automatic handling of the trash can’s status. The system mainly includes an infrared sensing module, an ultrasonic distance measuring module, a solar power supply module, and an LCD display module. The infrared sensing module is used to detect when a user approaches and automatically open the lid; the ultrasonic distance measuring module is used to detect the level of waste in the trash can; the solar power supply module provides green and sustainable power for the system.
2. Hardware Design
1. Infrared Sensing Module

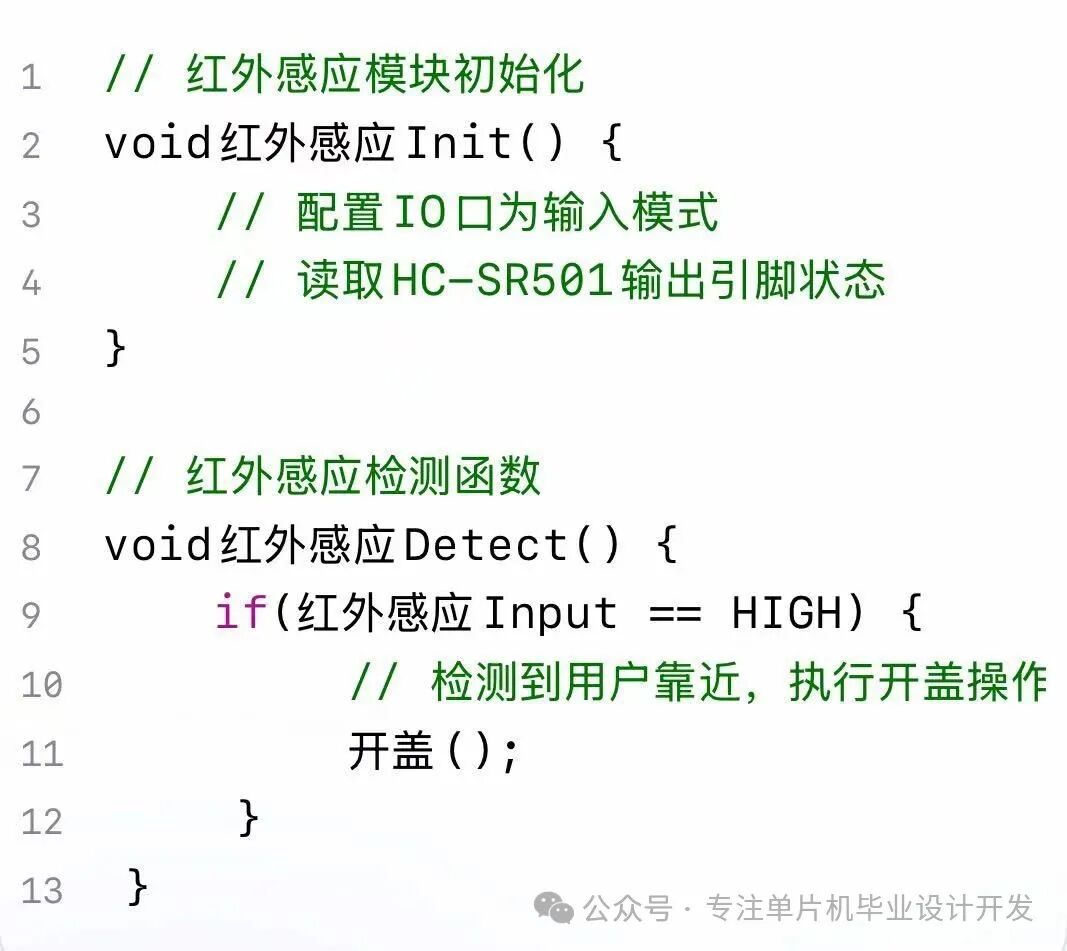

This system uses the HC-SR501 infrared sensing module to detect whether a user is approaching the trash can. The HC-SR501 module features high sensitivity, low power consumption, and strong anti-interference capabilities, making it suitable for human sensing applications. When a user approaches the trash can, the HC-SR501 module outputs a high-level signal, triggering the microcontroller to open the lid.
2. Ultrasonic Distance Measuring Module

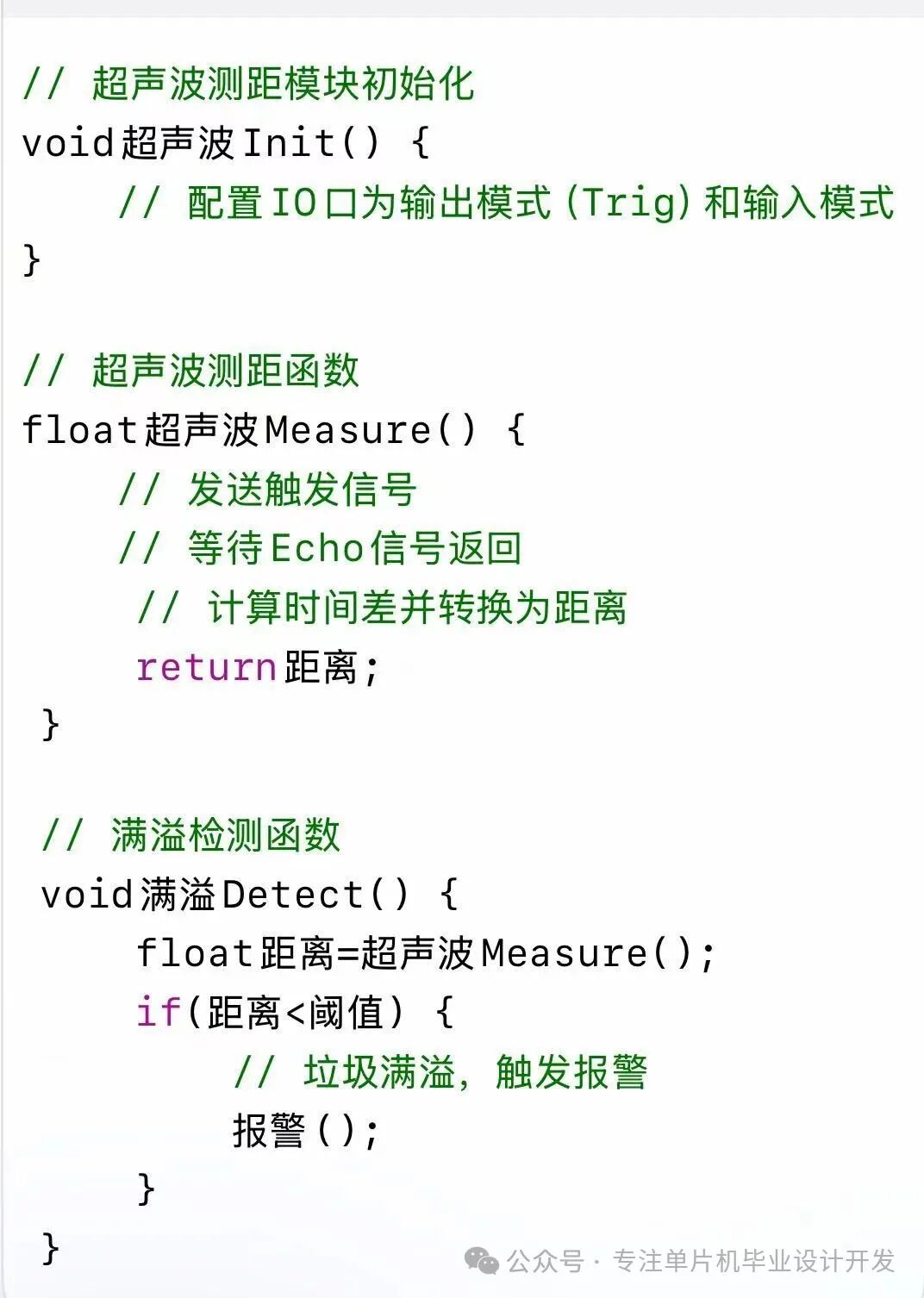

The ultrasonic distance measuring module is used to monitor the overflow level of waste in the trash can in real-time. This system employs the HC-SR04 ultrasonic module, which has a measuring range of 2cm to 400cm and an accuracy of up to 3mm. When the waste height exceeds a preset threshold, the system will trigger an alarm and prompt the user to clean it in a timely manner.
3. Solar Power Supply Module

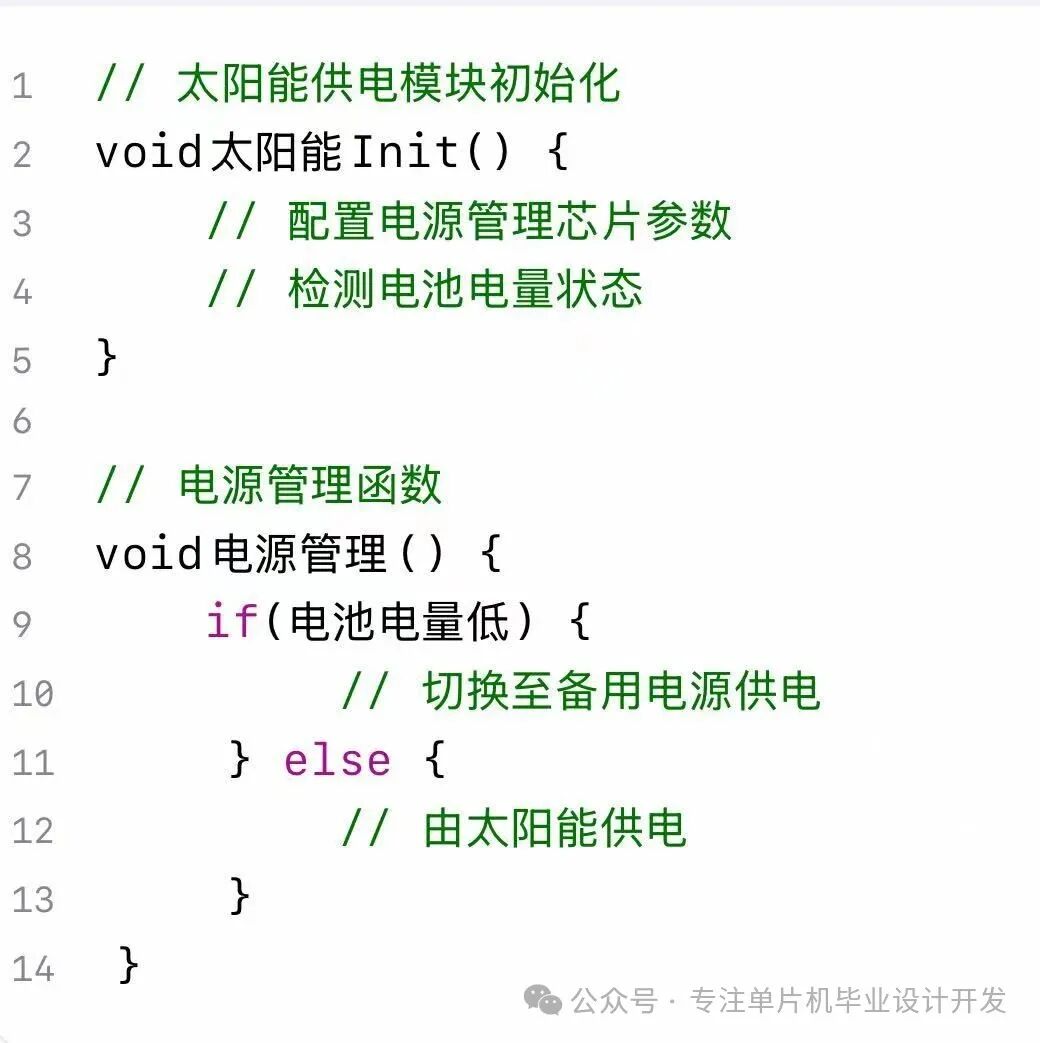

The solar power supply module provides green and sustainable power for the entire system. This system uses solar panels to convert light energy into electrical energy and charges a lithium battery through a charging circuit. Additionally, the system is equipped with a power management chip to achieve intelligent power switching and voltage regulation output.
3. Software Design
The software part of the system is written in C language, mainly including the main program, infrared sensing processing program, ultrasonic distance measuring processing program, and solar power management program. The main program is responsible for coordinating the work of each module to realize the overall functionality of the system. The infrared sensing processing program detects user proximity and executes the lid opening operation; the ultrasonic distance measuring processing program monitors the overflow level of waste in real-time and triggers an alarm; the solar power management program is responsible for intelligent power switching and voltage regulation output.
4. Conclusion
This article designs an intelligent trash can management system based on the 51 microcontroller, which features core functions such as infrared sensing for lid opening, overflow detection, and solar power supply. By integrating various sensors and actuators, the system can monitor the status of the trash can in real-time and automatically handle related issues, enhancing the intelligence of waste management. In the future, we will further optimize system performance and add more practical functions to make a greater contribution to improving the urban environment.
