Specific Function Implementation:
Using the 51 microcontroller TIMER0 to control an 8-bit running light.
Design Introduction

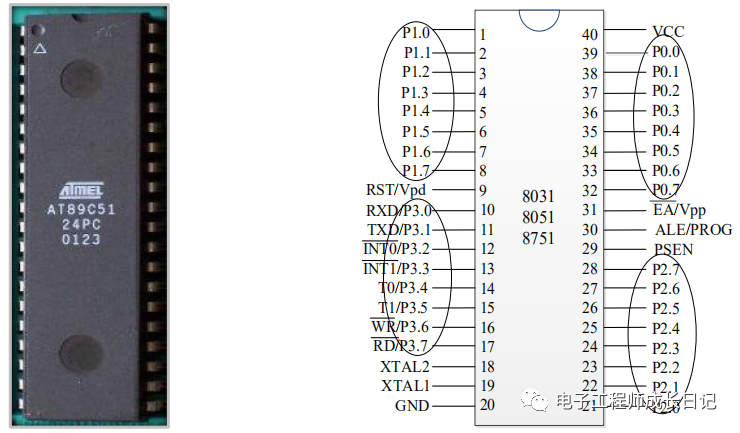

Introduction to the 51 Microcontroller
The 51 microcontroller is a low-power, high-performance CMOS 8-bit microcontroller with 8K of programmable Flash memory, providing a highly flexible and efficient solution for numerous embedded control applications.

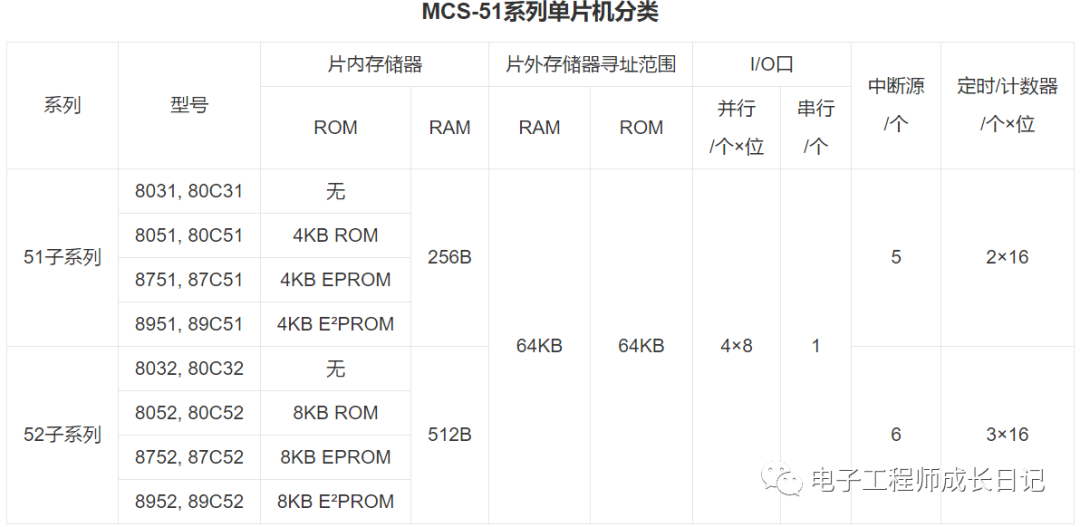

The 51 series microcontrollers have the following standard features:
8K bytes of Flash, 512 bytes of RAM,
32 I/O lines, watchdog timer,
Built-in 4KB EEPROM,
MAX810 reset circuit,
Three 16-bit timers/counters,
A 6-vector, 2-level interrupt structure,
Full-duplex serial port.
Additionally, the 51 series can stop the CPU in idle mode, allowing RAM, timers/counters, serial ports, and interrupts to continue functioning. In power-down protection mode, the RAM content is preserved, the oscillator is frozen, and the microcontroller stops working until the next interrupt or hardware reset.The chip used in this design is compatible with all 51 series microcontrollers (including AT series and STC series).
Design Approach
Literature research method: Collect and organize relevant research materials, read literature to prepare for the study;
Survey research method: Identify existing problems and solutions through surveys, analysis, and specific experiments;
Comparative analysis method: Compare the specific principles of different designs and the performance differences of similar sensors, analyzing the current research status and development prospects of the system;
Software and hardware design method: Implement hardware through software and hardware design, and finally test whether all functions meet the requirements.
Reference template for microcontroller design papers:
Graduation Project Worry-Free | Microcontroller Graduation Project Paper Template
Design Content

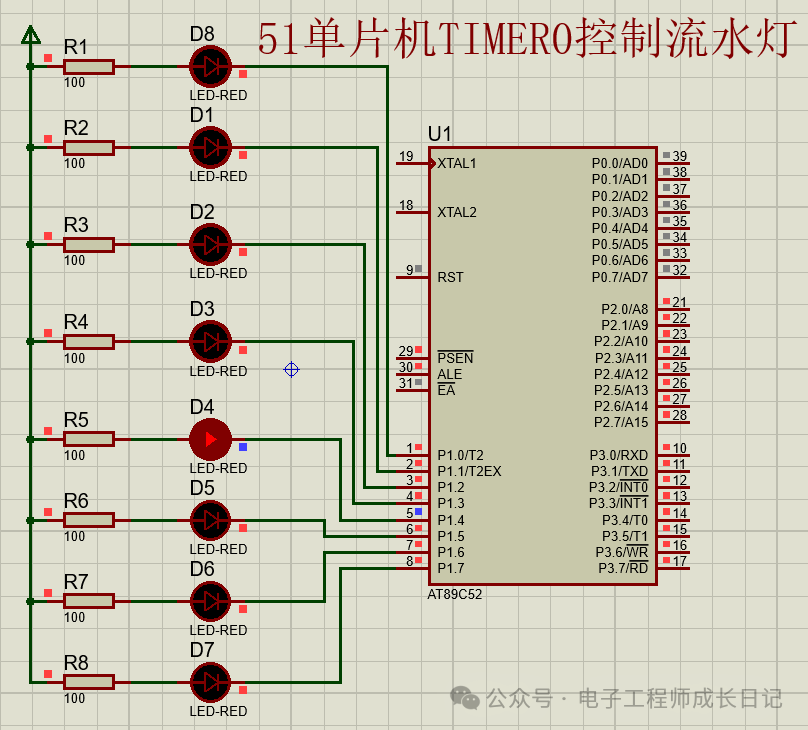

Simulation Diagram (Proteus 8.7)
This design uses Proteus 8.7 software for simulation design, as shown in the figure.
Note: Free sharing, please draw the simulation according to the figure below!!
Proteus 8.7 software materials and simulation solutions:
Proteus 8.7 installation and cracking tutorial (includes installation package)
Common problems and solutions for Proteus simulation
Simple tutorial for Proteus 8.7
Program (Keil 5)

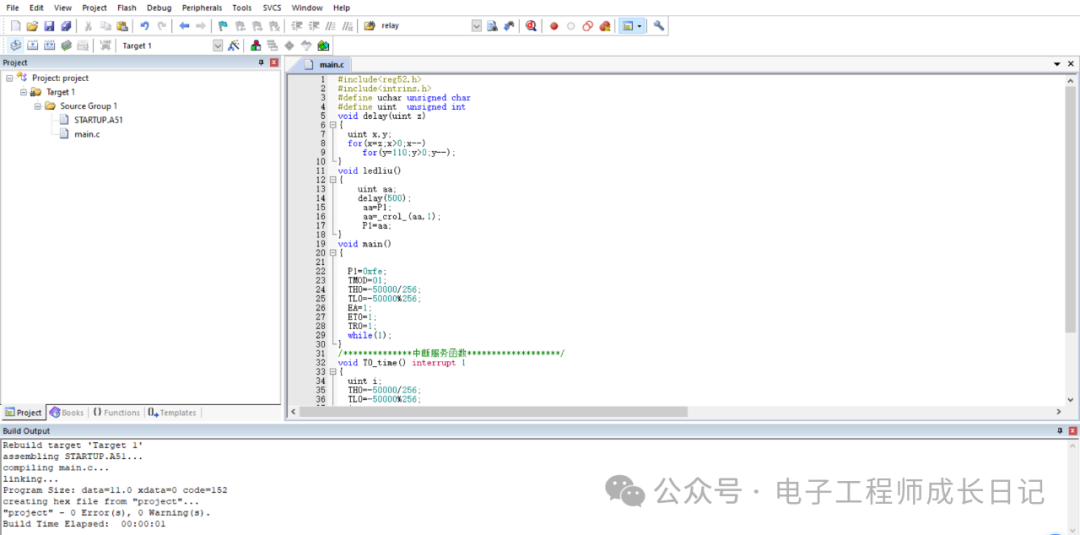

This design uses KEIL 5 software for program design.
Note: All code is shared for free, please create your own project!!!!
This design is written in C language, and the complete code is as follows:

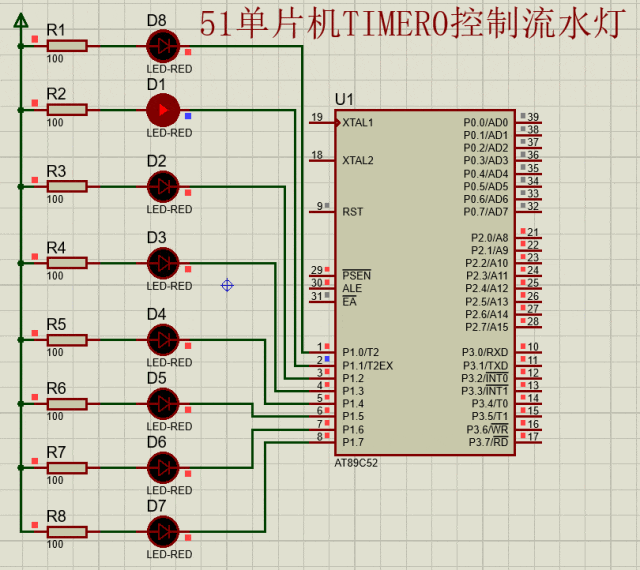

The running result is shown in the figure:
#include<reg52.h>
#include<intrins.h>
#define uchar unsigned char
#define uint unsigned int
void delay(uint z){
uint x,y;
for(x=z;x>0;x--)
for(y=110;y>0;y--);
}
void ledliu(){
uint aa;
delay(500);
aa=P1;
aa=_crol_(aa,1);
P1=aa;
}
void main(){
P1=0xfe;
TMOD=01;
TH0=-50000/256;
TL0=-50000%256;
EA=1;
ET0=1;
TR0=1;
while(1);
}/**************Interrupt Service Function*******************/
void T0_time() interrupt 1{
uint i;
TH0=-50000/256;
TL0=-50000%256;
i++;
if(i==10){
ledliu();
i=0;
}
}Keil C51 software materials and usage tutorials:
