The Ministry of Industry and Information Technology has released data indicating that by 2025, the scale of intelligent computing in China is expected to grow by more than 40%. Currently, intelligent computing is widely applied in fields such as generative large models, autonomous driving, embodied intelligence, smart cities, and industrial manufacturing.
North China Industrial Control is focused on creating domestically controllable, high-performance embedded AI computers, utilizing Rockchip flagship chips RK3576 and RK3588 to launch embedded motherboards, embedded quasi-systems, and industrial tablet computer solutions, providing outstanding AI computing power, multimedia processing capabilities, connectivity, expandability, and reliability. These systems show significant advantages in handling heavy-load tasks such as multi-task parallel processing and complex calculations, and have been widely applied in industrial HMI, IoT gateways, smart commercial displays, smart NVRs, and intelligent transportation.
RK3576 Series

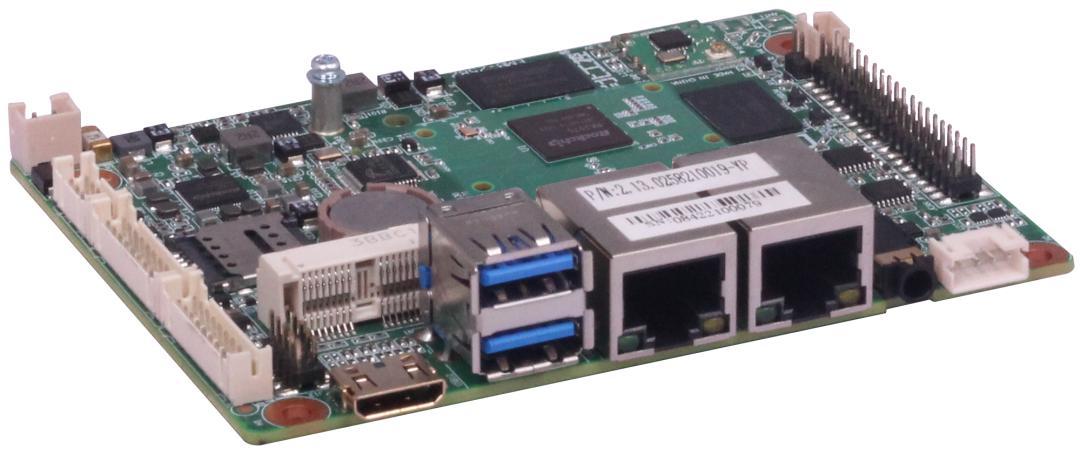

EMB-2583
The EMB-2583 features the Rockchip RK3576 quad-core Cortex-A72 + quad-core Cortex-A53 architecture processor, integrating a 6T computing power NPU, supporting complex neural network model inference. It comes with 4/8G LPDDR4X and supports 1*eMMC and 1*MSATA to increase storage capacity. It integrates a Mali-G52 GPU, supporting 8K video encoding and decoding, easily meeting the demands for high-definition and ultra-high-definition video playback, and supports 1*HDMI and 1*dual-channel LVDS interfaces for multi-screen display and up to 4K high-resolution output.
It supports 2*LAN, onboard WiFi, and 1*Mini-PCIe expansion for 4G/5G modules, meeting wired/wireless network communication needs. It supports 1*USB OTG, 2*USB3.0, 4*USB2.0 interfaces for multi-point communication, as well as 2*RS-232/TTL, 1*RS-485 serial ports for more flexible and efficient data transmission and processing; it supports 1*Headphone, 2*5W AMP amplifier interfaces; and 5*GPIO, 2*CAN, 1*FAN, facilitating users to achieve more extended applications.
Using domestic chips and other components, it achieves a self-controllable design, supporting an integrated hardware security engine to enhance security features. It is compatible with Android and Linux operating systems and has developed a watchdog function to provide a more open and stable system operating environment. It meets the wide temperature application requirements of -20℃ to 70℃, with dimensions of 105x80mm, highly integrated functionality, and easier deployment.
RK3588 Series

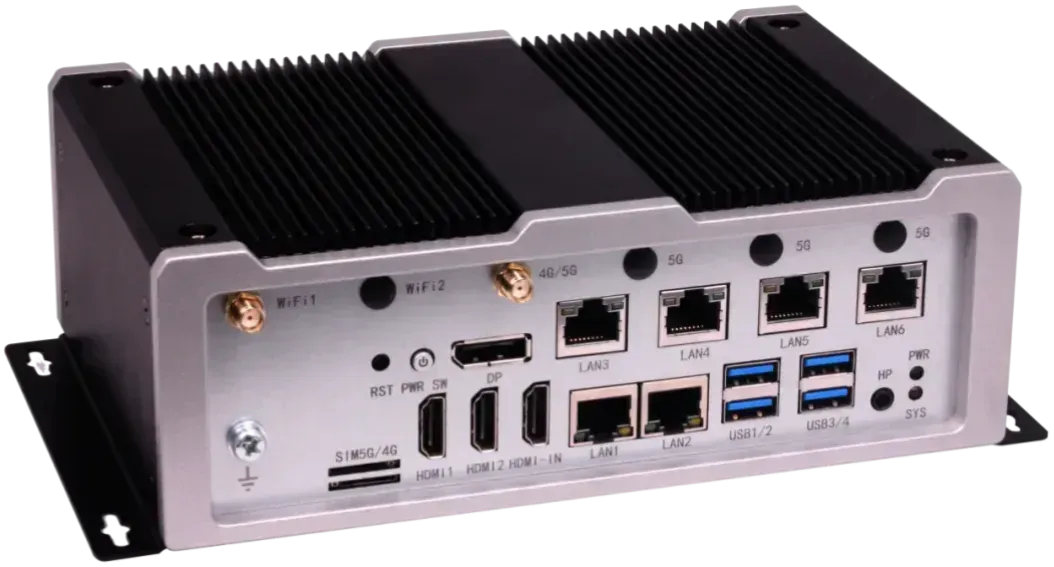

BIS-6390ARA-C50
The BIS-6390ARA-C50 supports the RK3588 processor, featuring a 4-core Cortex-A76 + 4-core Cortex-A55 big.LITTLE architecture, integrating a 6T computing power NPU, supporting INT4/INT8/INT16/FP16 mixed operations. It comes with 4/8GB LPDDR4X memory, with a maximum capacity of 16GB, and supports 1*SATA/mSATA, 1*eMMC, 1*TF, and 1*Mini-PCIe (supports SSD) for high-speed caching, capable of handling multi-task parallel processing loads.
It integrates ARM Mali-G610 GPU, supporting 8K 60fps decoding and 8K 30fps encoding, with support for 2*HDMI OUT and 1*HDMI IN interfaces, enabling real-time stitching of multiple ultra-high-definition videos and multi-screen display, meeting the requirements for complex graphics AI acceleration processing.
It supports 6*LAN, 4*USB3.0, and 4*RS-232/485 serial ports for multi-point communication and higher-speed data transmission and processing; it supports 1*Mini-PCIe expansion for 4G/5G modules, and 1*Mini-PCIe expansion for 4G/WIFI, meeting wireless network communication requirements; it supports 1*CAN, 2*LED, 8*GPI/8*GPO interfaces, facilitating users to achieve more peripheral connections.
Compatible with Android and Linux operating systems, supporting watchdog, hardware redundancy, and other technologies, it can provide a more open and stable system operating environment; it meets the wide temperature operating requirements of -20℃ to 70℃ and has features such as electromagnetic interference resistance, shock resistance, and dust resistance, making it suitable for multiple scenarios. Its dimensions are 199x131x68mm, allowing for desktop/wall-mounted installation, making deployment easy.
Contact Us
North China Industrial Control is a national high-tech enterprise integrating the research and development, production, sales, and service of industry-specific embedded computer products. It is a national-level specialized and innovative “little giant” enterprise, dedicated to providing customers with diversified embedded motherboards based on X86 and ARM architectures, embedded quasi-systems/complete machines, and industrial tablet computers, as well as integrated customized services ranging from computer hardware to operating systems, product drivers, and security software!
If you are interested in our products, please contact North China Industrial Control’s local business for consultation and purchase, or visit the North China Industrial Control official website for more information:www.norco.com.cn
