Shanghai Jinghang’s HMI (Human-Machine Interface) product series, developed based on Raspberry Pi, is specifically designed for industrial scenarios. Its high reliability, environmental adaptability, and intelligent features significantly enhance the stability and efficiency of industrial automation systems. Below is an analysis of its core features and their roles in the industrial field, along with specific product parameter analysis:
Industrial Features and Functions
High Brightness and High-Temperature Resistance
Function: In environments with direct sunlight or high temperatures (such as steel and photovoltaic production lines), the screen remains clearly visible, ensuring operators can read data in real-time.
Example: All products have a brightness of ≥400 cd/m² (e.g., ED-HMI2002-070C), with an operating temperature range of -20°C to 60°C, suitable for extreme environments.
Dust and Water Resistance (IP Rating)
Function: The fully enclosed fanless design (aluminum alloy + sheet metal shell) prevents dust (such as in cement plants) or liquids (in food processing) from entering, reducing failure rates.
Fanless Design
Function: Prevents dust accumulation in fans leading to cooling failures, suitable for long-term operation (such as 24-hour automated production lines), while also reducing noise.
Supercapacitor Safe Shutdown
Function: Provides instant power during power outages (such as grid fluctuations) to save data and shut down normally, preventing system crashes or data loss (such as in chemical DCS systems).
4G Reconnection
Function: In remote areas (such as oil fields and mines), the system automatically reconnects after network interruptions during 4G remote monitoring, ensuring the SCADA system remains online.
Selection Recommendations
Shanghai Jinghang’s HMI product line is developed based on the Raspberry Pi technology platform, positioned as industrial-grade human-machine interaction solutions, aimed at providing high-performance, high-reliability control interfaces for industrial automation, intelligent manufacturing, building control, and other fields. As an official design partner of Raspberry Pi, the founding team of Shanghai Jinghang has collaborated with Raspberry Pi since 2012, supporting the successful production and global launch of the first generation Raspberry Pi in China, accumulating rich experience in embedded system development.
Basic Control: HMI2002 series (high cost-performance, general scenarios).
Harsh Environments: HMI3630 (high brightness, wide temperature range, suitable for outdoor/high-temperature use).
Protocol Expansion: HMI2630 (CAN bus support, automotive/transportation industry).
Space-Constrained: HMI3120-070C (compact design, PoE power supply simplifies wiring).
These products address the pain points of traditional HMIs in terms of stability and environmental adaptability, making them particularly suitable for critical fields such as intelligent manufacturing, energy, and transportation.
Industrial Automation and Intelligent Manufacturing Applications
In Shanghai Jinghang’s product ecosystem, HMIs work alongside PLCs, motion control systems, and more to form a complete industrial automation solution. In these applications, HMI products not only provide an operating interface but also play a key role in data visualization and system monitoring. Through CODESYS WebVisu technology, HMIs can achieve seamless communication with PLCs, ensuring real-time data transmission and efficient operation. For example, in intelligent manufacturing production lines, operators can monitor equipment status, adjust parameters, and obtain production data statistics in real-time through HMIs, significantly improving production management efficiency.
Core Highlights Analysis of Product Series
Shanghai Jinghang’s HMI product line based on Raspberry Pi is rich and diverse, with each series having its own characteristics and advantages for different application scenarios. Below is a detailed analysis of the core highlights of the main product series:

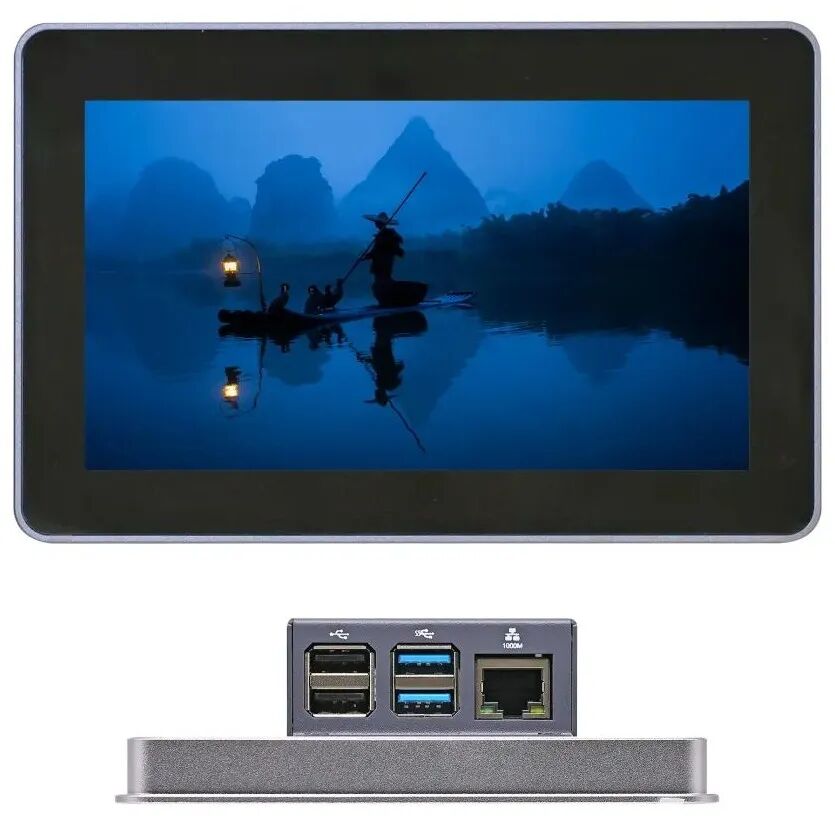

ED-HMI2002 Series
Product Positioning: Economical industrial HMI, suitable for small to medium-sized equipment and simple control scenarios
Core Highlights:
– Uses Raspberry Pi CM4 core, balancing performance and cost
– Available in 7-inch and 10.1-inch sizes, to meet different usage scenario needs
– Broadcom BCM2711 4-core Arm Cortex-A72 (ARM v8) 64-bit 1.8GHz SoC
– Up to 8GB LPDDR4 RAM, 32GB or 64GB SD card
– 1 x Gigabit Ethernet port, 2 x USB 3.0 and 2 x USB 2.0
– Dual HDMI display, supporting output of 2 channels of 4Kp60 video
– 5V power input via USB Type-C interface
– Aluminum alloy frame + sheet metal shell with CNC cutting process, fanless design, providing good heat dissipation performance
– Supports embedded installation, compatible with VESA standard mount installation
– Industrial-grade touchscreen, supports glove operation, suitable for harsh environments
Typical Applications: Control of small machinery, simple production line monitoring, building equipment control, etc.
Learn more:https://edatec.cn/zh/hmi/HMI2002

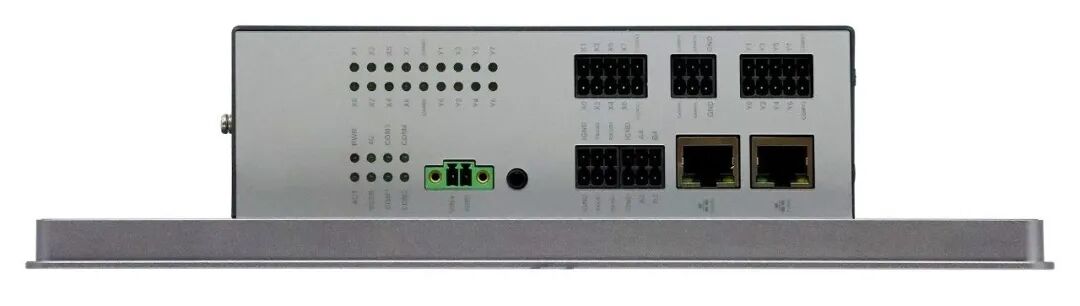

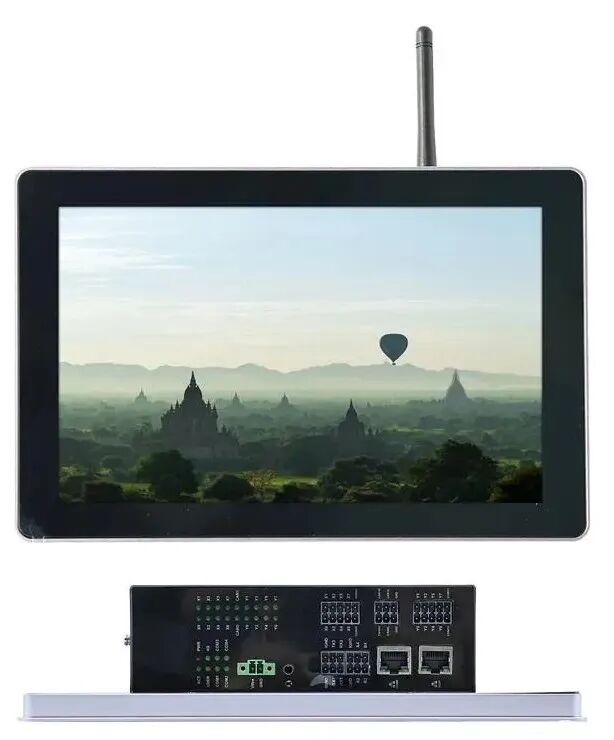

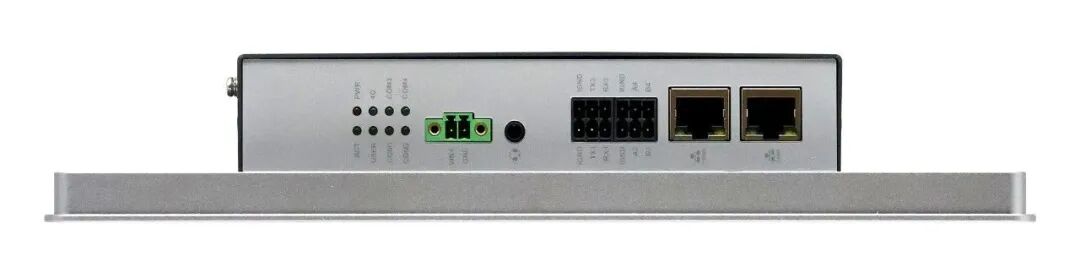

ED-HMI2630-101C Series
Product Positioning: High-performance industrial computer and HMI integrated machine, suitable for complex control scenarios
Core Highlights:
– Uses Raspberry Pi CM4 core
– 10.1″ TFT, resolution 1280×800, multi-touch capacitive touchscreen
– Broadcom BCM2711 4-core Arm Cortex-A72 (ARM v8) 64-bit 1.5GHz SoC
– Up to 8GB LPDDR4 RAM and 32GB eMMC
– Supports Micro SD Card and M.2 NVMe SSD expansion
– Dual Ethernet ports, 1 x Gigabit and 1 x 100M
– 4 x RS232/485 with isolation interfaces, with ESD and surge protection
– 2 x CAN, with isolation protection, compatible with CAN 2.0B standard, with LED status indicators
– 8 x DI, with isolation protection, supports AC signal input, with LED status indicators
– 8 x DO, with isolation protection, with current limiting protection, with LED status indicators
– 2.4GHz & 5GHz Wi-Fi, Bluetooth, and 4G wireless options
– Supports optional CODESYS licensing
– 9V~36V wide voltage power input, with overcurrent, overvoltage, and reverse polarity protection
– Integrated supercapacitor backup power (optional), RTC, Watch Dog, EEPROM, and encryption chip
– Supports embedded installation, compatible with VESA 75×75 standard mount installation
Typical Applications: Factory automation control, multi-axis motion control systems, intelligent warehousing equipment, etc.
Learn more:https://edatec.cn/zh/hmi/HMI2630
ED-HMI3120 Series
Product Positioning: High-performance processor, multi-size touchscreen, rich I/O interfaces, and various wireless connection options, suitable for various industrial automation and human-machine interaction applications
Core Highlights:
– Uses Raspberry Pi CM5 core
– Available in sizes of 7/10.1/11.6/13.3/15.6 inches, to meet different usage scenario needs
– Broadcom BCM2712 4-core Cortex-A76 (ARM v8) 64-bit 2.4GHz SoC
– Up to 16GB LPDDR4 RAM and 64GB eMMC
– Supports Micro SD Card and M.2 NVMe SSD expansion
– Dual Ethernet ports, 1 x Gigabit and 1 x 100M
– 4 x RS232/485 with isolation interfaces, with ESD and surge protection
– 2.4GHz & 5GHz Wi-Fi, Bluetooth, and 4G wireless options
– 9V~36V wide voltage power input, with overcurrent, overvoltage, and reverse polarity protection
– Integrated supercapacitor backup power (optional), RTC, Watch Dog, EEPROM, and encryption chip
– Supports embedded installation, compatible with VESA 75×75 standard mount installation
Typical Applications: Central control of large production lines, multi-device monitoring systems, data visualization dashboards, etc.
Learn more:https://edatec.cn/zh/hmi/HMI3120
ED-HMI3630 Series
Product Positioning: An industrial tablet computer with maximum usability and reliability based on Raspberry Pi CM5
Core Highlights:
– Uses Raspberry Pi CM5 core
– Available in sizes of 7/10.1/11.6/13.3/15.6 inches, to meet different usage scenario needs
– Broadcom BCM2712 4-core Cortex-A76 (ARM v8) 64-bit 2.4GHz SoC
– Up to 16GB LPDDR4 RAM and 64GB eMMC
– Supports Micro SD Card and M.2 NVMe SSD expansion
– Dual Ethernet ports, 1 x Gigabit and 1 x 100M
– 4 x RS232/485 with isolation interfaces, with ESD and surge protection
– 2.4GHz & 5GHz Wi-Fi, Bluetooth, and 4G wireless options
– 9V~36V wide voltage power input, with overcurrent, overvoltage, and reverse polarity protection
– Integrated supercapacitor backup power (optional), RTC, Watch Dog, EEPROM, and encryption chip
– Supports embedded installation, compatible with VESA 75×75 standard mount installation
Typical Applications: Mainly used in industrial control and IoT fields
Learn more:https://edatec.cn/zh/hmi/HMI3630
Summary and Outlook
Shanghai Jinghang’s HMI product line based on Raspberry Pi represents a significant innovation in industrial human-machine interface technology, perfectly combining the high performance of Raspberry Pi chips with industrial-grade reliability. By analyzing the characteristics and application cases of each product series, we can clearly see the unique value these products bring to industrial automation, building control, intelligent manufacturing, and other fields.
Shanghai Jinghang’s HMI product line based on Raspberry Pi has formed a complete product matrix from entry-level to high-performance, from small sizes to large screens, capable of meeting the needs of various complex application scenarios in the field of industrial automation. With the deepening of Industry 4.0 and intelligent manufacturing, these high-performance HMI products that integrate IT and OT technologies will play an increasingly important role, providing strong support for industrial digital transformation.
