In-Depth Analysis of MQTT Protocol: A Lightweight Solution for IoT Communication

Introduction

In the rapidly evolving world of the Internet of Things (IoT), efficient and reliable communication between devices has become crucial. MQTT (Message Queuing Telemetry Transport), as a lightweight publish/subscribe protocol, has become the preferred solution for IoT communication. This article will delve into the core concepts of MQTT, its working principles, and provide examples of implementation in Python.

Core Concepts of MQTT

What is MQTT?

MQTT is a lightweight messaging protocol based on TCP/IP, developed by IBM in 1999, initially for satellite communication and oil pipeline monitoring. It has the following characteristics:

• Lightweight: The minimum message header is only 2 bytes, making it suitable for bandwidth-constrained environments.
• Publish/Subscribe Model: Decouples the message sender from the receiver.
• Reliability Guarantees: Provides three levels of Quality of Service (QoS).
• Low Power Consumption: Suitable for long-term operation of battery-powered devices.

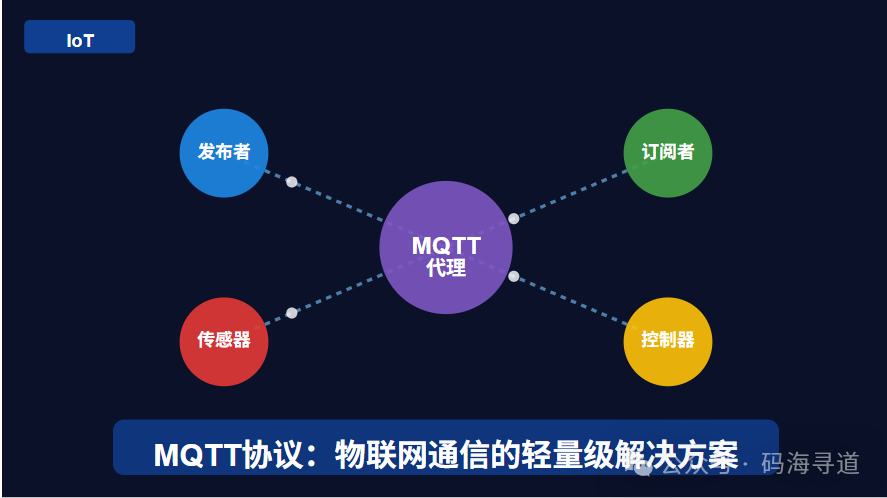

Key Components

The MQTT system consists of three core components:

1. Publisher: The producer of messages, such as sensors and monitoring devices.
2. Subscriber: The consumer of messages, such as data processing applications and control terminals.
3. Broker: The central node responsible for receiving all messages and distributing them to clients subscribed to the corresponding topics.

Topics and Messages

• Topic: The classification identifier for messages, organized using a hierarchical structure, such as home/kitchen/temperature
• Wildcards: Supports + (single-level) and # (multi-level) wildcard subscriptions, such as home/+/temperature
• Message: The actual data payload transmitted through the topic, format is not restricted.

Quality of Service (QoS)

MQTT provides three levels of Quality of Service, balancing reliability and resource overhead:

1. QoS 0 (At most once): Messages may be lost, suitable for scenarios where loss is tolerable.
2. QoS 1 (At least once): Ensures messages arrive but may be duplicated.
3. QoS 2 (Exactly once): Guarantees messages are delivered only once, with the highest resource overhead.

Features of MQTT

Session Persistence

Clients can request the server to retain their subscription status during disconnection, allowing them to continue receiving messages upon reconnection.

Last Will and Testament (LWT)

Clients can set a “last will” message that the Broker automatically publishes to notify other clients in case of an unexpected disconnection.

Retained Messages

Publishers can mark messages as “retained,” and the Broker will store the latest retained message for that topic, which new subscribers will receive immediately upon connection.

Implementing MQTT Communication in Python

Below are two Python examples demonstrating the practical application of MQTT: one for a publisher and one for a subscriber.

Publisher Implementation

The publisher periodically generates sensor data and publishes it to a specified topic:

"""
MQTT Publisher Client

This program creates an MQTT publisher that periodically publishes sensor data
"""

import paho.mqtt.client as mqtt
import time
import json
import random

# Callback function - triggered on successful connection
def on_connect(client, userdata, flags, rc):
    print(f"Connection result: {rc}")
    if rc == 0:
        print("Successfully connected to the MQTT server")

# Create publisher client
def create_publisher(broker_address="broker.emqx.io", port=1883, topic="sensor/data"):
    client_id = f"publisher-{random.randint(0, 1000)}"

    client = mqtt.Client(client_id=client_id)
    client.on_connect = on_connect

    print(f"Connecting to {broker_address}...")
    client.connect(broker_address, port, 60)

    # Start the loop to process network events
    client.loop_start()
    return client, topic

# Simulate sensor data
def generate_sensor_data():
    return {
        "temperature": round(random.uniform(20, 30), 1),
        "humidity": round(random.uniform(40, 80), 1),
        "timestamp": time.time()
    }

if __name__ == "__main__":
    # Configuration
    broker_address = "broker.emqx.io"
    port = 1883
    topic = "home/livingroom/sensor"

    # Create publisher
    publisher, topic = create_publisher(broker_address, port, topic)

    try:
        # Publish data every 2 seconds
        print(f"Starting to publish data to topic: {topic}")
        while True:
            sensor_data = generate_sensor_data()
            payload = json.dumps(sensor_data)

            print(f"Publishing message: {payload}")
            publisher.publish(topic, payload, qos=1)

            time.sleep(2)

    except KeyboardInterrupt:
        print("Program interrupted by user")

    finally:
        # Cleanup
        publisher.loop_stop()
        publisher.disconnect()
        print("Publisher disconnected")

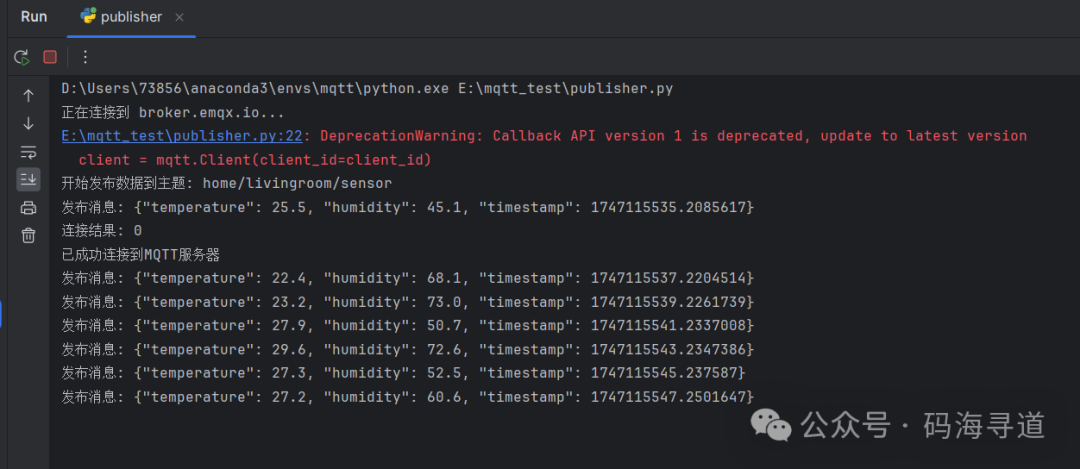

Output example:

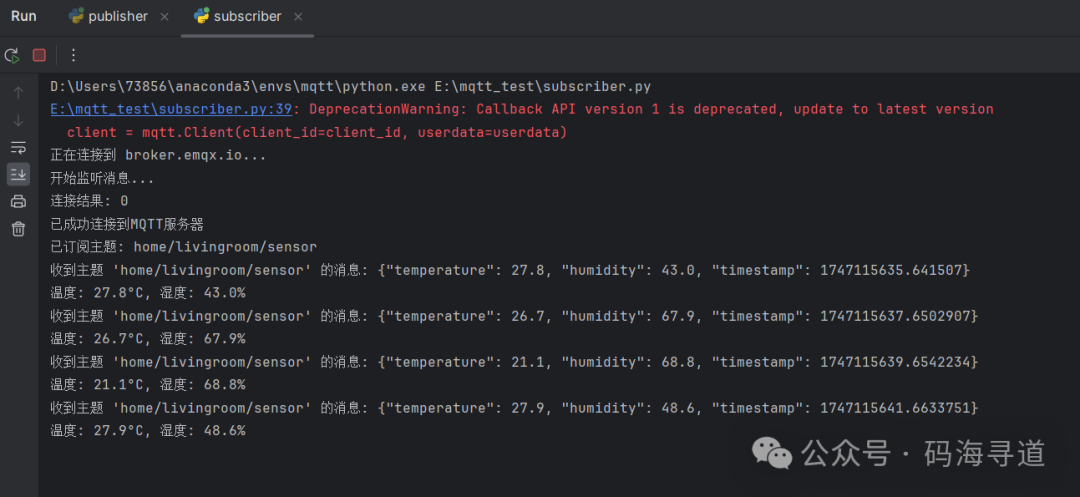

Subscriber Implementation

The subscriber connects to the same topic and processes the received messages:

"""
MQTT Subscriber Client

This program creates an MQTT subscriber that receives and displays sensor data
"""
import paho.mqtt.client as mqtt
import json
import random

# Callback function - triggered on successful connection
def on_connect(client, userdata, flags, rc):
    print(f"Connection result: {rc}")
    if rc == 0:
        print("Successfully connected to the MQTT server")
        # Subscribe to the topic after successful connection
        client.subscribe(userdata["topic"])
        print(f"Subscribed to topic: {userdata['topic']}")

# Callback function - triggered when a message is received
def on_message(client, userdata, msg):
    print(f"Received message from topic '{msg.topic}': {msg.payload.decode()}")
    try:
        data = json.loads(msg.payload.decode())
        print(f"Temperature: {data['temperature']}°C, Humidity: {data['humidity']}%")
    except json.JSONDecodeError:
        print("Message format is not JSON")
    except KeyError:
        print("Expected field missing in JSON data")

# Create subscriber client
def create_subscriber(broker_address="broker.emqx.io", port=1883, topic="sensor/data"):
    client_id = f"subscriber-{random.randint(0, 1000)}"
    userdata = {"topic": topic}

    client = mqtt.Client(client_id=client_id, userdata=userdata)
    client.on_connect = on_connect
    client.on_message = on_message

    print(f"Connecting to {broker_address}...")
    client.connect(broker_address, port, 60)

    return client

if __name__ == "__main__":
    # Configuration
    broker_address = "broker.emqx.io"
    port = 1883
    topic = "home/livingroom/sensor"

    # Create subscriber
    subscriber = create_subscriber(broker_address, port, topic)

    try:
        print("Starting to listen for messages...")
        # Start the loop to process network events (blocking)
        subscriber.loop_forever()

    except KeyboardInterrupt:
        print("Program interrupted by user")

    finally:
        # Cleanup
        subscriber.disconnect()
        print("Subscriber disconnected")

Practical Applications of MQTT

MQTT performs excellently in various IoT scenarios:

1. Smart Home: Connecting various household devices for remote monitoring and control.
2. Industrial IoT: Monitoring production equipment and environmental parameters.
3. Medical Monitoring: Real-time collection and transmission of patient vital signs data.
4. Remote Asset Monitoring: Such as fleet management and energy infrastructure monitoring.
5. Environmental Monitoring: Weather stations, water quality monitoring, air quality detection, etc.

MQTT vs. Other Protocols

Compared to other communication protocols, MQTT has distinct advantages:

Feature	MQTT	HTTP	CoAP
Message Overhead	Very Low	Relatively High	Low
Battery Efficiency	High	Low	Medium
Reliability	QoS Guarantees	Request/Response	Acknowledgment Mechanism
Communication Mode	Publish/Subscribe	Request/Response	Request/Response
Applicable Scenarios	Low Bandwidth Environments	Web Applications	Constrained Devices

Comparison of MQTT Versions

The widely used versions of MQTT include:

• MQTT 3.1.1: Became an OASIS standard in 2014, supported by most devices.
• MQTT 5.0: Released in 2019, introducing more features such as shared subscriptions and message expiration.

Best Practices for Implementing MQTT

1. Design Topic Hierarchies Wisely: Avoid overly deep or shallow structures.
2. Select Appropriate QoS Levels: Balance reliability and resource consumption based on application needs.
3. Security Measures: Use TLS encryption and username/password authentication.
4. Set Reasonable Keepalive: Avoid unnecessary connection interruptions.
5. Effectively Use Client IDs: Ensure uniqueness for easier management and troubleshooting.

Common MQTT Brokers

There are various MQTT broker implementations available in the market:

• Mosquitto: Lightweight, suitable for resource-constrained environments.
• EMQX: High-performance enterprise-level MQTT platform.
• HiveMQ: Enterprise-level MQTT broker supporting large-scale deployments.
• AWS IoT Core: Cloud-native MQTT service.

Conclusion

With its lightweight nature, low power consumption, and reliability, MQTT has become an important protocol for IoT communication. Through the Python examples in this article, we have seen the simplicity and flexibility of implementing publish/subscribe communication with MQTT. As IoT continues to evolve, MQTT will play a key role in device interconnectivity.

Whether you are a smart home enthusiast or an enterprise IoT application developer, mastering MQTT will provide a reliable communication foundation for your IoT projects.
