How to Solve the Priority Inversion Problem in RTOS?

Hello everyone, I am the Intelligence Guy~

During the development process of RTOS, you must have encountered the issue of priority inversion, where a low-priority task is preempted by a higher-priority task due to shared resource access, which contradicts the real-time performance of a preemptive kernel.

The core of solving the priority inversion problem in RTOS lies in managing access to shared resources, especially the usage strategy of mutexes. Currently, mainstream RTOS have integrated optimization measures for priority inversion strategies, but each has its own variations. However, the main solutions to this problem are as follows:

1. Root Cause

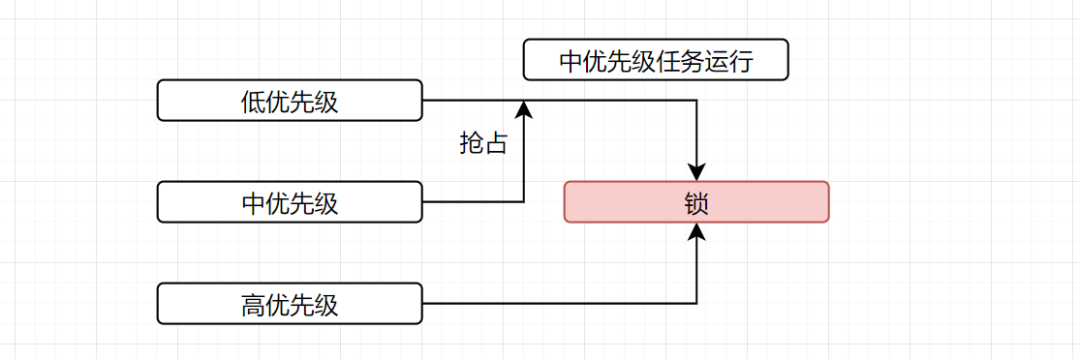

Priority inversion refers to:

  1. Low-priority task (L) holds a mutex (Mutex) to access a shared resource.
  2. Medium-priority task (M) preempts L but does not need that resource.
  3. High-priority task (H) starts and waits for that lock, becoming blocked.
  4. M continues to run, causing H to be forced to wait for M and L, violating real-time constraints.

How to Solve the Priority Inversion Problem in RTOS?2. Various Mainstream Solutions

1. Priority Inheritance Protocol

The principle of its implementation is: when a high-priority task (H) is blocked because the lock is held by a low-priority task (L), temporarily elevate L’s priority to that of H.

Thus, the low-priority task quickly completes and releases the lock to prevent the medium-priority task (M) from preempting L. Most modern RTOS (such as FreeRTOS, µC/OS) have built-in support for this. For example, FreeRTOS creates a Mutex that supports priority inheritance, automatically triggering priority inheritance when requesting the lock,

2. Priority Ceiling Protocol

This solution allows for each mutex to preset a ceiling priority, and when a task holds that lock, its priority is automatically elevated to the ceiling value. The ceiling priority must be higher than the priority of all tasks that may request that lock. This avoids the dynamic adjustment of priority inheritance.

Therefore, this solution can completely prevent inversion and has no risk of deadlock. For example, in VxWorks,<span><span>pthread_mutexattr_setprioceiling()</span></span>

3. Time-Bound Protocol

Set a blocking time limit for tasks (<span><span>xBlockTime</span></span>), and if it times out, abandon the request or execute error handling. The core idea is to set a blocking time limit for resource requests; when a high-priority task waits for a lock beyond the preset threshold, the system forcibly triggers a timeout handling mechanism to avoid indefinite blocking.

  • Implementation:
// FreeRTOS Example (in Ticks)
const TickType_t timeout_ticks = pdMS_TO_TICKS(5); // 5ms timeout
if (xSemaphoreTake(mutex, timeout_ticks) == pdPASS) {
   // Successfully acquired lock → access shared resource
   xSemaphoreGive(mutex);
} else {
   // Timeout handling branch
   _handle_lock_timeout();
}
  • Applicable Scenarios: Systems with strict response time constraints (e.g., automotive ECUs).

Although RTOS provides some API interfaces and strategies to optimize such issues, we can actually avoid such problems to some extent in the early stages of our design. The most important thing is to avoid high-priority tasks depending on low-priority resources by designing to circumvent lock dependency chains. Of course, you can also minimize critical sections to shorten lock hold times; since locks introduce issues, consider using lock-free data structures to avoid this problem.

How to Solve the Priority Inversion Problem in RTOS?
