In the current field of industrial automation, Modbus is a common communication protocol, and the upper computer, as an important tool for interacting with devices, is closely related to Modbus. Some people find it difficult to learn upper computer due to their lack of understanding of Modbus. This article will start from the basics to help you clarify your learning path and gradually master the skills.

Understanding What Modbus Is

Modbus is an open protocol primarily used for data communication between industrial devices. The core of the protocol is the master-slave mode: the upper computer generally acts as the master station, collecting and controlling slave stations (such as PLCs, sensors, etc.). The two most common communication methods of Modbus are:

• 1.Modbus RTU: Serial communication with high data transmission efficiency.
• 2.Modbus TCP: Based on Ethernet, using the network for communication.

Learning Suggestions: You can start by searching for official documentation or reading technical blogs to understand the basic concepts of Modbus. Recommended keywords:“Modbus Tutorial”, “Detailed Explanation of Modbus Protocol”.

Core Skills

The development process of the upper computer is usually related to programming languages and communication with terminal devices. You need to master the following aspects:

• 1.Understanding the Read and Write Process of Data: The upper computer displays the device status by reading data from Modbus registers or controls the device by writing data to the registers.

  # Example: Read data from device register 40001
  Send command: 01 03 00 00 00 01 85 D8
  Return data: 01 03 02 00 64 B8 D8


• Example: Common Modbus commands include function codes<span>0x03</span> (read holding registers) and<span>0x10</span> (write multiple registers).

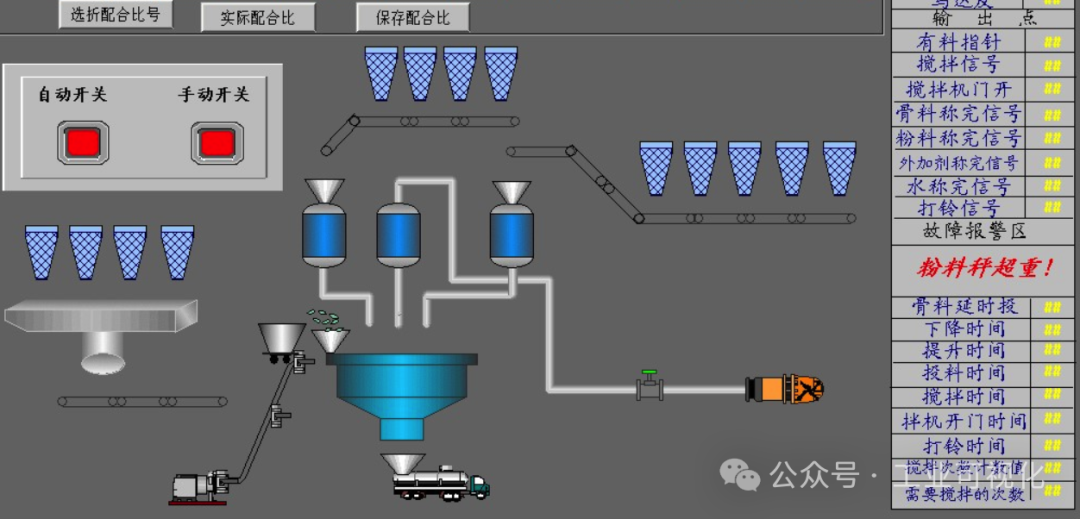

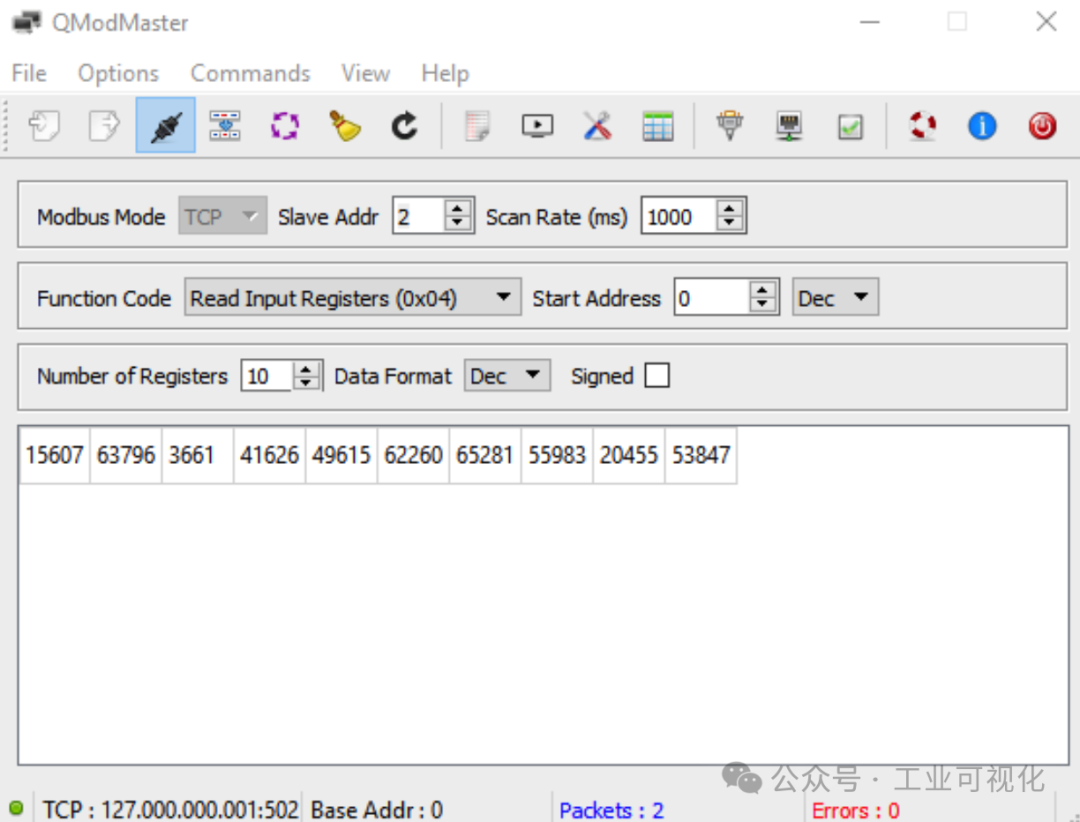

• 2.Mastering Communication Tools: Learn to use serial debugging assistants likeModScan or QModMaster to simulate upper computer operations and understand the details of the communication protocol.

• 3.Familiarity with Programming Languages: It is recommended to use languages that support Modbus libraries (such as C#, Python).

  using System;
  using EasyModbus; // Install EasyModbus library via NuGet

  class Program
  {
      static void Main(string[] args)
      {
          try
          {
              // 1. Create ModbusTCP client
              ModbusClient client = new ModbusClient("192.168.1.10", 502); // Device IP and port
              client.Connect();

              // 2. Read holding registers
              // Parameters: Start address=0, Quantity=10
              int[] registers = client.ReadHoldingRegisters(0, 10);

              // 3. Display read results
              Console.WriteLine("Read results:");
              for (int i = 0; i < registers.Length; i++)
              {
                  Console.WriteLine($"Register address {i}: {registers[i]}");
              }

              // 4. Disconnect
              client.Disconnect();
              Console.WriteLine("Modbus communication completed!");
          }
          catch (Exception ex)
          {
              Console.WriteLine($"Error occurred: {ex.Message}");
          }
      }
  }


• C# example for reading device registers:

Setting Up a Learning Environment

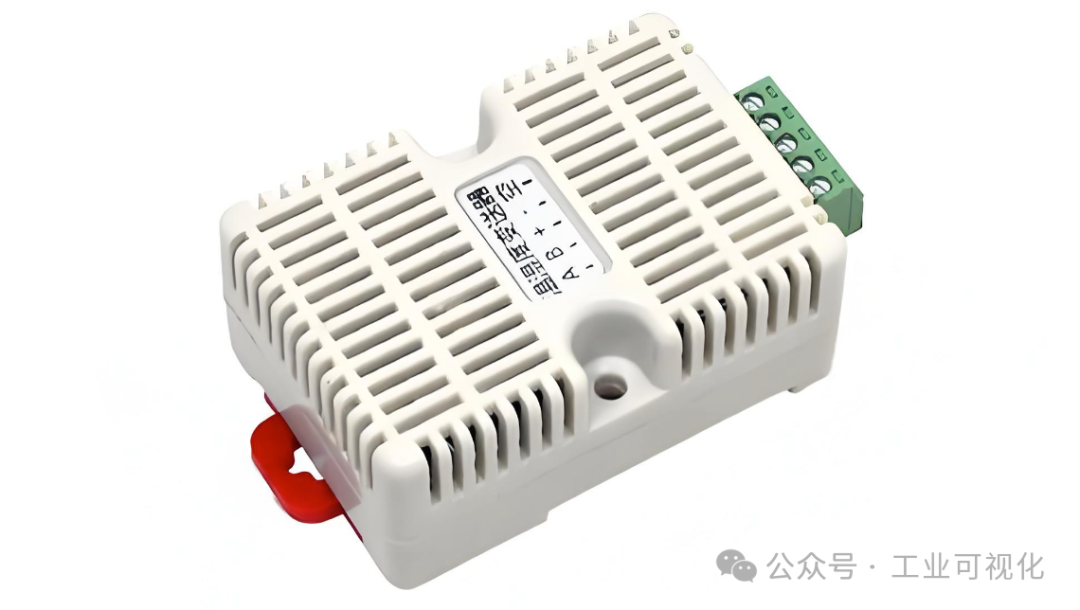

• 1.Buy a Modbus Device: It is recommended to use a low-power PLC or a sensor that supports Modbus.
• 2.Download Simulation Software: Such as KingView or Codesys to understand the data flow process.
• 3.Regular Practice: For example, write test programs to verify whether Modbus commands and upper computer data transmission are consistent.

Improving Step by Step

• 1. Start with basic commands to understand how to use Modbus for simple read and write operations;
• 2. Deepen your understanding of exception handling, such as how to resolve device response timeout issues;
• 3. Learn how to design more complex upper computer interfaces, such as developing UIs using frameworks like QT.

By combining theory and practice, gradually progress from unfamiliarity to proficiency.
