The riscv-gcc tool includes some built-in macro parameters. We can use these built-in macros to determine the behavior of the compiler.
1. Viewing GCC Built-in Macro Parameters
Here, we take the riscv-nuclei-elf-gcc toolchain released by Chipone Technology as an example.
Using the following command, we can get the built-in macro parameters of this tool:
|
riscv-nuclei-elf-gcc -E -dM a.h | grep riscv |
We can obtain the following macro parameters:
|
#define __riscv 1 #define __riscv_atomic 1 #define __riscv_cmodel_medlow 1 #define __riscv_fdiv 1 #define __riscv_float_abi_double 1 #define __riscv_flen 64 #define __riscv_compressed 1 #define __riscv_mul 1 #define __riscv_muldiv 1 #define __riscv_xlen 32 #define __riscv_fsqrt 1 #define __riscv_div 1 |
From the built-in macro parameters, we can see that the compiler supports the RV64IMAFDC instruction set architecture by default.
If we use the following command:
|
riscv-nuclei-elf-gcc -march=rv32gc -mabi=ilp32 -E -dM a.h | grep riscv |
We get the following results:
|
#define __riscv 1 #define __riscv_atomic 1 #define __riscv_cmodel_medlow 1 #define __riscv_float_abi_soft 1 #define __riscv_fdiv 1 #define __riscv_flen 64 #define __riscv_compressed 1 #define __riscv_mul 1 #define __riscv_muldiv 1 #define __riscv_xlen 32 #define __riscv_fsqrt 1 #define __riscv_div 1 |
From the built-in macro parameters, we can see that the compiler supports the RV32IMAFDC instruction set architecture.
2. Adding Built-in Macro Parameters
For riscv, it supports the p extension, which is aimed at DSP applications.
If we want the compiler to define the __riscv_dsp macro when the -march option specifies the p extension instruction set, we can do so. If the p extension instruction set is not specified, then the __riscv_dsp macro will not be defined.
In this way, the DSP program we write can use this macro to determine whether the p extension instruction set is supported.
Below is a brief description of how to implement this feature, that is, how to add built-in macro parameters based on the passed instruction set architecture parameters.
Here, we mainly refer to the following commit of riscv-gcc:
https://github.com/riscv/riscv-gcc/commit/06ab742f982d23488ec2d8c0266cb720fe775f7c
This commit adds support for RV32E to riscv-gcc.
3. Modifying riscv.opt

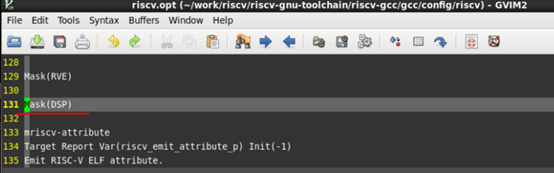

First, modify the gcc/config/riscv/riscv.opt file to add the DSP macro.
The gcc script tool will process this file, expanding macros through masks to define new macro parameters.
-
MASK_DSP
-
TARGET_DSP
In the gcc/options.h file under the compilation directory, there are definitions for these macro parameters.
Definitions of TARGET and MASK macros:
|
#define MASK_DIV (1U << 0) #define MASK_EXPLICIT_RELOCS (1U << 1) #define MASK_FDIV (1U << 2) #define MASK_SAVE_RESTORE (1U << 3) #define MASK_STRICT_ALIGN (1U << 4) #define MASK_64BIT (1U << 5) #define MASK_ATOMIC (1U << 6) #define MASK_DOUBLE_FLOAT (1U << 7) #define MASK_DSP (1U << 8) #define MASK_HARD_FLOAT (1U << 9) #define MASK_MUL (1U << 10) #define MASK_RVC (1U << 11) #define MASK_RVE (1U << 12) #define TARGET_DIV ((target_flags & MASK_DIV) != 0) #define TARGET_DIV_P(target_flags) (((target_flags) & MASK_DIV) != 0) #define TARGET_EXPLICIT_RELOCS ((target_flags & MASK_EXPLICIT_RELOCS) != 0) #define TARGET_EXPLICIT_RELOCS_P(target_flags) (((target_flags) & MASK_EXPLICIT_RELOCS) != 0) #define TARGET_FDIV ((target_flags & MASK_FDIV) != 0) #define TARGET_FDIV_P(target_flags) (((target_flags) & MASK_FDIV) != 0) #define TARGET_SAVE_RESTORE ((target_flags & MASK_SAVE_RESTORE) != 0) #define TARGET_SAVE_RESTORE_P(target_flags) (((target_flags) & MASK_SAVE_RESTORE) != 0) #define TARGET_STRICT_ALIGN ((target_flags & MASK_STRICT_ALIGN) != 0) #define TARGET_STRICT_ALIGN_P(target_flags) (((target_flags) & MASK_STRICT_ALIGN) != 0) #define TARGET_64BIT ((target_flags & MASK_64BIT) != 0) #define TARGET_ATOMIC ((target_flags & MASK_ATOMIC) != 0) #define TARGET_DOUBLE_FLOAT ((target_flags & MASK_DOUBLE_FLOAT) != 0) #define TARGET_DSP ((target_flags & MASK_DSP) != 0) #define TARGET_HARD_FLOAT ((target_flags & MASK_HARD_FLOAT) != 0) #define TARGET_MUL ((target_flags & MASK_MUL) != 0) #define TARGET_RVC ((target_flags & MASK_RVC) != 0) #define TARGET_RVE ((target_flags & MASK_RVE) != 0) |
The options.h file is generated by gcc’s built-in scripts. I haven’t yet fully understood how this script works.
4. Modifying riscv-common.c
After obtaining the above macros, we need to modify the gcc/common/config/riscv/riscv-common.c file.
In the riscv_parse_arch_string function, it will analyze the passed –march parameter and then set the flags by adding the corresponding TARGET support to the flags.
By imitating the support for the c extension, we can add support for the p extension.
|
static void riscv_parse_arch_string (const char *isa, int *flags, location_t loc) { riscv_subset_list *subset_list; subset_list = riscv_subset_list::parse (isa, loc); if (!subset_list) return; if (subset_list->xlen () == 32) *flags &= ~MASK_64BIT; else if (subset_list->xlen () == 64) *flags |= MASK_64BIT; *flags &= ~MASK_RVE; if (subset_list->lookup (“e”)) *flags |= MASK_RVE; *flags &= ~MASK_MUL; if (subset_list->lookup (“m”)) *flags |= MASK_MUL; *flags &= ~MASK_ATOMIC; if (subset_list->lookup (“a”)) *flags |= MASK_ATOMIC; *flags &= ~(MASK_HARD_FLOAT | MASK_DOUBLE_FLOAT); if (subset_list->lookup (“f”)) *flags |= MASK_HARD_FLOAT; if (subset_list->lookup (“d”)) *flags |= MASK_DOUBLE_FLOAT; *flags &= ~MASK_RVC; if (subset_list->lookup (“c”)) *flags |= MASK_RVC; *flags &= ~MASK_DSP; if (subset_list->lookup (“p”)) *flags |= MASK_DSP; if (current_subset_list) delete current_subset_list; current_subset_list = subset_list; } |
By calling the lookup function of the subset_list, we can check if the corresponding instruction set architecture has been passed in. If it has, we set the corresponding MASK in the flags.
5. Modifying riscv-c.c
Modify the gcc/config/riscv/riscv-c.c file to add built-in macros.
The riscv_cpu_cpp_builtins function in this file is the function that adds built-in macro parameters.
|
void riscv_cpu_cpp_builtins (cpp_reader *pfile) { builtin_define (“__riscv”); if (TARGET_RVC) builtin_define (“__riscv_compressed”); if (TARGET_RVE) builtin_define (“__riscv_32e”); if (TARGET_ATOMIC) builtin_define (“__riscv_atomic”); if (TARGET_MUL) builtin_define (“__riscv_mul”); if (TARGET_DIV) builtin_define (“__riscv_div”); if (TARGET_DIV && TARGET_MUL) builtin_define (“__riscv_muldiv”); if (TARGET_DSP) builtin_define (“__riscv_dsp”); builtin_define_with_int_value (“__riscv_xlen”, UNITS_PER_WORD * 8); if (TARGET_HARD_FLOAT) builtin_define_with_int_value (“__riscv_flen”, UNITS_PER_FP_REG * 8); if (TARGET_HARD_FLOAT && TARGET_FDIV) { builtin_define (“__riscv_fdiv”); builtin_define (“__riscv_fsqrt”); } switch (riscv_abi) { case ABI_ILP32E: builtin_define (“__riscv_abi_rve”); gcc_fallthrough (); case ABI_ILP32: case ABI_LP64: builtin_define (“__riscv_float_abi_soft”); break; case ABI_ILP32F: case ABI_LP64F: builtin_define (“__riscv_float_abi_single”); break; case ABI_ILP32D: case ABI_LP64D: builtin_define (“__riscv_float_abi_double”); break; } switch (riscv_cmodel) { case CM_MEDLOW: builtin_define (“__riscv_cmodel_medlow”); break; case CM_MEDANY: builtin_define (“__riscv_cmodel_medany”); break; case CM_PIC: builtin_define (“__riscv_cmodel_pic”); break; } } |
We need to add our code here:
|
if (TARGET_DSP) builtin_define (“__riscv_dsp”); |
Since the flags have already set MASK_DSP, the TARGET_DSP macro is defined as follows:
|
#define TARGET_DSP ((target_flags & MASK_DSP) != 0) |
If the return value of this macro is not 0, it indicates that the -march has passed in the p extension instruction set, so the builtin_define function will be called to define the __riscv_dsp macro.
If the return value of this macro is 0, it indicates that the -march has not passed in the p extension instruction set, so the builtin_define function will not be called to define the __riscv_dsp macro.
6. Testing
Recompile the riscv-gcc toolchain and then perform testing:
Use the following command:
|
riscv-nuclei-elf-gcc -march=rv64gcp -mabi=lp64 -E -dM a.h | grep riscv |
We get:
|
#define __riscv 1 #define __riscv_atomic 1 #define __riscv_cmodel_medlow 1 #define __riscv_float_abi_soft 1 #define __riscv_fdiv 1 #define __riscv_flen 64 #define __riscv_compressed 1 #define __riscv_mul 1 #define __riscv_muldiv 1 #define __riscv_xlen 64 #define __riscv_fsqrt 1 #define __riscv_div 1 #define __riscv_dsp 1 |
From the results, we can see the __riscv_dsp macro.
Using the following command:
|
riscv-nuclei-elf-gcc -march=rv64gc -mabi=lp64 -E -dM a.h | grep riscv |
We get:
|
#define __riscv 1 #define __riscv_atomic 1 #define __riscv_cmodel_medlow 1 #define __riscv_float_abi_soft 1 #define __riscv_fdiv 1 #define __riscv_flen 64 #define __riscv_compressed 1 #define __riscv_mul 1 #define __riscv_muldiv 1 #define __riscv_xlen 64 #define __riscv_fsqrt 1 #define __riscv_div 1 |
From the results, we can see that there is no __riscv_dsp macro.
7. Conclusion
We have completed the addition of built-in macros to riscv-gcc.
If you simply want to add a macro that is not related to any parameters, you can directly modify the riscv-common.c file and call the builtin_define function to define the built-in macro.
If the macro you want to add is related to the -march parameter, you can follow the above process to modify and add built-in macros.
