The GD32® series, leveraging GigaDevice’s advanced gFlash® technology and mass production experience, has developed a new form of MCU, providing customers with outstanding functionality and quality. The GD32F4 series is an enhanced high-performance product line within the GD32 MCU family. Based on the ARM® Cortex®-M4 core, this 32-bit general-purpose microcontroller offers high performance, low power consumption, and a rich set of peripherals while maintaining cost-effectiveness. The Cortex®-M4 core includes a Floating Point Unit (FPU) that enhances single-precision floating-point operation speed and supports all ARM® single-precision instructions and data types. This core can execute a full set of DSP instructions to meet the demands of digital signal control for efficient and user-friendly control and signal processing capabilities. Additionally, it is equipped with a Memory Protection Unit (MPU) and robust trace capabilities to enhance application security and meet advanced debugging requirements. The GD32F4 product series is widely used in interconnected and high-end applications.

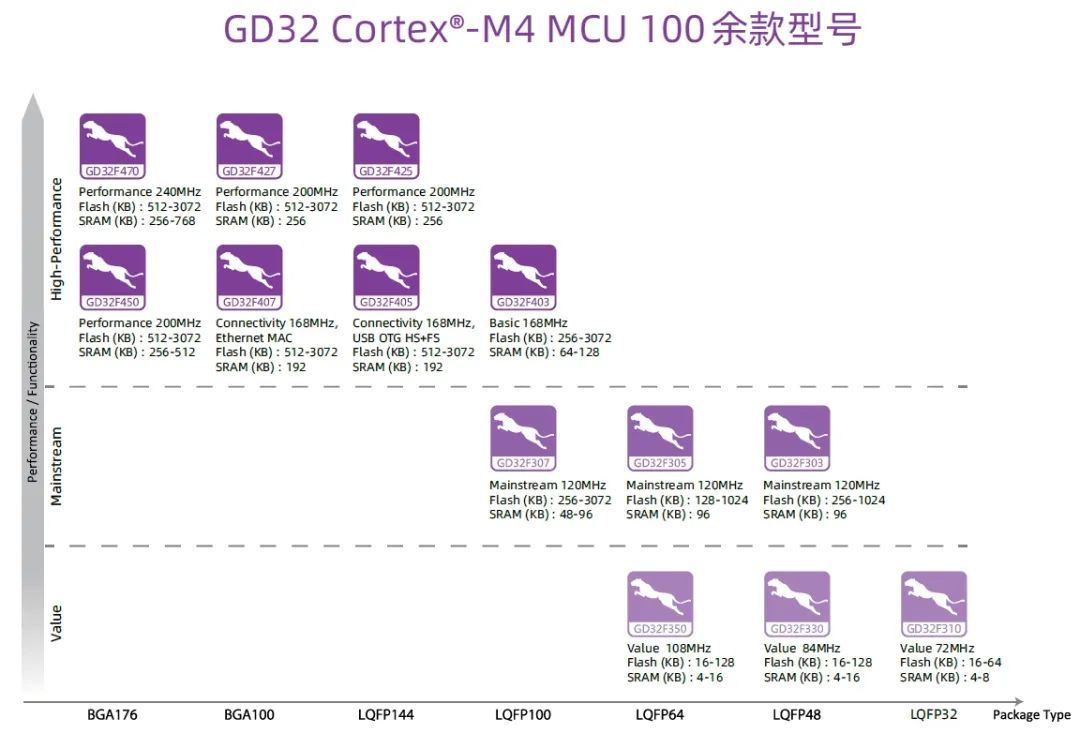

Product Roadmap
Main Features
Flexible memory configuration, providing up to 3024 KB of on-chip Flash and up to 96 KB of SRAM
Enhanced I/O ports supporting connection to two APB buses and various on-chip peripherals
Equipped with numerous standard and advanced communication interfaces, including SPI, I2C, USART, USB 2.0 OTG FS, and CAN
Features up to 3 12-bit 1Msps ADCs, up to 10 general-purpose 16-bit timers, and 1 advanced PWM timer
Offers three low-power modes to maximize optimization between wake-up latency and energy consumption for low-power applications
Application Areas
Industrial Control
Consumer Electronics and Handheld Devices
Embedded Modules
Human-Machine Interaction
Security and Alarm Systems
Graphic Displays
Automotive Navigation
Drones
Internet of Things
Featured Products
| Category | Product Model | Information |
|
Small Resource Small Package Series |
GD32F310C8T6 |  |
| General Series | GD32F303CBT6 |  |
| GD32F303CCT6 |  |
|
| GD32F303RBT6 |  |
|
| GD32F303RCT6 |  |
|
| GD32F303RET6 |  |
|
| GD32F303VCT6 |  |
|
| GD32F303VET6 |  |
|
| GD32F303ZET6 |  |
Product Order: Ms. Zhao Email: [email protected]
