Hello everyone, I am Xiaoyueyue. Today I would like to introduce a board designed based on the Allwinner Quad-Core Automotive Navigation Processor — FETT3-C.
Board Introduction

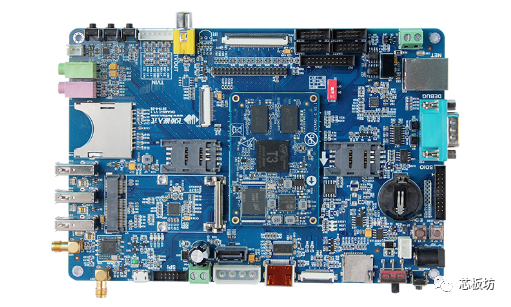

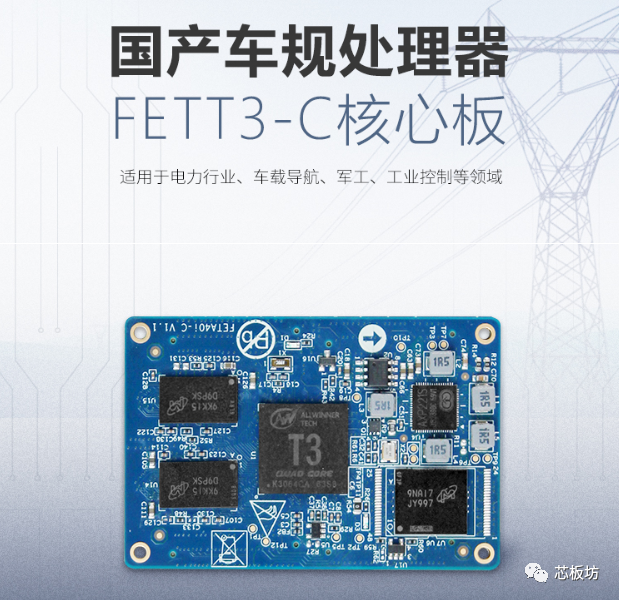

The FETT3-C core board is designed and developed based on the Allwinner Quad-Core Automotive Navigation Processor, featuring a Cortex-A7 architecture, a clock speed of 1.2GHz, integrated Mali400MP2 GPU, 1GB DDR3L memory, and 8GB eMMC storage.
The whole board operates within an industrial-grade temperature range, supports most current popular video and image format decoding, and offers stable and reliable industrial-grade product performance, low power consumption, and rich user interfaces. It runs on a Linux operating system and is suitable for automotive electronics, power industry, medical electronics, industrial control, IoT, smart terminals, and other fields.

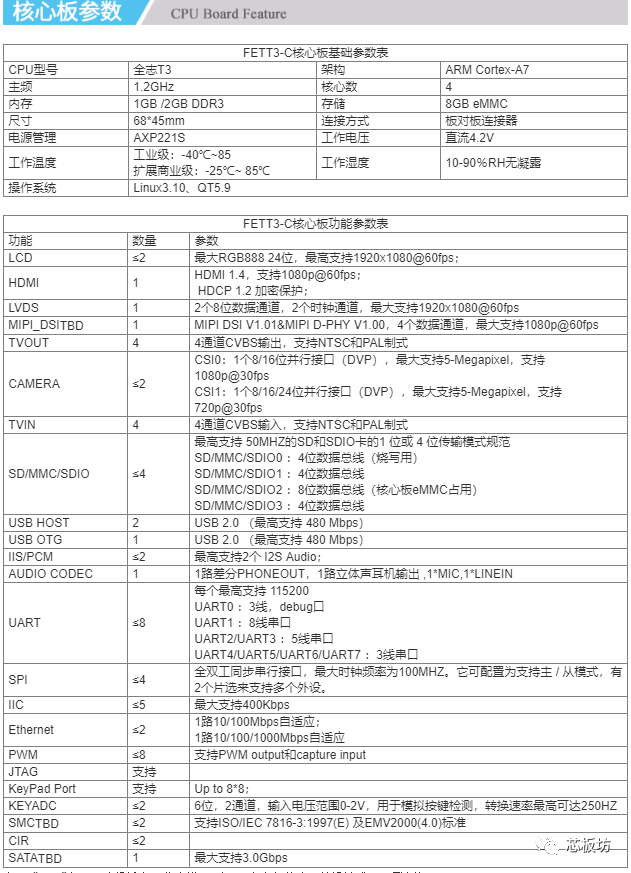

Seven Major Features of the Board
-
Quad-core automotive navigation processor, Cortex A7 architecture, with a maximum clock speed of 1.2GHz, integrated Mali400MP2 GPU
-
Supports dual-screen display (same or different) and various display interfaces: RGB/MIPI / dual 8-bit LVDS/HDMI/TVOUT at 1920×1080@60fps
-
Supports 1 Gigabit network, 1 Fast Ethernet network, supports WIFI/BT4.0, and 4G
-
Supports multiple camera inputs, two DVP camera interfaces, up to 500W pixels, four TVIN, supports NTSC and PAL standards
-
Internally integrated Audio Codec in the CPU, supports 1 differential PHONEOUT, 1 stereo headphone output, and 1 microphone input
-

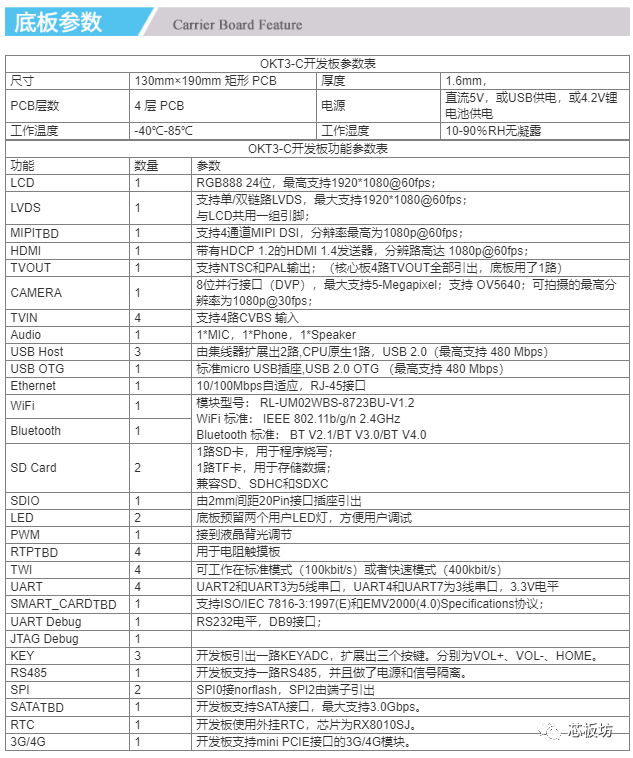

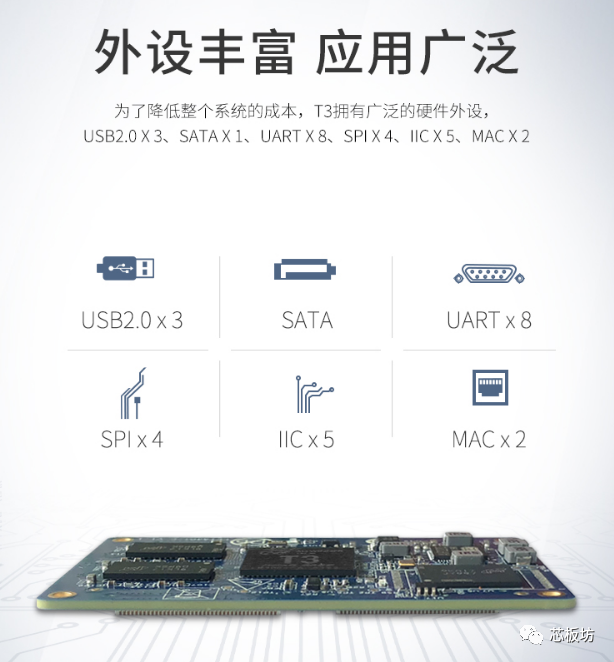

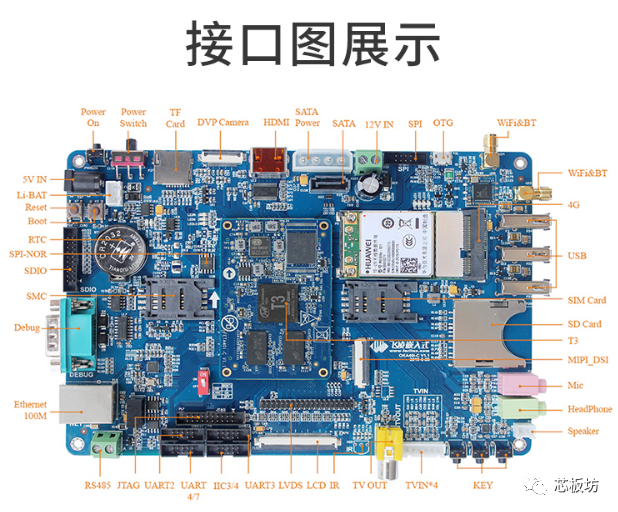

Rich external expansion interfaces: UART*8, SD*4, USB*3, SPI*4, IIC*5, SATA, PWM*8, etc.;
-
Supports Linux operating system
