Project Requirements

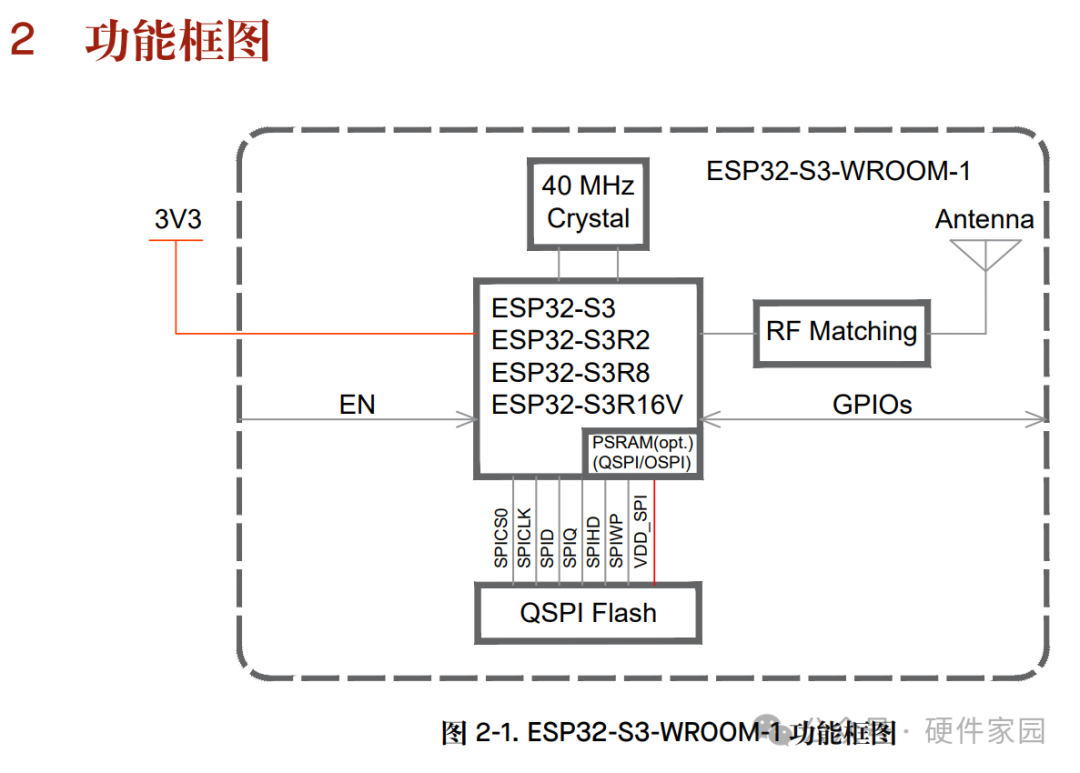

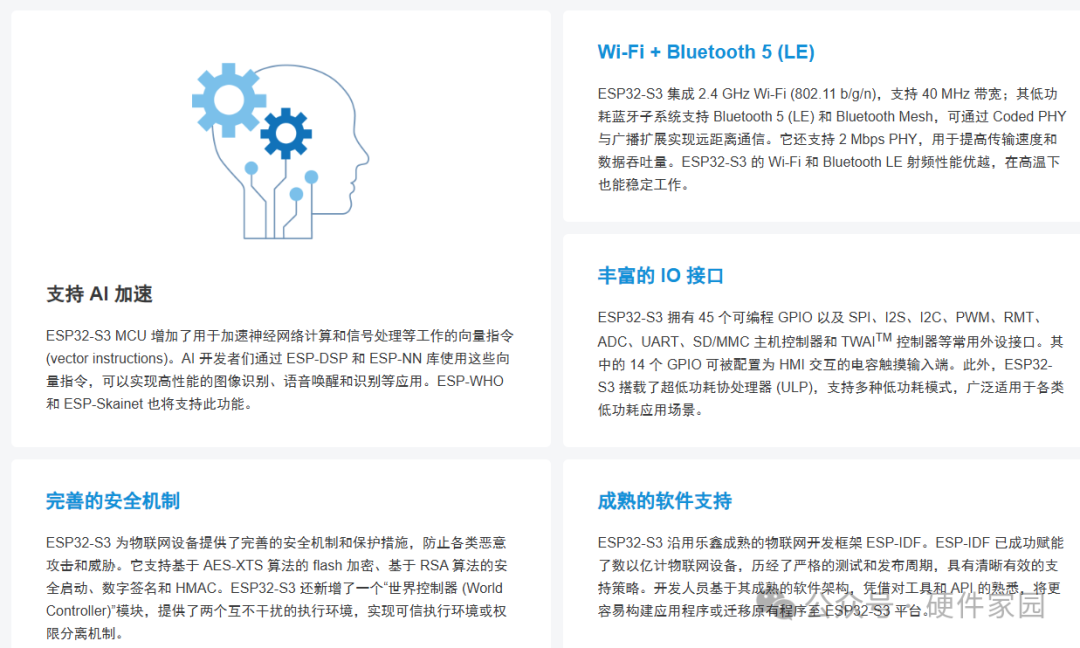

ESP32-S3 is an MCU chip that integrates 2.4 GHz Wi-Fi and Bluetooth 5 (LE), supporting Long Range mode. The ESP32-S3 is equipped with a Xtensa® 32-bit LX7 dual-core processor, with a maximum frequency of 240 MHz, 512 KB of built-in SRAM (TCM), 45 programmable GPIO pins, and a rich set of communication interfaces. The ESP32-S3 supports larger capacity high-speed Octal SPI flash and external RAM, allowing user-configurable data and instruction caches.
The ESP32-S3 practical tutorial aims to help everyone master the application development of this MCU.
1. Functional Requirements
1. Main Control

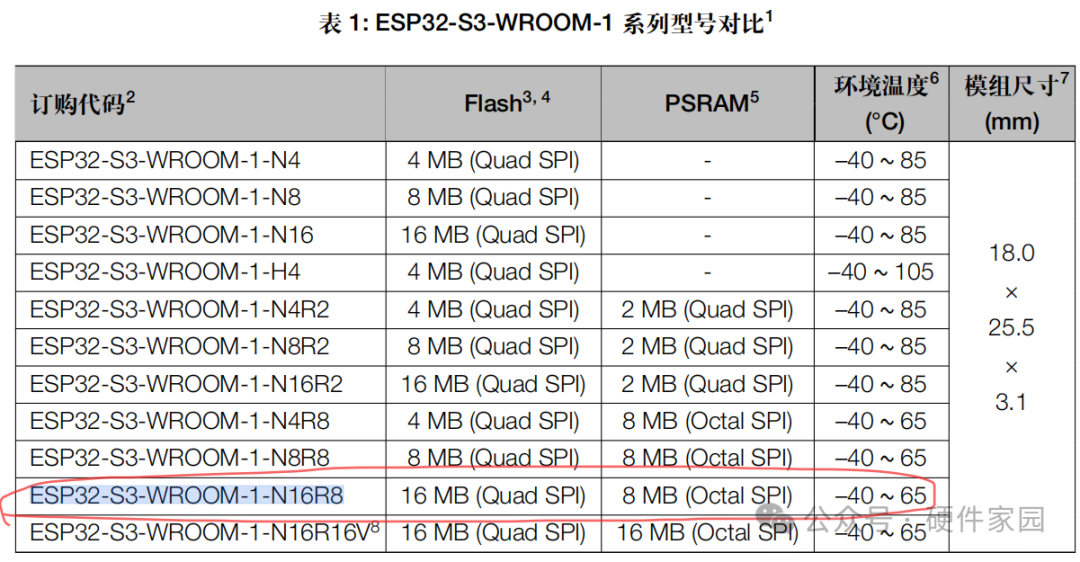

ESP32-S3-WROOM-1-N16R8 module
2. Display
TFT screen (SPI interface)
RGB LED (controlled by built-in WS2812B)
System operation indicator light
3. Input
1 BOOT button, 1 reset button
1 ADC potentiometer, motor speed control
1 infrared receiver
1 gyroscope
4. Output
1 passive buzzer
1 PWM DC motor speed control
5. Audio and Video
Camera for video recording/photo taking/AI recognition
2 MIC inputs
1 speaker output
Audio ADC, audio codec, audio amplifier, etc.
6. Interfaces
Type-C
USB-OTG
USB-TTL
TF card slot
Expansion interface
7. Other Aspects
Supports USB and DC 7-28V power supply
IO expansion chip

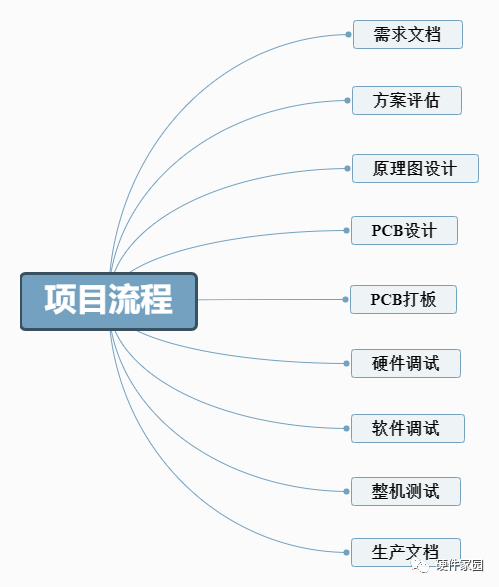

2. Project Process
3. Development Information
1. Hardware Design
Schematic: Teaching use of OrCAD 16.6
PCB Design: Teaching use of PADS 9.5
2. Software Design
Compilation Software: VSCode + ESP-IDF
3. Software Framework
FreeRTOS operating system
4. How to Obtain Development Board
1. Students design their own PCB, fabricate, solder, and debug;
2. Use hardware community’s PCB and BOM, fabricate, solder, and debug;
3. Purchase from hardware community, small batch trial production after hardware debugging is completed
