Here we share a batch of EMMC chip flying wire reading and writing point maps for LCD TVs, making it easier for everyone to use ISP online reading and writing dedicated lines without disassembling the chip to read EMMC data. Follow our public account for more related materials.
Skyworth 8M09 chipset_EMMC point map
Skyworth 8S06-EMMC point
Skyworth 42E660E_8R96_EMMC online reading and writing point map
Haier_0090732072C_0091802888B
Haier_LE55AL88U31_715G7199-M01-000-004N_ISP-PINO
Haier 32A6S(CV338H-B32)-4
Haier 0091802888B_50A5M_LE50B5000W_LE43AL88
Haier LS42H6000_机编DH1RL0A1101_机芯RTD2995D
Haier T966
Hisense 5277
Hisense LED50K20JD-5277 board EMMC online reading and writing

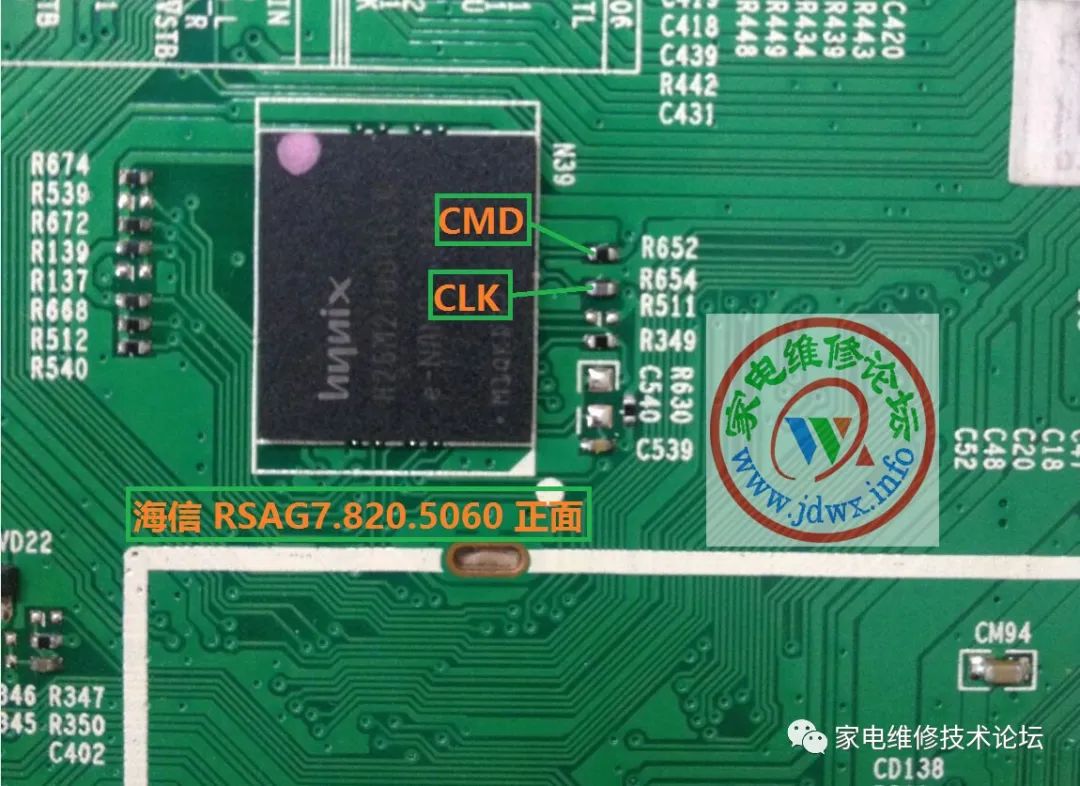

Hisense RSAG7.820.5060 front
Hisense HiSilicon solution_EMMC reading point wiring diagram RSAG7.820.6299
Konka_35019688_EMMC wiring diagram
Konka 35017819 motherboard EMMC online reading and writing wiring diagram
Konka 35018270_EMMC online reading and writing wiring diagram
Konka 35018818_MSD6A818_EMMC online reading and writing wiring diagram
Konka 35019687-EMMC point
Konka 35019786_EMMC online reading and writing wiring diagram
Konka LED32T16A_35017819
Konka LED42R6100PDE-35016964-EMMC point
Konka LED42R6680AU–35019786–EMMC online reading and writing
Konka LED42R6680AU board number 35019392 reading EMMC flying wire point map
Konka LED42R6680AU board number 35019786_with screen 72000444YT倒屏
LED50X5680AF-MSD6A818-35018818-EMMC point
Lehua TP.MS638.PC821_EMMC flying wire point map
Letv_S40_Air
Letv 918 chip solution

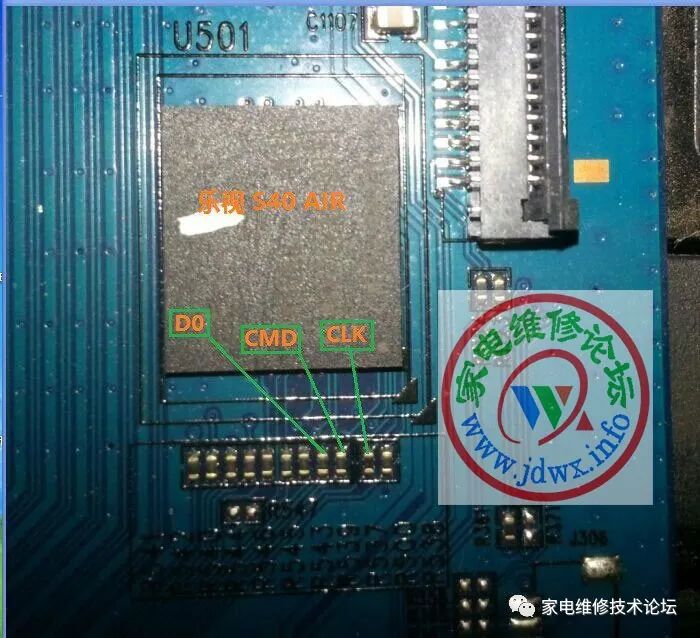

Letv S40-air-EMMC point map

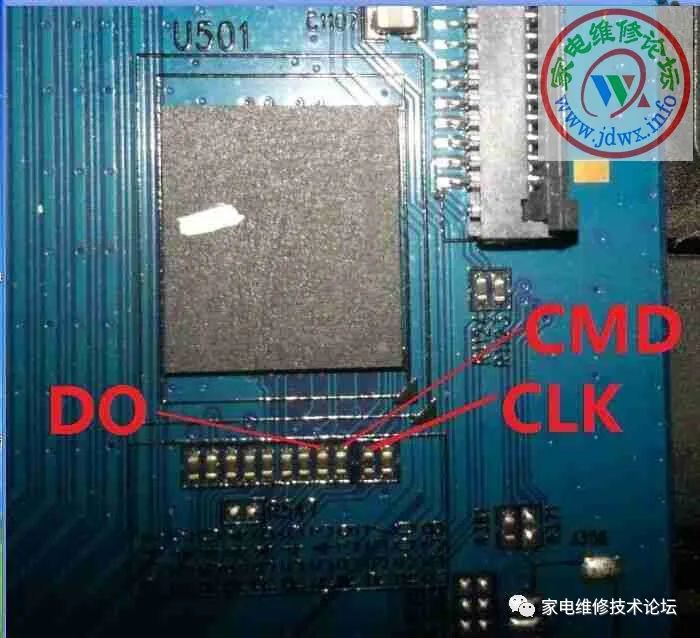

Letv S40AIR-EMMC point
Letv X3-43-MS6A918-EMMC point map
Universal board TP.MT5505
Changhong UD42C6080iD_ZLS47H-iS_JUC7.820.00103653
Changhong ZLM41G-iJ chipset
PPTV-43P(MS828) solution
