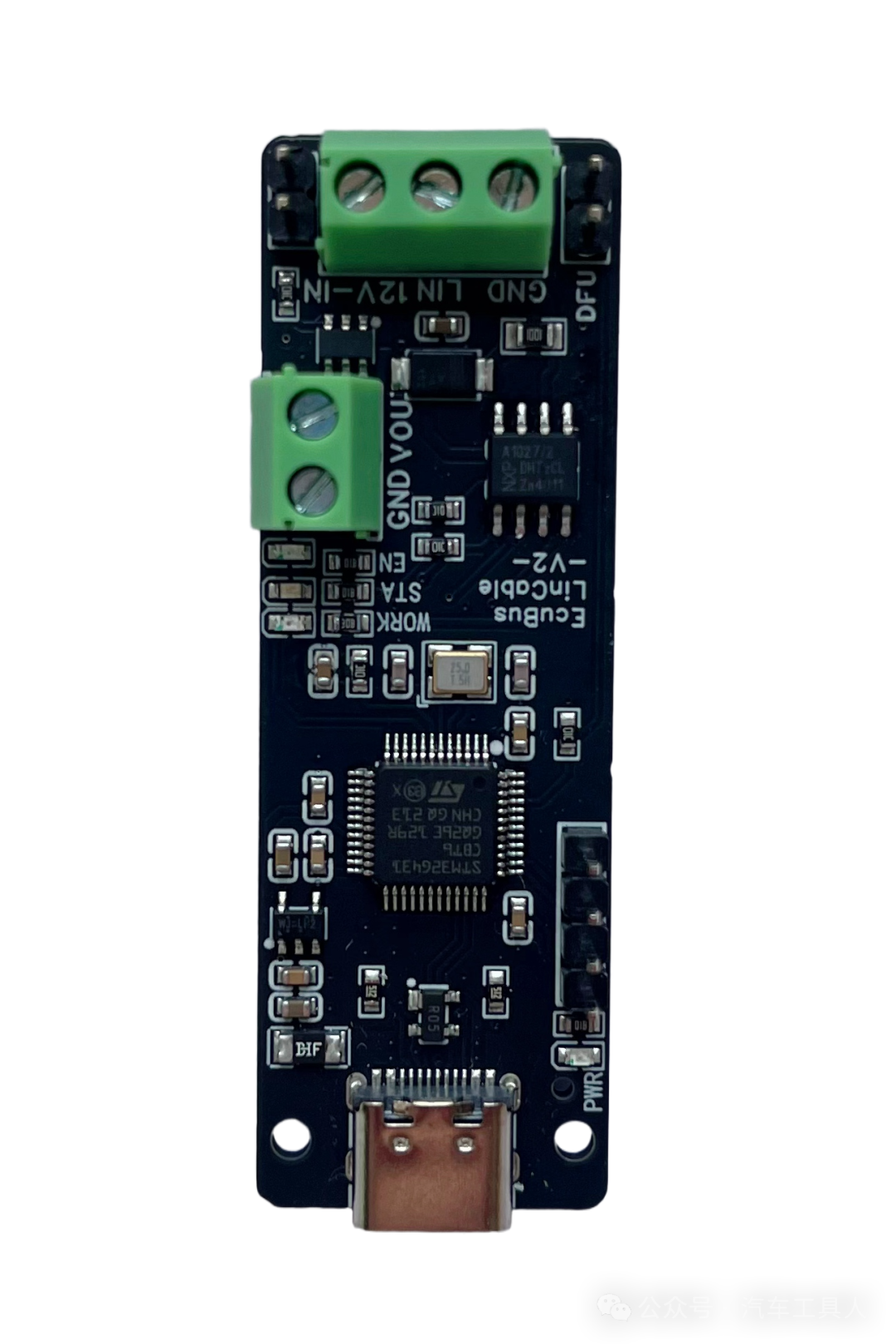

The EcuBus-Pro USB to LIN toolLinCable-V2 has officially been released. Let’s take a look at the new features that have been upgraded this time!
Previous Features
Basic LIN Functionality
LinCable fully supports LIN 2.0, 2.1, 2.2A, and SAE J2602 standards, providing compatibility with various automotive LIN devices and networks.The supported baud rates include 19200, 10400, 9600, and 2400 bps, making LinCable suitable for both traditional and modern LIN applications.
UDS-LinTP Functionality
Upgrade LIN-Slave nodes via the UDS protocol.
PWM Output Functionality
- • Frequency Range: 1 Hz to 20KHz, with high precision.
- • Duty Cycle Control: 0% to 100%, with a resolution of 0.1%.
- • Output Voltage: High level equals VBAT input voltage, low level equals 0V.
- • Number of Channels: Single PWM output channel.
- • Frequency Accuracy: Typical value ±0.1%.
LIN Bus Error Injection Functionality
Well, this is considered the core functionality of LinCable.
It allows engineers to simulate various error conditions and perform comprehensive consistency testing.This is crucial for validating the robustness and reliability of LIN nodes and networks during development and quality assurance processes.
New Features After Upgrade

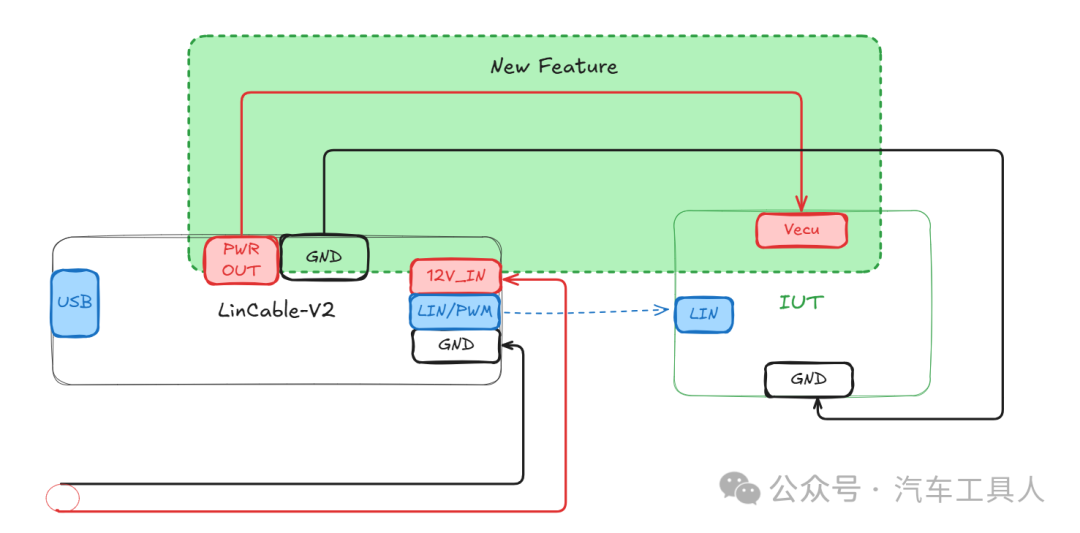

Added power output control functionality, which allows control of the power on and off for the IUT device. In many of our testing scenarios, it may be necessary to test the time from powering on the device to sending the first frame of data, or to observe some operational states after a reset.
The maximum power output is as follows (should be sufficient for most IUT devices):
- • Maximum Voltage: 18V
- • Maximum Current: 2A
- Purchase link is as follows:
-
As always,EcuBus-Pro is a fully open-source automotive software, and we welcome more like-minded friends to join us, whether you are an expert or a beginner, we look forward to your participation.
