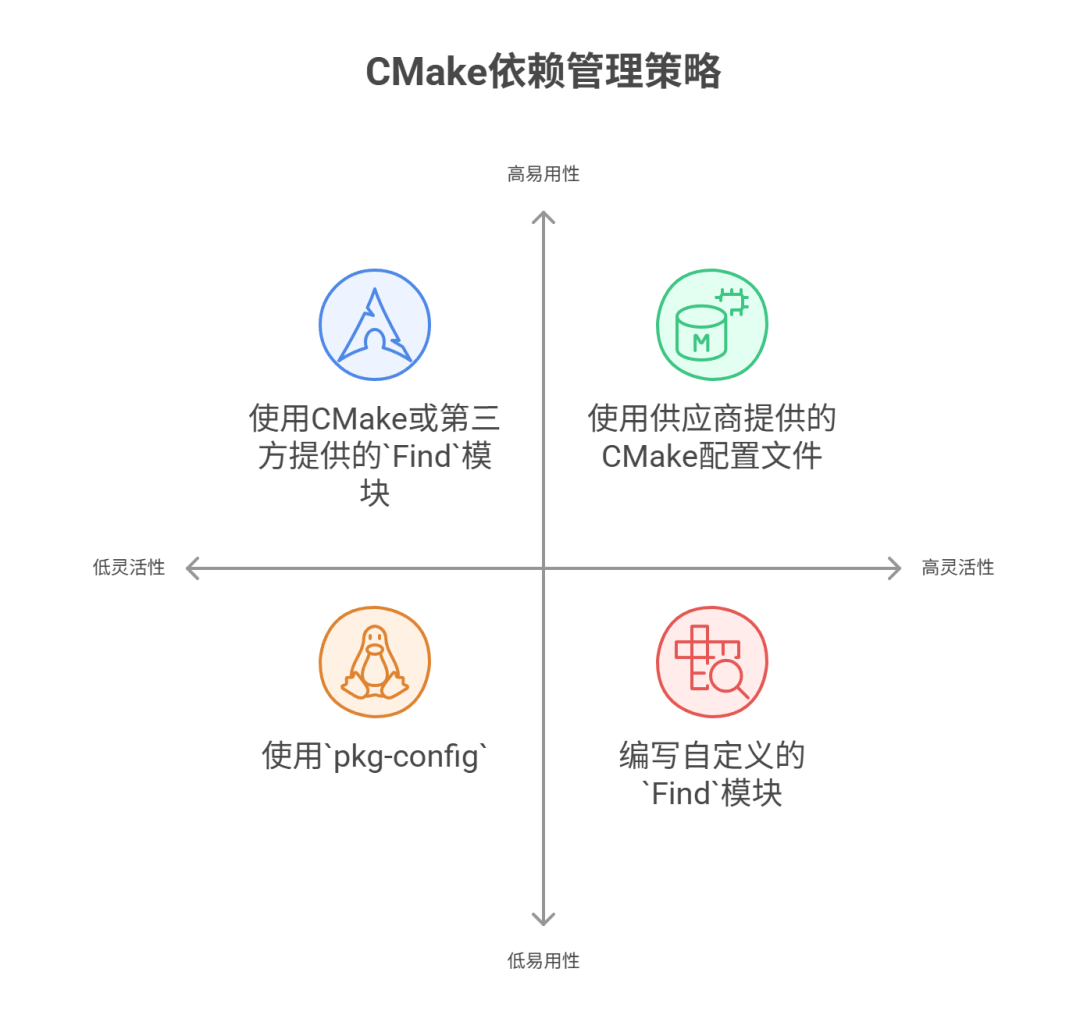

CMake Advanced: Four Strategies to Master External Library Finding, No More Worries About Missing Dependencies! Click the blue text to follow the author

1. Introduction: Checking External Libraries

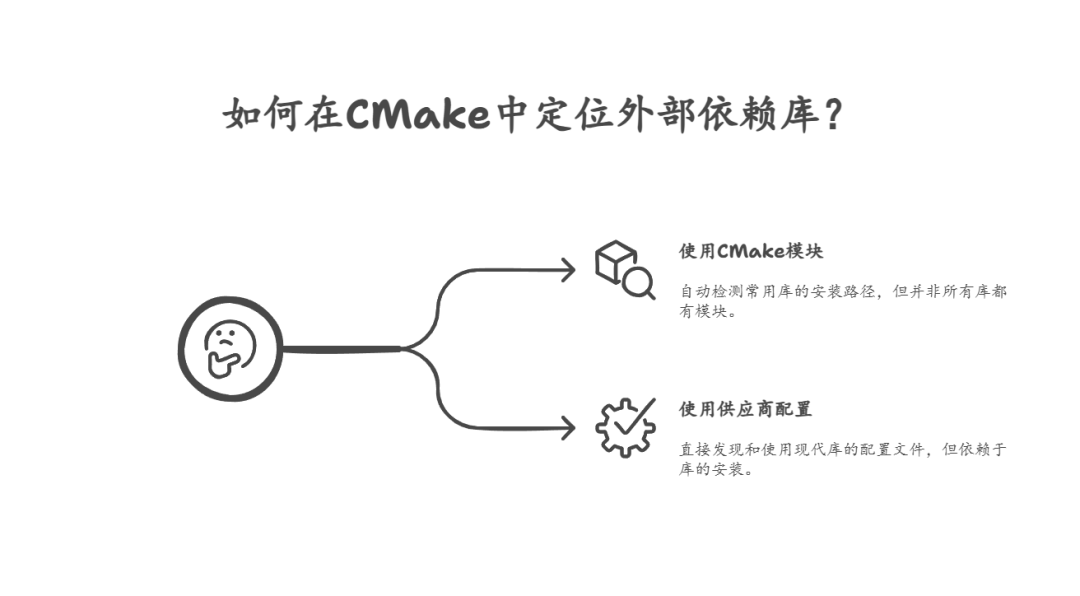

In CMake, there are two main methods to locate external dependency libraries:

Using CMake’s built-infind_package module: CMake provides built-in find modules for many common libraries (e.g., FindBoost.cmake, FindOpenSSL.cmake, etc.). These modules can usually automatically detect the installation paths of libraries, header files, and library files. However, not all libraries have corresponding CMake Find modules.
Using vendor-provided configuration (Config) files: Many modern libraries provide their own CMake configuration files upon installation, such as <package>Config.cmake, <package>ConfigVersion.cmake, and <package>Targets.cmake. These files are typically installed in standard locations, allowing CMake to discover and use them directly via find_package(<package> CONFIG).

CMake Advanced: Four Strategies to Master External Library Finding, No More Worries About Missing Dependencies!

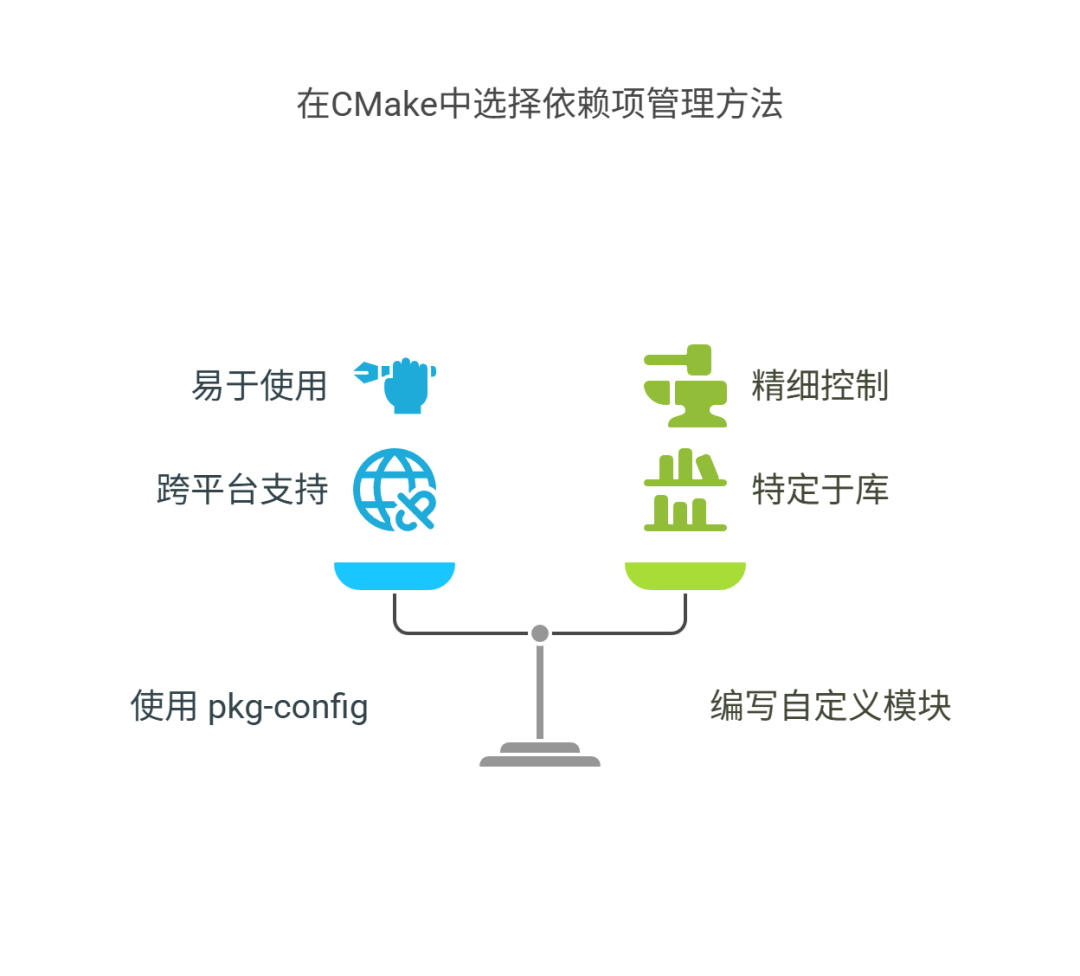

When a dependency lacks both a built-in CMake find module and a vendor-packaged CMake configuration file, alternative solutions must be sought. In this case, there are primarily two options:

Rely on thepkg-config program:pkg-config is a cross-platform command-line tool that helps compile and link applications. It relies on configuration files provided by library vendors, which contain metadata about the library, such as header file paths, library file paths, and required link flags.
Write a customFindPackage module for the dependency: If pkg-config also fails to meet the needs, or if finer control over the library search process is desired, a custom Find<PackageName>.cmake module can be written for that dependency.

2. Using pkg-config

This section focuses on how to use pkg-config to find and use external libraries.

2.1. Preparation

To demonstrate the usage of pkg-config, we will use a classic “Hello World” example from the ZeroMQ manual. This example consists of two simple C++ source files:hwserver.cpp (server) and hwclient.cpp (client). These two files will be compiled into separate executable files. When they run, the server will wait for connections and reply with “Hello, World”, while the client will send requests and receive replies.

hwserver: Hello World server in C++

//  Hello World server in C++
//  Binds REP socket to tcp://*:5555
//  Expects "Hello" from client, replies with "World"
#include <zmq.hpp>
#include <string>
#include <iostream>
#ifndef _WIN32
#include <unistd.h>
#else
#include <windows.h>
#define sleep(n) Sleep(n)
#endif

int main () {
    //  Prepare our context and socket
    static const int kNumberOfThreads = 2;
    zmq::context_t context (kNumberOfThreads);
    zmq::socket_t socket (context, zmq::socket_type::rep);
    socket.bind ("tcp://*:5555");

    while (true) {
        zmq::message_t request;

        //  Wait for next request from client
        auto result = socket.recv (request, zmq::recv_flags::none);
        assert(result.value_or(0) != 0); // Check if bytes received is non-zero
        std::cout << "Received Hello" << std::endl;

        //  Pretend to do some 'work'
        sleep(1);

        //  Send reply back to client
        constexpr std::string_view kReplyString = "World";
        zmq::message_t reply (kReplyString.length());
        memcpy (reply.data (), kReplyString.data(), kReplyString.length());
        socket.send (reply, zmq::send_flags::none);
    }
    return 0;
}

hwclient: Hello World client in C++

//  Hello World client in C++
//  Connects REQ socket to tcp://localhost:5555
//  Sends "Hello" to server, expects "World" back
#include <zmq.hpp>
#include <string>
#include <iostream>

int main () {
    //  Prepare our context and socket
    zmq::context_t context (1);
    zmq::socket_t socket (context, zmq::socket_type::req);

    std::cout << "Connecting to hello world server..." << std::endl;
    socket.connect ("tcp://localhost:5555");

    //  Do 10 requests, waiting each time for a response
    for (int request_nbr = 0; request_nbr != 10; request_nbr++) {
        zmq::message_t request (5);
        memcpy (request.data (), "Hello", 5);
        std::cout << "Sending Hello " << request_nbr << "..." << std::endl;
        socket.send (request, zmq::send_flags::none);

        //  Get the reply.
        zmq::message_t reply;
        socket.recv (reply, zmq::recv_flags::none);
        std::cout << "Received World " << request_nbr << std::endl;
    }
    return 0;
}

All examples of ZeroMQ are stored in a public GitHub repository:

git clone --depth=1 https://github.com/imatix/zguide.git

Then browse the examples subdirectory. You will find examples categorized by language.

Important Note: Before starting, ensure that the pkg-config tool and the development library for ZeroMQ (usually libzmq-dev or zeromq-devel, etc.) are installed on your system.

2.2. Specific Steps

Build a CMakeLists.txt file to compile the above ZeroMQ examples. This project is a C++ project and follows the C++11 standard.

(1) Declare a C++ project and specify the required minimum version of CMake. At the same time, enforce the use of the C++11 standard and disable GNU C++ extensions to ensure cross-platform compatibility of the code.

cmake_minimum_required(VERSION 3.6 FATAL_ERROR)  # Require CMake minimum version 3.6, error if lower
project(recipe-20 LANGUAGES CXX)                   # Declare a C++ language project
set(CMAKE_CXX_STANDARD 11)                         # Set C++ language standard
set(CMAKE_CXX_EXTENSIONS OFF)                      # Disable C++ language extensions (e.g., GNU extensions)
set(CMAKE_CXX_STANDARD_REQUIRED ON)                # Enforce the compiler to adhere to C++11 standard

(2) Use CMake’s built-in FindPkgConfig module to find the pkg-config program. The REQUIRED parameter indicates that if pkg-config cannot be found, the CMake configuration process will fail. The QUIET parameter indicates that CMake will not print additional status information when successfully finding pkg-config.

find_package(PkgConfig REQUIRED QUIET) # Find PkgConfig module, error if not found, do not print extra info on success

(3) Use pkg_search_module to find ZeroMQ: Once pkg-config is found, its provided functions can be used to search for any libraries that come with .pc configuration files. The pkg_search_module function will attempt to find the first available module in the provided name list.

pkg_search_module(
  ZeroMQ                 # This is a prefix for naming the variables and imported targets that store search results
  REQUIRED               # Error if ZeroMQ library is not found
  libzeromq libzmq lib0mq # Possible names of the ZeroMQ libraries to search for
  IMPORTED_TARGET        # Create an imported target, which is best practice in modern CMake
  )

(4) After successfully finding ZeroMQ with pkg_search_module, it creates an imported target named PkgConfig::ZeroMQ (because the IMPORTED_TARGET option was used). You can confirm that ZeroMQ was successfully found by checking if this target exists.

if(TARGET PkgConfig::ZeroMQ) # Check if the imported target named PkgConfig::ZeroMQ exists
    message(STATUS "Found ZeroMQ") # If it exists, print status message
endif()

(5) Now, add two executable target files: hwserver and hwclient, and link them to the PkgConfig::ZeroMQ imported target. The benefit of using imported targets is that it automatically sets the correct include directories (INCLUDE_DIRS) and link libraries (LIBRARIES), greatly simplifying the linking process.

add_executable(hwserver hwserver.cpp)         # Add hwserver executable
 target_link_libraries(hwserver PkgConfig::ZeroMQ) # Link hwserver to ZeroMQ imported target

add_executable(hwclient hwclient.cpp)         # Add hwclient executable
 target_link_libraries(hwclient PkgConfig::ZeroMQ) # Link hwclient to ZeroMQ imported target

The complete content of the CMakeLists.txt is as follows:

cmake_minimum_required(VERSION 3.10 FATAL_ERROR)
project(recipe_20 LANGUAGES CXX)
set(CMAKE_CXX_STANDARD 11)
set(CMAKE_CXX_EXTENSIONS OFF)
set(CMAKE_CXX_STANDARD_REQUIRED ON)

find_package(PkgConfig REQUIRED QUIET)

pkg_search_module(ZeroMQ REQUIRED libzeromq libzmq lib0mq IMPORTED_TARGET)

if(TARGET PkgConfig::ZeroMQ) # Check if the imported target named PkgConfig::ZeroMQ exists
    message(STATUS "Found ZeroMQ") # If it exists, print status message
endif()

add_executable(hwserver hwserver.cpp)         # Add hwserver executable
 target_link_libraries(hwserver PkgConfig::ZeroMQ) # Link hwserver to ZeroMQ imported target

add_executable(hwclient hwclient.cpp)         # Add hwclient executable
 target_link_libraries(hwclient PkgConfig::ZeroMQ) # Link hwclient to ZeroMQ imported target

2.3. Build and Run

After completing the CMakeLists.txt file, you can configure and build the example:

Create a build directory and enter it:

mkdir -p build
cd build

Run CMake configuration: You will see a status message like “Found ZeroMQ”.

cmake ..

Build the project: This will generate the hwserver and hwclient executable files in the build directory.

cmake --build .

Run the example:

First, start the server in one terminal:

./hwserver

The server will output:

Current 0MQ version is 4.2.2

Then, start the client in another terminal:

./hwclient

The client will print the following:

Connecting to hello world server…
Sending Hello 0…
Received World 0
Sending Hello 1…
Received World 1
Sending Hello 2…
...

This indicates that the client successfully connected to the server and exchanged messages, proving that the ZeroMQ library has been successfully linked via pkg-config.

2.4. How pkg-config Works

When CMake finds pkg-config through find_package(PkgConfig), it provides two CMake functions that encapsulate the functionality of the pkg-config command-line tool:

pkg_check_modules(<prefix> [REQUIRED] [QUIET] <module_names>...): This function attempts to find all modules (libraries and/or programs) in the provided list. If REQUIRED is specified, all modules must be found; if QUIET is specified, no success messages will be printed.
pkg_search_module(<prefix> [REQUIRED] [QUIET] <module_names>...): This function is similar to pkg_check_modules, but it only finds the first working module in the provided list of module names. Once one is found, it stops searching.

Like find_package, these functions also accept REQUIRED and QUIET parameters, with the same behavior as in find_package.

Let’s analyze the call to pkg_search_module in detail:

pkg_search_module(
  ZeroMQ                 # 1. Prefix (PREFIX)
  REQUIRED               # 2. Search behavior options
  libzeromq libzmq lib0mq # 3. List of module names
  IMPORTED_TARGET        # 4. Result handling options
  )

ZeroMQ (prefix): This is one of the most important parameters. It defines a prefix for naming all CMake variables and imported targets related to this pkg-config search result. For example, if ZeroMQ is successfully found, it will create an imported target named PkgConfig::ZeroMQ. Additionally, in versions of CMake prior to 3.6 (or if not using IMPORTED_TARGET), it will also set variables such as ZeroMQ_INCLUDE_DIRS (for header file paths) and ZeroMQ_LIBRARIES (for link libraries).
REQUIRED: This keyword indicates that if pkg-config cannot find any ZeroMQ modules in the provided name list, the CMake configuration process will terminate immediately and report an error.
libzeromq libzmq lib0mq (module name list):pkg_search_module will try these names in order until it finds a matching .pc file. The reason for providing multiple names is that different operating systems, Linux distributions, or package managers may choose different pkg-config module names for the same library. For example, on some systems it may be libzmq.pc, while on others it may be zeromq.pc or libzeromq.pc. By providing a list, you can ensure that the library can be successfully found in various environments.
IMPORTED_TARGET: This is a very important option in modern CMake (version 3.6 and above). When specified, pkg_search_module will create an imported target named PkgConfig::<PREFIX> globally. This imported target encapsulates all necessary information about the library, including its header file paths, library file paths, link dependencies, etc.

IMPORTED_TARGET Advantages: Using imported targets is the recommended modern CMake practice. It makes linking libraries very simple and clean: you just need to pass PkgConfig::ZeroMQ to target_link_libraries, and CMake will automatically handle all necessary include directories and link libraries.

Old Behavior (CMake versions prior to 3.6 or not using IMPORTED_TARGET): In versions of CMake prior to 3.6, or when omitting the IMPORTED_TARGET option, pkg_search_module (and pkg_check_modules) will not create imported targets. Instead, it will set a series of variables prefixed with <PREFIX>, such as:

ZeroMQ_FOUND: A boolean indicating whether the module was found.
ZeroMQ_INCLUDE_DIRS: A list of directories containing header files.
ZeroMQ_LIBRARY_DIRS: A list of directories containing library files.
ZeroMQ_LIBRARIES: A list of library files to link against.
ZeroMQ_CFLAGS: Compilation flags.
ZeroMQ_LIBS: Link flags.

In this case, you need to manually use these variables to set target properties, for example:

# For older CMake versions or when not using IMPORTED_TARGET
add_executable(hwserver hwserver.cpp)
target_include_directories(hwserver PRIVATE ${ZeroMQ_INCLUDE_DIRS})
target_link_libraries(hwserver PRIVATE ${ZeroMQ_LIBRARIES})

Clearly, using IMPORTED_TARGET and linking directly to the imported target is much more concise and robust.

Through the above steps, we demonstrated how to use pkg-config to find and link external libraries in a CMake project, especially those that do not provide a native CMake find mechanism.

3. Custom Find Modules

In CMake projects, when existing find mechanisms cannot meet the needs, writing a custom Find module becomes a necessary solution. This section will detail how to create such a module to locate and link external libraries like ZeroMQ, especially in cases where pkg-config may not be applicable, such as on non-Unix operating systems.

In the previous section, we discussed using pkg-config to find external libraries; however, pkg-config primarily performs well on Unix-like systems. For other platforms like Windows, or when a library does not provide a .pc file, it becomes crucial to write a custom Find<PackageName>.cmake module.

This example will supplement the previous section by demonstrating how to write a custom FindZeroMQ.cmake module for the ZeroMQ messaging library. We will continue using the previous server-client example code to ensure its executability.

3.1. Specific Steps

Build the main CMakeLists.txt file and delve into the custom FindZeroMQ.cmake module. This project will be a C++ project and follow the C++11 standard.

(1) Declare a C++ project and specify the required minimum version of CMake. At the same time, enforce the use of the C++11 standard and disable compiler extensions to ensure cross-platform compatibility and standard compliance of the code.

cmake_minimum_required(VERSION 3.5 FATAL_ERROR) # Require CMake minimum version 3.5, error if lower
project(recipe-20-2 LANGUAGES CXX)                 # Declare a C++ language project named "recipe-20-2"
set(CMAKE_CXX_STANDARD 11)                       # Set C++ language standard to C++11
set(CMAKE_CXX_EXTENSIONS OFF)                    # Disable C++ language extensions (e.g., GNU extensions)
set(CMAKE_CXX_STANDARD_REQUIRED ON)              # Enforce the compiler to adhere to C++11 standard

(2) To allow CMake to find the custom FindZeroMQ.cmake module, you need to add the directory containing that module to the CMAKE_MODULE_PATH variable. Custom Find modules are typically placed in a specific subdirectory of the project or directly in the directory where the main CMakeLists.txt file is located. Here, FindZeroMQ.cmake is in the same directory as the main CMakeLists.txt.

# Add the current source directory to the CMake module search path to find the custom FindZeroMQ.cmake
list(APPEND CMAKE_MODULE_PATH ${CMAKE_CURRENT_SOURCE_DIR})

(3) Once the FindZeroMQ.cmake module is available in CMAKE_MODULE_PATH, you can use the find_package command to search for the required ZeroMQ dependencies just like any built-in or third-party provided module. Since the QUIET parameter is not passed, if the library is successfully found, CMake will automatically print a status message.

# Find the ZeroMQ library, REQUIRED indicates an error if not found
# The FindZeroMQ.cmake module will be responsible for the actual search logic
find_package(ZeroMQ REQUIRED)

(4) After the find_package command executes successfully, the custom FindZeroMQ.cmake module will set a series of variables, the most important of which are ZeroMQ_INCLUDE_DIRS (include directories) and ZeroMQ_LIBRARIES (link libraries). These variables will be used to configure the hwserver executable target.

# Add hwserver executable
add_executable(hwserver hwserver.c)
# Set hwserver's private include directories
 target_include_directories(hwserver
  PRIVATE
      ${ZeroMQ_INCLUDE_DIRS}
  )
# Link hwserver to ZeroMQ library
 target_link_libraries(hwserver
  PRIVATE
      ${ZeroMQ_LIBRARIES}
  )

(5) Perform the same operations for the hwclient executable target.

# Add hwclient executable
add_executable(hwclient hwclient.c)
# Set hwclient's private include directories
 target_include_directories(hwclient
  PRIVATE
      ${ZeroMQ_INCLUDE_DIRS}
  )
# Link hwclient to ZeroMQ library
 target_link_libraries(hwclient
  PRIVATE
      ${ZeroMQ_LIBRARIES}
  )

This custom FindZeroMQ.cmake module is the core of this example. It will use CMake’s built-in find_path and find_library commands to search for the header files and library files of ZeroMQ, and utilize find_package_handle_standard_args to standardize the handling of find_package parameters and results.

# FindZeroMQ.cmake

# Check if the user has provided a custom ZeroMQ installation path via the ZeroMQ_ROOT variable.
# This allows users to specify non-standard installation locations or set in environment variables.
if(NOT ZeroMQ_ROOT)
    # If ZeroMQ_ROOT is not set, try to get it from environment variables
    set(ZeroMQ_ROOT "$ENV{ZeroMQ_ROOT}")
endif()

# Search for ZeroMQ's header file (zmq.h)
# First, try to determine a possible root path based on ZeroMQ_ROOT (_ZeroMQ_ROOT)
if(NOT ZeroMQ_ROOT)
    # If ZeroMQ_ROOT is not set, look for the path containing zmq.h in standard locations
    # NAMES include/zmq.h means looking for directories containing 'include/zmq.h'
    # For example, if ZeroMQ is installed in /usr/local, it will look for /usr/local/include/zmq.h
    find_path(_ZeroMQ_ROOT NAMES include/zmq.h)
else()
    # If ZeroMQ_ROOT is set, use it as the root path
    set(_ZeroMQ_ROOT "${ZeroMQ_ROOT}")
endif()

# Actually find the directory where the zmq.h header file is located
# HINTS ${_ZeroMQ_ROOT}/include hints to look in the _ZeroMQ_ROOT/include directory
find_path(ZeroMQ_INCLUDE_DIRS NAMES zmq.h HINTS ${_ZeroMQ_ROOT}/include)

# If the header file is successfully found, try to extract ZeroMQ version information
if(ZeroMQ_INCLUDE_DIRS)
    set(_ZeroMQ_H "${ZeroMQ_INCLUDE_DIRS}/zmq.h")

    # Define an internal function to extract version components from zmq.h
    # _ZeroMQ_VER_COMPONENT: The macro name to look for (e.g., ZMQ_VERSION_MAJOR)
    # _ZeroMQ_VER_OUTPUT: The variable name to store the extracted version number
    function(_zmqver_EXTRACT _ZeroMQ_VER_COMPONENT _ZeroMQ_VER_OUTPUT)
        # Default value in case no match is found
        set(CMAKE_MATCH_1 "0")
        # Build a regex to match lines like #define ZMQ_VERSION_MAJOR 123
        set(_ZeroMQ_expr "^[ \t]*#define[ \t]+${_ZeroMQ_VER_COMPONENT}[ \t]+([0-9]+)$")
        # Read all lines from the zmq.h file and filter out lines matching the regex
        file(STRINGS "${_ZeroMQ_H}" _ZeroMQ_ver REGEX "${_ZeroMQ_expr}")
        # Perform regex matching, results stored in CMAKE_MATCH_0, CMAKE_MATCH_1, etc.
        string(REGEX MATCH "${_ZeroMQ_expr}" ZeroMQ_ver "${_ZeroMQ_ver}")
        # Set the extracted version number to the output variable in the parent scope
        set(${_ZeroMQ_VER_OUTPUT} "${CMAKE_MATCH_1}" PARENT_SCOPE)
    endfunction()

    # Call the function to extract major, minor, and patch version numbers
    _zmqver_EXTRACT("ZMQ_VERSION_MAJOR" ZeroMQ_VERSION_MAJOR)
    _zmqver_EXTRACT("ZMQ_VERSION_MINOR" ZeroMQ_VERSION_MINOR)
    _zmqver_EXTRACT("ZMQ_VERSION_PATCH" ZeroMQ_VERSION_PATCH);

    # Prepare the ZeroMQ_VERSION variable based on the version requirements of find_package
    # The ZeroMQ_FIND_VERSION_COUNT variable is set by the find_package command
    if(ZeroMQ_FIND_VERSION_COUNT GREATER 2)
        # If find_package requires the full version number (X.Y.Z)
        set(ZeroMQ_VERSION "${ZeroMQ_VERSION_MAJOR}.${ZeroMQ_VERSION_MINOR}.${ZeroMQ_VERSION_PATCH}")
    else()
        # Otherwise, only require the major and minor version (X.Y)
        set(ZeroMQ_VERSION "${ZeroMQ_VERSION_MAJOR}.${ZeroMQ_VERSION_MINOR}")
    endif()
endif()

# Search for ZeroMQ library files
# Since library naming varies greatly across different platforms and build configurations, handle separately
if(NOT CMAKE_C_PLATFORM_ID STREQUAL "Windows")
# Unix-like platforms (Linux, macOS, etc.)
  find_library(ZeroMQ_LIBRARIES
    NAMES
        zmq # Common library name
    HINTS
      ${_ZeroMQ_ROOT}/lib # Hint to look in the ZeroMQ_ROOT/lib directory
      ${_ZeroMQ_ROOT}/lib/x86_64-linux-gnu # Path for specific Linux distributions
    )
else()
# Windows platform
  find_library(ZeroMQ_LIBRARIES
    NAMES
        libzmq # Common Windows library name
        # Patterns for specific versions and build configurations of ZeroMQ library
        # e.g., libzmq-mt-4_2_2.lib (multi-threaded runtime, version 4.2.2)
        "libzmq-mt-${ZeroMQ_VERSION_MAJOR}_${ZeroMQ_VERSION_MINOR}_${ZeroMQ_VERSION_PATCH}"
        # e.g., libzmq-v140-mt-4_2_2.lib (Visual Studio 2015 toolset, multi-threaded runtime)
        "libzmq-${CMAKE_VS_PLATFORM_TOOLSET}-mt-${ZeroMQ_VERSION_MAJOR}_${ZeroMQ_VERSION_MINOR}_${ZeroMQ_VERSION_PATCH}"
        libzmq_d # Debug version library name
        # Debug version library name patterns
        "libzmq-mt-gd-${ZeroMQ_VERSION_MAJOR}_${ZeroMQ_VERSION_MINOR}_${ZeroMQ_VERSION_PATCH}"
        "libzmq-${CMAKE_VS_PLATFORM_TOOLSET}-mt-gd-${ZeroMQ_VERSION_MAJOR}_${ZeroMQ_VERSION_MINOR}_${ZeroMQ_VERSION_PATCH}"
    HINTS
        ${_ZeroMQ_ROOT}/lib # Hint to look in the ZeroMQ_ROOT/lib directory
    )
endif()

# Include CMake's standard module for handling common find_package logic
include(FindPackageHandleStandardArgs)

# Call find_package_handle_standard_args to handle parameters of find_package command
# FOUND_VAR: Set the ZeroMQ_FOUND variable indicating whether ZeroMQ was found
# REQUIRED_VARS: List of variables that must be found; if these variables are undefined, the search is considered a failure
# VERSION_VAR: Variable for version checking; if find_package specifies version requirements, it will compare with this variable
find_package_handle_standard_args(ZeroMQ
  FOUND_VAR
      ZeroMQ_FOUND
  REQUIRED_VARS
      ZeroMQ_INCLUDE_DIRS
      ZeroMQ_LIBRARIES
  VERSION_VAR
      ZeroMQ_VERSION
  )

# If ZeroMQ is found, print information via message(STATUS)
# find_package_handle_standard_args will automatically handle QUIET parameter
if(ZeroMQ_FOUND)
    message(STATUS "Found ZeroMQ (Version: ${ZeroMQ_VERSION})")
    message(STATUS "  Include Dir: ${ZeroMQ_INCLUDE_DIRS}")
    message(STATUS "  Libraries: ${ZeroMQ_LIBRARIES}")
endif()

# Mark variables as internal, not displayed in CMake GUI
mark_as_advanced(
    ZeroMQ_ROOT
    ZeroMQ_INCLUDE_DIRS
    ZeroMQ_LIBRARIES
    ZeroMQ_VERSION_MAJOR
    ZeroMQ_VERSION_MINOR
    ZeroMQ_VERSION_PATCH
    _ZeroMQ_ROOT
    _ZeroMQ_H
    _ZeroMQ_ver
    _ZeroMQ_expr
)

find_package_handle_standard_args is responsible for:

Handling the REQUIRED, QUIET, and version parameters passed to the find_package command.
Setting the <PACKAGE_NAME>_FOUND variable (e.g., ZeroMQ_FOUND) to TRUE or FALSE based on whether all variables listed in REQUIRED_VARS have been found.
If find_package specifies version requirements, it will compare the version provided in VERSION_VAR with the user-specified version.
Deciding whether to print success or failure status messages based on the QUIET parameter.

Note: The above FindZeroMQ.cmake module is a simplified version to demonstrate core concepts. The actual ZeroMQ project provides a more comprehensive FindZeroMQ.cmake module in its azmq library, which includes more complex logic to handle various ZeroMQ versions, build configurations, and platform differences.

3.2. How It Works

Custom Find modules typically follow a standard pattern to ensure compatibility with CMake’s find_package command and provide a consistent user experience:

The module first checks if the user has provided a custom installation path for the library via specific CMake variables (e.g., ZeroMQ_ROOT) or environment variables. This allows users to manually specify the location when the library is not installed in standard paths, guiding the search process.
Using find_ family commands to search for components: This is the core part of the Find module. CMake provides a series of find_ commands to locate different types of components: find_path, find_library, find_program, and find_file for finding arbitrary files.
Many libraries define version macros in their header files. By reading these header files and using string operations and regular expressions, the version number of the library can be extracted. This is crucial for the version-checking functionality of find_package.
Calling find_package_handle_standard_args: This is the last and most important step of the Find module, which is accomplished by including the FindPackageHandleStandardArgs.cmake module and calling the find_package_handle_standard_args command. By using find_package_handle_standard_args, you can ensure that the behavior of the custom Find module is consistent with CMake’s built-in Find modules, providing standardized output and error handling.

Tip: The complete documentation for any CMake command can be obtained via the command line. For example, cmake --help-command find_file will output the detailed manual page for the find_file command. For the manuals of CMake standard modules, you can use --help-module in the CLI, such as cmake --help-module FindPackageHandleStandardArgs will output the manual page for FindPackageHandleStandardArgs.cmake.

4. Conclusion

There are four main strategies for locating and linking external dependency packages in CMake projects, ranked by recommendation level, each with its unique advantages and applicable scenarios:

Using vendor-provided CMake configuration files: This is the most recommended modern CMake method. Many libraries now provide files such as <package>Config.cmake, <package>ConfigVersion.cmake, and <package>Targets.cmake upon installation. These files are typically installed in standard locations, allowing CMake to discover and use libraries directly via find_package(<package> CONFIG). This method is powerful, capable of exporting library interfaces, link dependencies, and properties, making it easy for third-party code to integrate. As CMake becomes more popular, more package vendors are adopting this approach.
Using Find modules provided by CMake or third parties: This has been the mainstream dependency finding method in CMake for a long time. CMake comes with a large number of Find modules (e.g., FindBoost.cmake, FindOpenSSL.cmake), and the community has contributed many. These modules can usually automatically detect the installation paths of libraries and set corresponding variables (such as Boost_INCLUDE_DIRS, PYTHON_INTERPRETER). However, most of them still rely on setting variables rather than creating imported targets, which may not be robust when dealing with transitive dependencies.
Using pkg-config:pkg-config is a widely used tool on Unix-like systems that provides library metadata through .pc configuration files. CMake provides support for pkg-config through the find_package(PkgConfig) module, encapsulating functions like pkg_check_modules and pkg_search_module. This method is very effective in the Unix ecosystem as it has become the de facto standard. Its main drawback is the lack of cross-platform compatibility (especially not commonly used on Windows), and as noted in CMake documentation, users may sometimes inadvertently override detection results, leading to incorrect information provided by pkg-config.
Writing custom Find modules: When all of the above methods are not feasible, writing your own Find<PackageName>.cmake module is the last resort. This method provides the greatest flexibility and control, allowing developers to customize based on the complexity of specific libraries, platform differences, and search logic. It typically relies on commands like find_path, find_library, etc., and combines with FindPackageHandleStandardArgs.cmake to standardize output. However, writing a comprehensive and robust custom Find module is no easy task; it requires consideration of various possibilities, such as library naming conventions across different operating systems, version compatibility, debug/release configurations, etc.

pkg-config is acceptable in Unix, but it cannot be easily ported to non-Unix platforms. CMake configuration files are powerful, but not all software developers are familiar with CMake syntax.

To unify package finding methods, the Common Package Specification (CPS) project is a recent attempt to merge the advantages of pkg-config and CMake configuration file methods. More information can be found on its project website: https://mwoehlke.github.io/cps/.

Previous Tutorials

C++ Bootcamp: Solidify Skills, Sprint to Big Companies, All Done!

Concurrency

Still struggling with parallel programming? CMake solves it with one click!

C++

STL Algorithms: Master these, and your code efficiency will increase tenfold!

News

The interviewer’s favorite question about epoll: A comprehensive understanding of its principles, patterns, and code implementation!

CMake Advanced: Four Strategies to Master External Library Finding, No More Worries About Missing Dependencies! Lion RyanWelcome to follow my public account Learn technology or submit articles
