Now let’s write a simple application that prompts the user to input an integer and multiplies it by powers of 2 (2¹ to 2ⁿ) using bit shifting, displaying each product with leading spaces. The input-output will use C++. The assembly module will call three functions written in C++ and the program will be initiated by the C++ module.
Assembly Language Module
The assembly module contains a function DisplayTable. It calls the C++ function askForInteger to get an integer from the user. It also uses a loop structure to repeatedly left shift the integer intVal and calls showInt to display it.
; C++ calls ASM function.INCLUDE Irvine32.inc; external C++ function askForInteger PROTO CshowInt PROTO C, value:SDWORD, outWidth:DWORDOUT_WIDTH = 8ENDING_POWER = 10.dataintVal DWORD ?.code;---------------------------------------------SetTextOutColor PROC C, color:DWORD;; Set text color and clear console window; call Irvine32 library function;--------------------------------------------- mov eax,color call SetTextColor call Clrscr retSetTextOutColor ENDP;---------------------------------------------DisplayTable PROC C;; Input an integer n and display the multiplication table from n * 2^1 to n * 2^10;---------------------------------------------- INVOKE askForInteger ; Call C++ function mov intVal,eax ; Save integer mov ecx,ENDING_POWER ; Loop counterL1: push ecx ; Save loop counter shl intVal,1 ; Multiply by 2 INVOKE showInt,intVal,OUT_WIDTH call Crlf pop ecx ; Restore loop counter loop L1 retDisplayTable ENDPENDIn the DisplayTable process, ECX must be pushed onto the stack before calling showInt and newLine, and popped off afterward, as Visual C++ functions do not save and restore general-purpose registers. The function askForInteger returns the result in the EAX register.
DisplayTable does not necessarily have to use INVOKE when calling C++ functions. The PUSH and CALL instructions can achieve the same result. The call to showInt is as follows:
push OUT_WIDTH ; Last parameter pushed firstpush intValcall showInt ; Call functionadd esp,8 ; Clear stackIt is necessary to adhere to the C calling convention, where parameters are pushed onto the stack in reverse order, and the caller is responsible for removing the actual parameters from the stack after the call.
C++ Test Program
Below is the C++ module that starts the program. Its entry point is main(), ensuring the required C++ initialization code is executed. It includes prototypes for the external assembly procedures and three output functions:
// main.cpp// Demonstration of C++ program and external assembly module function calls#include <iostream>#include <iomanip>using namespace std;extern "C" { // External ASM procedures: void DisplayTable(); void SetTextOutColor( unsigned color ); // Local C++ functions: int askForInteger(); void showInt( int value, int width );}// Program entryint main(){ SetTextOutColor( 0x1E ); // Blue background yellow text DisplayTable(); // Call ASM procedure return 0;}// Prompt user to input an integerint askForInteger(){ int n; cout << "Enter an integer between 1 and 90,000: "; cin >> n; return n;}// Display a signed integer with a specific widthvoid showInt( int value, int width ){ cout << setw(width) << value;}</iomanip></iostream>Generating the Project
Add the C++ and assembly modules to the Visual Studio project, and select Build Solution from the Project menu.
Program Output

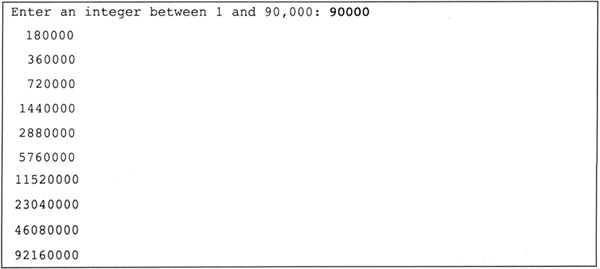

When the user inputs 90,000, the output generated by the multiplication table program is as follows:
Visual Studio Project Properties

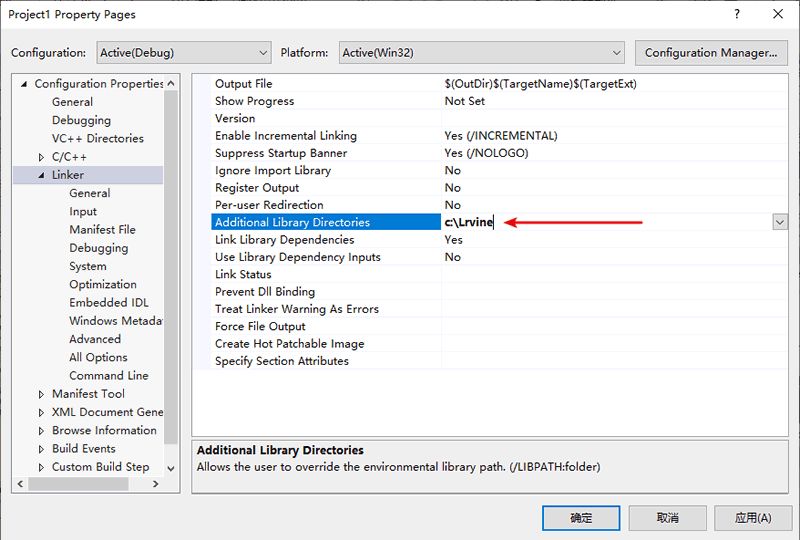

If you use Visual Studio to generate a program that integrates C++ and assembly code and calls the Irvine32 linking library, you need to modify some project settings. For the Multiplication_Table program, for example.In the Project menu, select Properties, then under Configuration Properties on the left, select Linker. In the right panel’s Additional Library Directories entry, enter c:\Irvine.As shown in the figure below. Click OK to close the Project Property Pages window. Now Visual Studio can find the Irvine32 linking library.
