AW-AM691NF WiFi Module Overview
WiFi/BT 2-in-1 Module:
This module supports dual-band 2.4G + 5G, and is compatible with 802.11a/b/g/n; it also supports Bluetooth 4.0; featuring a 2T2R dual antenna setup.
Advantages include:
-
1. Fast Speed: Supports IEEE802.11a/b/g/n; Bluetooth 4.0 supported;
-
2. Strong Signal: Supports 5G WIFI, minimal interference, high speed, avoiding conflicts with Bluetooth, Zigbee, and regular 2.4G WIFI signals;
-
3. Bandwidth: 20T/40T; SDIO V3.0 interface;
-
4. Rate: 433Mbit/s 2T2R;
-

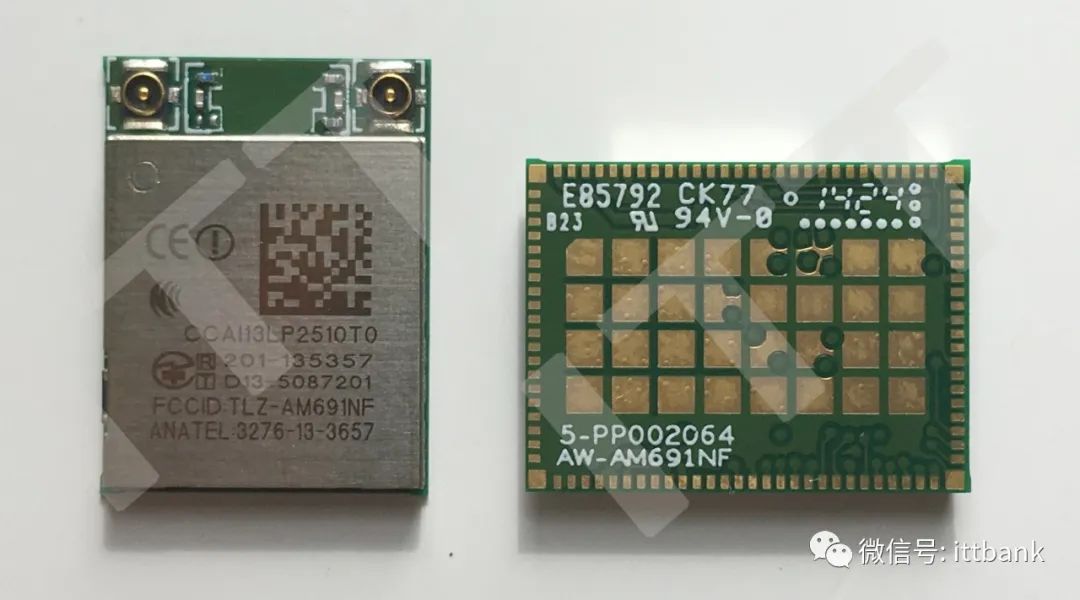

5. Size: 12mm x 16mm x 1.8mm;
-
6. Low Power Consumption: Widely used in smartphones and tablets, adhering to the strictest mobile power consumption standards;
-
7. High Quality: The module uses the top-tier Broadcom BCM43241 WIFI chip, manufactured with Haihua’s packaging technology;
-
8. Stable Performance: Supports simultaneous WIFI/BT operation; the module integrates a built-in crystal oscillator, saving costs for customers and avoiding frequency calibration production processes, as well as issues caused by external crystal oscillators such as frequency offset and instability.
Android drivers are provided, with application platforms as follows:
-
Amlogic: S905 S905X S905X2 S905W S905D S912;
-
Rockchip: RK3128 RK3288 RK3328 RK3368 RK3399;
-
Allwinner: H6 H8
-
Intel + Windows
Main Applications:
Primarily used in OTT boxes, projectors, automotive devices, tablets, and smart devices with WIFI.
