In the field of PCB (Printed Circuit Board) manufacturing, are you troubled by these issues: significant human interference in production lines, difficulty in implementing standardized operations; chaotic automation standards for equipment, and high costs for upgrades; challenges in product traceability, and difficulty in accurately locating quality issues… Don’t worry, the digital EAP system solution brought by Xuelong CNC Equipment (Shenzhen) Co., Ltd. is designed to address these pain points and help the new manufacturing of circuit boards take off!

1. Facing Industry Pain Points, Identifying Breakthroughs in Smart Manufacturing

The PCB smart manufacturing industry hides many “roadblocks.” The production line has a high demand for standardized operations, yet human factors continue to emerge, and each factory has its unique production characteristics, with many customization needs and high system maintenance difficulties. At the same time, the requirements for production and quality traceability are strict, but the granularity of on-site management of human, material, and method at core stations is far from sufficient.

Equipment is even more challenging, with no unified automation standards in the industry, and various communication and automation functions; the costs for upgrading automation functions are high, while the support capabilities of equipment manufacturers are relatively weak. These pain points severely restrict the efficient development of PCB enterprises.

2. Xuelong EAP System Solution: Building a Solid Foundation for Smart Manufacturing

1. Clear Construction Goals for Comprehensive Process Control

The Xuelong EAP system focuses on prevention before, control during, and traceability after production. By predicting potential issues in advance, monitoring and adjusting in real-time during production, and conducting retrospective analysis of product data after the fact, a complete closed-loop management system is formed to ensure stability and efficiency in the production process.

2. Highlighting Six Key Features to Create a New Model of Smart Production

◾ Automation of Process Control: Achieving paperless document flow, automatic quality records, online control, and automated process planning to standardize workflows and systematize quality management.

◾ Intelligent Communication: Establishing an integrated system with automatic decision-making to improve production efficiency and reduce human errors.

◾ Traceability: Comprehensive identification and tracking of materials to achieve full product traceability, shorten production cycles, and achieve lean management.

◾ Scenario-Based Management: Targeted management based on different production scenarios to enhance management precision.

◾ Equipment Automation: Achieving automatic loading and operation of equipment, predictive maintenance, and mistake-proofing settings to effectively improve equipment utilization.

◾ Manufacturing Data Management: Ensuring data integrity and accuracy, providing real-time data support for production, and enhancing production transparency.

3. Strong Structural Support to Ensure Stable System Operation

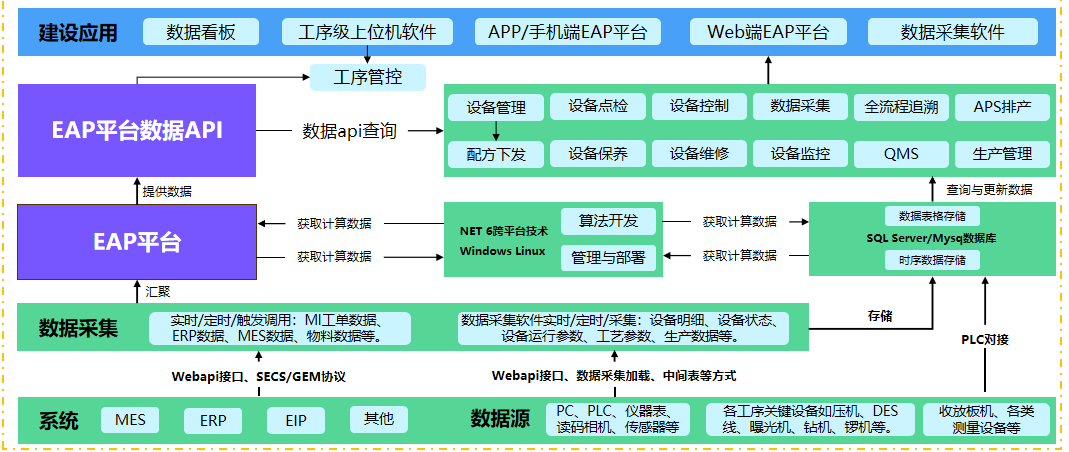

The system adopts a multi-layer architecture design, with a rich and diverse front-end UI, an efficient interaction display layer, a back-end layer ensuring business logic processing, and a data layer managing various types of data properly. Additionally, based on load and expansion needs, servers can be flexibly deployed, and network load balancing can be used for expansion, while the database employs failover clustering to ensure high performance.

3. Three Major Business Modules Covering the Entire Production Chain

◾ Production Management Module, Fine-Tuning Every Link:

From mistake-proofing functions in the heat fusion assembly scheme to full lifecycle management in product traceability; from standardized mistake-proofing in process control to centralized monitoring in drill room management; from dynamic hierarchical management in APS scheduling to efficient turnover in line-side warehouse management, the production management module comprehensively covers the production process, ensuring that every link is precise and controllable.

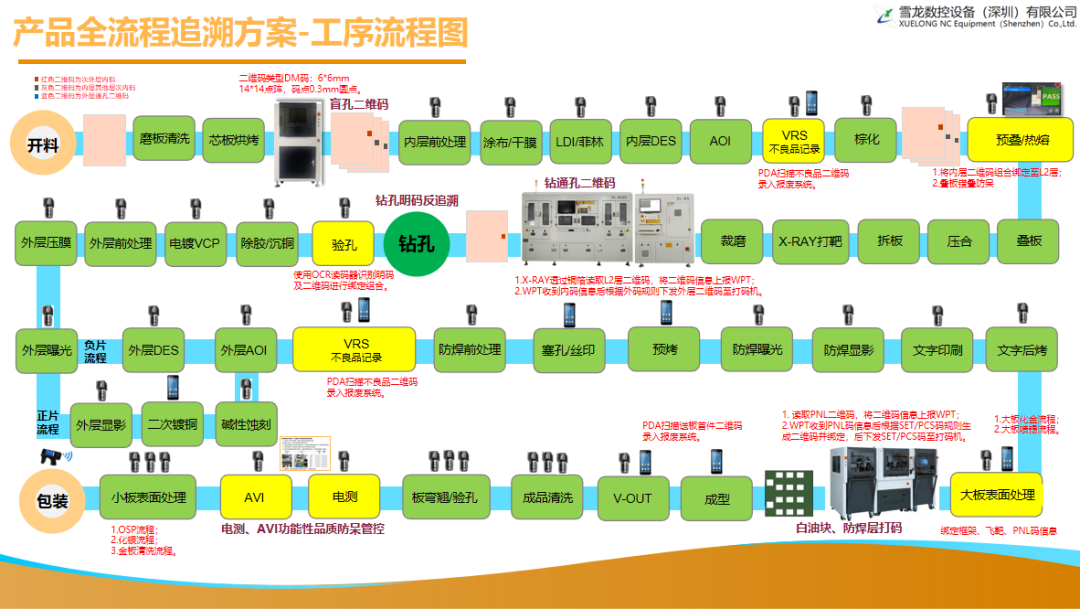

Taking full lifecycle product traceability as an example, the system is based on Lot as the object, Panel as the management unit, and manages down to the PCS level, associating various resource information during the processing to enhance the reliability of quality traceability and provide strong support for tracing customer complaint anomalies.

◾ Quality Management Module, Strictly Guarding the Quality Lifeline:

The quality management module includes functions such as E-Mapping analysis, Hold Time control, IQC material inspection, and IPQC process control. By analyzing inspection data, setting production time limits and alerts, inspecting and controlling materials and production processes, monitoring anomalies in real-time and automatically locking them, along with comprehensive 8D report management, a solid quality defense line is established to ensure stable product quality.

◾ Equipment Management Module for Efficient Equipment Operation:

This module covers equipment status management, data collection, maintenance, inspection management, and energy consumption management. It monitors equipment operating status in real-time, collects key parameters, achieves a closed loop of repair – maintenance – analysis, conducts preventive maintenance and standardized inspections, and builds an energy management closed-loop system to reduce downtime and improve overall equipment efficiency (OEE).

4. Aggregated Data Presentation for More Accurate Decision-Making

The Xuelong EAP system integrates and associates various data throughout the product lifecycle, including quality, raw materials, processes, rules, personnel, and equipment information. Through full lifecycle traceability LOT data queries, SET data queries, as well as process-level on-site management diagrams and process dashboard data centers, data visualization is achieved, providing precise data support for enterprise decision-making.

5. Expected Benefits of Implementation: Cost Reduction and Efficiency Increase, Driving Development

Implementing the Xuelong EAP system solution will bring significant benefits to PCB enterprises. Production efficiency and product yield will be improved, product traceability granularity will be refined, achieving full lifecycle Pnl level traceability, and accurately identifying anomalies. At the same time, it supports flexible production, ensures stable equipment operation, lays the foundation for data-driven decision-making, balances production plans, and reduces line-side storage.

The Xuelong digital EAP system solution, with advanced technology and comprehensive functions, helps PCB enterprises solve production pain points and opens a new chapter in smart manufacturing. If you also want to make your enterprise’s production more efficient and management more precise, consider delving into the Xuelong EAP system and let smart manufacturing assist your enterprise in taking off!
