The chip programming leader Anko Technology recently announced the latest iteration of its programming software, along with a series of newly compatible chip models. In this update, the mixed-signal chip OB6628LGQ launched by OnBright has been supported by Anko’s programming device AP8000.

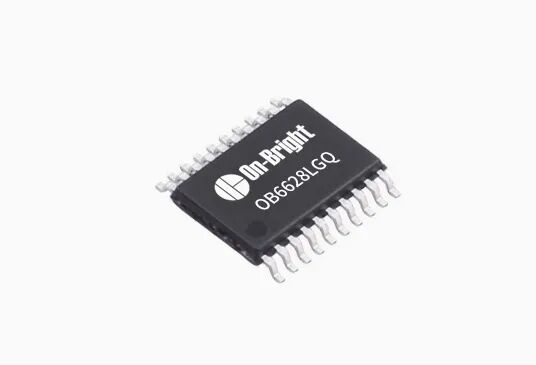

OB6628LGQ is a dedicated three-phase brushless DC (BLDC)/permanent magnet synchronous motor (PMSM) controller system on chip (SoC). This integrated circuit is optimized for low-cost, high-efficiency drive circuits in application requirements.

With simple components, a control circuit for brushless DC (BLDC)/permanent magnet synchronous motor (PMSM) with current and speed loops can be easily constructed.

OB6628LGQ integrates a Cortex-M0 microcontroller (MCU), three-phase level-shifting drivers, a 5V low-dropout linear regulator (LDO), and a motor drive current protection comparator.

Features

• ARM Cortex-M0

– Maximum operating frequency of 72MHz

– Wide operating voltage range: 1.8V to 5.5V

– 32kB flash + 4kB static random access memory (SRAM)

– 12-bit, 1MHz sampling rate analog-to-digital converter (ADC)

– 3 back electromotive force (BEMF) detection analog comparators + 1 current protection analog comparator

– 3 operational amplifiers

– Co-processor: 2 multiplier-divisor units (MDU) + 1 coordinate rotation digital computer (Cordic)

– 1 universal asynchronous receiver-transmitter (UART), 1 inter-integrated circuit (IIC), 1 serial peripheral interface (SPI)

– 2 16-bit counters/timers, 2 32-bit counters/timers

– 16-bit pulse width modulation (PWM), 6 PWM events trigger ADC

• Three-phase bridge driver

– Integrated 70V three-phase bootstrap driver

– Drive current: – 0.5A/1.1A

– Low-side power under-voltage lockout (UVLO) and over-voltage protection (OVP)

– High-side floating power under-voltage lockout (UVLO)

– Built-in dead time

– Built-in cross-conduction protection logic

• Low-dropout linear regulator (LDO)

– Supply voltage range 4.6V to 17V

– Output 5V ±2%, maximum 100mA

– Built-in thermal overload protection

– Built-in current limiting protection during output short circuit

• Overcurrent protection

– Built-in comparator with adjustable reference setting

– Short circuit protection (SCP) will turn off the six drivers and pull the fault output low and latch for 1ms

– Short circuit protection soft shutdown

• Internal oscillator

– High-speed internal oscillator (HIRC): 24MHz (±1%, 25°C)

– Low-speed internal oscillator (LIRC): 20kHz (±30%, 25°C)

Applications

• Sensorless/sensor brushless DC (BLDC)/permanent magnet synchronous motor (PMSM) controllers

• Suitable for power tools, gardening tools, fans, water pumps, etc.

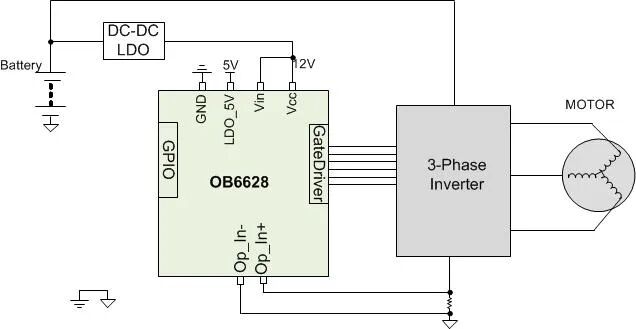

Internal Block Diagram

The AP8000 universal programmer developed by Anko Technology is a powerful programming solution that supports both online and offline versions in one-to-one and one-to-eight configurations, while also providing dedicated programming solutions for eMMC and UFS, fully meeting the bare chip (offline) and on-board programming needs of the OnBright series of chip models. The AP8000 consists of three core components: the host, the baseboard, and the adapter, serving as an industry-leading universal programming platform that not only meets the programming needs of various programmable chips on the market but also serves as the core programming platform for Anko’s automated secure programming IPS5800S, efficiently supporting the execution of large-scale programming tasks.

The host supports both USB and NET connections, enabling networking of multiple programmers to synchronize control multiple programmers for programming operations. The built-in safety protection circuit can instantly detect abnormal conditions such as reversed chip placement or short circuits, and immediately cut off power to ensure the safety of the chip and programmer. The host integrates a high-speed FPGA, significantly enhancing data transmission and processing speed. The back of the host is equipped with an SD card slot, allowing users to save project files generated by PC software to the root directory of the SD card and insert it into the slot. By using the button on the programmer, users can select, load, and execute programming instructions without relying on a PC, which not only reduces the hardware configuration cost of the PC but also facilitates the rapid construction of the working environment.

The AP8000 enhances the host’s expansion capabilities through the combination design of the baseboard and adapter, currently supporting products from all major semiconductor manufacturers, including Infineon, ST, NXP, MPS, MICROCHIP, and others. The types of devices supported include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and it is compatible with various file formats such as Intel Hex, Motorola S, Binary, POF, etc.

Company Introduction

About OnBright: OnBright, founded in 2004, is the largest integrated circuit power management chip design company in Asia. It focuses on analog and mixed-signal IC design, with a product line covering power management, LED lighting, motor drive, appliance SoC, and providing overall solutions in smart buildings and artificial intelligence fields.

About Anko Technology: Anko Technology (ACROVIEW) is a global leader in semiconductor chip programming solutions, committed to changing the world through technology and driving the future with intelligence, continuously creating value for customers. Anko’s AP8000 universal programmer platform and the latest IPS5800S programming automation solution provide one-stop solutions for customers in the semiconductor and electronic manufacturing fields, having served leading global clients including Huawei, BYD, Foxconn, and others.
