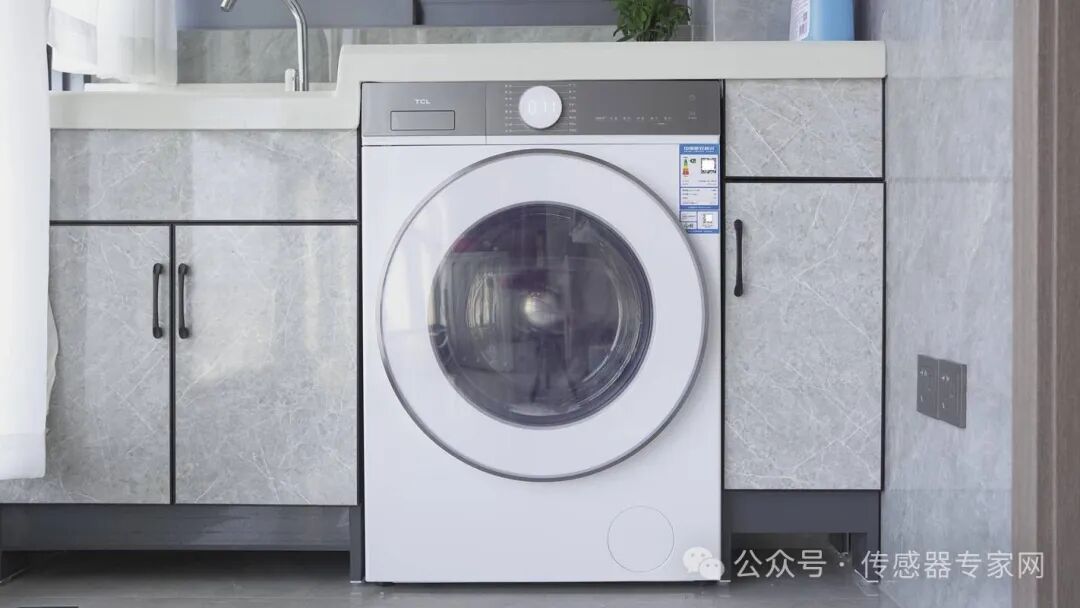

The washing machine, as an indispensable appliance in modern households, is becoming increasingly intelligent and automated. Among its components, the water level sensor plays a crucial role. This article will delve into the working principle of washing machine water level sensors and their maintenance methods.
1. Working Principle of Washing Machine Water Level Sensors
The main function of the washing machine water level sensor is to detect the water level in the washing drum and transmit this information to the washing machine’s control board, thereby controlling the opening and closing of the water inlet valve to achieve precise water level control.
-
Principle of Air Pressure Sensing
-
The outer drum of the washing machine is usually equipped with an air chamber, which is connected to the water level sensor via a plastic tube. When the water level in the washing drum changes, it alters the pressure inside the air chamber.
-
The water level sensor typically contains a magnetic ring, a coil (forming an LC circuit), and a diaphragm. When the air pressure rises, the diaphragm is pushed up, causing the coil to move upward within the magnetic ring, thereby changing the inductance value.
Parallel Resonance of Inductance and Capacitance
-
According to the parallel resonance frequency formula f=1/2π√LC, changes in inductance will lead to changes in resonance frequency. The higher the water level, the greater the water pressure, and the inductance of the coil in the sensor increases, resulting in a lower resonance frequency.
-
The washing machine’s control board processes this resonance frequency signal and determines the water level based on the frequency. When the water level reaches the preset value, the control board sends a command to close the water inlet valve, stopping the water intake.
Types of Sensors
-
Electromagnetic Water Level Sensor: Composed of a rubber diaphragm (strain gauge), ferrite core, coil, and setting spring. The pressure generated by changes in water level is transmitted to the sensor through the air tube, moving the diaphragm and core, thus changing the inductance.
-
Mechanical Water Level Switch: Composed of a rubber diaphragm, plastic push rod disc, push core, spring, and reed switch. The pressure from changes in water level moves the diaphragm and push rod disc, and when the set water level is reached, the reed switch contacts close or open, sending a signal to the control board.
2. Maintenance Methods for Washing Machine Water Level Sensors
Although the structure of the water level sensor is relatively simple, it may still experience faults during long-term use. Here are some common maintenance methods and troubleshooting tips.
-
Check the Vent Tube
-
Disconnect the transparent tube at the bottom of the water level sensor and blow into it. If you can hear the sensor operating, it indicates that the vent tube is not leaking. If there is a leak, check if the connection is well-sealed and reapply sealant as necessary.
Measure Contact Conditions
-
Open the top of the washing machine casing, disconnect the water level selection knob, locate the sensor, and remove it. Blow into it again and measure the contact conditions. If poor contact is found, it may indicate a sensor fault. In this case, you need to polish the contacts or replace the sensor.
Check Sensor Components
-
The sensor contains components such as the diaphragm, core, and coil, which may age or become damaged over time. During inspection, observe the condition of these components and replace or adjust them as necessary.
Replace the Water Level Sensor
-
If the sensor is severely faulty and cannot be repaired, it needs to be replaced with a new water level sensor. During replacement, pay attention to the model and specifications of the sensor to ensure compatibility with the original sensor of the washing machine.
Troubleshooting
-
When the washing machine experiences issues such as continuous water intake or failure to spin, first check if the water level sensor is functioning properly. You can use a multimeter to measure the resistance or frequency signal of the sensor to determine if it is damaged.
-
If the sensor is functioning normally, also check the control board, water inlet valve, and other components for faults and perform necessary repairs or replacements.
3. Conclusion
The washing machine water level sensor is an important component of the washing machine, and its working principle is based on air pressure sensing and the parallel resonance principle of inductance and capacitance. Over time, the water level sensor may experience faults that prevent the washing machine from functioning properly. Therefore, regular inspection and maintenance of the water level sensor are necessary to ensure its normal operation. When faults occur, timely troubleshooting and repairs are essential to guarantee the washing machine’s proper use.
By gaining a deeper understanding of the working principles and maintenance methods of washing machine water level sensors, we can better use and maintain washing machines, extend their lifespan, and improve our quality of life. Additionally, for repair personnel, mastering this knowledge and skills can also help improve repair efficiency and quality.
