Why Does U-Boot Typically Lack Password Protection?

Hello everyone, I am the Intelligence Guy~When you are debugging a development board late at night and your fingers habitually type <span>printenv</span>, have you ever wondered: As the gatekeeper of the hardware world, why does U-Boot lack even basic password protection? This is not an oversight by developers, but a carefully considered design choice. Today, let’s discuss some of the considerations behind this.

1. Minimal Design Goals

The main task of U-Boot is to initialize hardware, load the operating system kernel, and transfer control. Its design focuses on being lightweight, fast to boot, and portable. Adding password functionality could increase code complexity, storage usage, and boot time, which is not entirely consistent with its core goals.

The space allocated for U-Boot is limited, and every byte must be carefully managed. Adding password functionality means: first introducing encryption libraries, then needing a storage management module, and finally implementing authentication logic, which would significantly squeeze the space for critical drivers and initialization code.

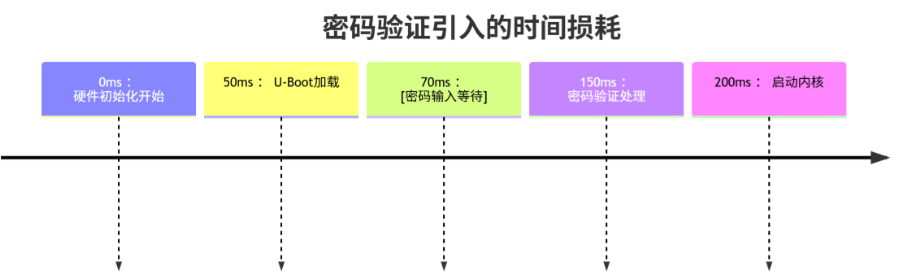

Moreover, U-Boot should not slow down too much; many people already complain about slow Linux boot times, which can significantly impact systems that require fast booting. Let Linux handle it; I serve Linux.

Why Does U-Boot Typically Lack Password Protection?

Additionally, there are many chip architectures to support, with variations in hardware random number generators and secure storage media (NOR/NAND/eMMC), all of which need to be considered, making it complicated.

2. Deficiencies of Software Passwords at the Boot Layer

Even if password protection is forcibly implemented, it would fall into a security paradox:

1. First, storage is not secure

The environment variable area CONFIG_ENV_ADDR is a gold mine for attackers:

# Attackers can easily extract Flash content via the serial port
=> md.b 0x1f800000100   # Read environment variable sector
1f800000: 626f6f74636d 643d 72756e 2070617373  bootcmd=run pass
1f800010: 776f72645f636865636b 3b 626f6f746d  word_check;bootm

Furthermore:

# Attackers can easily bypass the password via UART
=> iminfo 0x81000000   # Check image signature
=> erase 0x1f80000 0x1ffffff # Erase environment variables
=> setenv bootcmd 'run fastboot' # Tamper with boot command

Where is the password stored? If placed in the environment variable area, it can be viewed directly with <span>printenv</span>; if placed in the code area, it can be extracted by decompiling the U-Boot image; if placed in the OTP area, it requires hardware support and increases customization costs.

2. Debugging interfaces are not secure

Debugging interfaces (such as ARM CoreSight) that exist during the chip testing phase can take over control flow with hardware privileges. Most SoC debugging interfaces are enabled at the factory, allowing attackers to read and write memory directly via JTAG, and they can also trigger boot exceptions via UART, then inject instructions to bypass password verification using electronic probes.

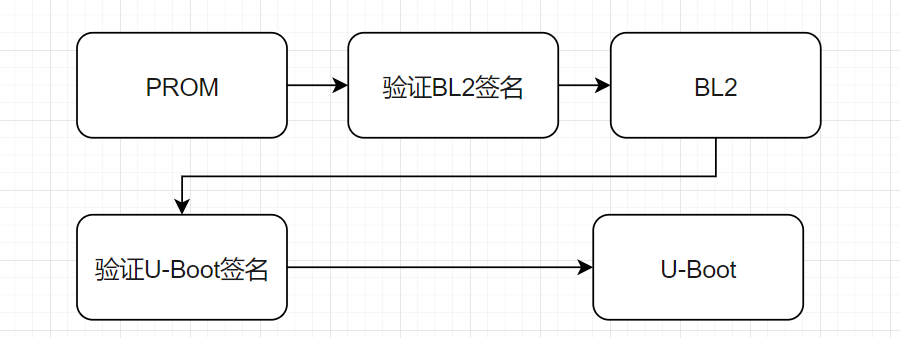

3. If an attacker modifies the U-Boot image to inject malicious code (such as removing password checks), any software protection will collapse. This is the original sin of password schemes at the boot layer, unless verified by a preceding bootloader. Currently, some newer secure chips from major manufacturers have such a process.

Why Does U-Boot Typically Lack Password Protection?

3. Alternative Solutions

1. Implement a secure boot trust chain

Why Does U-Boot Typically Lack Password Protection?Establish an immutable trust path through RSA/ECC certificate chains

2. Eliminate debugging interfaces

After fuses are blown, physical debugging interfaces become permanently disabled, for example:

// Example of critical fuse bits
#define FUSE_BANK0_WORD0 0x00020000 // JTAG_DISABLE
#define FUSE_BANK0_WORD5 0x00000020 // UART_DBG_DIS

void secure_disable_debug(void)
{
    // Blow the debugging interface fuse
    write_eFuse(FUSE_BANK0_WORD0, 0x1);
    // Lock the eFuse area
    write_eFuse(EFUSE_LOCK_REG, 0xDEADBEEF);
}

3. If you want to strengthen your U-Boot security, consider the following solutions based on your needs:

Protection Level Recommended Solution Implementation Example
Basic Protection Pseudo password for environment variables <span>if test "$sec" != "pass"; then reset; fi</span>
Production Protection Disable debugging interfaces Burn eFuse/OTP fuses
High Security Requirements Secure Boot + Encrypted Boot Enable SoC’s HAB/ATR features

Why Does U-Boot Typically Lack Password Protection?

END
