What is Zigbee Network? How to Use It in Smart Homes?

With the development of smart home systems, wireless interconnection between devices has become the key to the success of the system. From smart light bulbs, curtain motors, and sensors to door locks and thermostats, these devices typically operate on different power levels, communication requirements, and protocol bases. Therefore, to achieve an efficient, stable, low-power, and secure interconnected network, it is essential to choose the right wireless communication protocol. Among many protocols, Zigbee remains widely used as one of the earlier standards in the smart home field.

Next, we will delve into the Zigbee network from various perspectives, including technical principles, practical applications, protocol comparisons, and future trends, providing references for smart home users and enthusiasts.

1. Introduction to Zigbee: A Wireless Communication Protocol Designed for Low-Power IoT Devices

Zigbee is a wireless communication protocol specifically designed for low-power, low-data-rate devices in the Internet of Things (IoT). It is based on the IEEE 802.15.4 standard and was first released by the Zigbee Alliance (now the Connectivity Standards Alliance, CSA) in 2004, aiming to provide low-cost, low-power, and highly reliable wireless communication solutions for sensor networks, home automation, industrial control, and other scenarios.

Unlike traditional communication methods such as Wi-Fi and Bluetooth, Zigbee’s design goal is to connect a large number of low-rate devices, such as temperature and humidity sensors, door magnets, infrared detectors, and smoke alarms, which typically need to operate for years without battery replacement.

The main features of Zigbee include:

• Low Power Operation: The sleep mode is highly efficient, and terminal devices can typically run for years on button batteries.

• Operating Frequency Bands: The 2.4GHz ISM band is used in most parts of the world, while it also supports 868MHz (Europe) and 915MHz (North America) bands.

• Communication Range: The single-hop communication range is 10-20 meters (indoor), reaching up to 75 meters under ideal conditions, and can extend hundreds of meters or more through a mesh network.

• Data Rate: 250kbps, suitable for low-bandwidth demand scenarios.

• Network Capacity: Supports up to 65,000 devices (theoretically), suitable for large-scale deployments.

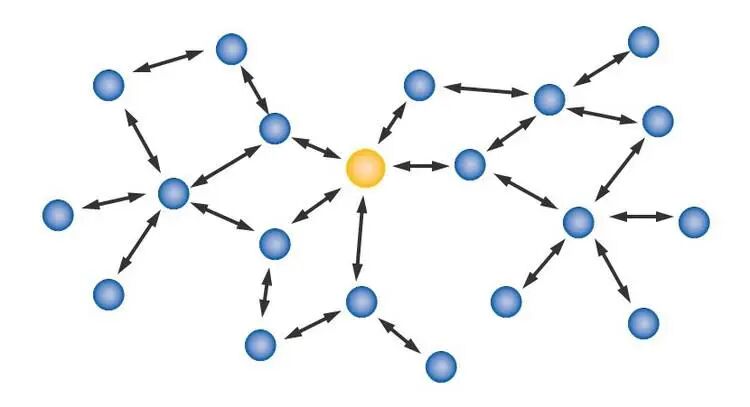

2. Zigbee Network Structure: Mesh Topology as a Core Advantage

The biggest technical highlight of Zigbee is its mesh network capability. Zigbee networks typically consist of three types of devices:

1. Coordinator: The core of the entire Zigbee network, there can only be one, responsible for starting the network and assigning addresses.

2. Router: Acts as a relay node to forward data, build and maintain the mesh structure, and can also be smart devices, such as bulbs or sockets.

3. End Device: Has the lowest power consumption, communicates only with parent devices, does not participate in data forwarding, suitable for sensors, remote controls, etc.

The advantages brought by this structure include:

• Self-Healing Network Capability: When a router node fails, the network can automatically find a new communication path.

• Enhanced Coverage Capability: Achieves long-distance extension through relay nodes.

• Flexible Deployment: Can construct star, tree, or fully mesh topologies to adapt to different home or building structures.

This multi-hop routing mechanism gives Zigbee stronger wall penetration capability and coverage stability in home environments compared to Wi-Fi, especially suitable for large villas, multi-story residences, and other complex layouts.

3. Security: How Does Zigbee Ensure Data Security in Smart Homes?

In smart home applications, data security is always a top priority. The Zigbee protocol employs a multi-layer encryption and authentication mechanism:

• AES-128 Encryption: All communication data is encrypted using the Advanced Encryption Standard AES-128.

• Network Key Mechanism: All devices must pass key authentication before joining the Zigbee network to prevent unauthorized devices from accessing.

• Device Authentication Mechanism: Supports access policies based on whitelisting, enhancing device access control.

Additionally, Zigbee supports OTA (Over-the-Air) remote upgrade mechanisms, allowing manufacturers to push patches to fix security vulnerabilities without physical contact with devices, improving device security and maintainability.

4. Practical Application Scenarios of Zigbee

Zigbee is widely used in home and commercial smart scenarios, here are some typical applications:

1. Smart Lighting:

Such as Philips Hue, IKEA TRÅDFRI, users can achieve remote control of lights, scene switching, and light-sensitive linkage through Zigbee.

2. Environmental Monitoring and Security:

Smoke alarms, door magnets, temperature and humidity sensors, infrared detectors, and other Zigbee devices can work with home alarm systems to enhance safety and automation levels.

3. Smart Sockets and Switches:

Brands like Aqara and Orvibo provide Zigbee sockets and switches that can accurately control and monitor electricity usage, achieving energy management.

4. Smart Curtains and Door Locks:

The Zigbee protocol is suitable for integration with motor control systems for remote control and linkage operations of curtains, blinds, and electric door locks.

5. Energy Management:

By connecting energy monitoring devices through a Zigbee gateway, it enables household power load regulation, particularly suitable for photovoltaic energy storage systems and smart meter management.

5. Comparison of Zigbee with Other Smart Home Protocols

It can be seen that Zigbee’s advantages lie in stability, maturity, and wide compatibility, while its drawbacks include unresolved interoperability issues.

6. How to Build a Zigbee-Based Smart Home System?

To build a stable and scalable Zigbee smart home system, the following steps should be taken:

1. Determine the Core Functional Requirements of the Smart Home

Before purchasing devices, clarify the smart home functions you wish to achieve. For example:

• Lighting automation (switching/dimming/scene modes)

• Security monitoring (door magnets, human detection, camera linkage)

• Environmental control (temperature and humidity sensing, air conditioning/heating control)

• Appliance management (remote control of sockets, energy monitoring)

• Door and window control (smart locks, electric curtains)

• Linkage logic (such as “home mode,” “away mode,” “night mode,” etc.)

Once these functions are clarified, you can more specifically plan the Zigbee devices and system structure.

2. Choose the Right Zigbee Gateway (Coordinator)

The operation of a Zigbee network relies on a coordinator, which is usually integrated into a “gateway” or “smart host.”

Mainstream Types of Zigbee Gateways:

3. Build a Smart Home Platform (e.g., Home Assistant)

Home Assistant is currently one of the most powerful and active open-source smart home platforms, supporting hundreds of protocols and devices, including Zigbee, Z-Wave, Matter, Wi-Fi, etc.

4. Choose Zigbee-Compatible Devices

Purchase Recommendations:

• Prioritize devices that comply with Zigbee 3.0 standards, which have stronger compatibility and more complete functions.

• Prefer devices that can act as routers (such as smart sockets and bulbs), which help build a more stable mesh network.

• Avoid devices with closed protocols or severe brand lock-in (such as some Xiaomi Mijia products that require a dedicated gateway).

5. Network Planning and Deployment Recommendations

• Evenly distribute Zigbee router devices: Place a Zigbee socket/bulb as a relay every 5-10 meters to optimize signal coverage.

• Avoid 2.4GHz Wi-Fi channel interference: Zigbee is recommended to use channels 15, 20, or 25, avoiding commonly used Wi-Fi channels (1/6/11).

• Assign logical partitions for each type of device: Group lighting, sensors, and switches separately for easier maintenance.

• Set a unified naming convention: For easy identification and automation programming.

6. Implement Automation and Linkage

The greatest value of Zigbee devices lies in achieving multi-device linkage automation scenarios, common scenarios include:

• Away Mode: One-click to turn off lights and sockets, activate security mode.

• Home Mode: Turn on the entrance light, start the air conditioning.

• Night Mode: Detect the opening of the bedroom door magnet, automatically light up the corridor night light.

• Environmental Linkage: Humidity < 30% starts the humidifier; PM2.5 > 75 starts the air purifier.

For example, with the automation engine of Home Assistant, you can freely combine logic through “state triggers + condition checks + action execution,” supporting both YAML programming and graphical flow editors.

In summary, building a Zigbee-based smart home system requires attention not only to the selection of hardware devices but also to platform integration, network stability, and future scalability. Here are some suggestions:

1. Try to use Zigbee 3.0 devices to enhance network compatibility and stability.

2. Utilize open-source platforms like Home Assistant + Zigbee2MQTT to achieve maximum device integration and freedom.

3. Deploy Zigbee router devices to form a good mesh topology.

4. Set automation scenarios based on actual living habits to truly achieve a “smart home”.

5. Regularly back up system configurations to avoid data loss.

In the smart home field, Zigbee is not just a protocol; it is synonymous with stability and energy efficiency. If built properly, it can become the most reliable communication cornerstone in your home IoT system.

7. Challenges and Future Development Directions of Zigbee

Although Zigbee technology has matured, it also faces the following challenges:

1. Interoperability Issues: There are differences in Zigbee implementations across brands, and devices from different brands may not be directly compatible, requiring users to rely on unified platforms (such as Home Assistant or Zigbee2MQTT) for integration.

2. Emergence of Competing Protocols: Matter, as a next-generation cross-platform standard, has received support from giants like Apple, Google, Amazon, and Samsung, posing a certain impact on Zigbee.

3. Strong Dependency on Gateways: Zigbee networks rely on a central coordinator or gateway, making deployment slightly more complex than Wi-Fi.

Development Directions and Response Strategies:

• Compatibility with Matter: The Connectivity Standards Alliance is promoting the coordinated development of Zigbee and Matter, and future devices will be able to support both protocols simultaneously, enhancing compatibility.

• Open Source Projects Promote Ecological Integration: Projects like Home Assistant and Zigbee2MQTT are breaking down brand barriers to achieve unified control and management of Zigbee networks.

• Smart Gateway Upgrades: The emergence of multi-protocol unified gateways (such as those supporting Zigbee, Z-Wave, and Thread) will become the hub of future home IoT.

Conclusion: Zigbee, Still a Trusted Wireless Connection Solution for Smart Homes

As an important wireless communication protocol in the smart home industry, Zigbee demonstrates high adaptability and reliability in practical deployments due to its low power consumption, high stability, and flexible mesh network architecture. Despite facing interoperability and new protocol challenges, with widespread device support, a mature technology ecosystem, and ongoing development plans, Zigbee remains one of the preferred protocols for building smart home systems today.

For users looking to create a stable, energy-efficient, and easily expandable smart home system, Zigbee is a time-tested solution. If used in conjunction with open platforms like Home Assistant and selecting brands with good compatibility, the smart experience it brings will be smoother, more stable, and more flexible.
