1. Introduction
A PLC (Programmable Logic Controller) is a core device in modern industrial automation control, widely used in manufacturing, energy, transportation, and other fields. It achieves automated control of machinery through programming, offering high reliability, flexibility, and ease of maintenance. The core of a PLC lies in its logical control capabilities, which can perform complex logical operations based on the state of input signals, thus enabling precise control of devices. This article will explore the basic components of a PLC, its logical thinking, operational principles, and practical applications.
2. Basic Components of a PLC
The hardware structure of a PLC typically includes the following components:
2.1 Central Processing Unit (CPU)
The CPU is the core component of a PLC, responsible for executing user programs, processing input and output data, and coordinating the operation of various parts of the system. The performance of the CPU directly affects the computation speed and control capabilities of the PLC.
2.2 Input/Output Modules (I/O)
The I/O modules serve as the bridge between the PLC and external devices. The input module is used to receive signals from sensors (such as buttons, switches, temperature sensors, etc.), while the output module is used to control actuators (such as motors, solenoid valves, indicator lights, etc.). The types and quantities of I/O modules are selected based on actual application requirements.
2.3 Memory
The memory of a PLC is divided into system memory and user memory. System memory is used to store the operating system and fixed parameters, while user memory is used to store user programs and data. The capacity of the memory determines the amount of data and complexity of programs that the PLC can handle.
2.4 Power Supply Module
The power supply module provides a stable operating voltage for the PLC, typically 24V DC or 220V AC. The reliability of the power supply module directly affects the stable operation of the PLC.
2.5 Programming Devices
Programming devices are used to write, debug, and download user programs. Common programming devices include programming software (such as Siemens’ TIA Portal, Mitsubishi’s GX Works) and handheld programmers.
3. Logical Thinking of PLCs
The logical thinking of a PLC is the core of its automated control capabilities. It translates control logic into executable instructions through programming languages, enabling device control. Common PLC programming languages include Ladder Diagram, Instruction List, and Function Block Diagram. Among these, Ladder Diagram is the most commonly used programming language due to its intuitiveness and ease of use.
3.1 Basic Elements of Ladder Diagram
The logical structure of a Ladder Diagram is similar to that of electrical control circuits, mainly consisting of the following elements:
Contacts: Represent input conditions, which can be normally open (NO) or normally closed (NC). A normally open contact closes when the input signal is true, while a normally closed contact opens when the input signal is true.
Coils: Represent output results, typically used to control actuators (such as motors, solenoid valves, etc.).
Logic Blocks: Combinations of contacts and coils used to implement complex logical control.
3.2 Logical Operations
The logical operations of a PLC mainly include basic logical operations such as AND, OR, and NOT. Through these operations, complex control logic can be achieved.
AND Operation: The output is true when all input conditions are true. For example, the motor will only start when both button A and button B are pressed.
OR Operation: The output is true when any one of the input conditions is true. For example, the motor will start when either button A or button B is pressed.
NOT Operation: The output is true when the input condition is false. For example, the indicator light is on when the button is not pressed.
3.3 Advanced Logic Functions
In addition to basic logical operations, PLCs also support advanced functions such as timers, counters, comparison operations, and mathematical operations. These functions further expand the application range of PLCs.
Timers: Used to implement delay control. For example, the motor stops automatically after a delay of 10 seconds after starting.
Counters: Used to record the number of occurrences of events. For example, counting the number of products passing through a sensor.
Comparison Operations: Used to compare the sizes of two values. For example, triggering an alarm when the temperature exceeds a set value.
Mathematical Operations: Used to perform addition, subtraction, multiplication, and division. For example, calculating the output of a production line.
4. Operational Principles of PLCs
The operational principles of a PLC are mainly reflected in its scanning cycle and program execution method.
4.1 Scanning Cycle
The working process of a PLC is a continuously looping scanning cycle, which includes the following stages:
1. Input Sampling: Reads the status of all input signals and stores them in the input image register.
2. Program Execution: Executes logical operations in the user program based on the status of input signals and stores the results in the output image register.
3. Output Refresh: Outputs the results from the output image register to the output module, controlling the actuators.
4. Self-Diagnosis: Checks the operational status of the PLC itself to ensure the system is functioning normally.
4.2 Program Execution Method
The program execution method of a PLC is sequential execution, meaning it executes each instruction in the program from top to bottom and left to right. This execution method ensures the logical consistency and predictability of the program.
5. Application Examples of PLC Logical Thinking
Below is a typical PLC control example used to control the start, stop, and running status indication of a motor.
5.1 Control Requirements
Press the start button to start the motor.
Press the stop button to stop the motor.
When the motor is running, the running indicator light is on; when the motor stops, the stop indicator light is on.
The motor automatically stops after a delay of 10 seconds after starting.

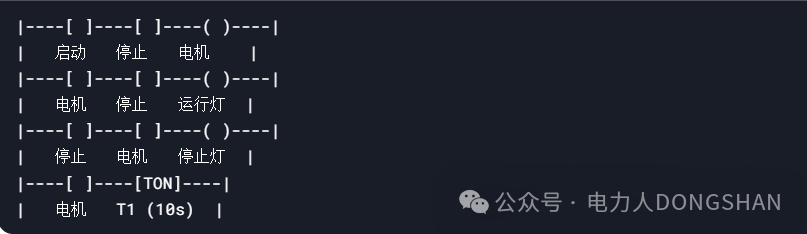

5.2 Ladder Diagram Program
5.3 Program Explanation
When the start button is pressed, the motor coil is energized, and the motor starts.
When the stop button is pressed, the motor coil is de-energized, and the motor stops.
When the motor is running, the running indicator light is on; when the motor stops, the stop indicator light is on.
After the motor starts, timer T1 begins timing, and after 10 seconds, it automatically disconnects the motor coil.
6. Application Fields of PLCs
PLCs are widely used in the following fields:
Manufacturing: Automation control of production lines, robot control, assembly line control, etc.
Energy Industry: Power system monitoring, water treatment control, wind power generation control, etc.
Transportation: Rail transit signal control, elevator control, automated storage systems, etc.
Construction Industry: Building automation control, lighting control, air conditioning system control, etc.
7. Conclusion
The logical thinking and operational principles of PLCs are the foundation of industrial automation control. By understanding the basic components, logical thinking, and operational principles of PLCs, one can effectively write and debug PLC programs to achieve precise control of various machinery. With the rapid development of Industry 4.0 and smart manufacturing, the application of PLCs will become more widespread and in-depth, becoming an indispensable core technology in industrial automation.
