Using the ESP32 MicroPython File System

1. Overview of the File System

The MicroPython on ESP32 uses the FAT file system by default, stored in internal flash memory or on an external SD card. The main operations include file reading and writing, directory management, and retrieving file information.

2. Common APIs

• <span>os.listdir()</span>: List directory contents
• <span>os.mkdir(path)</span>: Create a directory
• <span>os.rmdir(path)</span>: Remove a directory
• <span>os.remove(path)</span>: Delete a file
• <span>os.rename(old, new)</span>: Rename a file/directory
• <span>os.stat(path)</span>: Get file information
• <span>open()</span>: Open a file (modes: <span>r</span> for read, <span>w</span> for write, <span>a</span> for append, <span>b</span> for binary)

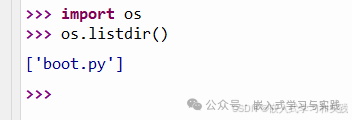

Command 1:

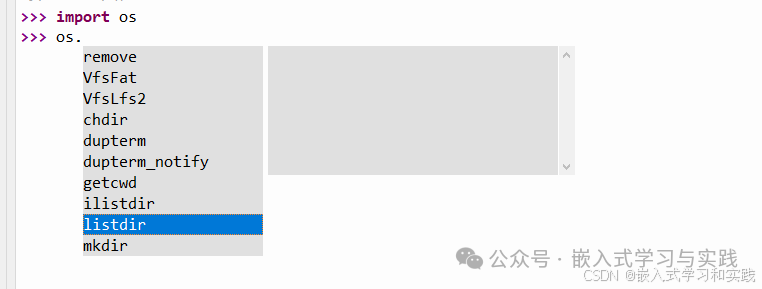

Command 2:

Command Test:

3. Test Code

Basic operations of the file system:

import os

def test_filesystem():
    # List root directory contents
    print("Root directory contents:")
    for item in os.listdir():
        print(f"- {item}")

    # Create test directory
    test_dir = "test_dir"
    try:
        os.mkdir(test_dir)
        print(f"\nCreated directory: {test_dir}")
    except OSError:
        print(f"\nDirectory already exists: {test_dir}")

    # Change to test directory
    os.chdir(test_dir)
    print(f"Current directory: {os.getcwd()}")

    # Write to file
    with open("test.txt", "w") as f:
        f.write("Hello, ESP32!\n")
        f.write("This is a test file.\n")
        f.close()
    print("Wrote to file: test.txt")

    # Read file
    with open("test.txt", "r") as f:
        content = f.read()
        f.close()
    print("\nFile content:")
    print(content)

    # Append content
    with open("test.txt", "a") as f:
        f.write("Appended line.\n")
        f.close()
    print("Appended content to file")

    # Read file again
    with open("test.txt", "r") as f:
        print("\nUpdated content:")
        print(f.read())
        f.close()

    # Get file information
    stats = os.stat("test.txt")
    print(f"\nFile size: {stats[6]} bytes")

    # Rename file
    os.rename("test.txt", "new_test.txt")
    print("File renamed to: new_test.txt")

    # List current directory
    print("\nCurrent directory contents:")
    for item in os.listdir():
        print(f"- {item}")

    # Delete file
    os.remove("new_test.txt")
    print("\nFile deleted")

    # Return to root directory and delete test directory
    os.chdir("..")
    os.rmdir(test_dir)
    print(f"Directory deleted: {test_dir}")

# Execute test

test_filesystem()

4. Code Explanation

• Directory Operations: Create <span>test_dir</span> directory and delete it after operations are complete
• File Reading and Writing: Use <span>with open()</span> to ensure files are closed properly
• File Information: Get file size and other information using <span>os.stat()</span>
• Error Handling: Use <span>try-except</span> to handle potential errors (e.g., directory already exists)

5. Notes

1. The internal flash memory of the ESP32 is limited (usually about 4MB), so for large files, it is recommended to use an SD card
2. Files must be closed after writing to ensure data is saved
3. Ensure the directory is empty before deleting it
4. Binary file operations require adding <span>b</span> mode (e.g., <span>wb</span>, <span>rb</span>)

6. with open(file_path, mode) as file_object:

In MicroPython (and Python), <span>with open()</span> is the standard way to handle file I/O, providing a safe and concise method for file operations.

6.1. Basic Syntax

with open(file_path, mode) as file_object:
    # Use file_object for read/write operations
    # ...
    # File will be automatically closed here

• Key Points:
• <span>with</span> statement automatically manages the opening and closing of files, ensuring files are closed even if an exception occurs.
• <span>file_object</span> is a reference to the opened file, which can be used for read/write operations.

6.2. File Open Modes

Common modes are as follows:

Mode	Description	Example
<span>r</span>	Read-only mode (default)	<span>with open("data.txt", "r")</span>
<span>w</span>	Write mode (overwrites existing content)	<span>with open("output.txt", "w")</span>
<span>a</span>	Append mode (adds to the end of the file)	<span>with open("log.txt", "a")</span>
<span>b</span>	Binary mode (to be combined with other modes)	<span>with open("image.jpg", "rb")</span>
<span>+</span>	Read and write mode (to be combined with other modes)	<span>with open("data.txt", "r+")</span>

6.3. File Reading Examples

6.3.1 Read Entire File Content

with open("test.txt", "r") as f:
    content = f.read()  # Read all content as a string
print(content)

6.3.2 Read Line by Line

with open("test.txt", "r") as f:
    for line in f:
        print(line.strip())  # Remove newline character at the end of the line

6.3.3 Read Specified Number of Bytes

with open("test.txt", "r") as f:
    chunk = f.read(10)  # Read 10 characters at a time
    while chunk:
        print(chunk)
        chunk = f.read(10)

6.4. File Writing Examples

6.4.1 Overwrite Writing

with open("output.txt", "w") as f:
    f.write("Hello, World!\n")  # Write string
    f.write("Second line content\n")

6.4.2 Append Writing

with open("output.txt", "a") as f:
    f.write("Appended content\n")

6.4.3 Write Multiple Lines

lines = ["First line\n", "Second line\n", "Third line\n"]
with open("output.txt", "w") as f:
    f.writelines(lines)  # Directly write the list, need to add newline characters manually

6.5. Binary File Operations

Commonly used for images, audio, and other non-text files:

# Read binary file
with open("image.jpg", "rb") as f:
    data = f.read()

# Write binary file
with open("new_image.jpg", "wb") as f:
    f.write(data)

6.6. Advanced Usage: Simultaneous Read and Write

Using <span>r+</span> mode allows for simultaneous reading and writing of a file:

with open("data.txt", "r+") as f:
    content = f.read()  # Read first
    f.seek(0)  # Move file pointer back to the beginning
    f.write("New beginning\n")  # Overwrite original content
    f.write(content)  # Append original content

6.7. Why Use the <span>with</span> Statement?

Comparison with traditional writing:

# Writing without using with (must manually close the file)
f = open("test.txt", "r")
try:
    content = f.read()
finally:
    f.close()  # Must ensure the file is closed

# Writing using with (automatically closes the file)
with open("test.txt", "r") as f:
    content = f.read()

6.8. Common Error Handling

try:
    with open("nonexistent.txt", "r") as f:
        content = f.read()
except FileNotFoundError:
    print("File does not exist!")
except Exception as e:
    print(f"Other error: {e}")

<span>with open()</span> core advantages:

• Automatic Management of File Lifecycle: No need to manually call <span>close()</span><span>.</span>
• Exception Safety: Even if an exception is thrown in the code block, the file will be closed correctly.
• Concise and Readable: Code structure is clearer, reducing the risk of resource leaks.
