Recently, I found a very magical device in my desk drawer. Upon closer inspection, it turned out to be an ultrasonic distance sensor from a kit given during a Maker Education Instructor training in Zhengzhou back in 2016.
This device has been lying in the drawer for nearly 5 years.
Is it still usable?

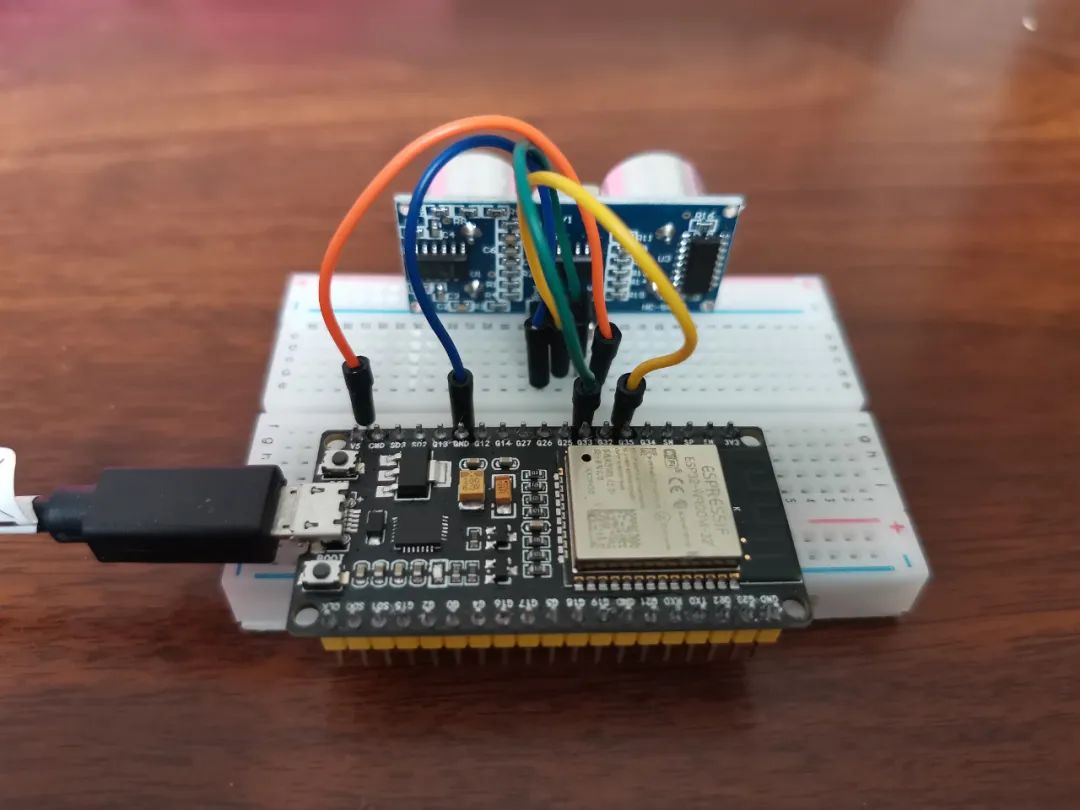

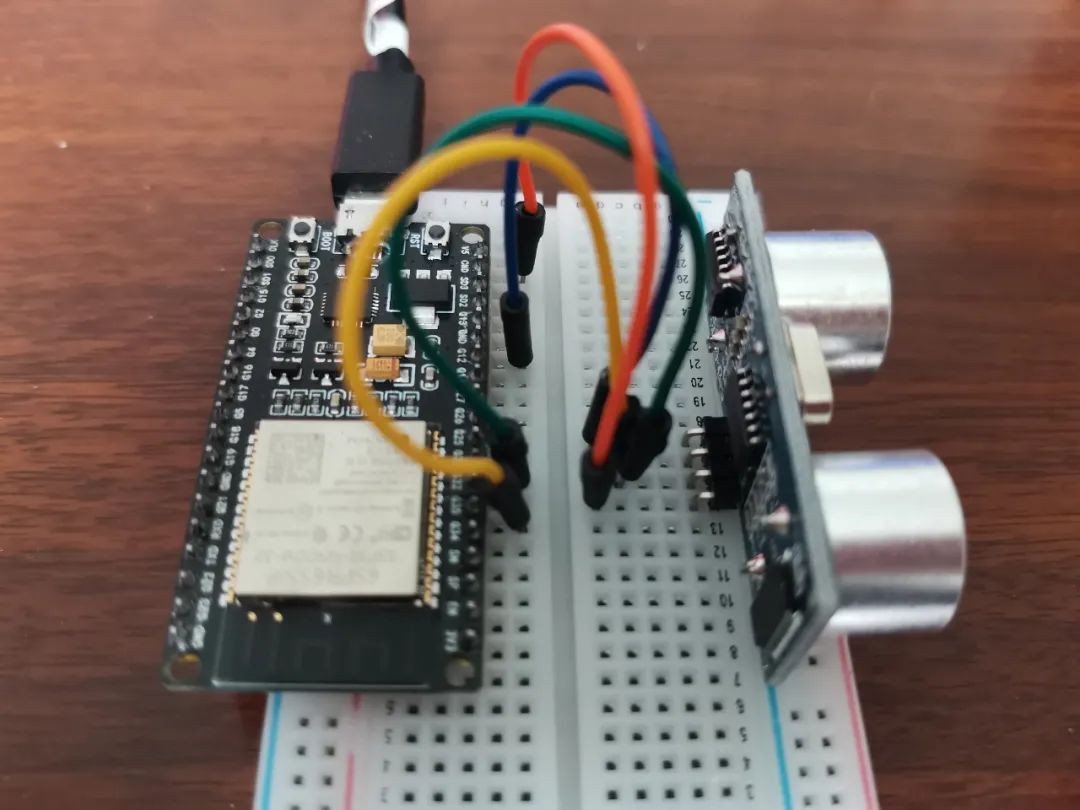

I quickly searched online for relevant information and found many cases of using ultrasonic distance sensors in the ESP32 environment. I picked a relatively simple one and combined it with a previous ESP32-Phyphox Bluetooth experiment I had done, attempting to achieve distance measurement with the ultrasonic sensor, sending data via ESP32 Bluetooth, and receiving and plotting it with Phyphox.
To my surprise, it went exceptionally smoothly.

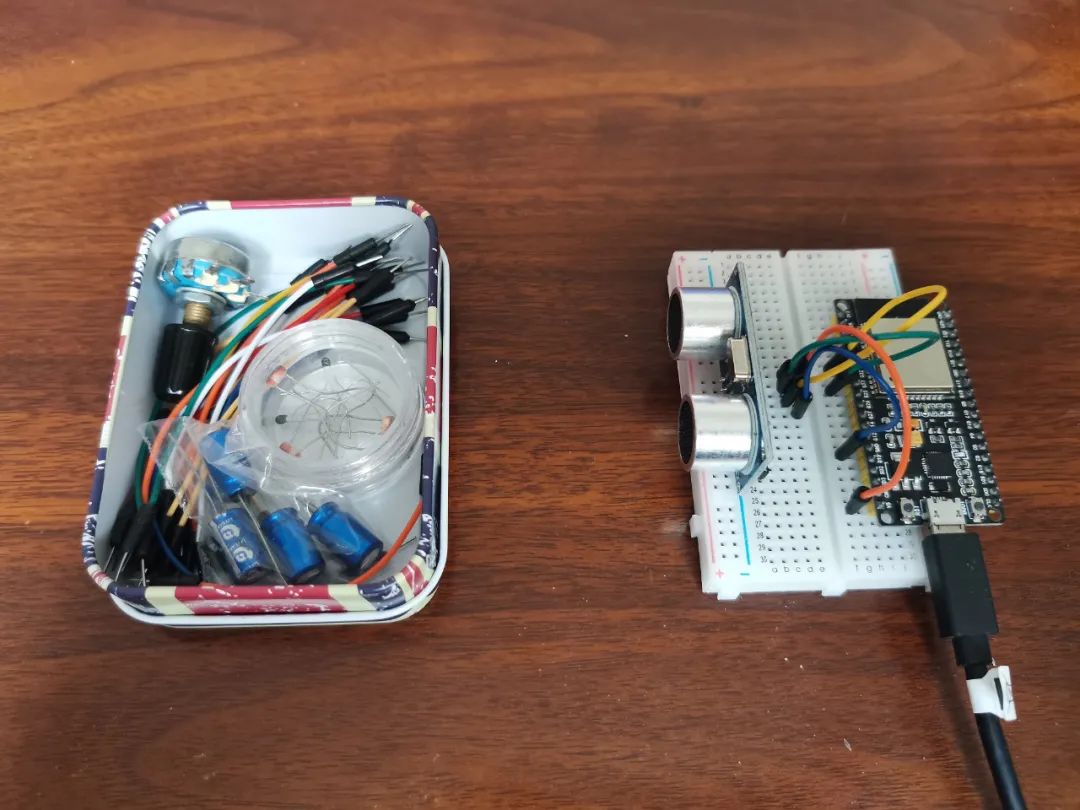

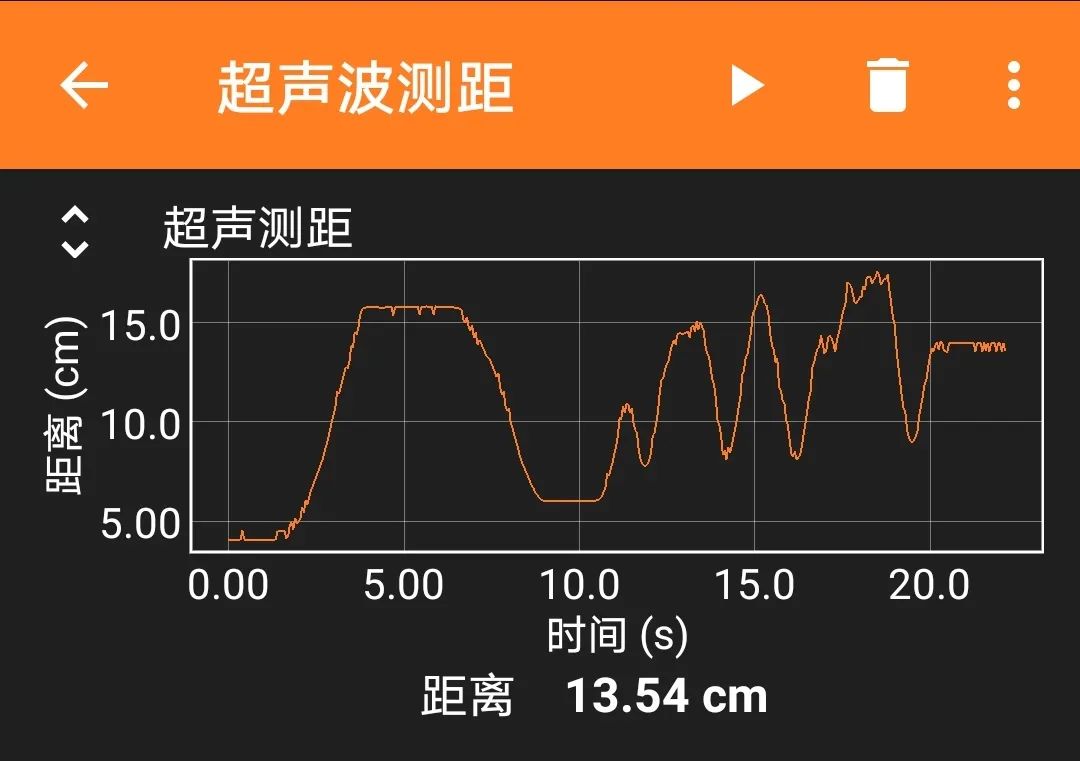

Pointing the ultrasonic distance sensor at a small storage box, the distance data from the ultrasonic sensor to the box was displayed on the phone screen. Changing the distance between the storage box and the ultrasonic sensor caused the distance data displayed on the phone screen to change accordingly.
Experimental Value
From now on, the mobile phone’s self-innovation experimental exploration activities have added a new variable—distance!
