Based on the provided technical parameters and industry background, the MIPI-A-PHY v1.1.1 serializer/deserializer chips that match the description are most likely from Texas Instruments (TI) or Renesas Electronics. The following is a detailed analysis:
1. Texas Instruments (TI)
TI’s DS90UB96x series (such as DS90UB963Q-Q1 and DS90UB964Q-Q1) is an automotive-grade SerDes solution designed for MIPI-A-PHY, supporting the following key features:
- Data Rate: Supports 2G/4Gbps downlink rates (corresponding to A-PHY Gear 1 and Gear 2), meeting user requirements.
- Cable Compatibility: Supports coaxial cables (Coax), shielded twisted pairs (STP), and unshielded twisted pairs (SPP), covering all speed tiers.
- Interface Configuration:
- Serializer (DS90UB963Q-Q1): Supports CSI-2 input (1/2/4 data channels, 2.5Gbps per channel), compatible with I2C and GPIO control signals.

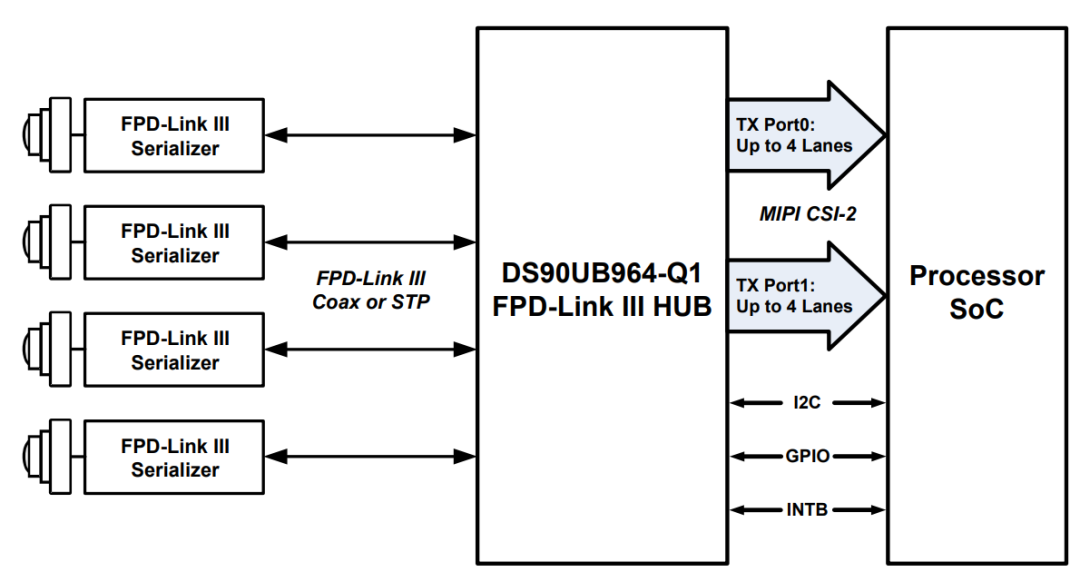

- Deserializer (DS90UB964Q-Q1): Supports flexible CSI-2 output configurations (such as 4+4, 4+2, 2+2 channels), with a per-channel rate of up to 2.5Gbps, meeting user demands for “16 virtual channels”.
- Reliability: Complies with AEC-Q100 standards, featuring an extremely low packet error rate (<10⁻¹⁹) and resistance to electromagnetic interference (EMI), suitable for automotive environments.
2. Renesas Electronics
Renesas’s RAA77900 (Serializer) and RAA77901 (Deserializer) also comply with the MIPI-A-PHY v1.1.1 standard, supporting the following features:
- Data Rate: Supports 2G/4Gbps downlink rates, compatible with A-PHY Gear 1 and Gear 2.
- Cable Compatibility: Supports coaxial cables, STP, and SPP, covering all speed modes.
- Interface Configuration:
- Serializer (RAA77900): Provides CSI-2 input (1/2/4 channels), integrating I2C and GPIO control interfaces.
- Deserializer (RAA77901): Supports multi-channel CSI-2 output configurations (such as 4+4, 4+2), with a per-channel rate of up to 2.5Gbps, supporting virtual channel expansion.
- Integration Capability: Supports protocol adaptation layer (PAL), allowing direct transmission of CSI-2, DSI-2, and other protocols without additional bridging chips.
3. Other Potential Suppliers
- Valens: Its VA7000 series supports MIPI-A-PHY but is primarily aimed at higher bandwidth scenarios (such as 8Gbps) and does not explicitly mention 2G/4Gbps configurations.
- NXP: The SerDes solution paired with the S32G series processors may support A-PHY, but specific models were not clearly identified in the search results.
- ON Semiconductor: Participated in MIPI A-PHY development but no specific product information was found.
Conclusion
Based on the comprehensive technical parameters and industry applications, Texas Instruments (TI)’s DS90UB963Q-Q1/DS90UB964Q-Q1 series and Renesas Electronics’ RAA77900/RAA77901 series are the products that best match user descriptions. These two companies dominate the automotive SerDes field, and their chips fully meet the MIPI-A-PHY v1.1.1 standard, 2G/4Gbps rates, multi-cable support, and CSI-2 interface configuration requirements. It is recommended to further consult the manufacturer’s datasheets to confirm the compatibility of specific models.
Did not find Renesas’s model???
