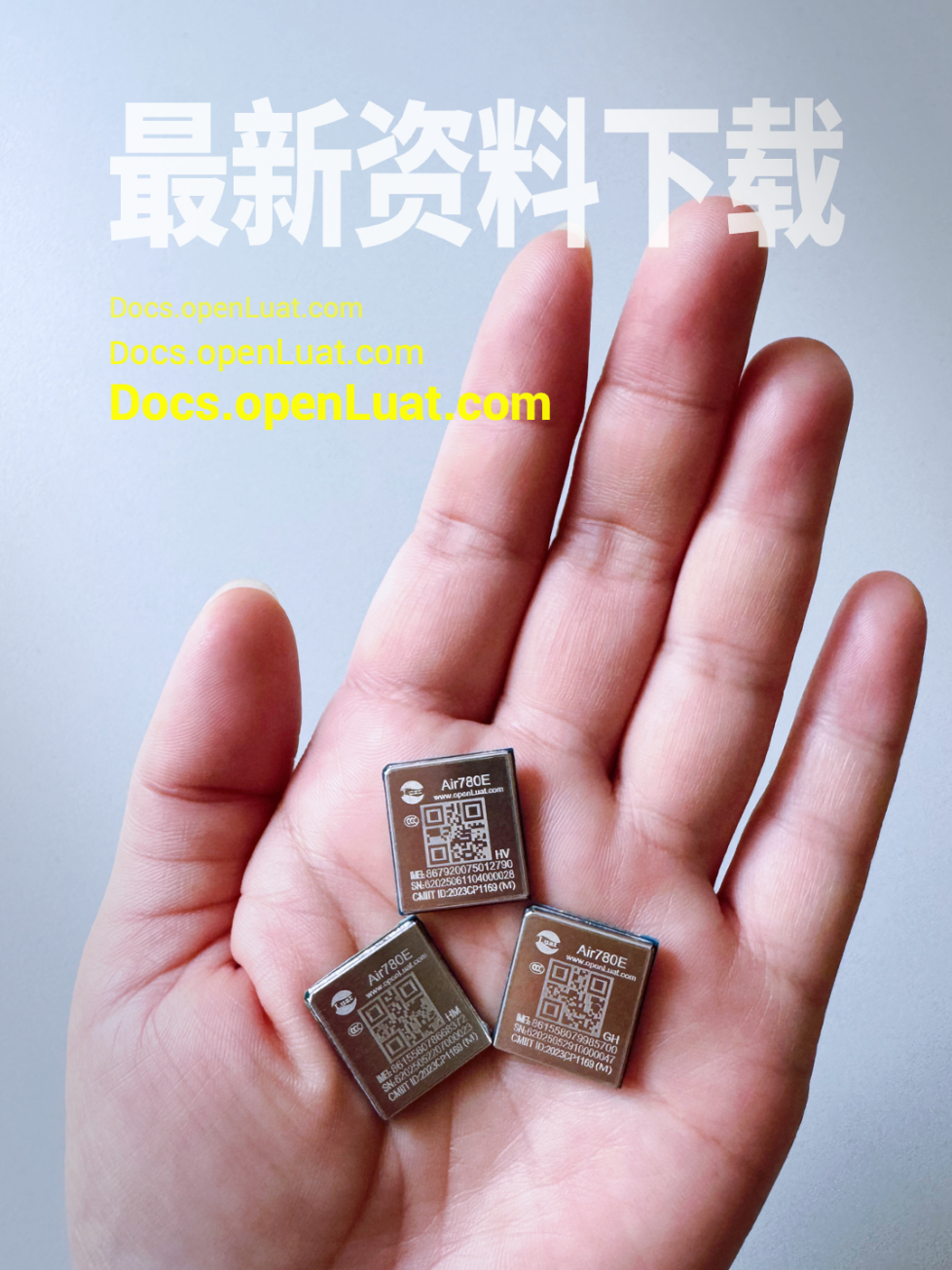

Three new modules from Hezhao: Air780EHM, Air780EHV, Air780EGH offer features such as abundant resources, comprehensive audio capabilities, and integrated communication and positioning, providing a new low-power solution for industry applications.
Engineers in the community often ask: When will there be supporting boards available? The previous Air780EPM development board was too large; we want something smaller! Currently in the debugging phase, we need something more convenient for testing…
—— Here it comes!!! The development board was too big, and the new core boards are now available~ One not enough?
Then all three are launched simultaneously, available for immediate supply without waiting.

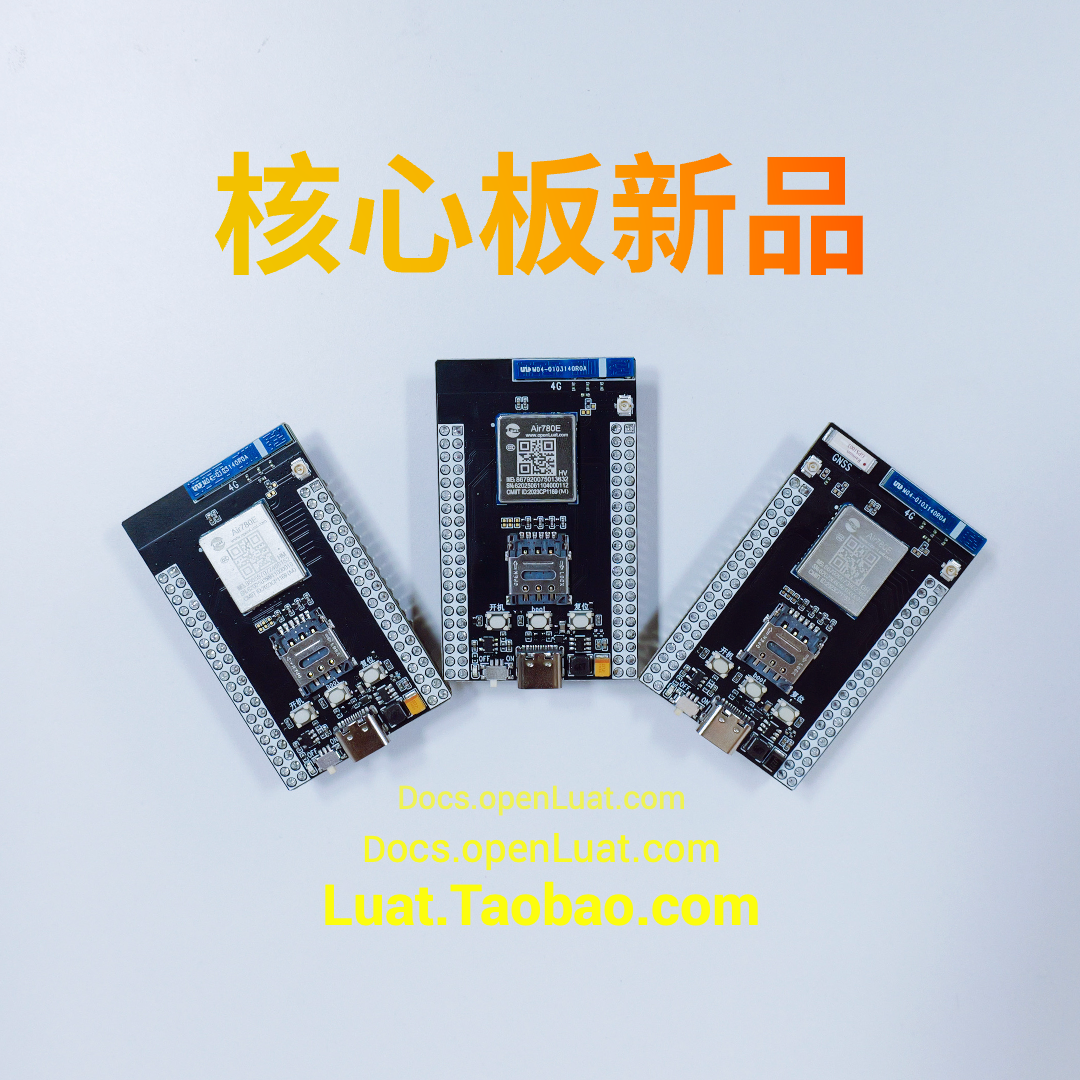

Air780EHM/EHV/EGH core boards, all pins fully exposed, with documentation open and continuously updated.
Hezhao Official Store: luat.taobao.comHezhao Documentation Center: docs.openluat.com
1

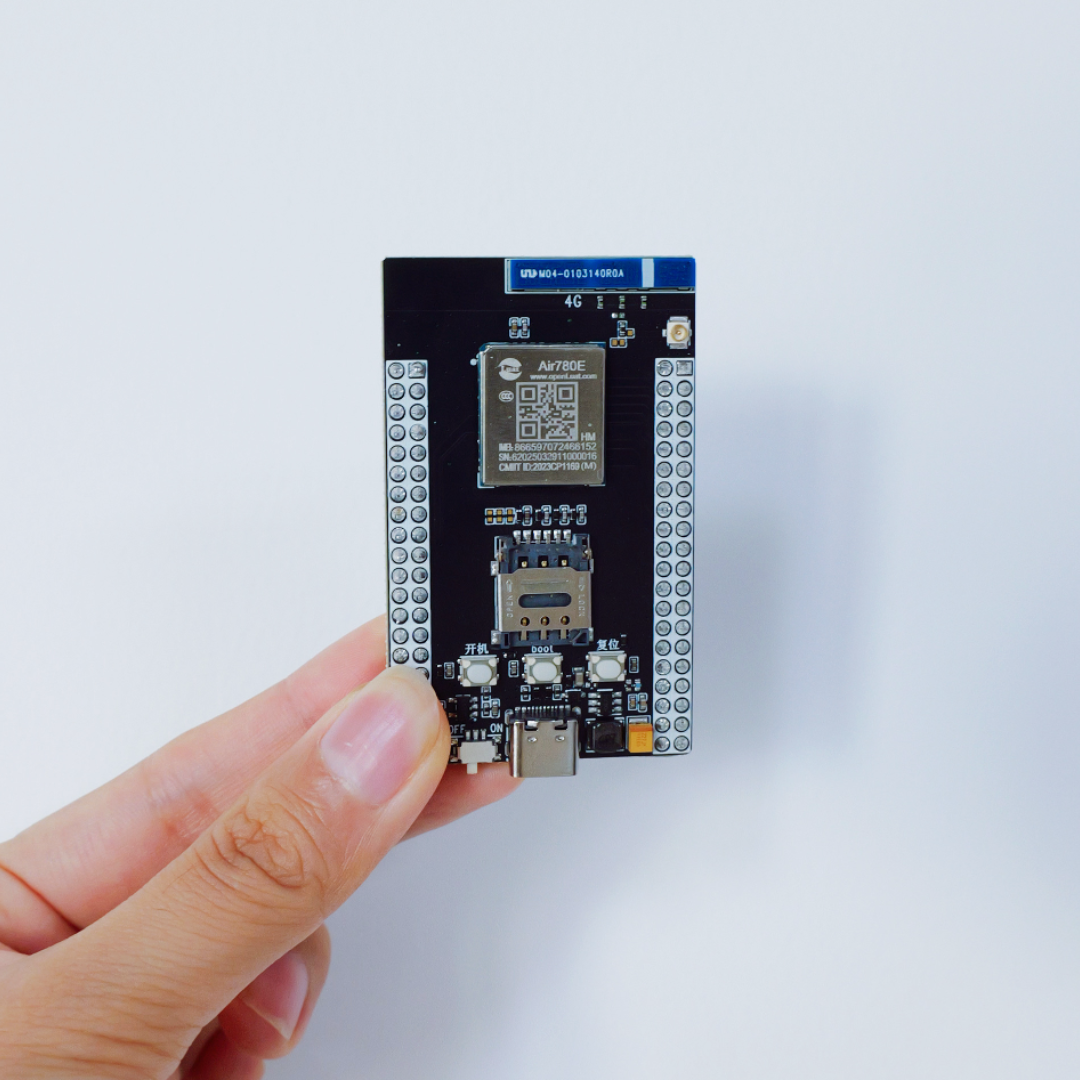

– Air780EHM Core Board –
-
Supports AirUI, Chinese fonts, and touch screens;
-
Powerful secondary development resources: 8MB Flash + 8MB RAM;
-
Supports 38 GPIOs, multiple SPI/I2C/PWM and other peripheral interfaces;
-
More than 10 additional API functions compared to Air780EPM…
Selection Tips: The Air780EHM is fully pin-compatible with the Air780EPM, adding support for UI on top of the Air780EPM, with larger resources, making UI development faster and more convenient.
When the Air780EPM cannot meet project requirements due to insufficient resources—— it can be directly upgraded and replaced with the Air780EHM.
2
– Air780EHV Core Board –
-
Supports VoLTE/TTS/recording/MP3 playback and other functions;
-
8MB Flash + 8MB RAM;
-
Built-in Audio Codec, supports 1 Mic/1 Speaker;
-

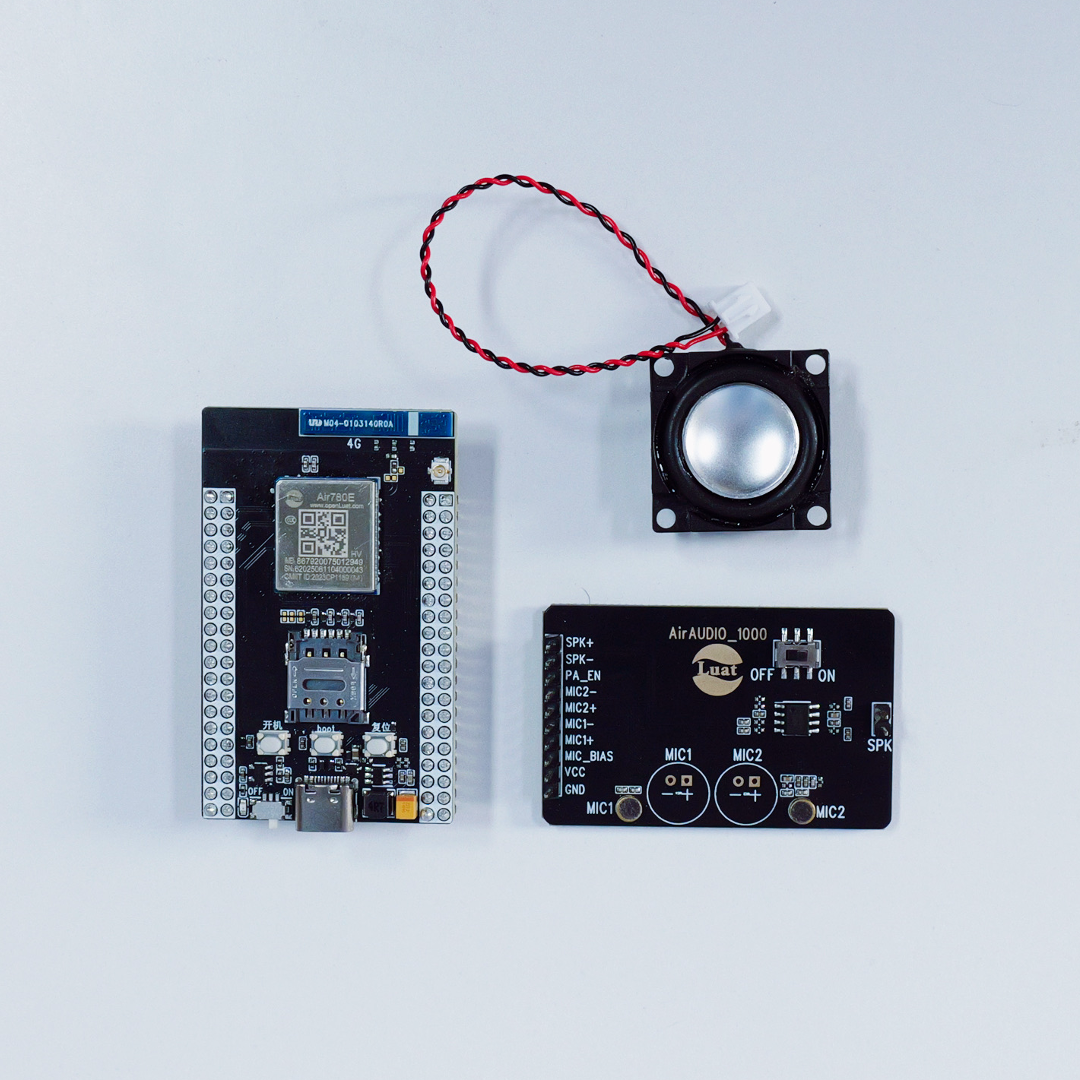

Paired with the AirAudio_1000 accessory board + speaker, audio function testing is more convenient…
Selection Tips: The Air780EHV adds audio support on top of the Air780EHM, suitable for applications that require audio functionality.
3
– Air780EGH Core Board –

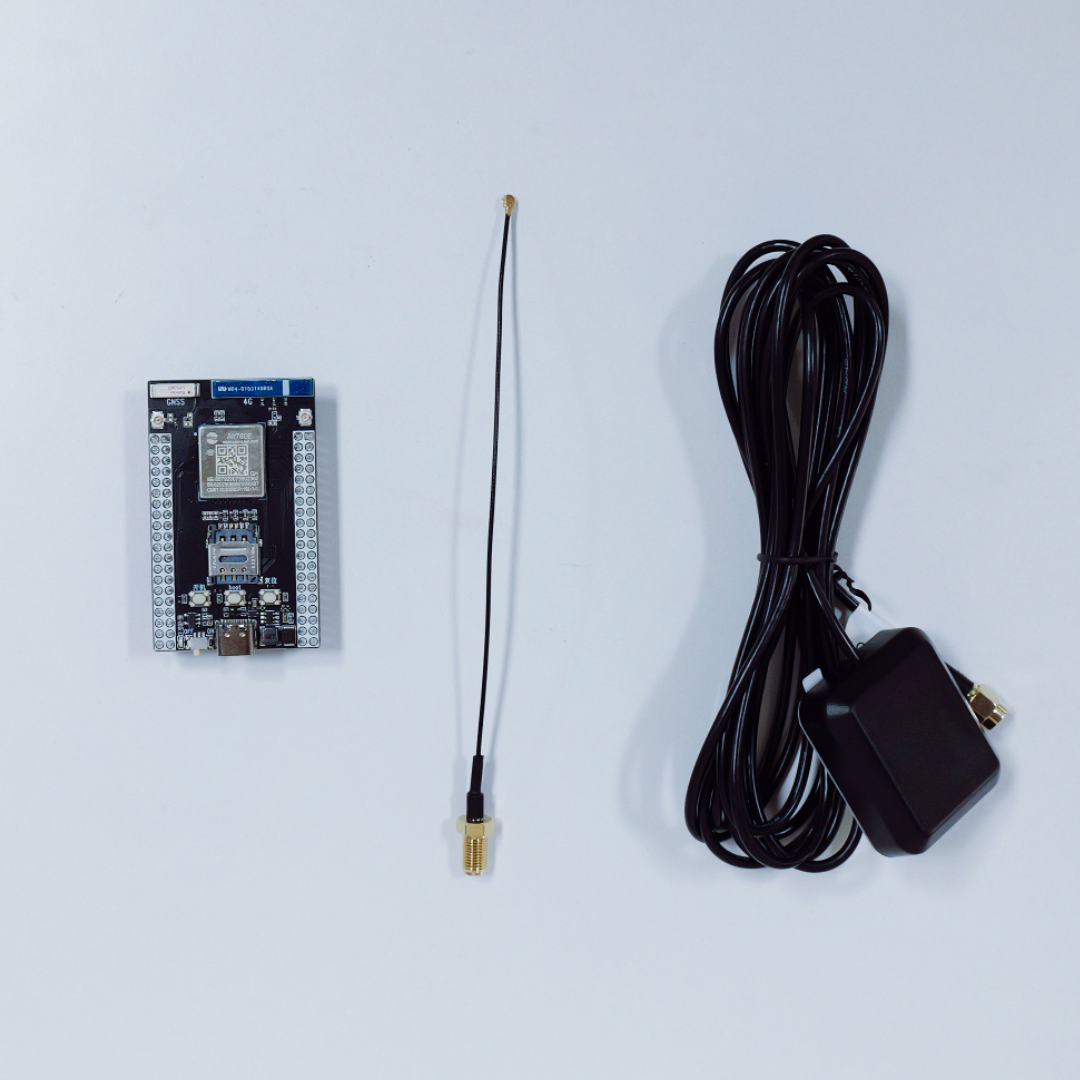

The Air780EGH adds GNSS positioning support on top of the Air780EHM, combining communication and positioning; the core board comes with coaxial cable and active antenna.
-
GNSS Positioning Support: GPS/Beidou dual-mode single frequency, compatible with Beidou No. 3 satellites;
-
Faster GNSS Positioning: 3 seconds for quick positioning (AGPS assisted);
-
More Accurate GNSS Positioning: Positioning accuracy < 2 meters in open environments;
-
Lower GNSS Power Consumption: Capture power consumption about 39mW, tracking power consumption about 27mW.
Selection Tips: The main model for secondary development with LuatOS, perfectly replacing the Air780EG.
That’s all for today’s content~ If you have any questions regarding IoT development selection, feel free to join the technical discussion group or contact the product manager for further discussion.
For more of the latest development materials, please refer to the Hezhao Documentation Center:
—— docs.openluat.com
