The Ultimate Tool for Embedded GUI Development!

GT-HMI

GT-HMI (Human Machine Interface) is a domestic open-source GUI framework and free design software.

gitee: https://gitee.com/genitop/GT-HMI-Engine

Official website: https://www.hmi.gaotongfont.cn/sy

Open source license: MIT

It provides everything needed to create embedded GUIs with user-friendly graphical elements, beautiful visual effects, and low memory usage. The design is optimized for the domestic market and user habits, tailored specifically for domestic engineers!

The product is passionately developed by China Qualcomm GENITOP, inheriting 30 years of experience in Chinese character display technology and Chinese character technology. The product consists of the upper computer GT-HMI Designer and the lower computer GT-HMI Engine.

GT HMI Designer is a powerful embedded human-machine interface design software. It offers an intuitive visual design interface, supports various common controls, and provides rich interactive features. Additionally, it supports multi-language interface design and powerful simulation capabilities. With GT HMI Designer, you can easily design beautiful and highly interactive interfaces to meet the needs of various application scenarios.

GT HMI Engine is a powerful, high-performance, multi-platform, multi-language, stable and reliable embedded human-machine interface engine that provides rich controls and strong interactive features.

Features

  • The upper computer design software GT-HMI Designer is permanently free, and the lower computer technical framework GT-HMI Engine is open source, with no restrictions on use;
  • GT-HMI Designer includes a compiler for the lower computer technical framework, which can automatically generate lower computer code;
  • Provides GT-HMI modules, compatible with GT-HMI upper and lower computer software and drivers, which can be used for early development and debugging, or directly as display modules;
  • Multi-platform compatibility, easy to port;
  • Upper computer design software GT-HMI Designer;
  • Can directly generate interactive code, eliminating the tedious task of writing code;
  • Simulator simulation is WYSIWYG;
  • Includes a large number of commonly used components, such as buttons, text boxes, progress bars, radio buttons, etc.;
  • Supports the entire series of Qualcomm dot matrix/vector font libraries, supporting Chinese and foreign languages as well as minority languages, with various font sizes and styles;

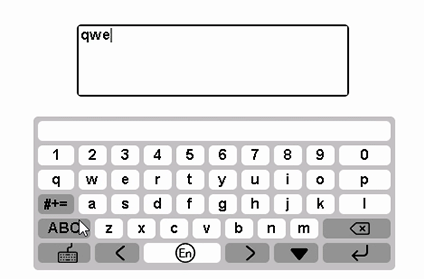

  • Includes built-in Chinese and English input methods;
  • Continuously updated GUI example library and UI resource library;
  • Lower computer technical framework GT-HMI Engine;
  • Written in pure C language, with no barriers to use;
  • Compact and efficient, platform-independent, requiring only 24K RAM + 32K FLASH, can run on small resource platforms like Cortex-ARM M0/M3;
  • Easy to port, switching platforms only requires porting the timer, TP, and LCD interfaces, with provided porting tutorials and examples;
  • Rich and detailed examples, with development kits that are easy to get started;
  • Supports custom function development, allowing the GT-HMI Engine to customize controls and functions, which can be combined into the standard code generated by GT-HMI Designer;
  • Can be used with systems (such as RTOS, Linux, etc.) and bare metal.

Software Architecture

Software Architecture Description

Directory Description
doc/ Related documentation and information
driver/ Porting code related to low-level drivers
examples/ Examples of control calls
sources/ Images used internally by the GUI
test/ Unit test code
src/ GUI framework code
|-gt_conf.h Configuration
|-core/ Core code of the GUI
|-extra/ Extended controls
|-font/ Fonts
|-hal/ Middleware, intermediate layer
|-others/ Code that is hard to classify
|-utils/ Utility classes
|-widgets/ Controls
|-|-gt_conf_widgets.h Control switch macros

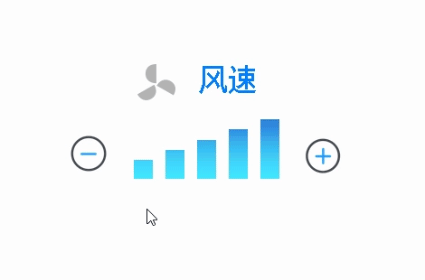

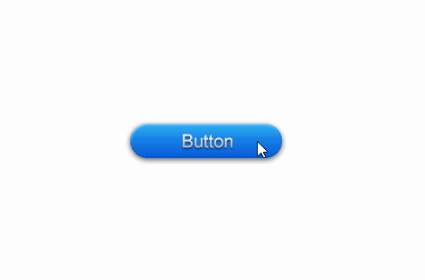

Demo Examples

The Ultimate Tool for Embedded GUI Development!

The Ultimate Tool for Embedded GUI Development!

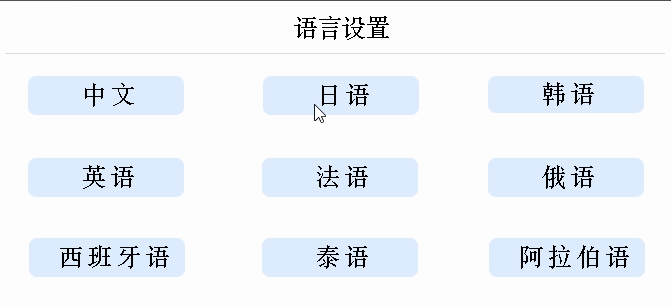

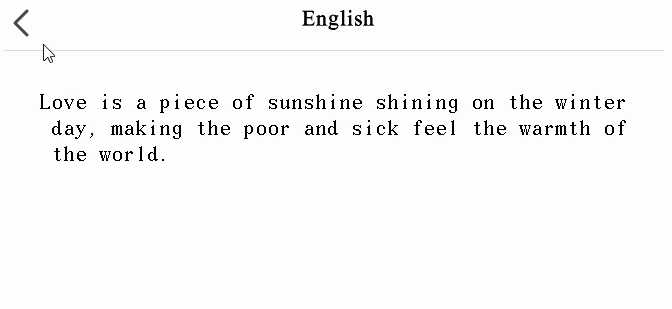

Multi-Language Example

#include "gt_ui.h"

// screen_home
gt_obj_st * screen_home = NULL;
static gt_obj_st * lab1 = NULL;
static gt_obj_st * rect1 = NULL;
static gt_obj_st * btn1 = NULL;
static gt_obj_st * btn2 = NULL;
static gt_obj_st * btn3 = NULL;
static gt_obj_st * btn4 = NULL;
static gt_obj_st * btn5 = NULL;
static gt_obj_st * btn7 = NULL;
static gt_obj_st * btn8 = NULL;
static gt_obj_st * btn9 = NULL;
static gt_obj_st * btn10 = NULL;

static void btn1_0_cb(gt_event_st * e) {
    gt_init_screen_1();
}

static void btn2_0_cb(gt_event_st * e) {
    gt_init_screen_2();
}

static void btn3_0_cb(gt_event_st * e) {
    gt_init_screen_3();
}

static void btn4_0_cb(gt_event_st * e) {
    gt_init_screen_4();
}

static void btn5_0_cb(gt_event_st * e) {
    gt_init_screen_5();
}

static void btn7_0_cb(gt_event_st * e) {
    gt_init_screen_7();
}

static void btn8_0_cb(gt_event_st * e) {
    gt_init_screen_8();
}

static void btn9_0_cb(gt_event_st * e) {
    gt_init_screen_9();
}

static void btn10_0_cb(gt_event_st * e) {
    gt_init_screen_10();
}

void gt_init_screen_home(void)
{
    screen_home = gt_obj_create(NULL);
    gt_screen_set_bgcolor(screen_home, gt_color_hex(0xFFFFFF));
    // lab1
    lab1 = gt_label_create(screen_home);
    gt_obj_set_pos(lab1, 295, 16);
    gt_obj_set_size(lab1, 118, 40);
    gt_label_set_font_color(lab1, gt_color_hex(0x000000));
    gt_label_set_font_size(lab1, 24);
    gt_label_set_font_family_cn(lab1, 16);
    gt_label_set_font_align(lab1, GT_ALIGN_LEFT);
    gt_label_set_text(lab1, "Language Settings");
    // rect1
    rect1 = gt_rect_create(screen_home);
    gt_obj_set_pos(rect1, 8, 55);
    gt_obj_set_size(rect1, 660, 1);
    gt_rect_set_radius(rect1, 0);
    gt_rect_set_bg_color(rect1, gt_color_hex(0xdbdbdb));
    gt_rect_set_color_border(rect1, gt_color_hex(0xdbdbdb));
    gt_rect_set_fill(rect1, 1);
    gt_rect_set_border(rect1, 0);
    // btn1
    btn1 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn1, 29, 76);
    gt_obj_set_size(btn1, 160, 43);
    gt_btn_set_font_color(btn1, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn1, 24);
    gt_btn_set_font_family_cn(btn1, 16);
    gt_btn_set_font_family_en(btn1, 84);
    gt_btn_set_font_align(btn1, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn1, 5, 0);
    gt_btn_set_font_thick_en(btn1, 30);
    gt_btn_set_font_thick_cn(btn1, 30);
    gt_btn_set_font_gray(btn1, 1);
    gt_btn_set_text(btn1, "Chinese");
    gt_btn_set_color_background(btn1, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn1, 8);
    gt_obj_add_event_cb(btn1, btn1_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);
    // btn2
    btn2 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn2, 264, 76);
    gt_obj_set_size(btn2, 160, 43);
    gt_btn_set_font_color(btn2, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn2, 24);
    gt_btn_set_font_family_cn(btn2, 16);
    gt_btn_set_font_family_en(btn2, 84);
    gt_btn_set_font_align(btn2, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn2, 5, 0);
    gt_btn_set_font_thick_en(btn2, 30);
    gt_btn_set_font_thick_cn(btn2, 30);
    gt_btn_set_font_gray(btn2, 1);
    gt_btn_set_text(btn2, "Japanese");
    gt_btn_set_color_background(btn2, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn2, 8);
    gt_obj_add_event_cb(btn2, btn2_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);
    // btn3
    btn3 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn3, 489, 76);
    gt_obj_set_size(btn3, 160, 41);
    gt_btn_set_font_color(btn3, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn3, 24);
    gt_btn_set_font_family_cn(btn3, 16);
    gt_btn_set_font_family_en(btn3, 84);
    gt_btn_set_font_align(btn3, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn3, 5, 0);
    gt_btn_set_font_thick_en(btn3, 30);
    gt_btn_set_font_thick_cn(btn3, 30);
    gt_btn_set_font_gray(btn3, 1);
    gt_btn_set_text(btn3, "Korean");
    gt_btn_set_color_background(btn3, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn3, 8);
    gt_obj_add_event_cb(btn3, btn3_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);
    // btn4
    btn4 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn4, 29, 158);
    gt_obj_set_size(btn4, 160, 43);
    gt_btn_set_font_color(btn4, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn4, 24);
    gt_btn_set_font_family_cn(btn4, 16);
    gt_btn_set_font_family_en(btn4, 41);
    gt_btn_set_font_align(btn4, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn4, 5, 0);
    gt_btn_set_text(btn4, "English");
    gt_btn_set_color_background(btn4, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn4, 8);
    gt_obj_add_event_cb(btn4, btn4_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn5
    btn5 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn5, 263, 158);
    gt_obj_set_size(btn5, 160, 43);
    gt_btn_set_font_color(btn5, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn5, 24);
    gt_btn_set_font_family_cn(btn5, 16);
    gt_btn_set_font_family_en(btn5, 53);
    gt_btn_set_font_align(btn5, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn5, 5, 0);
    gt_btn_set_text(btn5, "French");
    gt_btn_set_color_background(btn5, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn5, 8);
    gt_obj_add_event_cb(btn5, btn5_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn7
    btn7 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn7, 30, 238);
    gt_obj_set_size(btn7, 160, 43);
    gt_btn_set_font_color(btn7, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn7, 24);
    gt_btn_set_font_family_cn(btn7, 16);
    gt_btn_set_font_family_en(btn7, 53);
    gt_btn_set_font_align(btn7, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn7, 5, 0);
    gt_btn_set_text(btn7, "Spanish");
    gt_btn_set_color_background(btn7, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn7, 8);
    gt_obj_add_event_cb(btn7, btn7_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn8
    btn8 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn8, 263, 238);
    gt_obj_set_size(btn8, 160, 43);
    gt_btn_set_font_color(btn8, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn8, 24);
    gt_btn_set_font_family_cn(btn8, 16);
    gt_btn_set_font_family_en(btn8, 41);
    gt_btn_set_font_align(btn8, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn8, 5, 0);
    gt_btn_set_text(btn8, "Thai");
    gt_btn_set_color_background(btn8, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn8, 8);
    gt_obj_add_event_cb(btn8, btn8_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn9
    btn9 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn9, 490, 238);
    gt_obj_set_size(btn9, 160, 43);
    gt_btn_set_font_color(btn9, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn9, 24);
    gt_btn_set_font_family_cn(btn9, 16);
    gt_btn_set_font_family_en(btn9, 75);
    gt_btn_set_font_align(btn9, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn9, 5, 0);
    gt_btn_set_text(btn9, "Arabic");
    gt_btn_set_color_background(btn9, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn9, 8);
    gt_obj_add_event_cb(btn9, btn9_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn10
    btn10 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn10, 489, 158);
    gt_obj_set_size(btn10, 160, 43);
    gt_btn_set_font_color(btn10, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn10, 24);
    gt_btn_set_font_family_cn(btn10, 16);
    gt_btn_set_font_family_en(btn10, 60);
    gt_btn_set_font_align(btn10, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn10, 5, 0);
    gt_btn_set_text(btn10, "Russian");
    gt_btn_set_color_background(btn10, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn10, 8);
    gt_obj_add_event_cb(btn10, btn10_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    gt_disp_load_scr_anim(screen_home, GT_SCR_ANIM_TYPE_NONE, 500, 0, true);
}

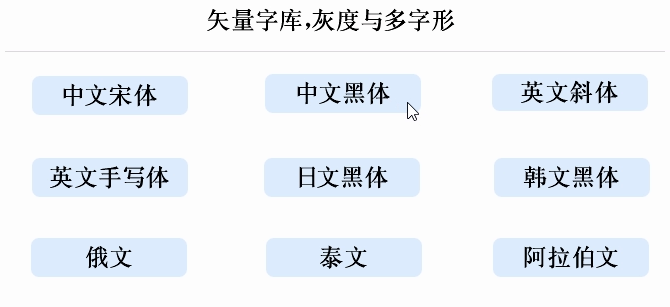

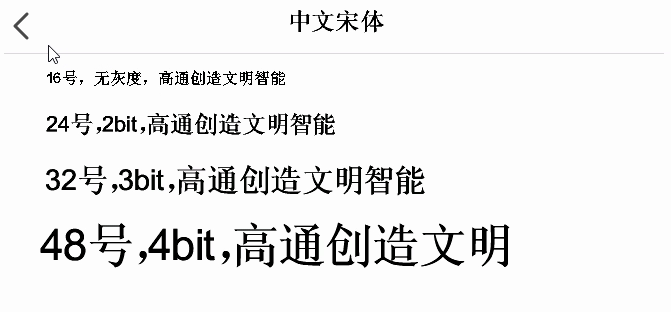

Vector Font Library Example

The Ultimate Tool for Embedded GUI Development!

The Ultimate Tool for Embedded GUI Development!

#include "gt_ui.h"

// screen_home
gt_obj_st * screen_home = NULL;
static gt_obj_st * lab1 = NULL;
static gt_obj_st * rect1 = NULL;
static gt_obj_st * btn1 = NULL;
static gt_obj_st * btn2 = NULL;
static gt_obj_st * btn3 = NULL;
static gt_obj_st * btn4 = NULL;
static gt_obj_st * btn5 = NULL;
static gt_obj_st * btn7 = NULL;
static gt_obj_st * btn8 = NULL;
static gt_obj_st * btn9 = NULL;
static gt_obj_st * btn10 = NULL;

static void btn1_0_cb(gt_event_st * e) {
    gt_init_screen_1();
}

static void btn2_0_cb(gt_event_st * e) {
    gt_init_screen_2();
}

static void btn3_0_cb(gt_event_st * e) {
    gt_init_screen_3();
}

static void btn4_0_cb(gt_event_st * e) {
    gt_init_screen_4();
}

static void btn5_0_cb(gt_event_st * e) {
    gt_init_screen_5();
}

static void btn7_0_cb(gt_event_st * e) {
    gt_init_screen_7();
}

static void btn8_0_cb(gt_event_st * e) {
    gt_init_screen_8();
}

static void btn9_0_cb(gt_event_st * e) {
    gt_init_screen_9();
}

static void btn10_0_cb(gt_event_st * e) {
    gt_init_screen_6();
}

void gt_init_screen_home(void)
{
    screen_home = gt_obj_create(NULL);
    gt_screen_set_bgcolor(screen_home, gt_color_hex(0xFFFFFF));
    // lab1
    lab1 = gt_label_create(screen_home);
    gt_obj_set_pos(lab1, 207, 10);
    gt_obj_set_size(lab1, 309, 40);
    gt_label_set_font_color(lab1, gt_color_hex(0x000000));
    gt_label_set_font_size(lab1, 24);
    gt_label_set_font_family_cn(lab1, 80);
    gt_label_set_font_align(lab1, GT_ALIGN_LEFT);
    gt_label_set_font_thick_en(lab1, 30);
    gt_label_set_font_thick_cn(lab1, 30);
    gt_label_set_font_gray(lab1, 4);
    gt_label_set_text(lab1, "Vector Font Library, Grayscale and Multi-Shape");
    // rect1
    rect1 = gt_rect_create(screen_home);
    gt_obj_set_pos(rect1, 8, 55);
    gt_obj_set_size(rect1, 660, 1);
    gt_rect_set_radius(rect1, 0);
    gt_rect_set_bg_color(rect1, gt_color_hex(0xdbdbdb));
    gt_rect_set_color_border(rect1, gt_color_hex(0xdbdbdb));
    gt_rect_set_fill(rect1, 1);
    gt_rect_set_border(rect1, 0);
    // btn1
    btn1 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn1, 33, 78);
    gt_obj_set_size(btn1, 160, 43);
    gt_btn_set_font_color(btn1, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn1, 24);
    gt_btn_set_font_family_cn(btn1, 80);
    gt_btn_set_font_family_en(btn1, 84);
    gt_btn_set_font_align(btn1, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn1, 0, 0);
    gt_btn_set_font_thick_en(btn1, 30);
    gt_btn_set_font_thick_cn(btn1, 30);
    gt_btn_set_font_gray(btn1, 4);
    gt_btn_set_text(btn1, "Chinese Song Typeface");
    gt_btn_set_color_background(btn1, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn1, 8);
    gt_obj_add_event_cb(btn1, btn1_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);
    // btn2
    btn2 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn2, 266, 76);
    gt_obj_set_size(btn2, 160, 43);
    gt_btn_set_font_color(btn2, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn2, 24);
    gt_btn_set_font_family_cn(btn2, 80);
    gt_btn_set_font_family_en(btn2, 84);
    gt_btn_set_font_align(btn2, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn2, 0, 0);
    gt_btn_set_font_thick_en(btn2, 30);
    gt_btn_set_font_thick_cn(btn2, 30);
    gt_btn_set_font_gray(btn2, 4);
    gt_btn_set_text(btn2, "Chinese Black Typeface");
    gt_btn_set_color_background(btn2, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn2, 8);
    gt_obj_add_event_cb(btn2, btn2_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);
    // btn3
    btn3 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn3, 493, 76);
    gt_obj_set_size(btn3, 160, 41);
    gt_btn_set_font_color(btn3, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn3, 24);
    gt_btn_set_font_family_cn(btn3, 80);
    gt_btn_set_font_family_en(btn3, 84);
    gt_btn_set_font_align(btn3, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn3, 0, 0);
    gt_btn_set_font_thick_en(btn3, 30);
    gt_btn_set_font_thick_cn(btn3, 30);
    gt_btn_set_font_gray(btn3, 4);
    gt_btn_set_text(btn3, "Italic English");
    gt_btn_set_color_background(btn3, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn3, 8);
    gt_obj_add_event_cb(btn3, btn3_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);
    // btn4
    btn4 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn4, 33, 160);
    gt_obj_set_size(btn4, 160, 43);
    gt_btn_set_font_color(btn4, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn4, 24);
    gt_btn_set_font_family_cn(btn4, 80);
    gt_btn_set_font_family_en(btn4, 41);
    gt_btn_set_font_align(btn4, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn4, 0, 0);
    gt_btn_set_font_thick_en(btn4, 30);
    gt_btn_set_font_thick_cn(btn4, 30);
    gt_btn_set_font_gray(btn4, 4);
    gt_btn_set_text(btn4, "Handwritten English");
    gt_btn_set_color_background(btn4, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn4, 8);
    gt_obj_add_event_cb(btn4, btn4_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn5
    btn5 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn5, 265, 160);
    gt_obj_set_size(btn5, 160, 43);
    gt_btn_set_font_color(btn5, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn5, 24);
    gt_btn_set_font_family_cn(btn5, 80);
    gt_btn_set_font_family_en(btn5, 53);
    gt_btn_set_font_align(btn5, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn5, 0, 0);
    gt_btn_set_text(btn5, "Japanese Black Typeface");
    gt_btn_set_color_background(btn5, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn5, 8);
    gt_obj_add_event_cb(btn5, btn5_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn7
    btn7 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn7, 32, 240);
    gt_obj_set_size(btn7, 160, 43);
    gt_btn_set_font_color(btn7, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn7, 24);
    gt_btn_set_font_family_cn(btn7, 80);
    gt_btn_set_font_family_en(btn7, 53);
    gt_btn_set_font_align(btn7, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn7, 0, 0);
    gt_btn_set_font_thick_en(btn7, 30);
    gt_btn_set_font_thick_cn(btn7, 30);
    gt_btn_set_font_gray(btn7, 4);
    gt_btn_set_text(btn7, "Russian");
    gt_btn_set_color_background(btn7, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn7, 8);
    gt_obj_add_event_cb(btn7, btn7_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn8
    btn8 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn8, 267, 240);
    gt_obj_set_size(btn8, 160, 43);
    gt_btn_set_font_color(btn8, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn8, 24);
    gt_btn_set_font_family_cn(btn8, 80);
    gt_btn_set_font_family_en(btn8, 41);
    gt_btn_set_font_align(btn8, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn8, 0, 0);
    gt_btn_set_font_thick_en(btn8, 30);
    gt_btn_set_font_thick_cn(btn8, 30);
    gt_btn_set_font_gray(btn8, 4);
    gt_btn_set_text(btn8, "Thai");
    gt_btn_set_color_background(btn8, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn8, 8);
    gt_obj_add_event_cb(btn8, btn8_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn9
    btn9 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn9, 494, 240);
    gt_obj_set_size(btn9, 160, 43);
    gt_btn_set_font_color(btn9, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn9, 24);
    gt_btn_set_font_family_cn(btn9, 80);
    gt_btn_set_font_family_en(btn9, 75);
    gt_btn_set_font_align(btn9, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn9, 0, 0);
    gt_btn_set_font_thick_en(btn9, 30);
    gt_btn_set_font_thick_cn(btn9, 30);
    gt_btn_set_font_gray(btn9, 4);
    gt_btn_set_text(btn9, "Arabic");
    gt_btn_set_color_background(btn9, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn9, 8);
    gt_obj_add_event_cb(btn9, btn9_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    // btn10
    btn10 = gt_btn_create(screen_home);
    gt_obj_set_pos(btn10, 495, 160);
    gt_obj_set_size(btn10, 160, 43);
    gt_btn_set_font_color(btn10, gt_color_hex(0x000000));
    gt_btn_set_font_size(btn10, 24);
    gt_btn_set_font_family_cn(btn10, 80);
    gt_btn_set_font_family_en(btn10, 60);
    gt_btn_set_font_align(btn10, GT_ALIGN_CENTER_MID);
    gt_btn_set_space(btn10, 0, 0);
    gt_btn_set_font_thick_en(btn10, 30);
    gt_btn_set_font_thick_cn(btn10, 30);
    gt_btn_set_font_gray(btn10, 4);
    gt_btn_set_text(btn10, "Korean Black Typeface");
    gt_btn_set_color_background(btn10, gt_color_hex(0xddeeff));
    gt_btn_set_radius(btn10, 8);
    gt_obj_add_event_cb(btn10, btn10_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);

    gt_disp_load_scr_anim(screen_home, GT_SCR_ANIM_TYPE_NONE, 500, 0, true);
}

Slide Example Animation

The Ultimate Tool for Embedded GUI Development!
#include "gt_ui.h"

// screen_home
gt_obj_st * screen_home = NULL;
static gt_obj_st * lab1 = NULL;
static gt_obj_st * img1 = NULL;
static gt_obj_st * player1 = NULL;
static gt_obj_st * svg1 = NULL;
static gt_obj_st * svg2 = NULL;

static void svg1_0_cb(gt_event_st * e) {
    gt_player_turn_prev(player1);
}

static void svg2_0_cb(gt_event_st * e) {
    gt_player_turn_next(player1);
}

void gt_init_screen_home(void)
{
    screen_home = gt_obj_create(NULL);
    gt_screen_set_bgcolor(screen_home, gt_color_hex(0xFFFFFF));
    // lab1
    lab1 = gt_label_create(screen_home);
    gt_obj_set_pos(lab1, 223, 71);
    gt_obj_set_size(lab1, 96, 51);
    gt_label_set_font_color(lab1, gt_color_hex(0x6e6e6e));
    gt_label_set_font_size(lab1, 32);
    gt_label_set_font_family_cn(lab1, 19);
    gt_label_set_font_align(lab1, GT_ALIGN_LEFT);
    gt_label_set_text(lab1, "Wind Speed");
    // img1
    img1 = gt_img_create(screen_home);
    gt_obj_set_pos(img1, 157, 75);
    gt_obj_set_size(img1, 42, 40);
    gt_img_set_src(img1, "f:img_42x40_9.png");
    // player1
    player1 = gt_player_create(screen_home);
    gt_obj_set_pos(player1, 153, 136);
    gt_obj_set_size(player1, 161, 66);
    gt_player_add_item(player1, "f:img_161x66_4.png", sizeof("f:img_161x66_4.png"));
    gt_player_add_item(player1, "f:img_161x66_5.png", sizeof("f:img_161x66_5.png"));
    gt_player_add_item(player1, "f:img_161x66_6.png", sizeof("f:img_161x66_6.png"));
    gt_player_add_item(player1, "f:img_161x66_7.png", sizeof("f:img_161x66_7.png"));
    gt_player_add_item(player1, "f:img_161x66_8.png", sizeof("f:img_161x66_8.png"));
    gt_player_set_type(player1, GT_PLAYER_TYPE_IMG);
    gt_player_set_mode(player1, GT_PLAYER_MODE_LOOP);
    // svg1
    svg1 = gt_img_create(screen_home);
    gt_obj_set_pos(svg1, 76, 149);
    gt_obj_set_size(svg1, 48, 48);
    gt_img_set_src(svg1, "f:img_48x48_minus_0_3.png");
    gt_obj_add_event_cb(svg1, svg1_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);
    // svg2
    svg2 = gt_img_create(screen_home);
    gt_obj_set_pos(svg2, 341, 148);
    gt_obj_set_size(svg2, 48, 48);
    gt_img_set_src(svg2, "f:img_48x48_plus_0_4.png");
    gt_obj_add_event_cb(svg2, svg2_0_cb, GT_EVENT_TYPE_INPUT_RELEASED, NULL);
    gt_disp_load_scr_anim(screen_home, GT_SCR_ANIM_TYPE_NONE, 500, 0, true);
}

Keyboard Control Example Animation

The Ultimate Tool for Embedded GUI Development!

#include "gt_ui.h"

// screen_home
gt_obj_st * screen_home = NULL;
static gt_obj_st * input1 = NULL;
static gt_obj_st * keyboard1 = NULL;

void gt_init_screen_home(void)
{
    screen_home = gt_obj_create(NULL);
    gt_screen_set_bgcolor(screen_home, gt_color_hex(0xFFFFFF));
    // input1
    input1 = gt_input_create(screen_home);
    gt_obj_set_pos(input1, 117, 38);
    gt_obj_set_size(input1, 249, 84);
    gt_input_set_font_color(input1, gt_color_hex(0x000000));
    gt_input_set_font_size(input1, 16);
    gt_input_set_font_family_cn(input1, 3);
    gt_input_set_font_family_en(input1, 39);
    gt_input_set_font_align(input1, GT_ALIGN_LEFT);
    gt_input_set_placeholder(input1, "placeholder");
    gt_input_set_bg_color(input1, gt_color_hex(0xffffff));
    // keyboard1
    keyboard1 = gt_keypad_create(screen_home);
    gt_obj_set_pos(keyboard1, 89, 138);
    gt_obj_set_size(keyboard1, 309, 170);
    gt_keypad_set_font_color(keyboard1, gt_color_hex(0xffffff));
    gt_keypad_set_font_size(keyboard1, 16);
    gt_keypad_set_font_align(keyboard1, GT_ALIGN_CENTER_MID);
    gt_keypad_set_color_background(keyboard1, gt_color_hex(0x242424));
    gt_keypad_set_target(keyboard1, input1);
    gt_disp_load_scr_anim(screen_home, GT_SCR_ANIM_TYPE_NONE, 500, 0, true);
}

Image Button Control Example Animation

The Ultimate Tool for Embedded GUI Development!
#include "gt_ui.h"

/** screen_home */
gt_obj_st * screen_home = NULL;
static gt_obj_st * imgbtn1 = NULL;

void gt_init_screen_home(void)
{
    screen_home = gt_obj_create(NULL);
    gt_screen_set_bgcolor(screen_home, gt_color_hex(0xFFFFFF));
    /** imgbtn1 */
    imgbtn1 = gt_imgbtn_create(screen_home);
    gt_obj_set_pos(imgbtn1, 142, 136);
    gt_obj_set_size(imgbtn1, 185, 50);
    gt_imgbtn_set_src(imgbtn1, "f:img_185x50_10.png");
    gt_imgbtn_set_src_press(imgbtn1, "f:img_185x50_3.png");
    gt_disp_load_scr_anim(screen_home, GT_SCR_ANIM_TYPE_NONE, 500, 0, true);
}

Exciting Content:Some rules of log debugging methods in embedded systems!Embedded development debugging tool | Sanitizer detectorSummary of some practical auxiliary tools in embedded systems!Easy to understand | A step-by-step guide to writing your first upper computerLet’s take a look at some popular Git visualization tools!Light as a feather, an ultra-light embedded database!Recommended a useful embedded static code scanning tool!Protocol compatibility issues involved in upgrades in embedded systems?Embedded, testable software design!Several highly regarded C language projects, how many do you know?

Related posts

  1. Which Software Should You Learn: TreeAge, Excel, R, or MATLAB? A Comparison of Four Classic Cost-Effectiveness Analysis (CEA) Tools
  2. Inline Functions in C++: Performance Booster or Pitfall?
  3. Signal Tap Logic Analyzer User Guide
  4. Requests: A Simple HTTP Library for Python
  5. Exploring the Relationship Between Maximum Induced Current and Magnet Drop Height Using Phyphox, ESP32, and ADS1115
  6. Linux Driver Development
  7. Implementing DDD with ORM and PyQt6 Using MySQL
  8. Python Indentation Rules: Writing Standards for Improved Code Readability
  9. Two Essential Skills in Proteus for Quick Circuit Design
  10. OpenHarmony Open Source Ecosystem and Smart Education Equipment Applications
  11. Current State of Operating Systems: Calm Application Environment Amidst a Technological Tide
  12. Research on Continuous Control of Safety-Critical Multi-Agent Systems Based on Quadratic Programming under Uncertainty
  13. Mastering Python: Day 26 – Memory Forge
  14. 10 Must-Read Open Source C Language Projects
  15. Introduction to Embedded Development for Beginners
  16. Analysis of Mainstream Oscilloscope Probe Brands and Technical Features

Leave a Comment
