Overview

SQLREST is an open-source database RESTful API generation platform that quickly converts SQL queries into RESTful API interfaces. This article will detail the complete process of deploying SQLREST through source code compilation in a Linux environment.

System Requirements

Before starting the deployment, please ensure that your Linux server meets the following requirements:

1. System Requirements

Component	Minimum Requirement	Recommended Configuration
CPU	Multi-core processor	Multi-core processor (e.g., Intel Xeon E5 series) to support high concurrency
Memory	16GB RAM	32GB or more recommended for complex query scenarios
Disk	50GB of available space	–
Operating System	CentOS 7.6+ or Ubuntu 20.04 LTS	–
Java Environment	JDK 1.8	OpenJDK 11 LTS recommended, need to configure<span><span>JAVA_HOME</span></span> environment variable
Build Tool	Maven 3.6.3+	Configure<span><span>MAVEN_HOME</span></span>, recommended to switch to domestic mirror sources for acceleration
Database	MySQL 5.7+	Used to store SQLREST system metadata

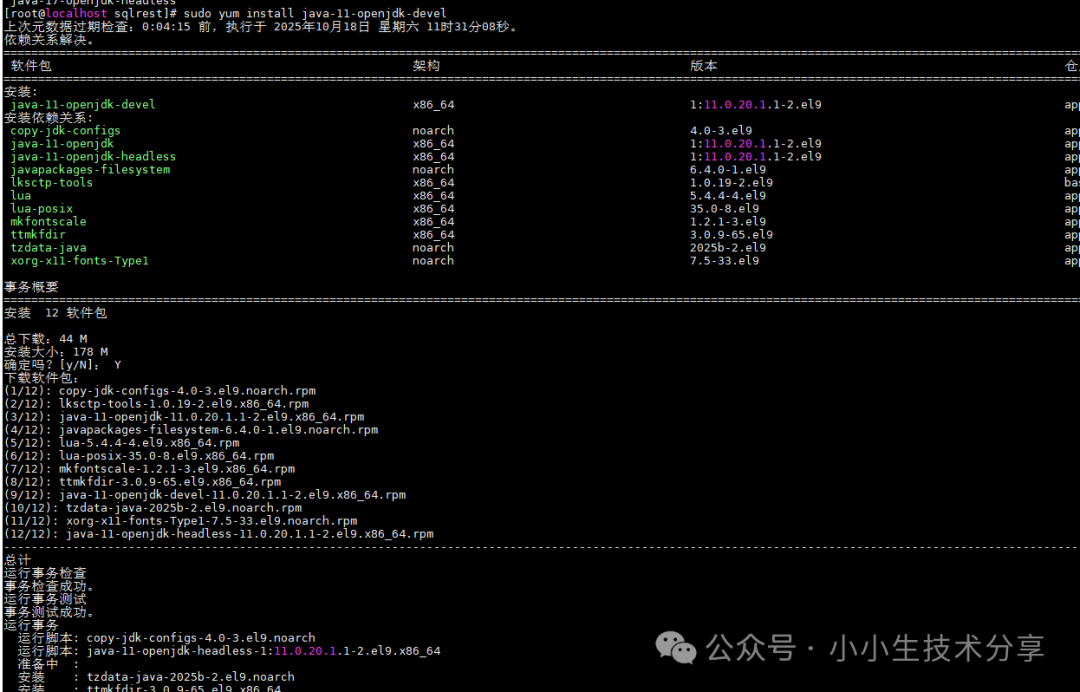

Install Java

sudo yum install java-11-openjdk-devel

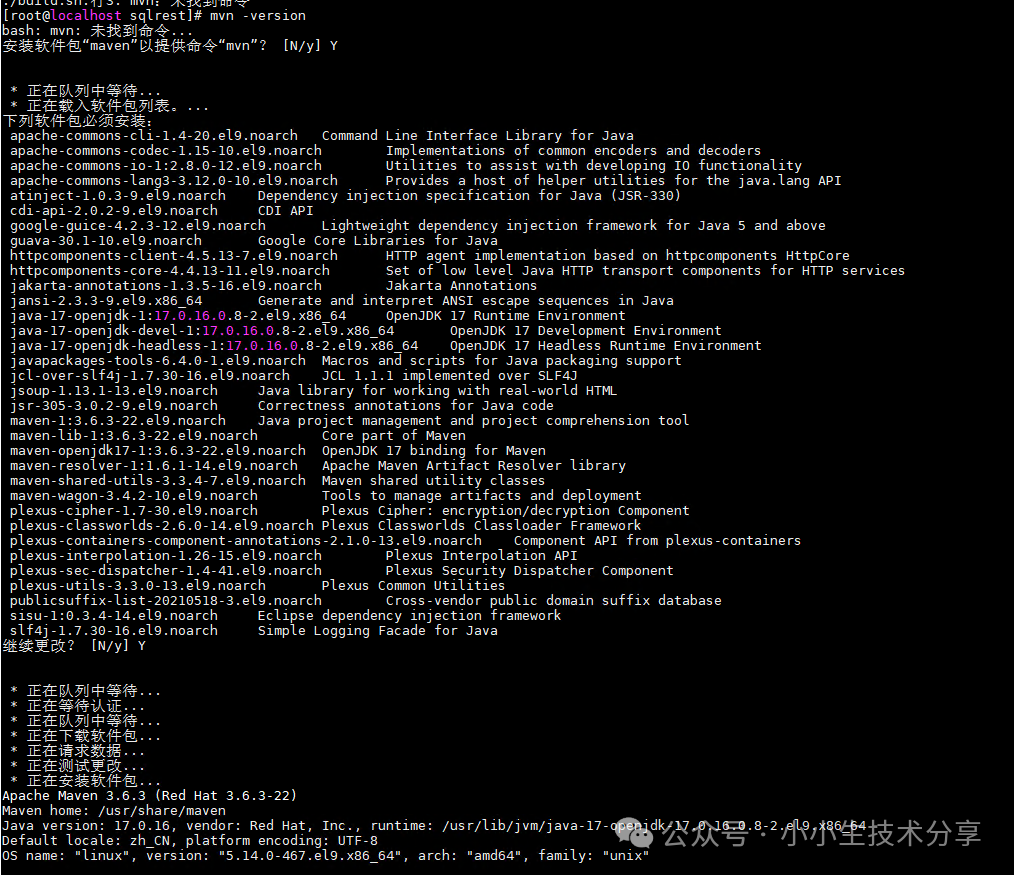

Install Maven

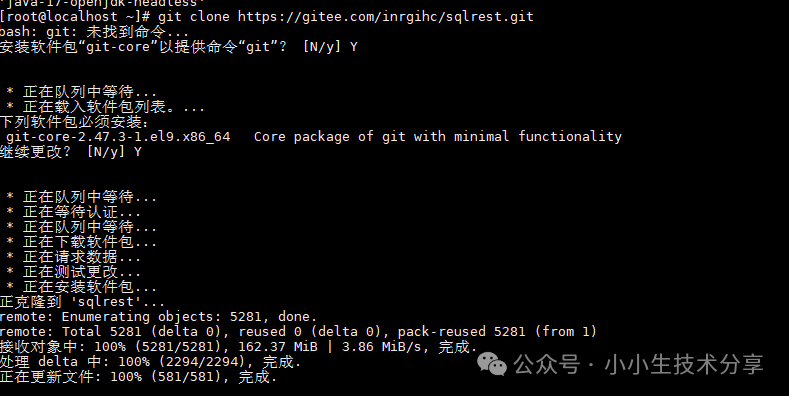

2. Obtain Source Code

Use Git to clone the SQLREST source code to your local machine. There are two project repository addresses, you can choose either one.

# Option 1: Clone from Gitee (recommended for domestic, faster speed)git clone https://gitee.com/inrgihc/sqlrest.git
# Option 2: Clone from Dromara organizationgit clone https://gitee.com/dromara/sqlrest.git
cd sqlrest

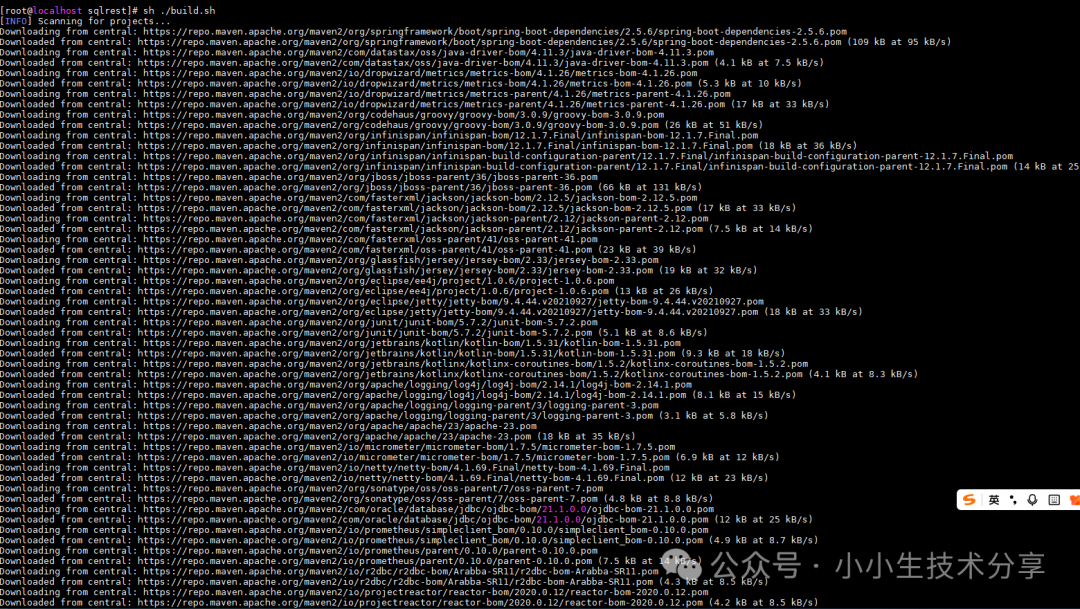

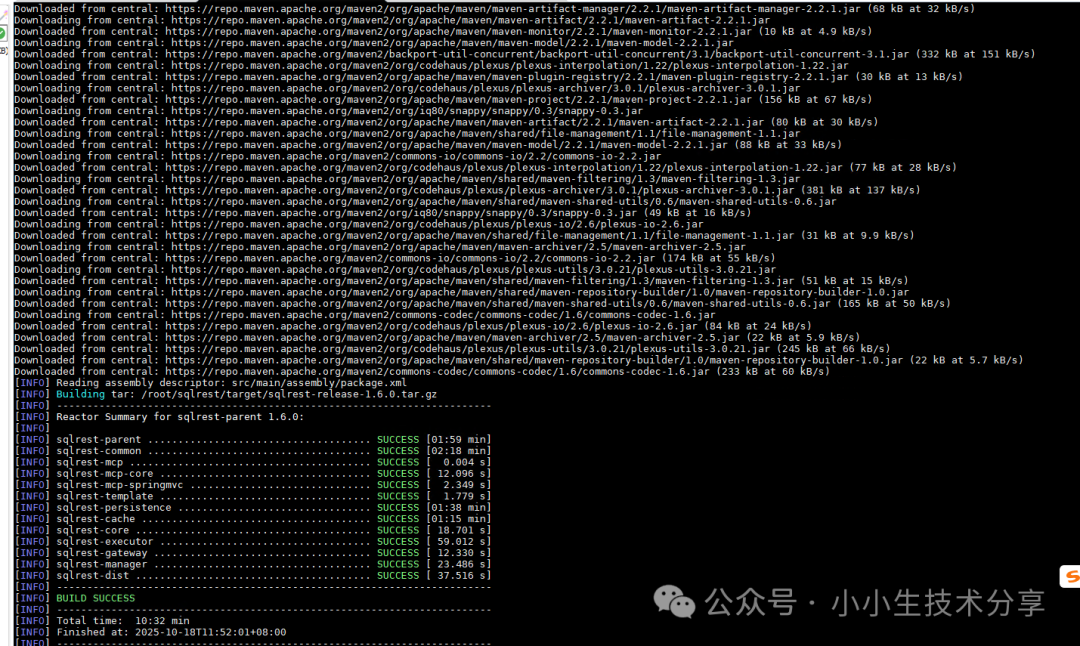

3. Source Code Compilation

Navigate to the project root directory and execute the provided Linux compilation script. This script will use Maven to download all dependencies and package the project.

sh ./build.sh

4. Deployment Configuration

Unzip the Installation Package

# Create target directory with sudo privileges (if needed)sudo mkdir -p /opt/sqlrest
# Unzip files to the specified directorysudo tar -xzf /home/px/sqlrest/target/sqlrest-release-1.6.0.tar.gz -C /opt/sqlrest

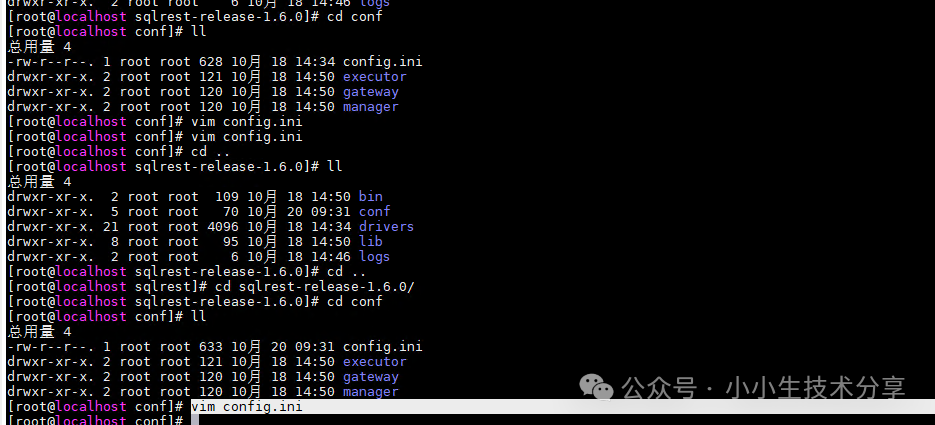

Configure Database Connection

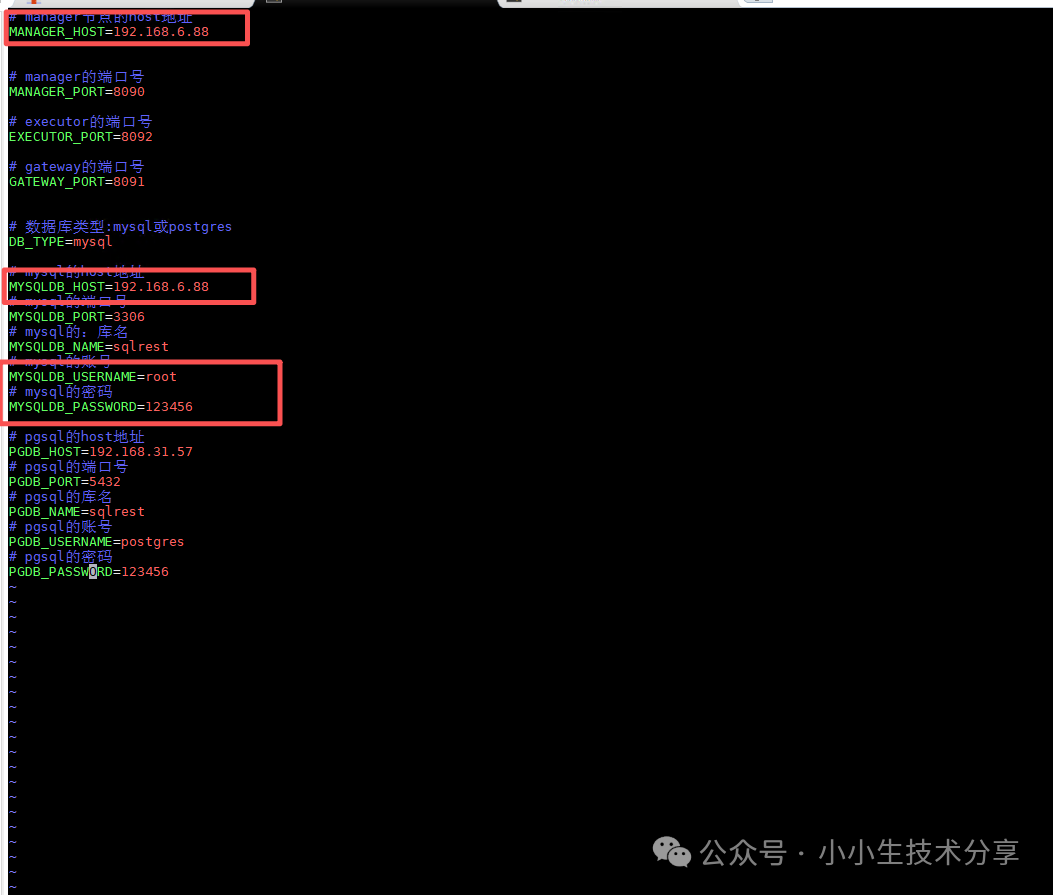

Edit the configuration file <span><span>conf/config.ini</span></span>:

vim config.ini

Start the Service

On a Linux system, use the control script provided by the project to start all services.Note: Services need to be started in the specified order

# Start manager service
sh bin/sqlrestctl.sh start manager
# Start executor service
sh bin/sqlrestctl.sh start executor
# Start gateway service
sh bin/sqlrestctl.sh start gateway

Access Verification

Once all services are successfully started, you can access the SQLREST management interface through your browser..

• Access Address:<span><span>http://<your server IP address>:8090</span></span>

• Default Username:<span><span>admin</span></span>

• Default Password:<span><span>123456</span></span>

Service Status Check

# Check status of all services
sh bin/sqlrestctl.sh status all
# Check status of individual services
sh bin/sqlrestctl.sh status manager
sh bin/sqlrestctl.sh status executor
sh bin/sqlrestctl.sh status gateway

<span><span><span>Example of normal status output:</span></span></span>

Service: manager is running (PID: 12345)
Service: executor is running (PID: 12346)
Service: gateway is running (PID: 12347)

Stop Services

# Stop all services
sh bin/sqlrestctl.sh stop all
# Or stop individual services in order
sh bin/sqlrestctl.sh stop gateway
sh bin/sqlrestctl.sh stop executor
sh bin/sqlrestctl.sh stop manager

Configure Firewall

# Check firewall status
sudo systemctl status firewalld
# Open ports 8090-8092
sudo firewall-cmd --add-port=8090/tcp --permanentsudo firewall-cmd --add-port=8091/tcp --permanentsudo firewall-cmd --add-port=8092/tcp --permanent
# Reload firewall configuration
sudo firewall-cmd --reload
# Verify open ports
sudo firewall-cmd --list-ports

Post-Deployment Steps

After successfully logging into the system, it is recommended that you:

1. Change the Default Password: For system security, please change the default password for the admin user in the management interface as soon as possible.

2. Configure Data Source: In “Connection Management”, add the business database you need to access via the API.

3. Generate API: In “Interface Configuration”, write SQL statements to publish your first RESTful API.
