In the SPI tolerance settings, different volume and area tolerances are established for various component types (such as R/C, IC, BGA, Chip, etc.), primarily based on the following core principles:
1. Component Structure and Soldering Characteristics
● R/C Components (Resistors/Capacitors):
○ Simple structure, small pad size, high precision requirement for solder volume.
○ Volume tolerance set at 160%/60% (USL/LSL): allows for some redundancy in solder volume to accommodate automated placement deviations, but the upper limit strictly prevents bridging.
○ Area tolerance 150%/60%: ensures even pad coverage, avoiding cold solder joints.
● IC Components (Integrated Circuits):
○ Dense pins require precise solder paste coverage on pads.
○ Volume tolerance 150%/60%: balances pin spacing to prevent excessive solder paste leading to short circuits.
○ Area tolerance 140%/60%: prioritizes coverage at the edges of pads to reduce open circuit risks.
● BGA Components (Ball Grid Array):
○ Solder joints are hidden beneath the package, relying on solder balls for self-alignment.
○ Both volume and area tolerances are set at 150%/60%: strictly control solder volume to ensure consistent solder ball height after reflow, avoiding cold solder joints or collapse.
○ Focus on monitoring area tolerance to ensure solder paste pattern integrity, preventing misalignment that could lead to soldering failures.
2. Functional Reliability and Defect Risks
● Critical Components (such as BGA, high pin count IC):
○ Directly affect product functionality, requiring stricter tolerances (e.g., BGA area USL 150%) to reduce misjudgments and ensure soldering reliability.
● Ordinary Components (such as R/C):
○ Single-function, allowing for appropriate relaxation of tolerances (e.g., volume LSL 60%) to improve inspection efficiency, tolerating slight solder volume deviations.
3. Manufacturing Process and Equipment Capability
● Placement Accuracy:
○ For high-accuracy placement lines, tolerances can be tightened (e.g., IC volume USL 150%); conversely, they can be relaxed to reduce false positives.
● SPI Equipment Resolution:
○ Optimize volume tolerances for small components (e.g., Chip) using the equipment’s high-precision detection capabilities; for large components (e.g., BGA), combine area tolerance to monitor overall printing quality.
4. Industry Experience and Quality Goals
● Reference IPC Standards (e.g., recommended solder paste printing volume deviation ±20%) as a benchmark.
● Dynamically adjust thresholds based on historical defect data (e.g., the proportion of excessive solder leading to short circuits, insufficient solder leading to cold solder joints).
● For example, setting the R/C volume LSL to 60% instead of the theoretical value of 50% is based on the experience that slight insufficient solder can still meet soldering strength in actual production.
5. Quality and Efficiency Balance Strategy
● Priority Rules:
● Dynamic Optimization:
6. Correlation Explanation of SPI Detection Parameters and Tolerance Settings
SPI detection parameters (such as volume, area, offset, height, edge clarity, bridging, etc.) are closely related to tolerance settings, directly affecting defect determination and production efficiency. The specific correlations are as follows:
1. Volume Tolerance
● Related Factors:
○ Solder paste volume directly affects soldering strength and reliability.
○ Excessive volume may lead to bridging or solder balls, while insufficient volume can easily cause cold solder joints.
● Tolerance Setting Basis:
○ Component Type: High-reliability components like BGA require strict control (e.g., ±15%), while ordinary components (e.g., R/C) can be relaxed to ±20%.
○ Process Capability: If the printer’s accuracy is high (e.g., CPK≥1.33), tolerances can be tightened; otherwise, they need to be relaxed.
○ Defect Risk: If historical data indicates a high proportion of insufficient solder leading to cold solder joints, the lower limit tolerance can be appropriately increased (e.g., from 50% to 60%).
● SPI Parameter Interaction: Volume detection must be combined with area and height parameters to avoid misjudgment based on a single dimension (e.g., volume meets standards but height is insufficient).
2. Area Tolerance
● Related Factors:
○ Reflects the uniformity of solder paste coverage on pads, affecting soldering contact area.
○ Insufficient area can lead to open circuits, while excessive area may cause bridging.
● Tolerance Setting Basis:
○ Pad Design: High-density components (e.g., IC) require strict area tolerances (e.g., ±10%) to prevent pin-to-pin short circuits.
○ Printing Process: If the template opening design accuracy is high, area tolerances can be tightened; if there is edge blurriness, they need to be relaxed.
● SPI Parameter Interaction: Area detection is often combined with offset and edge clarity; for example, if the area meets standards but the offset exceeds limits, it is still deemed a defect.
3. Offset (Position) Tolerance
● Related Factors:
○ Solder paste printing position deviation directly affects placement accuracy, leading to component misalignment and poor soldering.
● Tolerance Setting Basis:
○ Component Size: Small components (e.g., 0201) require strict offset tolerances (e.g., ≤0.1mm), while larger components can be relaxed appropriately.
○ Placement Equipment Accuracy: If the pick-and-place machine’s accuracy is high (e.g., ±0.05mm), offset tolerances can be tightened.
● SPI Parameter Interaction: Offset detection must be combined with volume and area; for example, if the offset exceeds limits but the solder volume meets standards, it still needs to be deemed a defect.
4. Height Tolerance
● Related Factors:
○ Consistency of solder paste thickness affects the shape of solder joints after reflow; excessive thickness can lead to solder balls, while insufficient thickness can cause cold solder joints.
● Tolerance Setting Basis:
○ Component Type: BGA requires strict height control (e.g., ±20μm) to ensure solder ball coplanarity.
○ Template Thickness: Thin templates (e.g., 0.1mm) require tightened height tolerances, while thicker templates can be relaxed appropriately.
● SPI Parameter Interaction: Height detection is often combined with volume; for example, if height meets standards but volume is insufficient, it is deemed a solder deficiency.

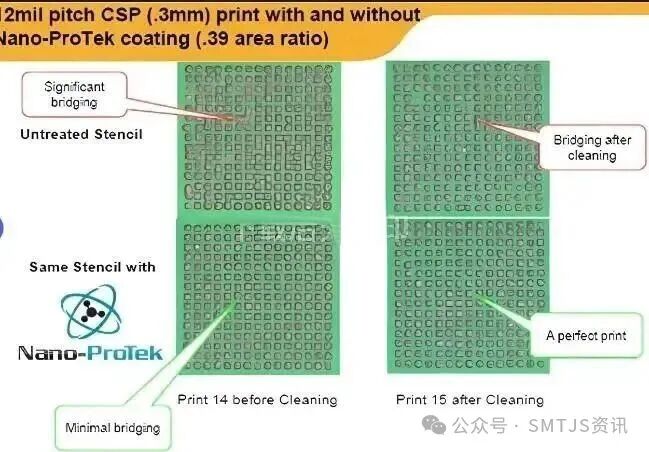

5. Edge Clarity and Bridging
● Related Factors:
○ Blurry edges may lead to solder paste diffusion or bridging risks, affecting electrical isolation.
● Tolerance Setting Basis:
○ Pin Spacing: Fine-pitch components (e.g., 0.5mm pitch) require strict edge clarity thresholds (e.g., gray gradient ≥20%).
○ Solder Paste Type: High-viscosity solder paste tends to pull tips, requiring increased edge detection sensitivity.
● SPI Parameter Interaction: Edge detection is linked with bridging thresholds; for example, if edges are blurry and spacing is insufficient, bridging risk is prioritized for determination.
6. Voids and Dents
● Related Factors:
○ Internal voids or surface dents in solder paste affect soldering integrity, leading to thermal stress concentration.
● Tolerance Setting Basis:
○ Process Stability: If printing process fluctuations are large (e.g., humidity affecting solder paste flow), the void detection threshold needs to be increased.
○ Product Reliability Requirements: In high-reliability fields such as automotive electronics, strict void area ratios are required (e.g., ≤5%).
● SPI Parameter Interaction: Void detection must be combined with volume and area to avoid overall determination failure due to local defects.
7. Dynamic Adjustment and Closed-Loop Optimization
● Threshold adjustments under process parameter fluctuations:
○ For example, when increased printing speed leads to larger volume deviations, dynamically relax the volume tolerance to ±12% while increasing edge clarity thresholds.
● SPC and AI Interaction:
○ Use Statistical Process Control (SPC) to analyze the fluctuation range of process parameters, automatically adjusting upper/lower tolerance limits (e.g., μ±3σ).
○ Introduce AI algorithms to compensate for detection deviations caused by equipment aging or environmental changes in real-time.
● Quality and Efficiency Balance:
○ Optimize thresholds based on trial production data; for example, parameters with high misjudgment rates can be appropriately relaxed, while critical defect parameters are tightened.
Conclusion
: The differentiated setting of tolerances integrates component characteristics, soldering risks, process capabilities, and quality costs. Through experimental validation and data closed-loop optimization, it maximizes inspection efficiency while ensuring product quality, reducing false positives and overkill. The correlation between SPI parameters and tolerance settings requires continuous dynamic adjustment to ensure thresholds meet both process capabilities and reliability requirements.
Supplementary Notes
● Coupling relationship between SPI detection parameters and process parameters:
○ Process parameters such as printing speed, squeegee pressure, and template thickness directly affect SPI detection parameters (such as volume, area, height), requiring the establishment of parameter-threshold mapping tables through DOE experiments.
● Hierarchical management of thresholds:
○ Set different tolerance levels based on product grades (e.g., consumer electronics, automotive electronics); for example, automotive electronics require volume tolerances of ±8%, offset ≤10μm.
● Risk warning mechanism:
○ When process parameters (e.g., pressure, speed) deviate from the set range, automatically trigger dynamic adjustments of thresholds and alarms; for example, when pressure exceeds ±20%, volume tolerance is relaxed to ±15%.
Conclusion The SPI tolerance settings must be based on component characteristics and process capabilities, combined with real-time detection data and historical defect analysis, to dynamically optimize the threshold ranges of each detection parameter, achieving the best balance between quality and efficiency.
Notes
1. Supplementary content analyzes from the perspectives of detection parameter and tolerance correlation, dynamic adjustment, and process coupling;
2. Emphasizes that threshold settings must be combined with specific process scenarios and provides quantitative suggestions to enhance practical guidance;
3. Adds dynamic adjustment and closed-loop optimization sections to adapt to smart manufacturing needs.
Further refinement of parameter-threshold models can be based on actual production line equipment capabilities, product types, and process windows..
