With the rapid development of Industry 4.0 and smart manufacturing, the interconnectivity between devices has become increasingly important. Traditional communication methods often face issues such as poor compatibility and slow data transmission speeds. The emergence of the IO-Link protocol provides a new solution for efficient, bidirectional data exchange between devices in industrial environments. As a globally open communication protocol standard, IO-Link plays a crucial role in industrial applications, helping to optimize production processes, enhance equipment intelligence, and promote automation development.
To assist enterprises in accelerating the application of this protocol, Renesas has launched a system solution based on IO-Link technology, supporting various types of sensors, including those for pressure, temperature, humidity, and power measurement. With easy-to-use Pmod™ boards and example code, users can quickly prototype and accelerate product development and deployment.

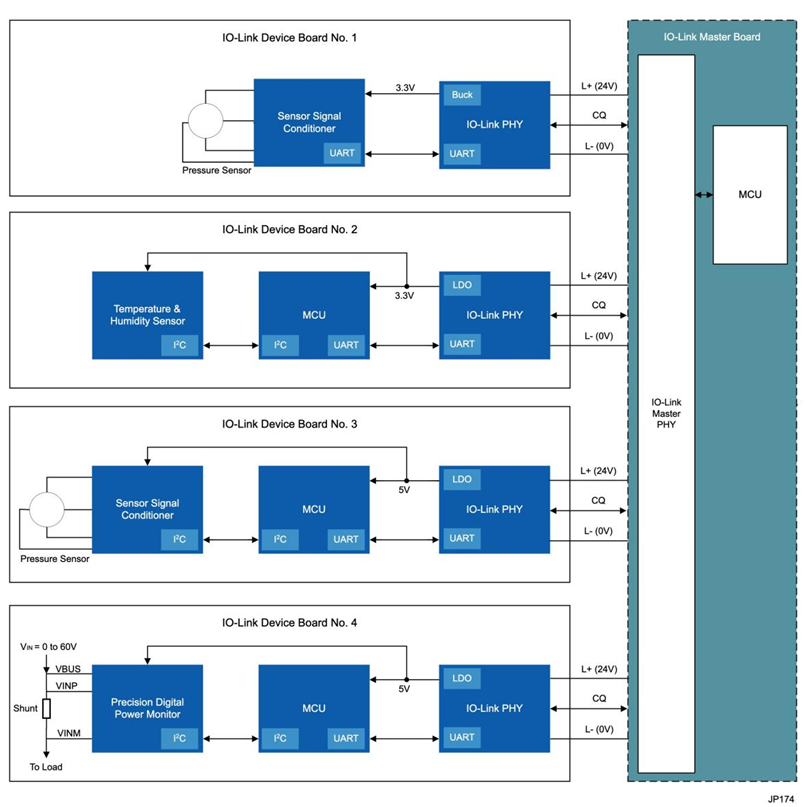

System Block Diagram of IO-Link Sensor Solutions
In industrial automation, rapid validation and prototyping are key to ensuring timely system delivery. To this end, Renesas provides Pmod evaluation boards and accompanying software to help engineers and developers quickly realize IO-Link application prototypes. These tools not only accelerate the design process but also simplify application development, enhancing overall efficiency.
The following image shows the RA2E1 IO-Link Pressure Sensor Solution Demonstration Kit. This kit combines the 32-bit MCU RA2E1 and the ZSSC3240 sensor signal conditioner to achieve a complete solution for pressure measurement, signal processing, and IO-Link communication. The system is based on the Arm Cortex-M23 core, with a main frequency of 48MHz for the RA2E1 MCU, featuring ultra-small size and low power consumption, making it ideal for use in constrained spaces and low-power environments.

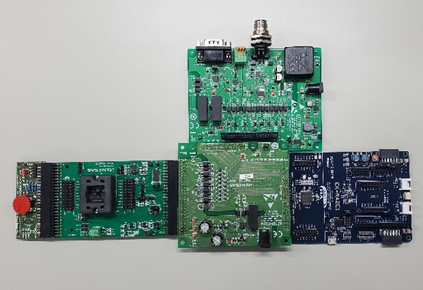

RA2E1 IO-Link Pressure Sensor Solution Demonstration Kit
To better adapt to the varying demands for cost and performance in industrial environments, our system utilizes the IO-Link PHY chip, which integrates a low-dropout regulator (LDO), effectively reducing the BOM (Bill of Materials) count and lowering the complexity and cost of hardware design. Compared to traditional solutions, this higher integration design not only reduces dependence on external components but also simplifies the system construction process, helping enterprises achieve efficient data communication at lower costs.
Additionally, the system offers multiple PHY and MCU options, allowing users to flexibly adjust according to actual application needs. This adjustable solution can optimize costs while ensuring system performance, helping enterprises select the most suitable configuration based on budget and technical requirements. Whether in high-performance industrial automation devices or cost-sensitive production line applications, suitable solutions can be found.
Conclusion
The IO-Link protocol, as a standardized and open communication solution, is becoming an indispensable part of the industrial automation field. The efficient and flexible IO-Link solutions provided by Renesas can help enterprises seize opportunities in the wave of smart manufacturing by simplifying design and optimizing costs.
Click here to read more about IO-Link.
