Solution | Introduction to the Application of the Peach Core BLE ING91870CQ in Automotive Products

ING91870CQ Chip Overview

The ING91870CQ is AEC-Q100 Grade 2 certified. It integrates a fully compliant low-power Bluetooth 5.1 protocol standard with complete proprietary IP, including Modem, Link Layer Controller, and Host. It also features a high-performance 32-bit RISC MCU, built-in 512KB flash, low-power PMU, various peripheral interfaces, and high-performance low-power Bluetooth RF. The transmission power of the ING91870CQ ranges from -28dBm to +6.5dBm, with a sensitivity of -102dBm in LR S8 mode and -97dBm in 1M mode.

The ING91870CQ provides a fully open SDK, supporting IDE platforms such as Keil, IAR, and Segger, as well as development languages like C, C++, and Nim. It supports the three major operating systems: Windows, Linux, and MacOS, and includes a graphical project wizard and data editor, with over 30 open-source software application examples embedded.

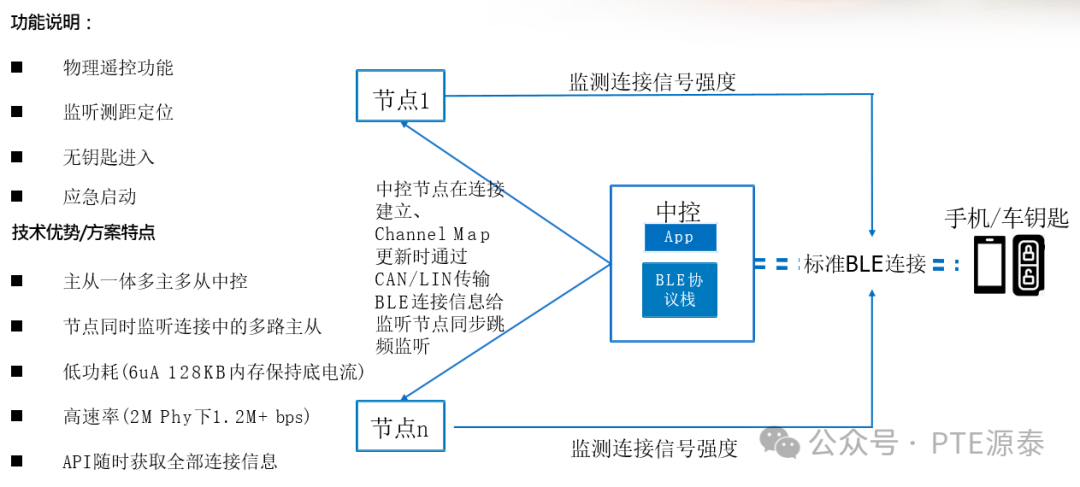

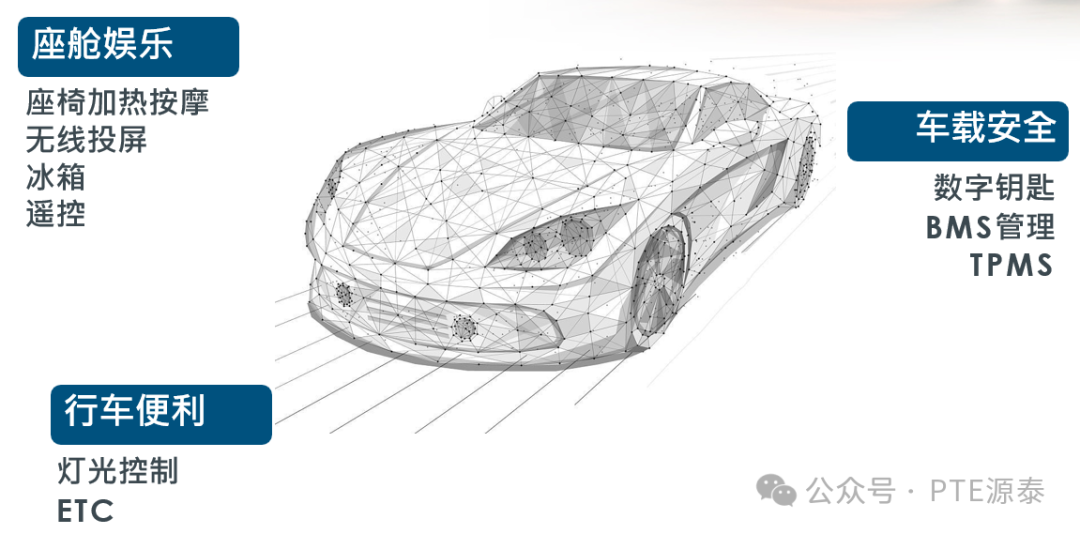

The ING91870CQ can be customized through hardware and software development to adapt to various applications, such as smart automotive applications, ultra-low power applications, precise positioning, and industrial interconnectivity.

ING91870CQ Chip Features

• AEC-Q100 Grade 2 certified

• Supports complete low-power Bluetooth 5.1 features

• Supports AoA and AoD direction finding

• Built-in 48MHz 32-bit RISC processor with 8KB cache and 2-wire SWD debugging interface

• Built-in 512KB embedded FLASH, supports embedded programming

• 128KB system memory

• 13 configurable GPIOs, configurable as GPIO, UART, I2C, SPI, PWM, etc. as per user requirements.

• RF characteristics: 2.400-2.484 GHz, GFSK modulation

• Sensitivity of -102dBm at 125Kbps output power -28dBm to +6.5dBm

• Power supply range: external power supply 1.62-3.63V; core voltage: typical application 0.9V

• Low power mode:

  Receive current: 6mA;

  Transmit current (0dBm): 6.5mA

  Average current in low power mode (500ms wake-up): 50uA

  Average current in low power sleep mode (memory retained): 5uA

  Average current in low power sleep mode (non-memory retained): 1.5uA

• Physical layer and signaling link layer characteristics

• Supports AMBA HBI interface

• Supports 128-AES/CCM encryption and decryption

• Supports link layer broadcasting, data, and control frame processing

• Supports packet CRC and self-processing

• Supports all BLE event framing and synchronization

• Supports extended broadcasting and periodic broadcasting

• Supports multiple broadcast sets (up to 1650 bytes)

• Supports master-slave integrated multi-connection (SDK example defaults to 8 connections, number of connections configurable)

• Supports mixed configuration of all Bluetooth standard states and roles

• Integrated fully automatic power management

• Built-in hardware modem, configurable channel filtering, supports AGC, DC, and other physical layer controls, as well as RSSI measurement

• RTC timer

• 10-bit ADC

• Two 32-bit general-purpose timers

• One watchdog timer

• On-chip boot software, supports OTA

• Small package: QFN32 package: 4mm x 4mm x 0.75mm, pitch 0.4mm

• Single-chip solution

ING91870CQ Chip Applications

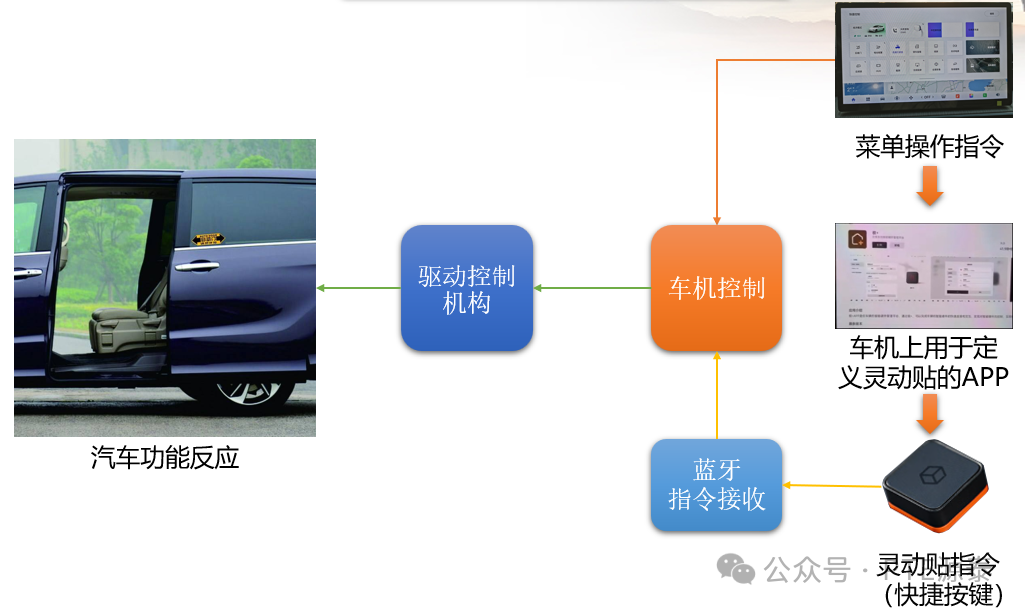

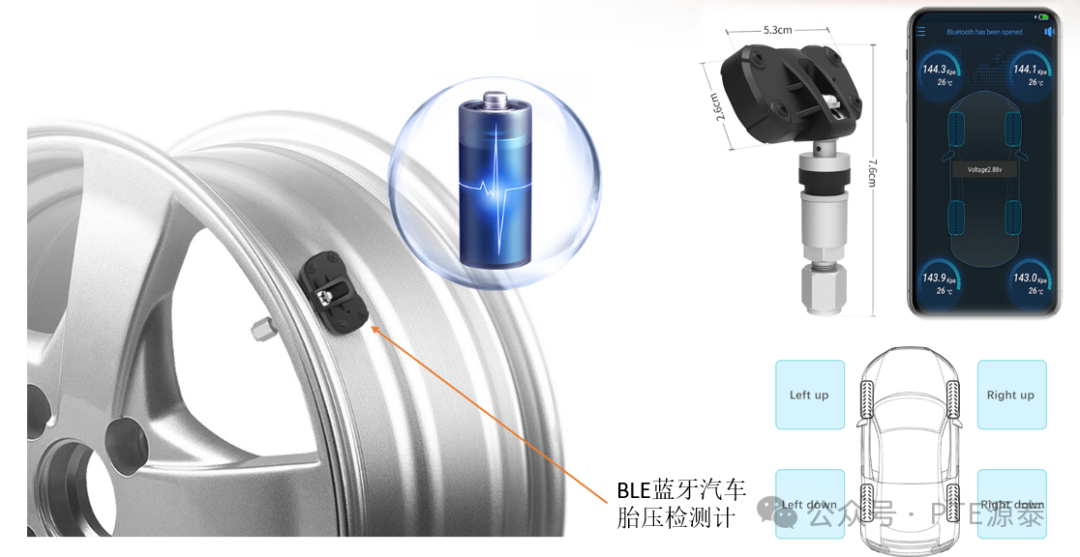

Automotive Key ApplicationsDynamic Stick ApplicationsTire Pressure Monitoring ApplicationsVideo Demonstration
