Do you usually use static code analysis tools when writing code?Many people may not have performed static analysis on their code, so today I will recommend several static code analysis tools.
Embedded Column
0
About Static Code Analysis ToolsStatic code analysis tools, as the name suggests, are tools that perform static analysis on code to predict (analyze) potential issues in the code in advance.In other words, they find bugs (errors, warnings) in your code using tools.Static code analysis tools require your code to follow certain standards, such as C99, MISRA C: 2012, etc., otherwise the tools cannot support static analysis of your code.Static code analysis tools can exist independently (as a standalone software tool) or be integrated into an IDE. For example, IAR EWARM comes with a built-in static analysis tool.Additionally, some tools can be integrated into IDEs through “plugin installation,” such as adding the PC-lint static code analysis tool in Keil MDK.Here are several static code analysis tools:
Embedded Column
1
LDRA1. Website
https://www.ldra.com/
2. Introduction
LDRA is a leading company with over 40 years of experience, primarily focusing on code analysis and software testing automation for code safety and mission-critical markets to achieve early error detection and eliminate bugs.
At the same time, LDRA fully complies with industry standards, tracking requirements through static and dynamic analysis to perform unit testing and verification across various hardware and software platforms. LDRA operates globally, with headquarters in the UK, USA, Germany, and India, and has a wide network of distributors.
LDRA complies with ISO 9001:2008. The LDRA tool suite has been certified by TÜVSÜD and SGS-TÜVSAAR. These tools comply with IEC 61508, IEC 62304, IEC 60880, EN 50128, and ISO 26262 regulations and can be used for safety-related software development.
Application Fields:
3. Features
-
Automated unit testing and system-level testing
-
Automatically generate software certification and approval evidence
-
Plan and execute requirement-based testing
-
Perform and report coverage analysis on all code up to the target level
-
Can be tested on almost any host or target platform
-
Complies with coding standards (industry and user-defined)
4. TrialThe LDRA tool suite supports a 30-day free trial.
Embedded Column
2
Parasoft C / C++ Test1. Website
https://www.parasoftchina.com/products/ctest/
2. Introduction
Parasoft® C/C++test® is a development testing solution specifically for C and C++ languages, proven to improve software development efficiency and code quality through automated best practices.
Parasoft was founded in 1987 and is headquartered in Los Angeles, California. With over 30 years of rich professional technical accumulation and industry application experience, its products span unit testing, static analysis, dynamic analysis, functional testing, stress testing, information security testing, communication protocol simulation, and application environment virtualization.
3. Features
-
Enhances the quality of C/C++ development software
-
Automated testing platform
-
Compliance certification standards
-
Embedded and cross-platform development
-
Improves development efficiency and accelerates software delivery
-
Low-cost learning and highly customizable

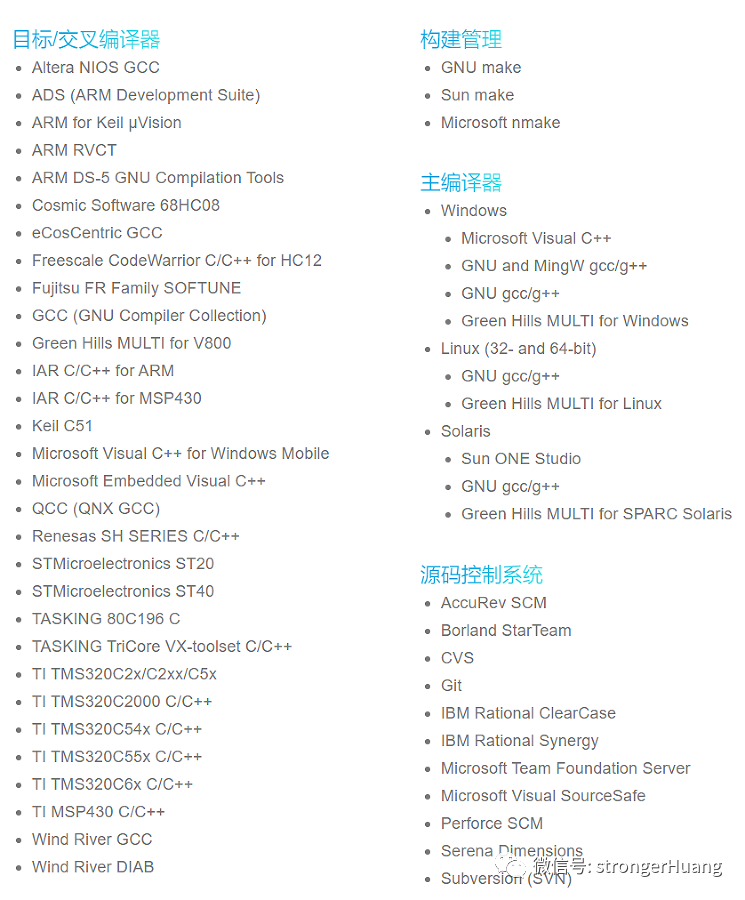

4. Supports a wide range of platformsSupported host platforms:
- Windows
- Visual Studio
- Solaris UltraSPARC
Supported IDEs:
- Eclipse IDE for Developers
- Microsoft Visual Studio
- Wind River Workbench
- ARM Workbench IDE for RVDS
- ARM Development Studio
- QNX Momentics IDE (QNX Software Development Platform)
- Texas Instruments Code Composer Studio
- ARM ADS
- Green Hills MULTI
- IAR Embedded Workbench
- Keil µVision IDE
- Keil RealView
- Microsoft eMbedded Visual C++
- Microsoft Visual Studio
- Texas Instruments Code Composer
- Wind River Tornado
And more:
4. TrialThe Parasoft C/C++test tool suite also supports a free trial, and you can apply for a free trial on the official website.
Embedded Column
3
PVS-Studio1. Website
https://pvs-studio.com/en/pvs-studio/
2. Introduction
PVS-Studio is a tool for detecting errors and security vulnerabilities in source code written in C, C++, C#, and Java. It can run on 64-bit systems in Windows, Linux, and macOS environments and can analyze source code for 32-bit, 64-bit, and embedded ARM platforms.
PVS-Studio performs static code analysis and generates reports to help programmers find and fix errors. PVS-Studio conducts various code checks and is also useful for detecting print errors and copy-paste errors, such as V501, V517, V522, V523, V3001, and similar error messages.

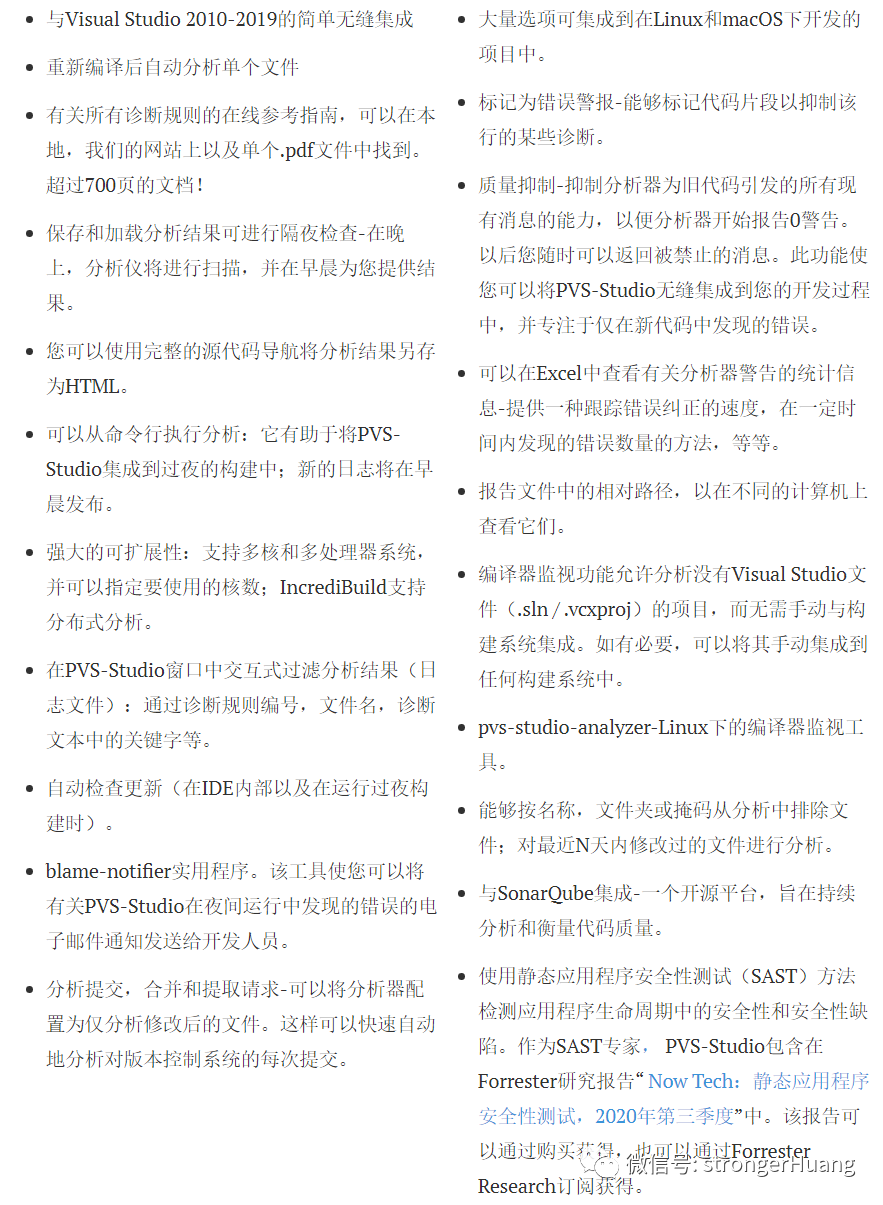

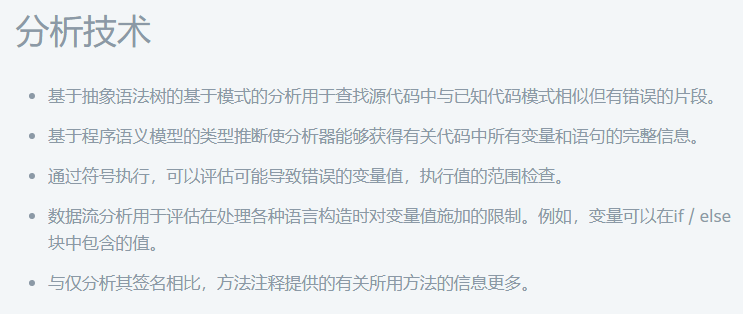

3. Features
Note: The content in the screenshot is automatically translated and may contain some translation errors.4. Supports a wide range of platforms

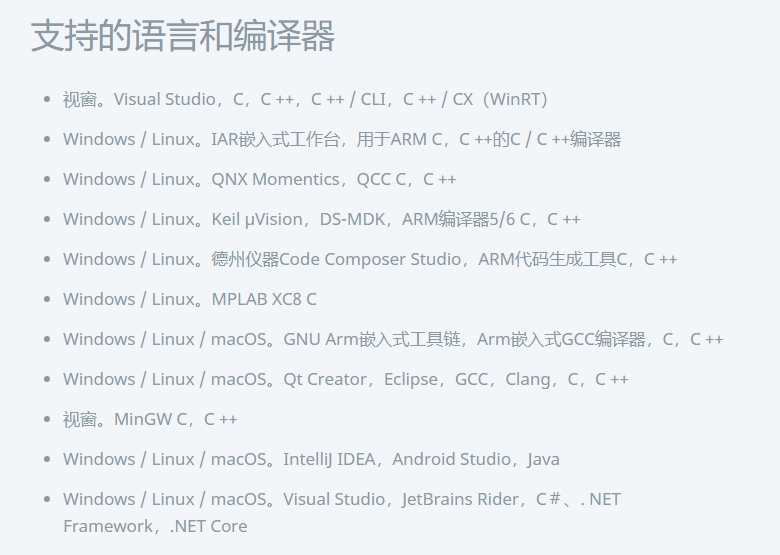

Operating Systems:
-
Windows
-
Linux
-
macOS

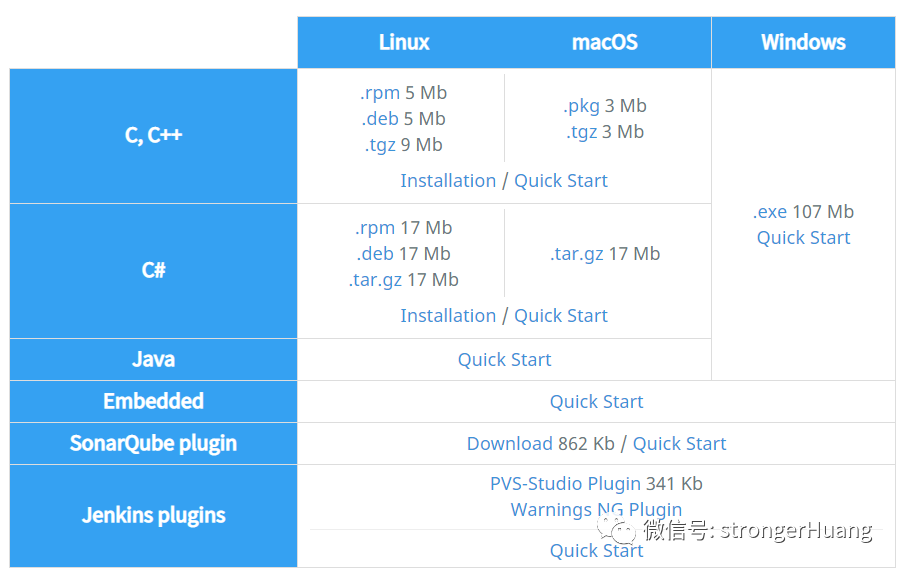

Link to the tutorial corresponding to the C/C++ compiler:https://pvs-studio.com/en/m/0033/5. TrialThe PVS-Studio tool suite is also commercial paid software but supports free trials.
Embedded Column
4
VectorCAST1. Website
https://www.vector.com/de/en/products/products-a-z/software/vectorcast/
2. Introduction
The VectorCAST embedded software testing platform is a series of products that automate analysis and testing throughout the software development lifecycle.
The VectorCAST tool series supports the creation and management of test cases to validate the underlying software. Additionally, VectorCAST tools support capturing and reporting structural code coverage data at all levels specified in DO-178C and ED-12C (including Level A).
Applied in: aerospace, automotive, industrial, medical, rail transportation, and other fields.

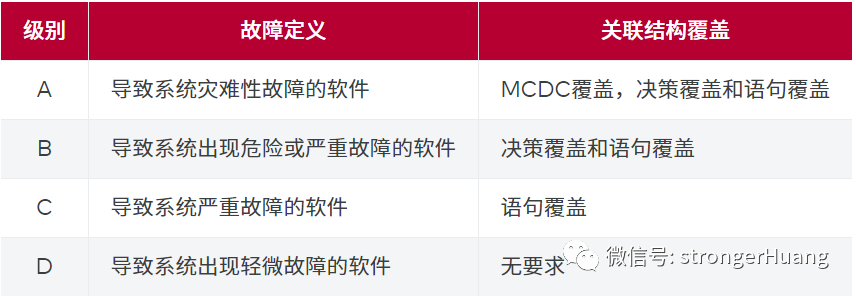

Software critical levels and structural coverage requirements:
3. Features
-
Supports code coverage for all levels required by DO-178C; ED-12C
-
Automatically generates and compiles complete test stubs and drivers
-
Automated regression testing
-
Standard-compliant test report generation
-
Test execution on host, simulator, and embedded target systems
4. TrialThe VectorCAST tool suite is also commercial paid software but supports free trials.Finally, due to space limitations, I will recommend these for now; there are more static analysis tools to share later.———— END ————
