Recently, after reading the introduction of uCOS-III on Baidu, I found that many features have been significantly improved, and I feel it is necessary to upgrade the development environment. Baidu introduction: http://baike.baidu.com/view/8531313.htm
Environment:
-
STM32F10x firmware library version 3.5.
-
MDK4.23 compiler
-
uCOS-III v3.03
1. uCOS-III source file KRN-K3XX-000000.zip
Official website: http://micrium.com/page/downloads/source_code
My cloud disk: http://115.com/file/anr4r6a8#
2. uCOS-III official porting program
Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO.zip
Official website: http://micrium.com/download/Micrium-Book-uCOS-III-STM32F107.exe
Cloud disk: http://115.com/file/dpuyusej#
1. The first step is to create a new project (detailed in the previous article).

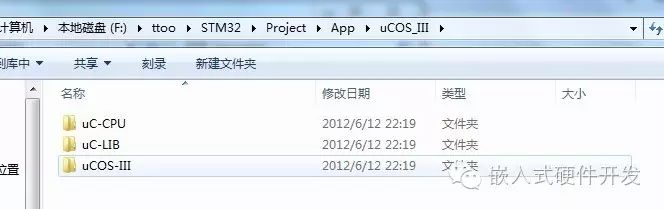

2. Create a folder named uCOS_III. Under this folder, create four subfolders: uC-CPU, uC-LIB, uCOS-III.
1. Under uCOS-III, create three folders: Source, Ports, Cfg
Copy all files from KRN-K3XX-000000\Micrium\Software\uCOS-III\Source to Source;
Copy all files from KRN-K3XX-000000\Micrium\Software\uCOS-III\Cfg\Template to Cfg;
Copy all files from Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO\Micrium\Software\uCOS-III\Ports\ARM-Cortex-M3\Generic\RealVie to Ports.
2. Under uC-LIB, create three folders: Source, Ports, Cfg
Copy text files from Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO\Micrium\Software\uC-LIB to Source
Copy lib_cfg.h from Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO\Micrium\Software\uC-LIB\Cfg\Template to Cfg
Copy lib_mem_a.asm from Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO\Micrium\Software\uC-LIB\Ports\ARM-Cortex-M3\RealView to Ports
3. Under uC-CPU, create three folders: Source, Ports, Cfg
Copy three text files from Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO\Micrium\Software\uC-CPU to Source
Copy three files from Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO\Micrium\Software\uC-CPU\ARM-Cortex-M3\GNU to Ports
Copy cpu_cfg.h from Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO\Micrium\Software\EvalBoards\Micrium\uC-Eval-STM32F107\Atollic\uCOS-III\APP to Cfg
4. Copy app_cfg.h from Micrium_uCOS-III-STM32F107-Eval-Atollic-TrueSTUDIO\Micrium\Software\EvalBoards\Micrium\uC-Eval-STM32F107\Atollic\uCOS-III\APP to Main.
Now, the project files have been copied.

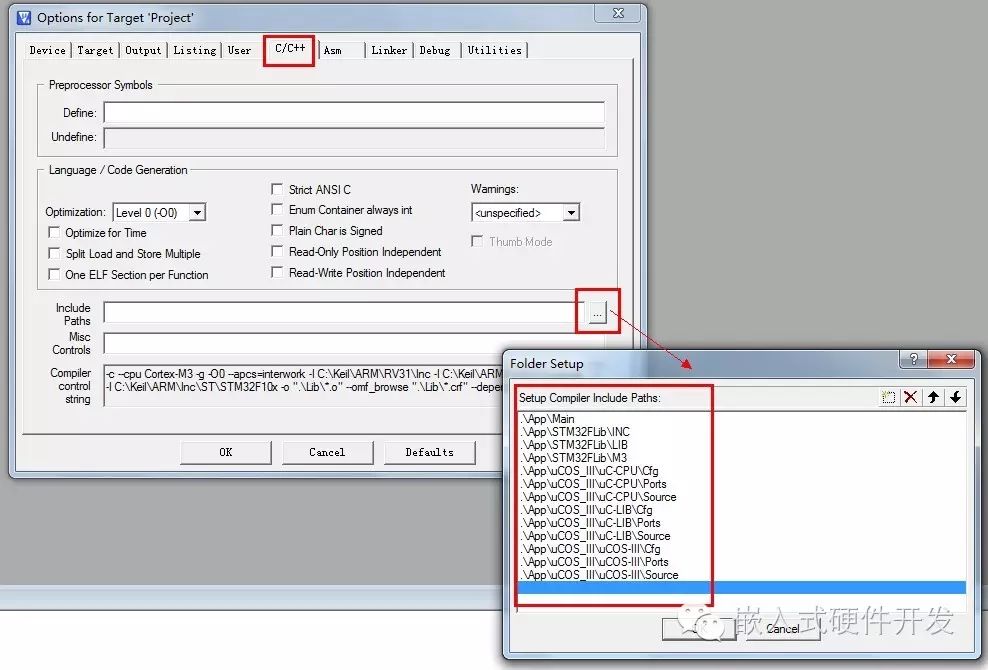

1. Specify the project reference file path as shown in the figure:

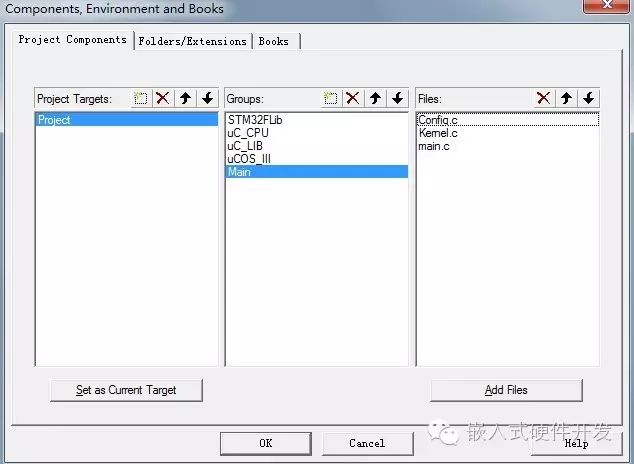

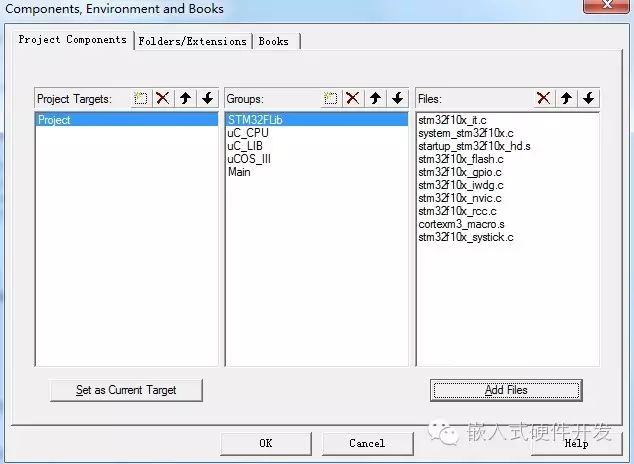

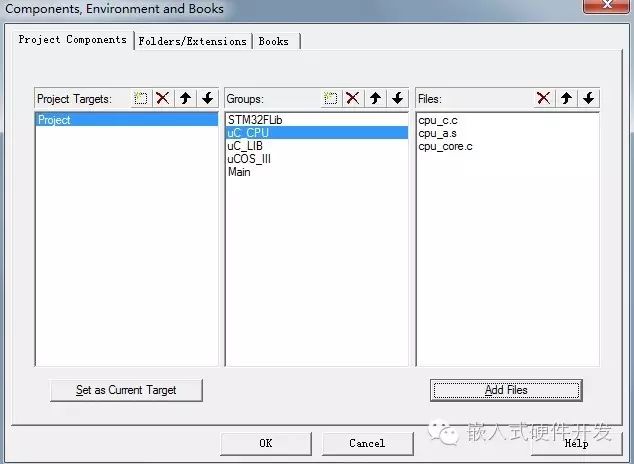

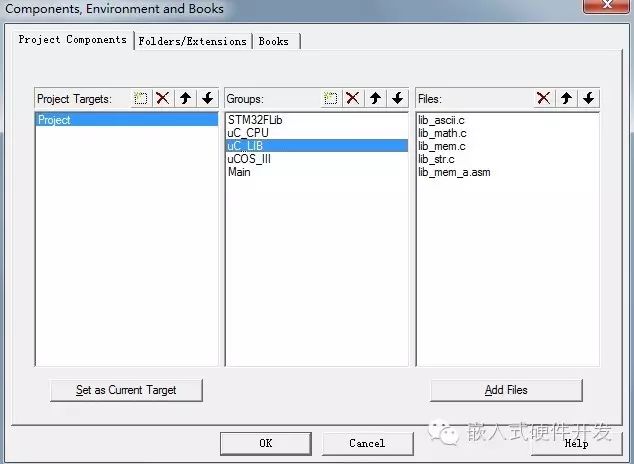

2. Add project files:
Main.c, Kernel.c, Kernel.h, Config.c, and Config.h code are provided below.
Main.c
Kernel.c
Kernel.h
Config.c
Config.h
app_cfg.h additional code is as follows:
app_cfg.h
Next, modify cpu_a.s in Project\App\uCOS_III\uC-CPU\Ports, as this is GNU assembly code.
Replace as follows:
‘@’ with ‘;’
.global with EXPORT
The following code:
.text
.align 2
.thumb
.syntax unified
should be replaced with
PRESERVE8
AREA |.text|, CODE, READONLY
THUMB
Comment out the function name with ‘;’ before and after .thumb_func; and remove the ‘:’ immediately following the function name.
The modified code is as follows:
cpu_a.s
Modify os_cfg.h
Set OS_CFG_TS_EN macro definition to 0u
Set OS_CFG_SCHED_LOCK_TIME_MEAS_EN macro definition to 0u
Set OS_CFG_TASK_DEL_EN macro definition to 1u
Other definitions can be set to 1u or 0u based on your functional needs.
In Project\App\uCOS_III\uC-LIB\Source, the local variable in the Str_FmtNbr_Int32 function of lib_str.c is not initialized, which is not rigorous. Initialize it as follows:
CPU_CHAR *pstr_fmt = (CPU_CHAR *)0;
CPU_DATA i = 0u;
CPU_INT32U nbr_fmt = 0u;
CPU_INT32U nbr_log = 0u;
CPU_INT08U nbr_dig_max = 0u;
CPU_INT08U nbr_dig_min = 0u;
CPU_INT08U nbr_dig_fmtd = 0u;
CPU_INT08U nbr_neg_sign = 0u;
CPU_INT08U nbr_lead_char = 0u;
CPU_INT08U dig_val = 0u;
CPU_INT08U lead_char_delta_0 = 0u;
CPU_INT08U lead_char_delta_a = 0u;
CPU_BOOLEAN lead_char_dig = 0u;
CPU_BOOLEAN lead_char_0 = 0u;
CPU_BOOLEAN fmt_invalid = 0u;
CPU_BOOLEAN print_char = 0u;
CPU_BOOLEAN nbr_neg_fmtd = 0u;
Finally, modify the startup file startup_stm32f10x_hd.s. When loading different startup files, do not worry; the modifications are the same:
Replace OS_CPU_PendSVHandler with all PendSV_Handler
Replace OS_CPU_SysTickHandler with all SysTick_Handler
This allows the interrupt to execute the uCos interrupt functions.
Everything is now OK.

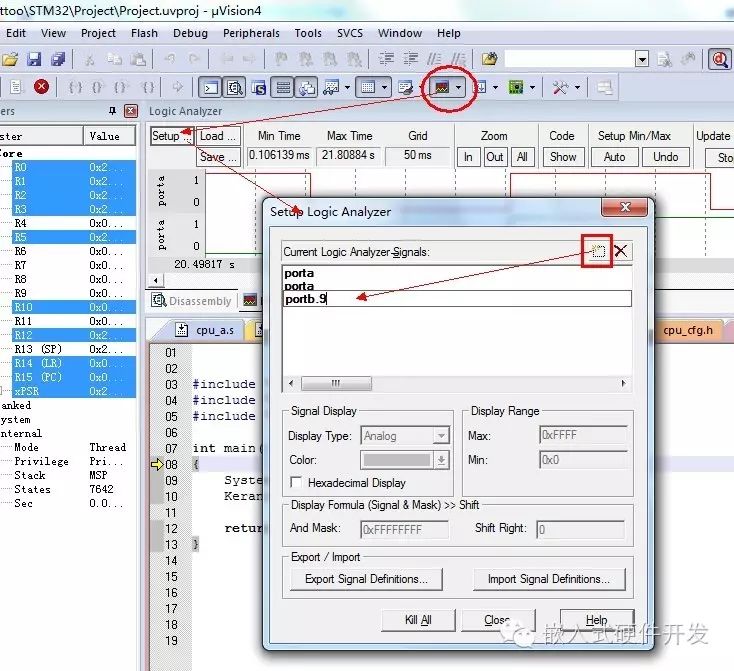

Simulate and observe port changes
The programming result is too bloated:

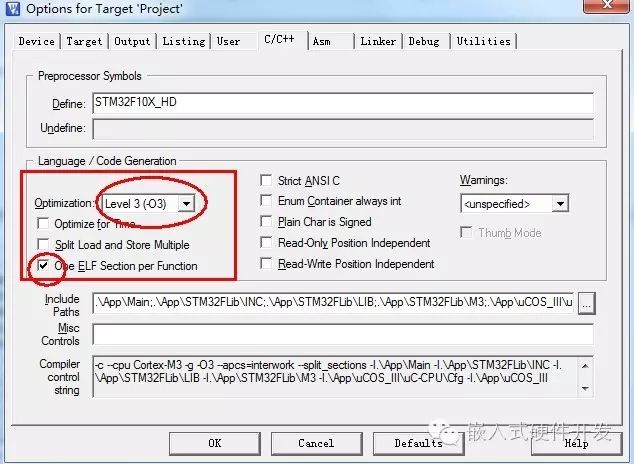

Enable level 3 optimization:
Recompile to see the results:
