Performance Comparison Analysis of Qualcomm’s High-End Chips QC6490/610/6125/5430

1. Product Overview and Positioning

The Qualcomm QCS series includes four high-end chips (QCS6490, QCS610, QCS6125, QCS5430) aimed at industrial IoT, edge computing, smart cameras, and other scenarios, with significant differentiated features:

For detailed charts, please click to enlarge

Performance Comparison Analysis of Qualcomm's High-End Chips QC6490/610/6125/5430

For detailed charts, please click to enlarge

  • High-end Performance: QCS6490

  • Long-term Cost-Effectiveness: QCS610/QCS5430

  • Basic Imaging Solution: QCS6125

2. Core Highlights of Each Chip

1. QCS6490: High-end chip, benchmark for AI and multimedia

  • Computing Power Configuration

  • CPU: Kryo 670 Octa-core (Arm v8 architecture)

  • GPU: Adreno 643 (supports 144Hz high refresh rate)

  • AI: 12 TOPS INT8, integrated accelerator architecture

  • Multimedia and Display

  • Three ISP supports 64MP@30fps ZSL shooting + 192MP static shooting

  • 4K30 video encoding/decoding, Adreno 633 VPU enhances image quality

  • Dual screen 2520*1080@144Hz, HDR10+/wide color gamut

  • Expandability

  • PCIe Gen3, USB3.2, UFS 2.1 Gear4

  • Supports five 4-lane CSI camera inputs

  • System Compatibility

Full platform support for Android/Linux/Ubuntu/Windows 11 IoT, lifecycle until 2036

2. QCS5430: Peak AI performance, optimal for edge computing

  • AI Architecture Innovation

  • Sixth-generation AI engine: HTA+HVX+shared memory, peak 13 TOPS

  • Supports concurrent five visual sensor inputs, edge-cloud collaborative processing

  • Hardware Upgrade Space

  • Expandable CPU/GPU/AI performance, supports peripheral expansion

  • Low latency optimization, suitable for industrial automation and real-time response scenarios

  • Display and Connectivity

  • Dual screen 120Hz adaptive refresh rate

  • 2*2 Wi-Fi 6 (802.11ax)

  • Lifecycle: Long-term support until 2032

3. QCS610: Balanced mid-range, long-term cost-effective choice

Energy Efficiency Design

  • 11nm FinFET process, low-power sensor core

  • Kryo 460 Octa-core (4 performance cores + 4 efficiency cores)

AI and Imaging

  • Dual 14-bit ISP, dual camera 16MP or single camera 24MP@30fps

  • Hexagon DSP+HVX, 1.1GHz DNN acceleration

Connectivity

  • 1*1 Wi-Fi 5 (802.11ac), X12 LTE (600Mbps)

  • Applicable scenarios: Basic industrial equipment, security cameras, supported until 2030

4. QCS6125: Entry-level imaging solution

Core Configuration

  • Kryo 260 Octa-core (11nm process)

  • Adreno 610 GPU (Vulkan 1.1 low-power rendering)

Image Enhancement

  • Triple camera support (telephoto/wide/ultra-wide), 48MP snapshot mode

  • Hybrid focus, zero-lag shooting, multi-frame noise reduction

Audio-Visual Experience

  • aptX HD audio + Aqstic technology

  • Single screen 1080P@60Hz display

Positioning: Lightweight smart terminals (e.g., advertising screens, basic monitoring)

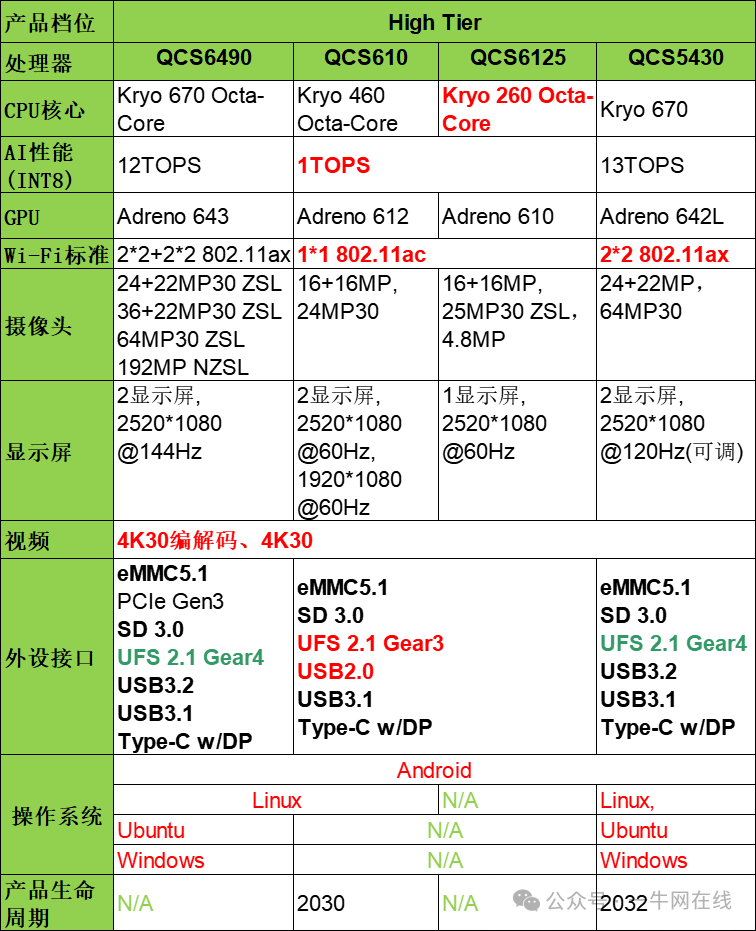

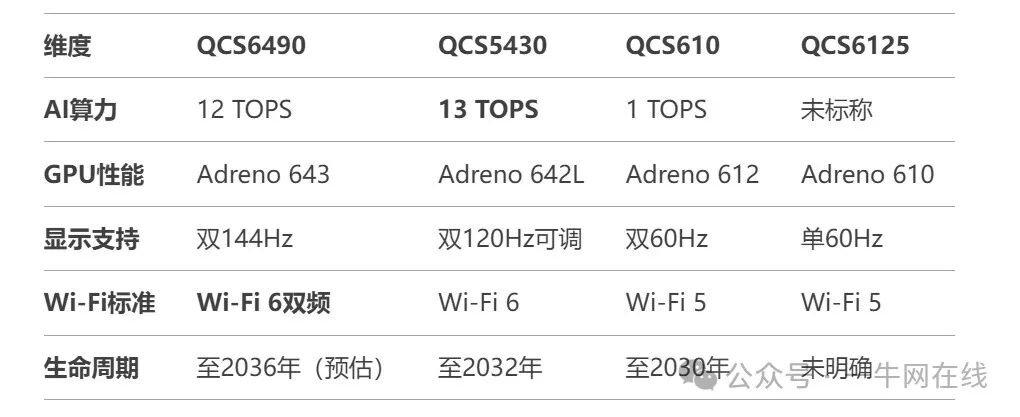

3. Key Parameter Comparison

Performance Comparison Analysis of Qualcomm's High-End Chips QC6490/610/6125/5430

4. Recommended Application Scenarios

  • 1. Industrial Automation/XR Devices → QCS6490 (High computing power + multi-system compatibility)

  • 2. Edge AI Boxes/Smart Security → QCS5430 (Multi-sensor access + low latency)

  • 3. Commercial Display Terminals/Basic Monitoring → QCS610/QCS6125 (Long-term + cost optimization)

The four Qualcomm chips precisely cover enterprise-level needs through AI performance stratification and lifecycle management:

Choose QCS6490 for extreme performance, select QCS5430 for AI edge computing;

In budget-constrained scenarios, weigh imaging needs between QCS610 and QCS6125.

Technical Decision Recommendations:

Comprehensively assess based on device iteration cycles, AI load intensity, and long-term maintenance costs.

The above analysis can serve as a quick reference guide for enterprise selection. For in-depth parameter comparisons or customized solutions, please contact us.

Custom development of DDR and UFS testing projects for various platforms based on MTK pop technology

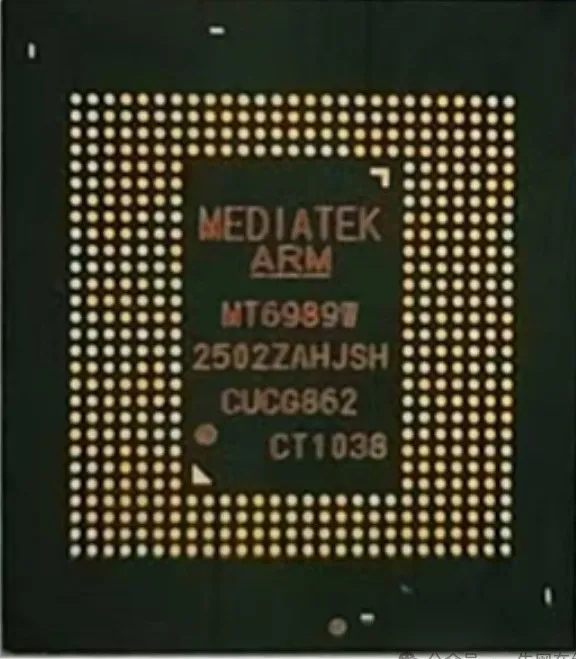

Dimensity 9400 is MT6991,Dimensity 9300 is MT6989

Dimensity 9200 is MT6985,Dimensity 9000 is MT6983

Dimensity 8400 is MT6899,Dimensity 8300 is MT68977

Dimensity 1200 is MT6893,Dimensity 7300 is MT6878

Dimensity 900 is MT6877
