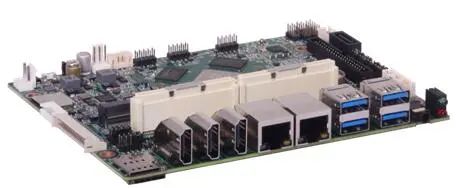

Recently, North China Industrial Control released the EMB-3582 embedded motherboard equipped with Rockchip’s next-generation flagship AIoT chip RK3588.
The product has significantly improved performance in NPU, RAM, ROM, video encoding and decoding, network communication, and I/O capabilities, featuring high computing power, strong multimedia capabilities, and rich I/O interfaces, making it suitable for various scenarios such as smart cockpits, smart displays, AR/VR, edge computing, and ARM PCs.
EMB-3582 Core Advantages
1、Uses RK3588 Chip, Integrating High-Performance GPU and NPU
EMB-3582 uses Rockchip’s new generation flagship high-end chip RK3588 (4-core Cortex-A76 + 4-core Cortex-A55 big.LITTLE architecture, big core frequency of 2.4GHz, small core frequency of 1.8GHz), providing stronger CPU computing power.
It integrates the Mali-G610 MP4 quad-core GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2 graphics APIs, greatly enhancing display performance.
With an integrated NPU providing 6 TOPs of computing power, it supports INT4/INT8/INT16/FP16 mixed operations, offering strong compatibility and supporting the conversion of network models based on TensorFlow/MXNet/PyTorch/Caffe and other frameworks.
2、Up to 32GB of Large RAM, Large Storage Capacity
EMB-3582 supports onboard 4/8GB LPDDR4X memory, with a maximum support of 32GB; supports onboard eMMC, with a maximum support of 128GB; supports onboard SATA interface, and TF card slot to increase storage space, supporting SATA3.0 high-speed storage, meeting the application needs for high RAM and large-capacity high-speed storage.
3、Supports 8K Video Encoding and Decoding, Excellent Multimedia Functionality
EMB-3582 supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, supporting simultaneous encoding and decoding; supports multi-camera access, real-time stitching of multiple ultra-high-definition videos; supports multiple HDMI_TX, HDMI_RX, and LVDS display interface outputs, supporting multi-screen display, providing users with a better visual experience.
Additionally, EMB-3582 also supports multiple headphone and MIC-IN audio interface outputs, dual-channel 5W amplifiers, supports high-definition voice, enhances sound collection and long-distance pickup functions.
4、Rich I/O Function Interfaces for Easy System Integration
EMB-3582 supports two onboard high-performance Gigabit Ethernet ports, optional onboard Wifi (wifi6), onboard Bluetooth (optional BT5.0), one Mini-PCIe slot supporting 4G network module expansion, and one M.2 B Key interface for 5G network module expansion, providing one 5G SIM slot and one 4G SIM slot, enabling flexible network application environments and meeting high-speed network communication application needs.
Moreover, EMB-3582 is also equipped with rich serial ports, USB, GPIO, Touch, LED, and other I/O function interfaces, providing 2 100Pin connectors (supporting 1 route X4/4 routes X1 PCIe, 1*TYPEC/DP, 2*MIPI_TX, 4*MIPI_RX, 3*I2C, GPIO, 2*CAN BUS, etc.), offering complete and flexible expansion capabilities for easy system integration.
5、Supports Multiple Operating Systems, Strong Applicability
EMB-3582 is compatible with operating systems such as Linux; it supports watchdog functionality, soft and hardware power-on self-start; developed according to industrial-grade standards, it supports stable operation under various conditions such as wide temperature and complex electromagnetic environments, making it easy to use and maintain.

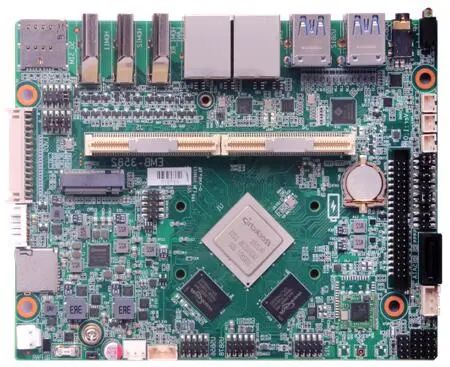

EMB-3582 Product Main Parameters
◆ Supports Rockchip RK3588 processor
◆ Onboard 4/8GB LPDDR4 memory, maximum support of 32GB
◆ 1*SATA, supports SATA 3.0, 1*eMMC, maximum support of 128GB, 1*TF
◆ Supports 2*HDMI_TX, 1*HDMI_RX, 1*dual-channel 24bit LVDS
◆ 2*LAN, onboard Wifi (optional wifi6), onboard Bluetooth (optional BT5.0)
◆ 6*COM (4*RS-232, 2*RS-232/485)
◆ 4*USB3.0, 4*USB2.0
◆ 1*Mini-PCIe (supports 4G module)
◆ 1*M.2 (supports 5G module)
◆ 12*GPIO, 1*CAN, 1*FAN, 1*Touch, 2*LED
◆ 2*100Pin connectors (provide 1 route X4/4 routes X1 PCIe, 1*TYPEC/DP, 2*MIPI_TX, 4*MIPI_RX, 3*I2C, GPIO, 2*CAN BUS, etc.)
◆ Dimensions: 146mm x 115mm
The North China Industrial Control embedded product EMB-3582 has been successfully launched.
If you are interested in the product, please contact North China Industrial Control’s local business for purchase consultation, or visit the North China Industrial Control official website for more information:www.norco.com.cn
