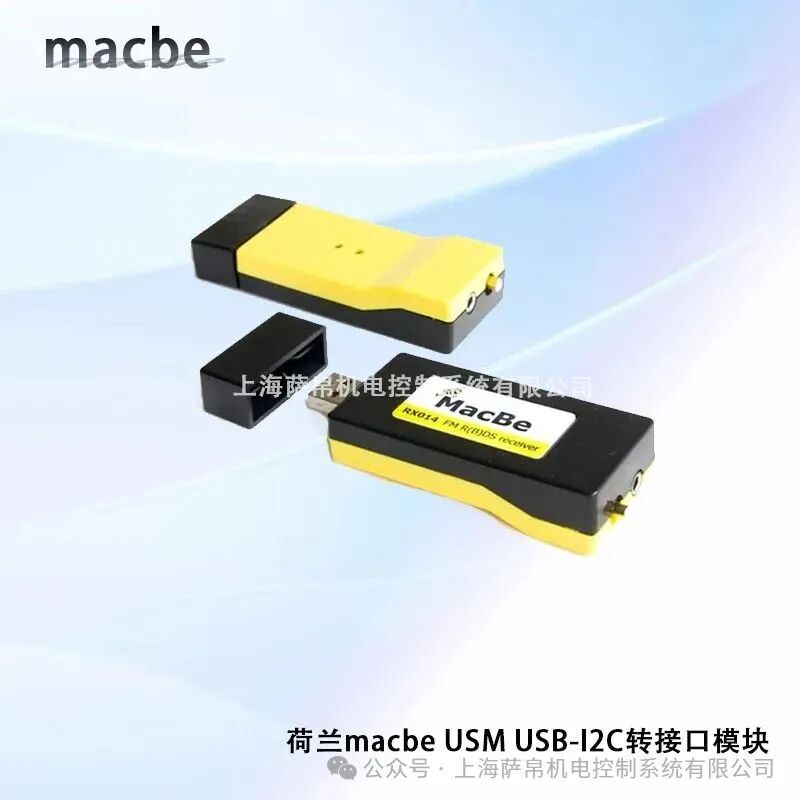

Netherlands MacBe USM USB-I2C Interface Module Product Details
1. Product Overview
The Netherlands MacBe USM USB-I2C interface module is a high-performance adapter designed for communication between PCs and I2C devices. It enables seamless connectivity between PCs and embedded systems, sensors, memory, and other I2C devices via a USB interface. Its core function is to convert USB signals into I2C protocol signals, supporting both standard and non-standard I2C protocols, and is compatible with TWI/SMBus synchronous serial communication, making it suitable for various scenarios such as industrial automation, device debugging, and data acquisition.
2. Performance Features
- High-Speed Communication Support
- Supports standard I2C (100KHz), fast I2C (400KHz), and high-speed I2C (1MHz) modes to meet different speed requirements.
- Compatible with TWI/SMBus protocols, extending the application range to system management bus devices.
- USB Bus Power Supply: No external power supply is needed, simplifying connections.
- External Power Output: Provides +3.3V voltage with a maximum current of 70mA to power external circuits.
- Driver-free design: Plug-and-play via FTDI virtual COM port (VCP) driver, supporting Windows 7/10 and other systems.
- Simplified hardware interface: Communication can be completed by connecting only SCL (clock line) and SDA (data line).
- Equipped with USB interface and connection cable for quick deployment.
- Supports software configuration of I2C speed and protocol to adapt to diverse development needs.
3. Selection Guide
- Speed Requirements
- Select the module based on the I2C speed supported by the target device: standard (100KHz), fast (400KHz), or high-speed (1MHz).
- If external circuit power is needed, confirm whether the module’s +3.3V output meets the current requirements (maximum 70mA).
- Prefer modules that support TWI/SMBus protocols to ensure compatibility with more synchronous serial devices.
4. Optional Features and Accessories
- Expansion Interfaces
- Some models provide UART interfaces (RX/TX), supporting baud rates from 300 to 115200 for serial communication expansion.
- Programmable GPIO pins (e.g., GP2/4/7/9) for custom input/output control.
- USB Connection Cable: Standard USB-A to module interface cable, typically 50cm in length.
- Debugging Software Package: Includes general I2C debugging tools (e.g., USB TO I2C) and dedicated chip debugging software, supporting Excel command import/export.
5. Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply Method | USB bus powered (no external power required) |
| Operating Voltage | +3.3V (output) |
| Transmission Rate | 100KHz/400KHz/1MHz |
| Interface Type | USB to I2C (SCL/SDA) |
| Operating Temperature Range | -20°C to +70°C |
| Dimensions and Weight | Approximately 10cm×20cm×10cm, 0.2KG |
| Compatible Systems | Windows 7/10, driver-free |
6. Product Dimensions and Physical Characteristics
- Appearance Dimensions: 10cm (length) × 20cm (width) × 10cm (height), compact design for easy integration.
- Weight: Approximately 0.2KG, lightweight for portable use.
- Interface Layout:
- USB Interface: Located on one side of the module for connecting to a PC.
- I2C Interface: SCL/SDA pins located on the other side, supporting quick plug-and-play.
7. Product Application Scenarios
- Production Development and Testing Monitoring
- Used for debugging embedded systems, real-time monitoring of I2C device data (e.g., temperature sensors, EEPROM).
- Connects I2C interface devices in industrial equipment (e.g., real-time clock chip DS1307, digital-to-analog converter DAC8571) for efficient communication.
- Integrated into data acquisition systems, connecting I2C bus 8-bit parallel IO expansion chips (e.g., PCF8574) to expand input/output capabilities.
- Debugging I2C interface touch screens, memory, and other consumer electronic components to accelerate product iteration.
8. Conclusion
The Netherlands MacBe USM USB-I2C interface module, with its high-speed communication, flexible power supply, and wide compatibility, is an ideal choice for communication between PCs and I2C devices. Its driver-free design, compact size, and rich interface features (such as UART, GPIO) further enhance development efficiency. Whether for industrial automation, device debugging, or data acquisition, this module provides a stable and reliable solution, helping users quickly achieve interconnectivity between embedded systems and PCs.
