“Mastering C Language: SpaceX Starship Test Flight Success, I Created a Simple Rocket Launch Animation with Over 100 Lines of C Code! Let’s Fly!”
Introduction
Today I saw that SpaceX’s Starship 10 successfully completed its test flight, and watching the video was truly shocking! Suddenly, I thought I could also create a rocket launch animation using C language. Although the animation is simple, it is straightforward and suitable for beginners.

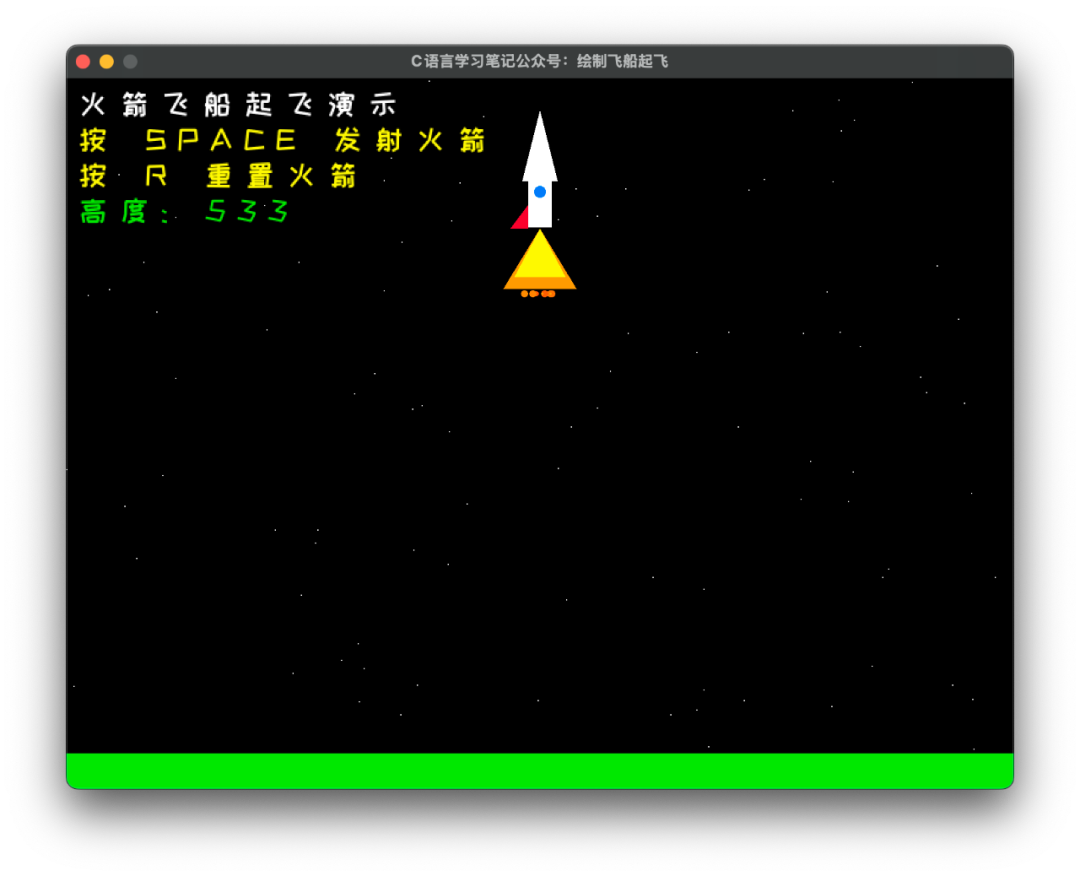

Without further ado, let’s take a look at the running effect
The implementation idea is very simple:
- • Background: Draw a starry sky background, with stars randomly generated.
- • Rocket: Draw simple shapes like triangles and circles to form the shape of the rocket.
- • Animation: By continuously changing the rocket’s position and angle, achieve the rocket launch animation.
- • Press the spacebar to launch, press the R key to relaunch.
Rocket launch animation source code, can be run directly, save it if you’re interested
#include "raylib.h"
#include <string.h>
void DrawRocket(Vector2 position, float flameSize);
int main(void)
{
const int screenWidth = 800;
const int screenHeight = 600;
InitWindow(screenWidth, screenHeight, "C Language Learning Notes Public Account: Drawing Rocket Launch");
SetTargetFPS(60);
// Load Chinese font
char allChars[300] = "";
const char *menuArray[6] = {};
menuArray[0] = "Rocket Launch Demonstration";
menuArray[1] = "Press SPACE to launch the rocket";
menuArray[2] = "Press R to reset the rocket";
menuArray[3] = "Altitude: ";
menuArray[4] = "Preparing for launch...";
menuArray[5] = "0123456789";
// Merge strings for loading the font library corresponding to Chinese characters
for (int i = 0; i < sizeof(menuArray) / sizeof(menuArray[0]); i++)
{
strcat(allChars, menuArray[i]);
}
int fileSize = 0;
int fontSize = 25;
int spacing = 10;
unsigned char *fileData = LoadFileData("AnyFont.ttf", &fileSize);
int codepointsCount = 0;
int *codepoints = LoadCodepoints(allChars, &codepointsCount);
Font chineseFont = LoadFontFromMemory(".ttf", fileData, fileSize, fontSize, codepoints, codepointsCount);
// Rocket position and animation parameters
Vector2 rocketPosition = {screenWidth / 2, screenHeight - 50};
float rocketSpeed = 2.0f;
float flameSize = 10.0f;
bool isLaunching = false;
// Starry sky background stars
Vector2 stars[100];
for (int i = 0; i < 100; i++)
{
stars[i] = (Vector2){
GetRandomValue(0, screenWidth),
GetRandomValue(0, screenHeight)};
}
while (!WindowShouldClose())
{
// Launch the rocket
if (IsKeyPressed(KEY_SPACE))
{
isLaunching = true;
}
// Reset the rocket
if (IsKeyPressed(KEY_R))
{
rocketPosition.y = screenHeight - 50;
isLaunching = false;
flameSize = 10.0f;
}
// Update rocket position
if (isLaunching && rocketPosition.y > 50)
{
rocketPosition.y -= rocketSpeed;
rocketSpeed += 0.05f; // Accelerate
flameSize += 0.2f; // Flame grows
}
BeginDrawing();
ClearBackground(BLACK);
// Draw starry sky background
for (int i = 0; i < 100; i++)
{
DrawPixel(stars[i].x, stars[i].y, WHITE);
}
// Draw ground
DrawRectangle(0, screenHeight - 30, screenWidth, 30, GREEN);
// Draw rocket
DrawRocket(rocketPosition, flameSize);
// Draw UI information
DrawTextEx(chineseFont, "Rocket Launch Demonstration", (Vector2){10, 10}, fontSize, spacing, WHITE);
DrawTextEx(chineseFont, "Press SPACE to launch the rocket", (Vector2){10, 40}, fontSize, spacing, YELLOW);
DrawTextEx(chineseFont, "Press R to reset the rocket", (Vector2){10, 70}, fontSize, spacing, YELLOW);
DrawTextEx(chineseFont, TextFormat("Altitude: %.0f", screenHeight - rocketPosition.y), (Vector2){10, 100}, fontSize, spacing, GREEN);
if (!isLaunching)
{
DrawTextEx(chineseFont, "Preparing for launch...", (Vector2){screenWidth / 2 - 80, screenHeight / 2}, fontSize, spacing, ORANGE);
}
EndDrawing();
}
CloseWindow();
return 0;
}
// Function to draw the rocket
void DrawRocket(Vector2 position, float flameSize)
{
// Rocket body
DrawTriangle(
(Vector2){position.x, position.y - 40}, // Top
(Vector2){position.x - 15, position.y + 20}, // Bottom left
(Vector2){position.x + 15, position.y + 20}, // Bottom right
WHITE);
// Rocket body
DrawRectangle(position.x - 10, position.y + 20, 20, 40, WHITE);
// Rocket window
DrawCircle(position.x, position.y + 30, 5, BLUE);
// Rocket wings
DrawTriangle(
(Vector2){position.x - 10, position.y + 40},
(Vector2){position.x - 25, position.y + 60},
(Vector2){position.x - 10, position.y + 60},
RED);
DrawTriangle(
(Vector2){position.x + 10, position.y + 40},
(Vector2){position.x + 25, position.y + 60},
(Vector2){position.x + 10, position.y + 60},
RED);
// Rocket flame
if (flameSize > 0)
{
// Outer flame (orange)
DrawTriangle(
(Vector2){position.x, position.y + 60},
(Vector2){position.x - flameSize, position.y + 80 + flameSize},
(Vector2){position.x + flameSize, position.y + 80 + flameSize},
ORANGE);
// Inner flame (yellow)
DrawTriangle(
(Vector2){position.x, position.y + 60},
(Vector2){position.x - flameSize * 0.7f, position.y + 70 + flameSize},
(Vector2){position.x + flameSize * 0.7f, position.y + 70 + flameSize},
YELLOW);
// Spark particles
for (int i = 0; i < 15; i++)
{
float offset = GetRandomValue(-flameSize * 2, flameSize * 2) * 0.2f;
DrawCircle(position.x + offset, position.y + 85 + flameSize,
GetRandomValue(1, 3), (Color){255, GetRandomValue(100, 200), 0, 255});
}
}
}
