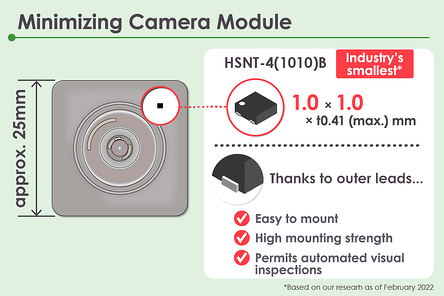

The industry’s smallest package contributes to the miniaturization of camera modules.
The S-19255 series is the industry’s smallest package, utilizing a 1.0 mm square HSNT-4 (1010) B. The HSNT-4(1010)B package with external pins facilitates installation, ensures high mounting strength, and allows for automated visual inspection after installation.
With the growing popularity of Advanced Driver Assistance Systems (ADAS) and Autonomous Driving (AD) systems, the S-19255 series aids in the miniaturization of camera modules.
*Based on our research as of February 2022
-

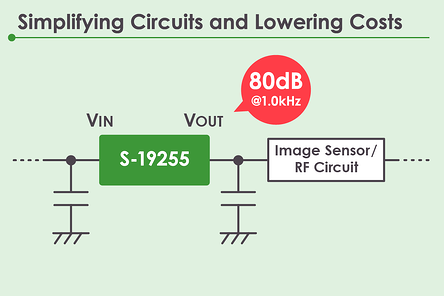

High PSRR across a wide frequency range simplifies circuits and reduces costs.
The S-19255 series offers high PSRR across a wide frequency range, with a ripple rejection rate of 80dB typ. (f = 1.0kHz) and 50dB (f = 100kHz). No additional circuitry is needed to reduce noise, simplifying the circuit and lowering costs.
The S-19255 series provides a low-noise clean power supply, making it an ideal choice for automotive cameras and RF transmission circuits.
PSRR: Power Supply Ripple Rejection
-

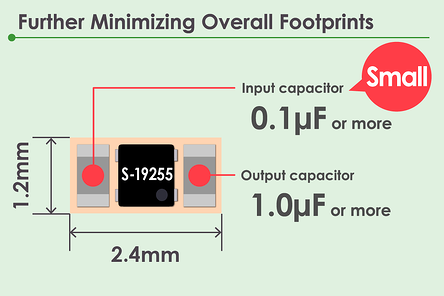

Using small I/O capacitors can further reduce overall chip area.
The S-19255 series can use a 0.1μF input capacitor and a 1.0μF output capacitor.
By using smaller capacitors that are easier to obtain than larger capacitors, area savings can be more easily achieved.

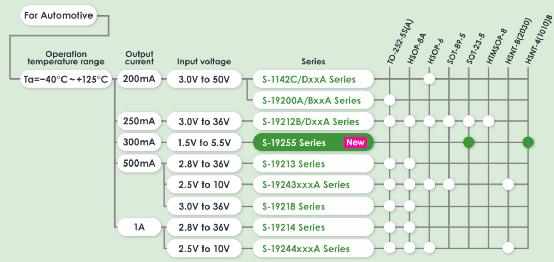

Automotive LDO Voltage Regulator (125°C Compatible) Product Lineup
Features
|
Product |
Automotive S-19255 Series |
|
Output Current |
300 mA |
|
Output Voltage |
0.9 V ~ 3.6 V |
|
Input Voltage |
1.5 V ~ 5.5 V |
|
Output Voltage Accuracy |
±2.0% (Tj = −40°C ~ +125°C) |
|
Ripple Rejection |
50 dB (VOUT(S) = 3.3 V, f = 100 kHz) 80 dB (VOUT(S) = 3.3 V, f = 1.0 kHz) |
|
Package |
SOT-23-5, HSNT-4(1010)B |
|
Standards |
AEC-Q100 standard compliance, PPAP compliant |
|
Operating Temperature Range |
Ta = −40°C ~ +125°C |
