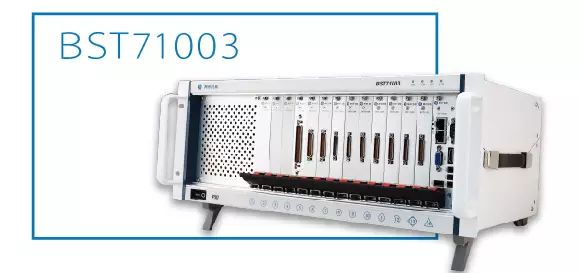

Features
▵3U 14-slot PXI chassis ▵1 system slot, 13 expansion slots ▵PXI bus, supports Rear I/O, supports 32bit, 33MHz ▵460W ATX power supply, AC input

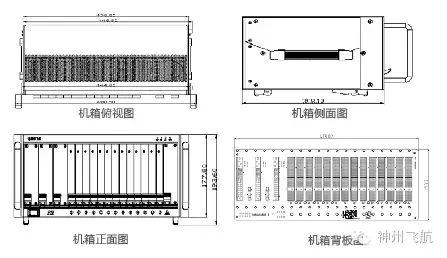

Chassis Structure
▵Dimensions: 436mm×117.8mm×307.5mm (W×H×D) ▵3U CPCI front plug-in card (100mm×160mm) ▵Rear I/O plug-in card (100mm×80mm) ▵Weight: 14kg (including power supply and backplane) ▵Aluminum metal chassis, off-white paint
Chassis Backplane
▵1 system slot, 13 expansion slots ▵32bit, 33MHz CompactPCI bus ▵supports Rear I/O ▵compatible with PICMG2.2, PICMG2.1, PICMG2.5 standards
System Cooling
▵Bottom-to-top airflow cooling design ▵Fan speed: 2800RPM ▵Total airflow: 180CFM ▵5×80mm axial fans, speed 2800RPM
System Power Supply
▵460W ATX power supply, AC input ▵Standard input: AC:90~264V@47~63Hz ▵Standard load: 3.3V@30A, +5V@40A +12V@32A, -12V@1A
Environmental Specifications
▵Operating temperature: 0℃~+50℃ ▵Storage temperature: -40℃~+85℃ ▵Relative humidity: 10℃~95%, non-condensing

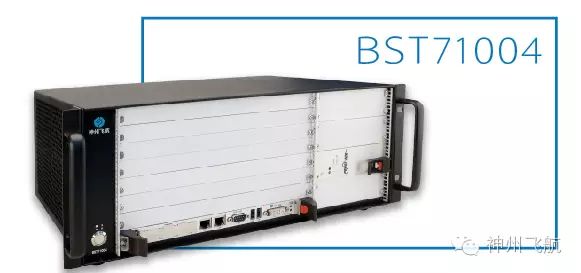

BST71004 is a 6U 8-slot 19” standard rack-mounted CompactPCI chassis, supporting 1 system slot and 7 expansion slots, compatible with P3 to P5 rear I/O cards, compliant with PICMG2.0, PICMG2.1, and PICMG revision 3.0 standards, featuring a bottom-to-top airflow cooling design with detachable side fans for high reliability.
Features
▵6U 14-slot CPCI chassis
▵1 system slot, 7 expansion slots ▵CPCI bus, supports Rear I/O ▵supports 32bit/33MHz standard 6U CompactPCI bus and 64bit/66MHz expansion ▵250W power module, AC input, can support up to 3 250W 3U 8HP CPCI power supplies

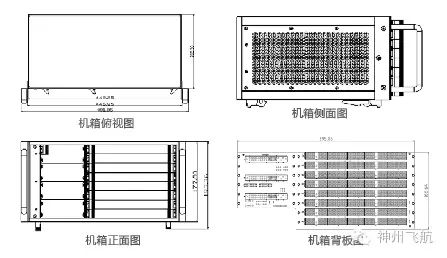

Chassis Structure
▵Dimensions: 436mm×117.8mm×307.5mm (W×H×D)
▵6U CPCI front plug-in card (233mm×160mm)
▵Rear I/O plug-in card (233mm×80mm) ▵Aluminum metal chassis, off-white paint
Chassis Backplane
▵1 system slot, 13 expansion slots
▵32/64bit, 33/66MHz CompactPCI bus ▵supports Rear I/O ▵compatible with PICMG2.0, PICMG2.1, PICMG3.0 standards
System Cooling
▵Bottom-to-top airflow cooling design
▵Total airflow: 127CFM ▵6×80mm axial fans, speed 4200RPM
System Power Supply
▵Modular power supply, AC input ▵expandable to a maximum of 3 3U CPCI 8HP power modules ▵Standard input: AC:100~240V@50~60Hz ▵Standard load: 3.3V@40A, +5V@40A [email protected], -12V@2A
Environmental Specifications
▵Operating temperature: 0℃~+50℃ ▵Storage temperature: -20℃~+70℃ ▵Relative humidity: 10℃~95%, non-condensing

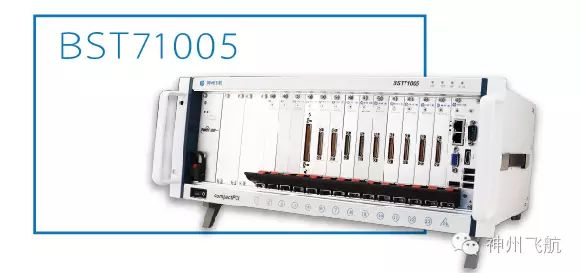

BST71005 is a 3U 14-slot 19” standard rack-mounted CompactPCI chassis, supporting 1 system slot and 13 expansion slots, supporting rear I/O boards, compliant with PICMG2.5 standards, featuring a bottom-to-top airflow cooling design with fan filters.
Features
▵3U 14-slot CPCI chassis
▵1 system slot, 13 expansion slots, supports 32bit/64MHz
▵CPCI bus, supports Rear I/O ▵250W power module, AC input, can support up to 3 250W 3U 8HP CPCI power supplies

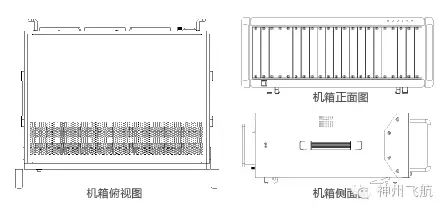

Chassis Structure
▵Dimensions: 436mm×117.8mm×307.5mm (W×H×D)
▵3U CPCI front plug-in card (100mm×160mm)
▵Rear I/O plug-in card (100mm×80mm) ▵Aluminum metal chassis, off-white paint
Chassis Backplane
▵1 system slot, 13 expansion slots
▵32bit, 33MHz CompactPCI bus ▵supports Rear I/O ▵compatible with PICMG2.0, PICMG2.1, PICMG2.5 standards
System Cooling
▵Bottom-to-top airflow cooling design
▵Fan speed: 2800RPM ▵Total airflow: 180CFM ▵5×80mm axial fans, speed 2800RPM
System Power Supply
▵Modular power supply, AC input
▵expandable to a maximum of 3 3U CPCI 8HP power modules ▵Standard input: AC:100~240V@50~60Hz ▵Standard load: 3.3V@40A, +5V@40A [email protected], -12V@2A
Environmental Specifications
▵Operating temperature: 0℃~+50℃
▵Storage temperature: -40℃~+85℃ ▵Relative humidity: 10℃~95%, non-condensing

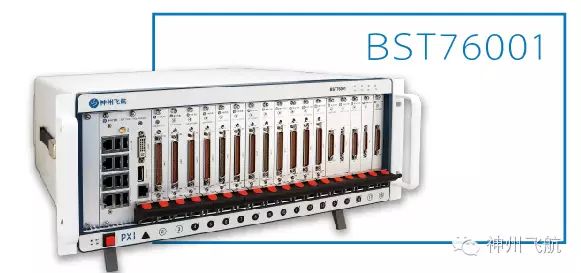

BST76001 is a 3U 18-slot PXIe rack-mounted chassis, supporting 2LINK connection mode, with 1 PXIe system slot, 4 PXI slots, 10 PXIe mixed slots, 2 PXIe slots, and 1 clock slot, compatible with PXI Express 2.0, featuring an internal airflow fan cooling design.
Features
▵3U 18-slot PXIe chassis
▵1 PXIe system slot, 4 PXI slots, 10 PXIe mixed slots, 2 PXIe slots, and 1 clock slot ▵800W ATX power supply, AC input

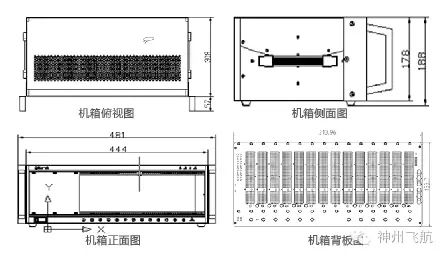

Chassis Structure
▵Dimensions: 439.4mm×177mm×443mm (L×W×D)
▵3U PXI front plug-in card (100mm×160mm) ▵does not support rear I/O cards ▵Weight: 15kg ▵Aluminum metal chassis, off-white paint
Chassis Backplane
▵1 PXI Express system slot, 17 expansion slots
▵Among the expansion slots, there is 1 Timing slot, 4 PXI slots, and 12 mixed slots ▵The system slot supports 2-Link ▵The Timing slot supports PCIe X8, other expansion slots support PCIe X4 ▵compatible with PXI Express 2.0 ▵Maximum system bandwidth: 12GB/s ▵Bus technology: PCIe Gen2
System Cooling
▵Airflow direction: inward airflow into the chassis
▵Fan speed: 2850 RPM ▵Total airflow: 153 CFM ▵Fan arrangement: 3 parallel 92x92x25.4mm fans on the rear panel ▵Fan speed control: two-speed adjustable
System Power Supply
▵800W ATX power supply, AC input
▵Standard input: AC90~264V@47~63Hz ▵Standard load: +3.3V@ +5V@ +12V@ -12V@
Environmental Specifications
▵Operating temperature: 0℃~+50℃
▵Storage temperature: -40℃~+85℃
▵Relative humidity: 10℃~95%, non-condensing
