In today’s highly information-driven era, circuit boards (PCBs), as the core components of electronic products, directly determine the performance and reliability of the final product. Especially in the production process of circuit boards, the cleaning process is one of the key links to ensure product quality. By using high-purity water for cleaning, it can effectively remove residues of flux, grease, particulate matter, and other impurities from the surface of the circuit board, thereby enhancing product reliability and lifespan. However, impurities, ions, and organic substances in ordinary water sources can cause secondary pollution to the circuit boards, even leading to decreased electrical performance or short-circuit failures. Therefore, the use of deeply purified high purity water equipment has become an indispensable choice in modern electronic manufacturing.
As a domestic water treatment solution provider, Ruiquan Water Treatment Company focuses on providing customized high-purity water systems for the electronic manufacturing industry. In response to the special requirements for water quality in circuit board cleaning, Ruiquan has launched a series of efficient, stable, and intelligent high-purity water equipment, ensuring that the output water meets the ultra-pure water standards (resistivity ≥ 18.2 MΩ·cm), assisting enterprises in achieving high-quality and safe production.
The Importance of Water Quality in Circuit Board Cleaning
In the manufacturing process of circuit boards, the cleaning process is crucial for ensuring the cleanliness of the circuit boards. If untreated or improperly treated water sources are used, the following issues may arise:
1. Residual Impurities
Ordinary tap water contains a large number of suspended solids, colloids, and dissolved solids, which can adhere to the surface of the circuit board during the cleaning process, forming new sources of contamination that affect the conductivity and signal transmission stability of the circuit board.
2. Hardness Ion Precipitation
Hard water is rich in hardness ions such as calcium and magnesium, which can easily form scale under high temperature or high pressure conditions, depositing on the cleaning tank or the surface of the circuit board, not only affecting cleaning efficiency but also increasing the difficulty of subsequent cleaning, and potentially damaging small components on the circuit board.
3. Microbial Contamination
Natural water sources may contain bacteria, viruses, and other microorganisms. Once these microorganisms enter the cleaning solution, they can cause biological contamination on the surface of the circuit board, severely affecting product reliability and lifespan.
4. Chemical Impurity Interference
Chemical impurities such as chlorine and organic substances in water can affect the cleaning effect and even react chemically with the circuit board, leading to surface damage or discoloration, thereby affecting the appearance and functionality of the product.
Therefore, to ensure the best cleaning effect for circuit boards, it is essential to use deeply purified high-purity water.
Ruiquan Water Treatment Company’s High Purity Water Solution for Circuit Board Cleaning
In response to the strict requirements for water quality in circuit board cleaning, Ruiquan Water Treatment Company provides a complete high purity water system that includes multiple stages such as pretreatment, reverse osmosis (RO), electrodeionization (EDI), and ultrafiltration (UF), ensuring stable, safe water quality that meets industrial standards.
1. System Composition and Process Flow
(1) Raw Water Pretreatment System
Pretreatment is the first step in the entire water treatment system, mainly used to remove large particles, suspended solids, organic matter, residual chlorine, iron, and manganese ions from the raw water, protecting the stable operation of the subsequent membrane systems. It mainly includes:
- Multimedia Filter: Removes sand, suspended particles, and colloids from the water;
- Activated Carbon Filter: Adsorbs organic matter and residual chlorine in the water, preventing membrane oxidation;
- Softener: Removes calcium and magnesium ions through ion exchange, reducing water hardness and preventing scaling;
- Precision Filter: Further removes particles smaller than 5 microns, ensuring the quality of water entering the reverse osmosis membrane.
(2) Reverse Osmosis System (RO)

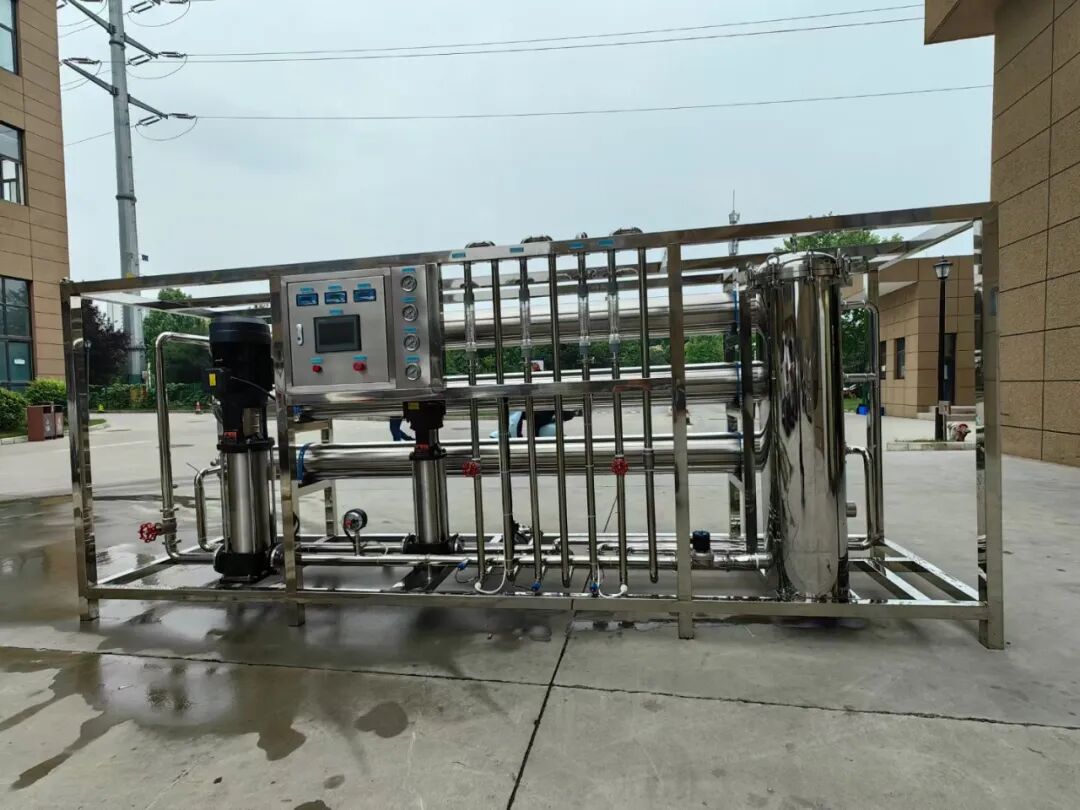

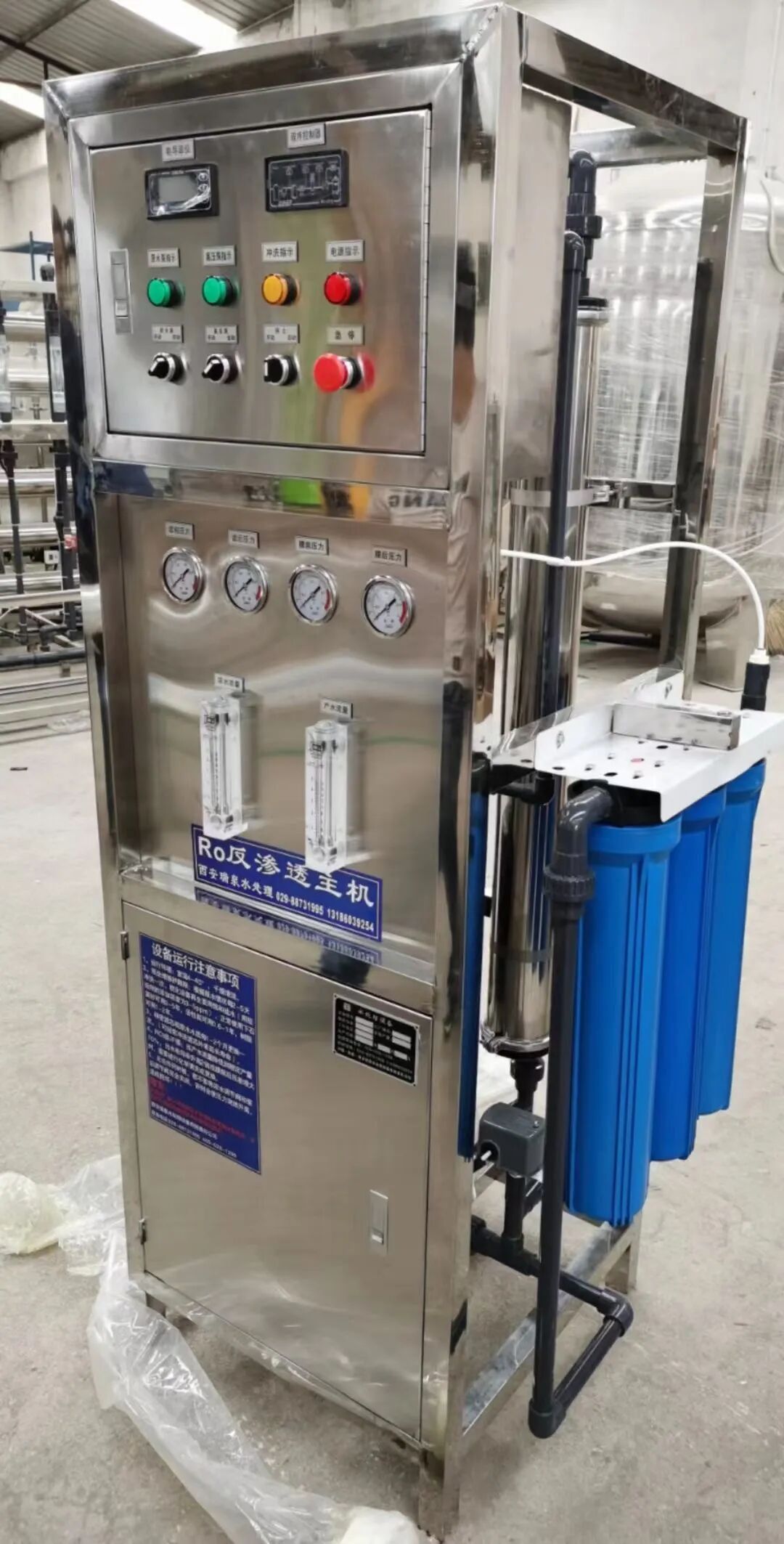

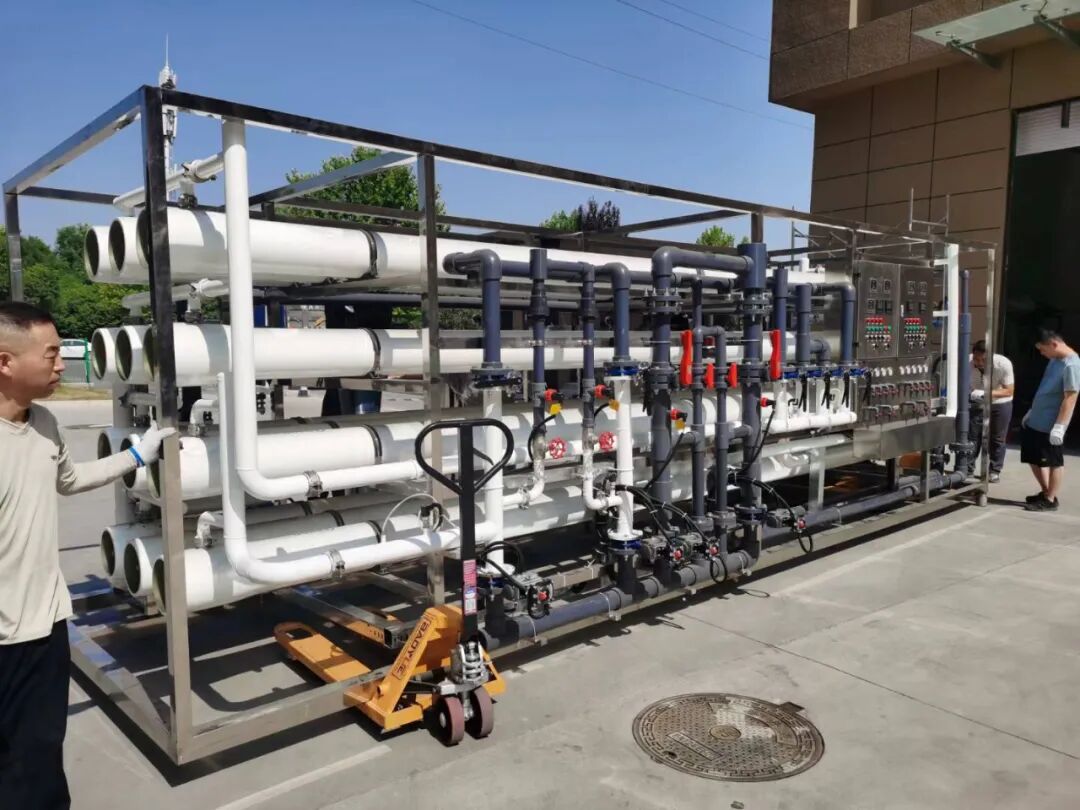

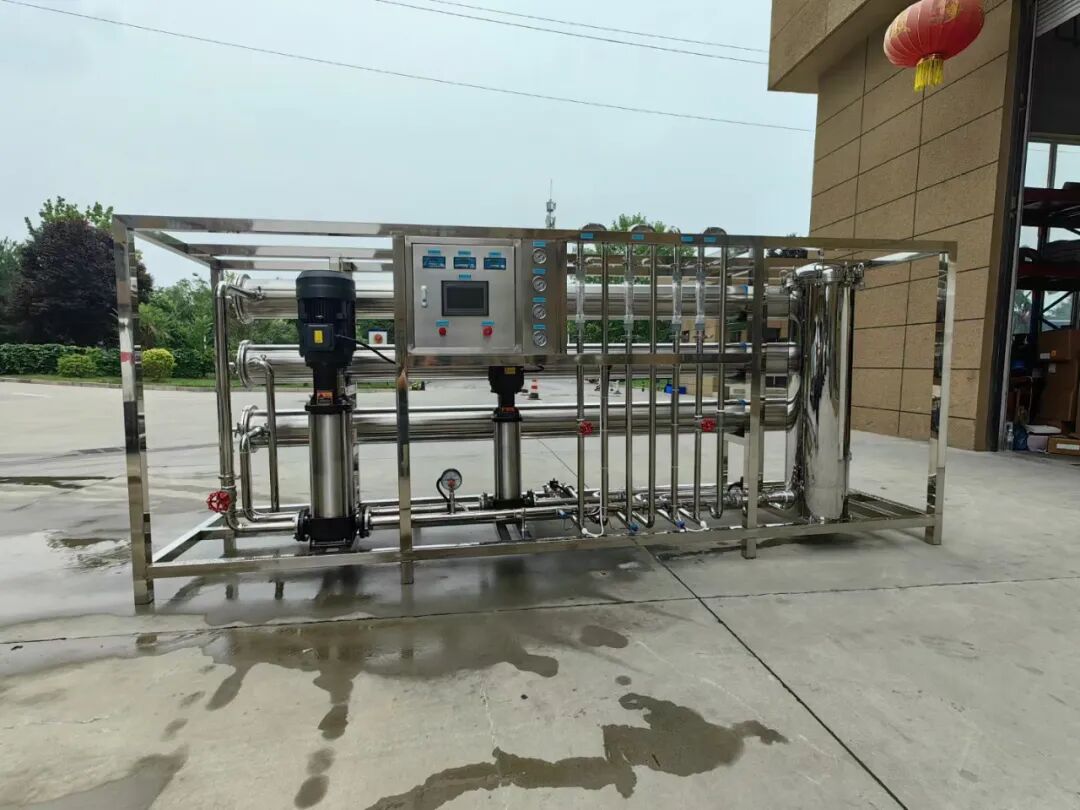

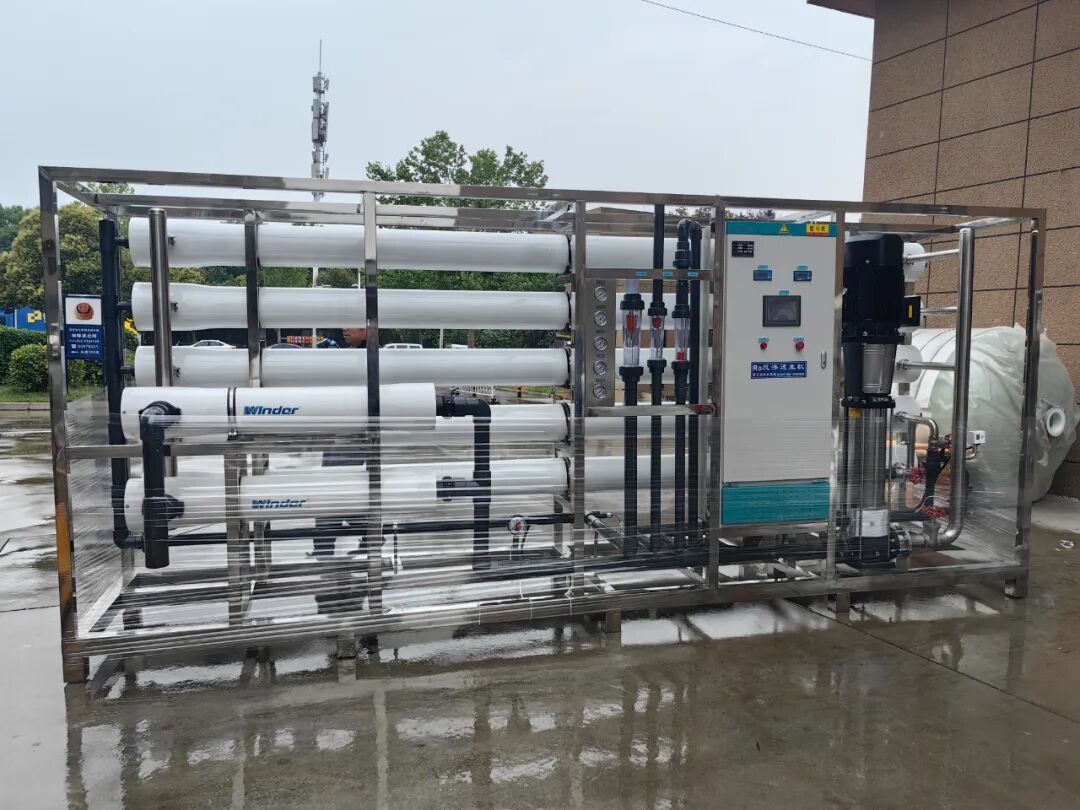

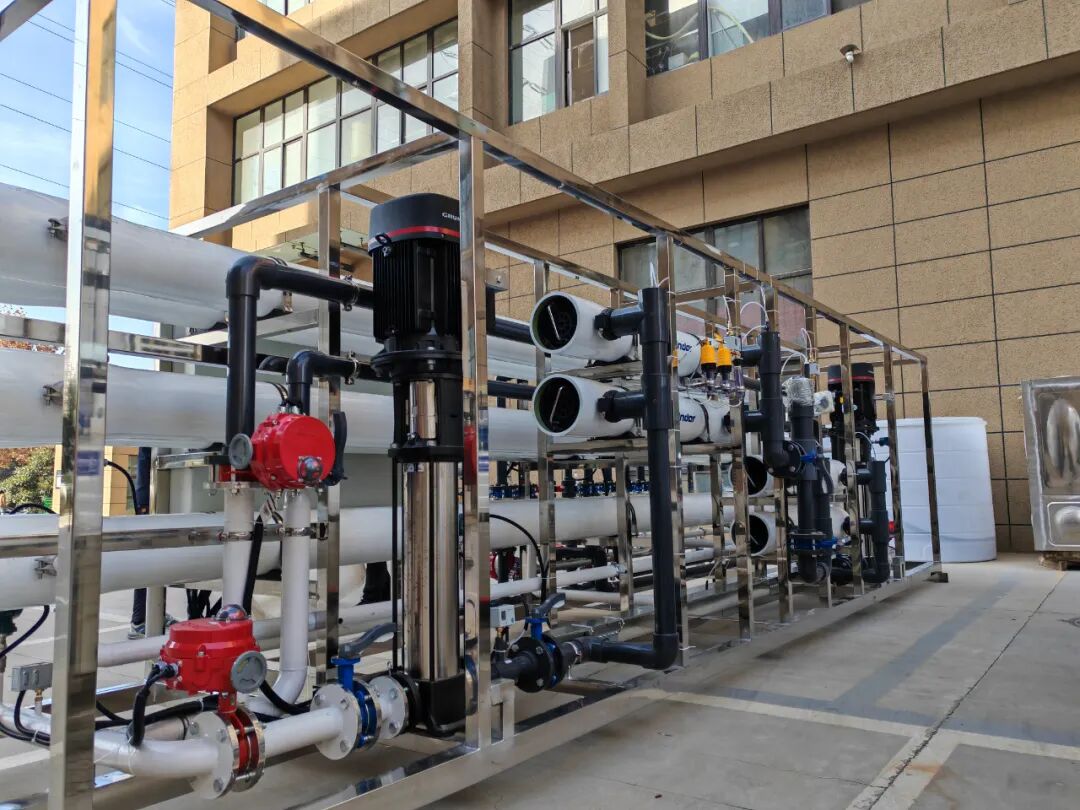

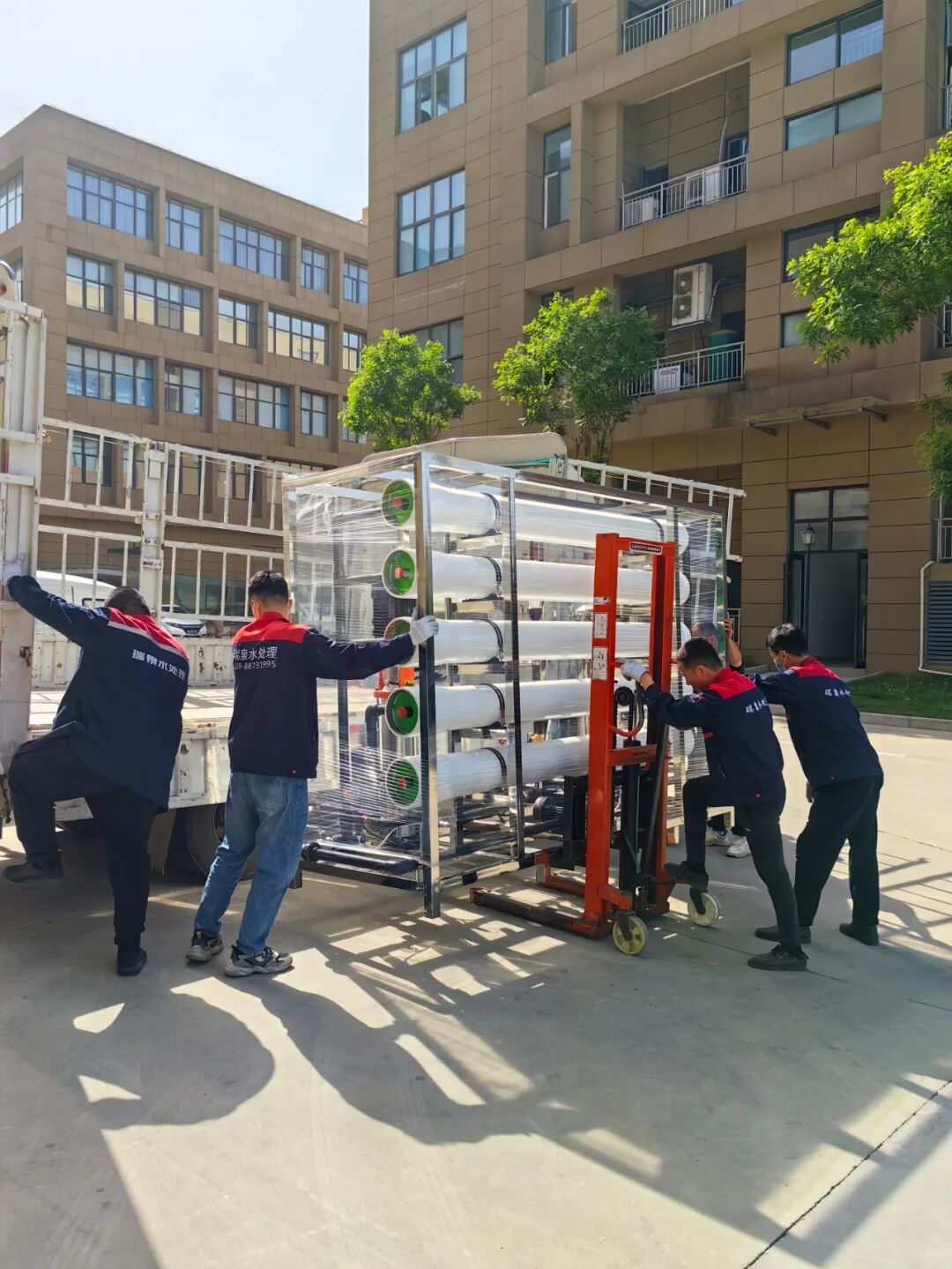

Reverse osmosis technology is the core processing unit of high-purity water equipment, using semi-permeable membrane technology to efficiently remove over 95% of dissolved salts, heavy metals, bacteria, and viruses from the water, bringing the output water close to pure water standards. Ruiquan uses internationally renowned brand reverse osmosis membrane components to ensure stable system operation, low energy consumption, and easy maintenance.
(3) Electrodeionization System (EDI)
EDI is a deep purification method that combines ion exchange and electrodialysis technology, capable of continuously producing ultra-pure water with a resistivity of up to 18.2 MΩ·cm without the need for acid-base regeneration, featuring environmental protection and energy-saving characteristics. Ruiquan’s EDI system adopts a modular design, which can be flexibly expanded according to customer needs to meet different production scales.
(4) Post-Treatment System (Configured as Needed)
To further enhance water quality, Ruiquan can also provide the following post-treatment processes:
- Ultraviolet Sterilization System: Kills residual bacteria in the water, ensuring microbial indicators meet standards;
- Ozone Disinfection System: Suitable for sterilization treatment of terminal water tanks and pipelines;
- Nitrogen Sealing System: Prevents impurities such as CO₂ from the air from entering the ultra-pure water;
- TOC Monitoring and Removal System: Effectively removes total organic carbon from the water, ensuring water purity.
Significant Advantages of Ruiquan Water Treatment Systems
1. Efficient and Stable, Ensuring Continuous Water Supply
Ruiquan water treatment systems adopt a modular design, operate stably, and can continuously supply water 24 hours a day, meeting the peak water demand of circuit board manufacturing enterprises and ensuring smooth production processes.
2. Automated Control, Easy Operation
The system is equipped with a PLC + touch screen control system, achieving fully automatic operation, real-time water quality monitoring, and fault alarms, allowing operators to manage easily without complex training.
3. Energy-Saving and Environmentally Friendly, Reducing Operating Costs
Ruiquan water treatment equipment adopts energy-saving design, optimizes water recovery rates, reduces wastewater discharge, and lowers energy consumption and manual maintenance costs, complying with national energy-saving and emission reduction policies.
4. Safe and Reliable, Ensuring Production Safety
All components in contact with water are made of food-grade stainless steel or sanitary-grade plastic, ensuring that the output water is free of heavy metals, bacteria, and pollution, meeting national drinking water and industrial water standards.
5. Customized Services, Flexible Adaptation
Ruiquan provides personalized customized solutions based on the scale of circuit board enterprises, product types, and water source conditions. Whether for small and medium-sized laboratories or large production bases, suitable solutions can be found.
Ruiquan Helps Circuit Board Enterprises Enhance Competitiveness
With the rapid development of the global electronics market, competition among enterprises is becoming increasingly fierce. Choosing the right high-purity water equipment is not only an important means to ensure product quality but also an effective way to enhance enterprise competitiveness.
Ruiquan Water Treatment Company helps circuit board enterprises gain significant advantages in the following aspects by providing efficient, stable, and intelligent high-purity water equipment:
1. Improving Product Quality
Through deep purification treatment, Ruiquan water treatment systems can ensure the purity and stability of production water, thereby enhancing the cleanliness and overall quality of circuit boards, increasing market competitiveness.
2. Ensuring Production Safety
Ruiquan systems are designed in strict accordance with national standards, and all components in contact with water are made of food-grade materials, ensuring that the output water is free of heavy metals, bacteria, and pollution, safeguarding production safety.
3. Reducing Operating Costs
Ruiquan water treatment equipment adopts energy-saving design, combined with efficient membrane systems and intelligent control systems, effectively reducing energy consumption and operating costs while minimizing manual maintenance expenses.
4. Supporting Diverse Product Development
Different types of circuit board products have varying requirements for water quality. Ruiquan’s mineralization adjustment system can precisely control the mineral content in the water according to customer needs, meeting various product formulation requirements and assisting enterprises in developing diverse product lines.
Conclusion
In the production process of circuit boards, water quality is not only the foundation of production but also the key to ensuring product quality and enterprise competitiveness. With the increasing support from the government for high-tech industries and the growing consumer demand for high-performance electronic products, circuit board enterprises must start from the source to ensure that every drop of water meets high standards.
Ruiquan Water Treatment Company, with its professional technical strength, rich industry experience, and comprehensive service system, is committed to providing efficient, stable, and intelligent high-purity water solutions for circuit board enterprises. In the future, Ruiquan will continue to deepen its efforts in the water treatment field, continuously optimizing technology and services, providing green, intelligent, and sustainable water guarantees for more high-tech enterprises, and helping China’s electronic manufacturing industry move towards a new stage of higher quality and higher standards of development.
In addition, Ruiquan Water Treatment Company also emphasizes user experience and service support, with an experienced technical support team capable of providing customers with one-stop services from project consultation, solution design, equipment installation and debugging to after-sales maintenance. Whether in the early stage of demand analysis or in the later stage of operation and maintenance support, Ruiquan Water Treatment Company is dedicated to creating maximum value for customers and becoming a trusted partner.
