High-End Control
Dual-Core DSP Chip
To meet the application needs of the new generation of equipment systems for high-end control DSP chips, the Beijing Institute of Microelectronics has launched the independently developed B320F28379D type control 32-bit dual-core floating-point DSP chip. This product has powerful processing capabilities, rich peripherals, and is fully compatible with both hardware and software of similar foreign products. It can achieve programmable digital signal processing and advanced real-time closed-loop control applications, playing a crucial role in high-speed computation and real-time control in electronic systems of high-end equipment, significantly enhancing the complex computational capabilities and real-time closed-loop control capabilities of electronic systems. The product’s performance is at the leading level in China.
B320F28379DNYB
B320F28379DNNB
B320F28379DNBB
Specifications
● Dual-Core Architecture:
C28×CPU(FPU/TMU/VCU-II)+CLA;
● Peak Performance:
800MIPS/400MFLOPS@200MHz;
● Operating Frequency:
200MHz;
● 2 CLAs execute code independently of the main CPU;
● 1MB FLASH and 204KB SRAM;
● System Peripherals:
EMIF*2, 6-channel DMA*2, GPIO*169;
● Communication Peripherals:
USB2.0(MAC+PHY), uPP, CAN*2, SPI*3 (up to 50MHz), McBSP*2, SCI/UART*4, I2C*2;
● Analog Subsystem:
16-bit/12-bit configurable ADC*4, analog comparators*8, 12-bit buffered DAC*3;
● Enhanced Control Peripherals:
PWM*24, HRPWM*19, eCAP*6, eQEP*3, Δ-Σ SDFM*8;
● Four configurable logic blocks (CLB);
● Supports various low-power modes;
● Core voltage 1.2V, I/O voltage 3.3V;
● Power consumption <1W;
● Fully compatible with foreign benchmark devices, allowing for in-situ replacement;

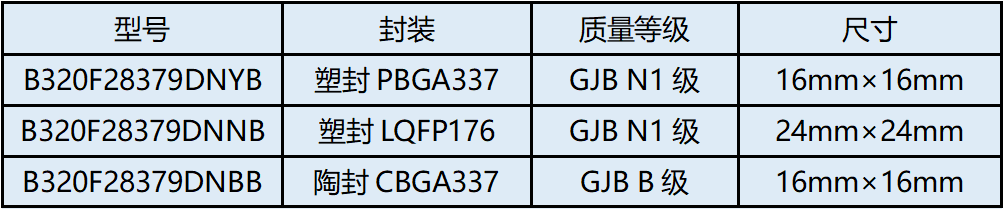

● Package and Quality Grade:
Application Scenarios
Medium/short-range radar, inertial systems, motor drives, servo control, airborne equipment, underwater countermeasure equipment, and other applications requiring high-speed computation and real-time control.
Our Advantages
● More Advanced: Leading in China, meeting the application needs for upgrading high-end equipment;
● More Secure: Independently developed, eliminating risks associated with imported components;
● More Convenient: We have a comprehensive product line, providing one-stop solutions and a full set of components;
● More Professional: Offering comprehensive development environment support and after-sales assurance.
If you need further information, we can provide product manuals, sample trials, development boards, and various technical support for the development environment. We are dedicated to serving you.
